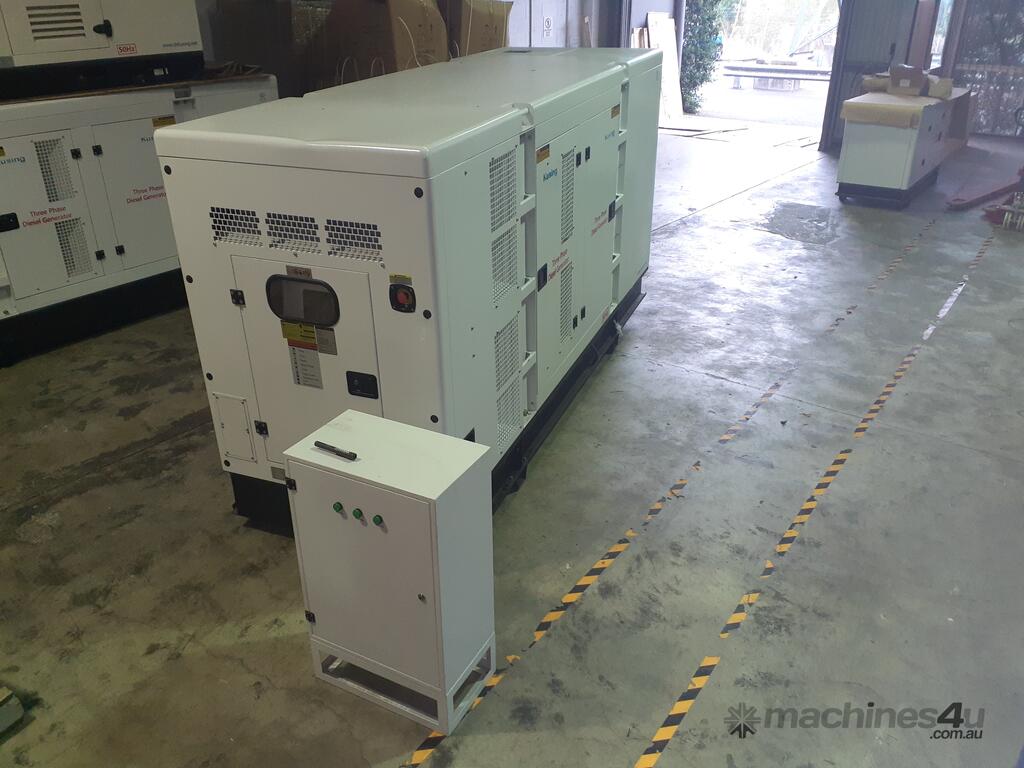

175KVA Silenced Diesel Generator 415V

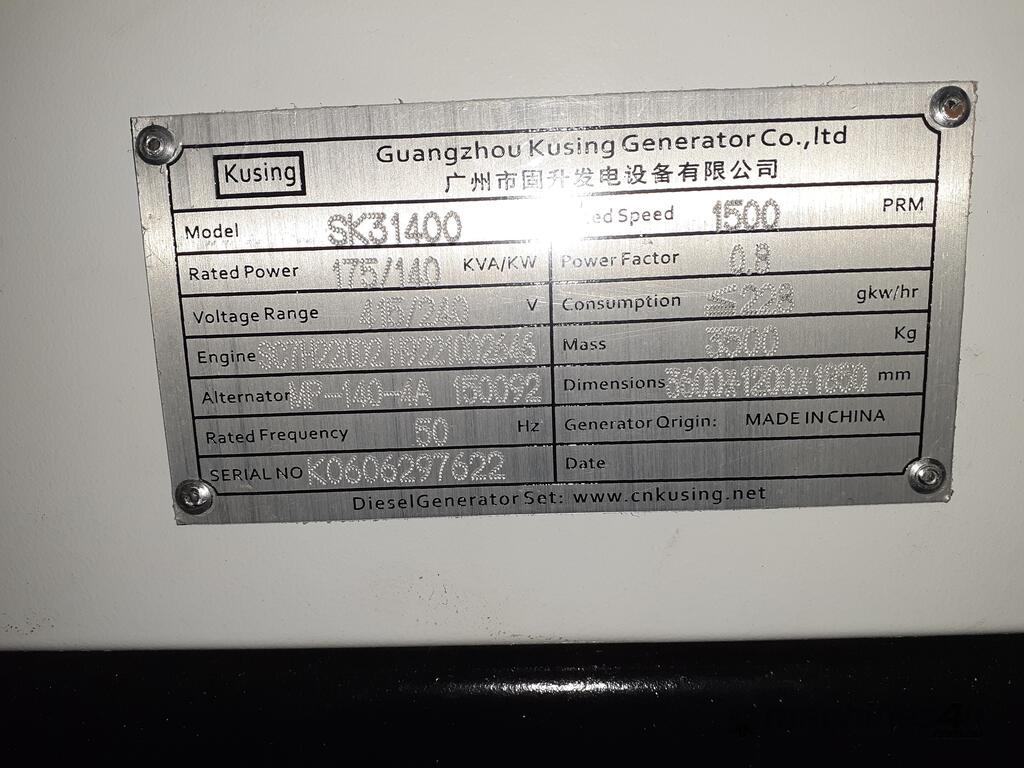

Generator Model SK31400
Prime Power 175KVA
Standby Power 192.5KVA
Rated Current 244 Amps per phase

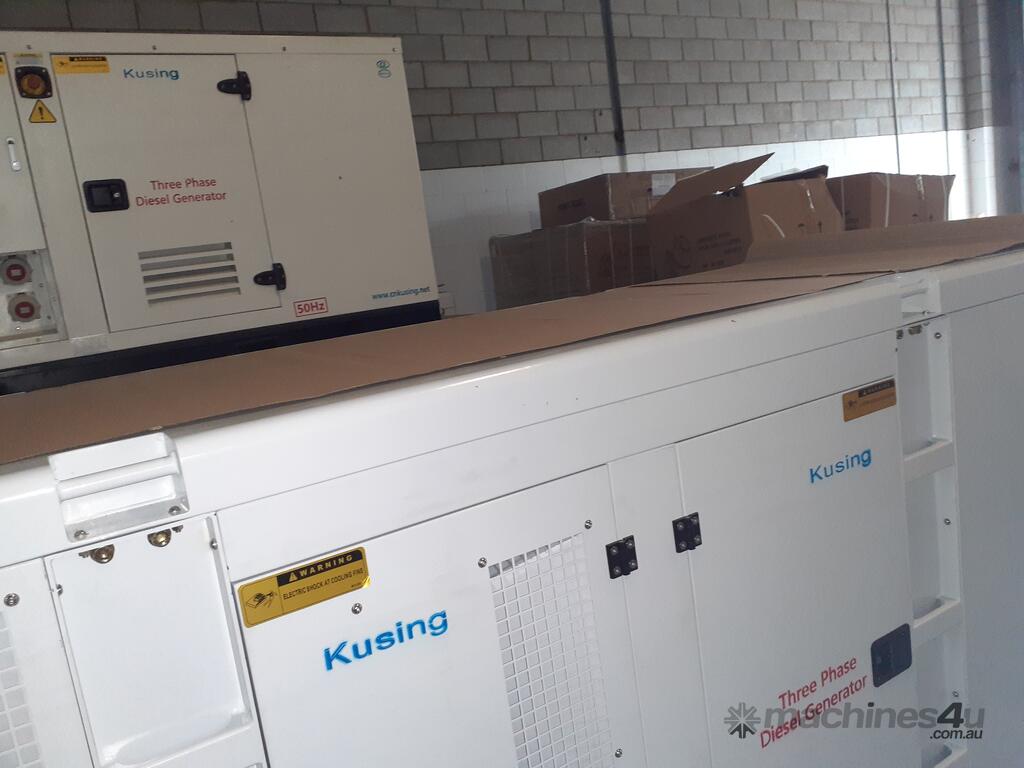

Canopy Silenced

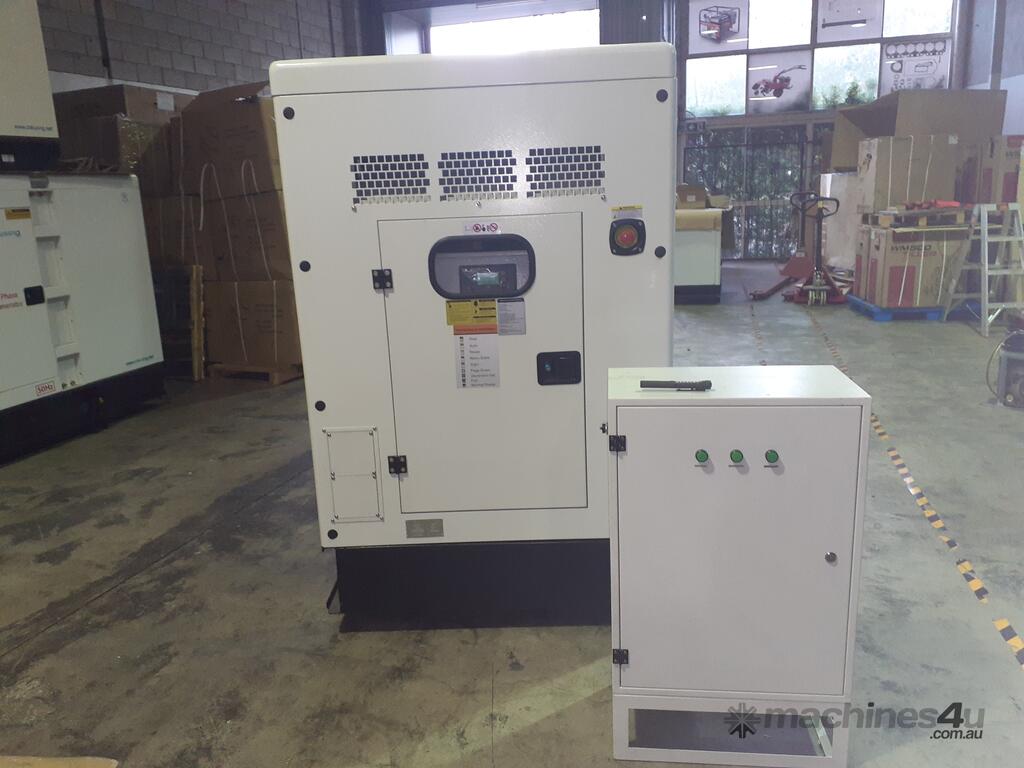

ATS (Auto Transfer Switch) Optional (add $3600)
Fuel Tank Capacity Est. 500 Litres
Noise Level 80dB 7m

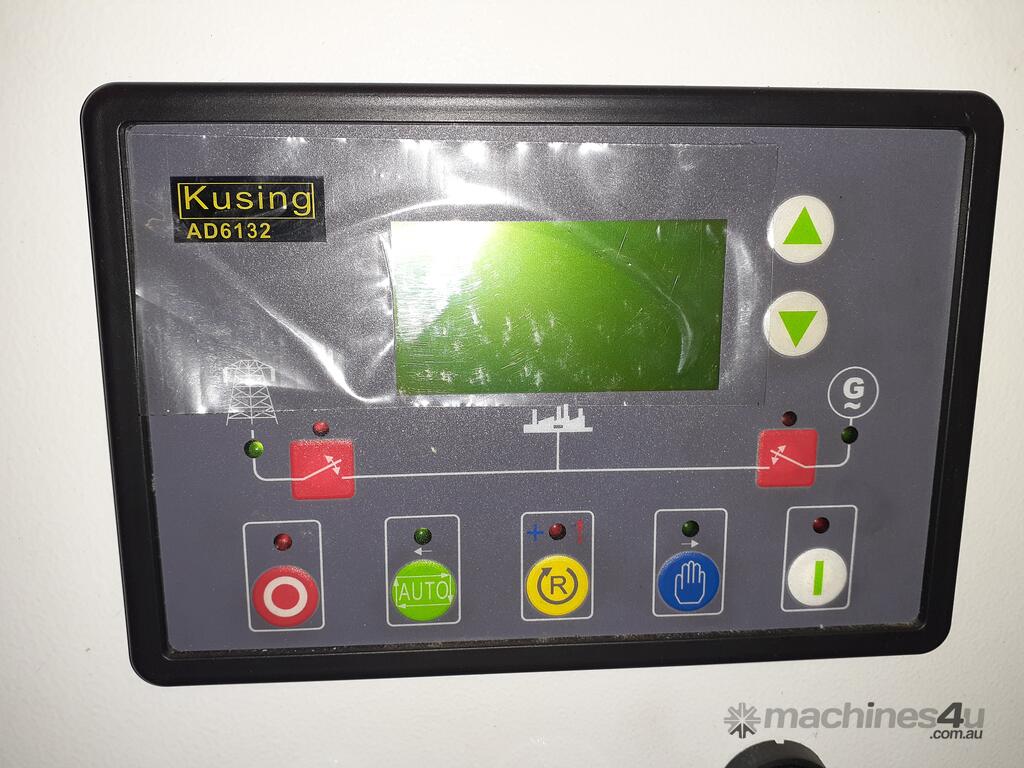

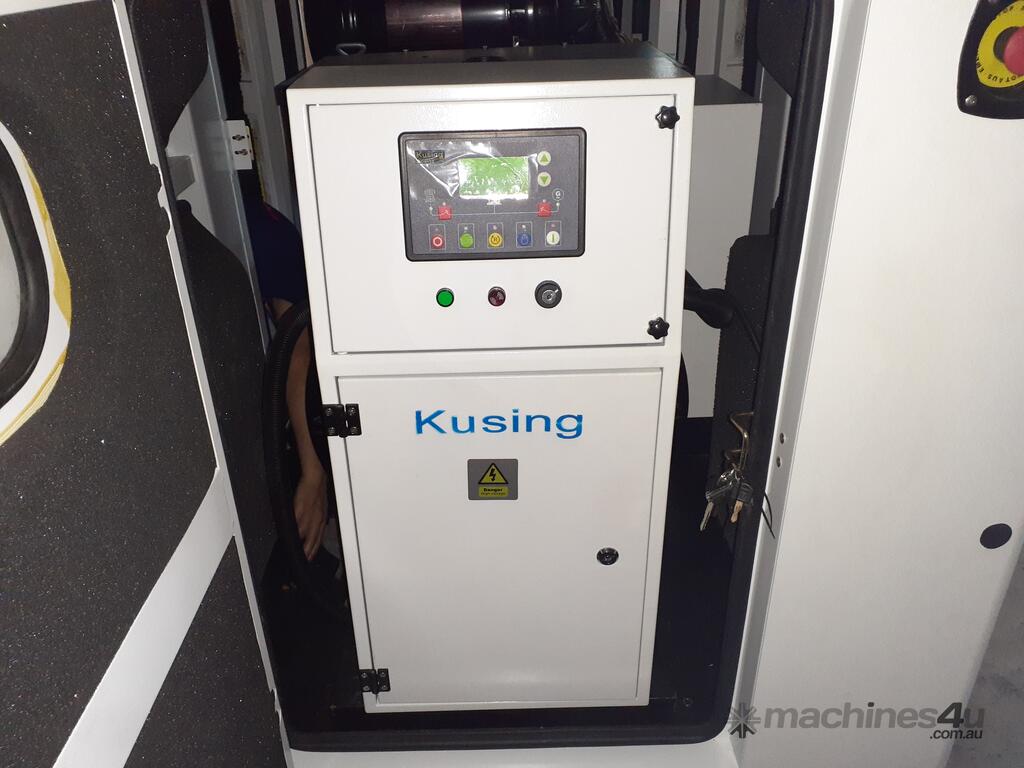

Controller Kusing AD6132
Main Breaker Switch 400A
Internal Protection IP21
Dimensions 3600L x 1200W x 1850H mm
Weight 3500kg

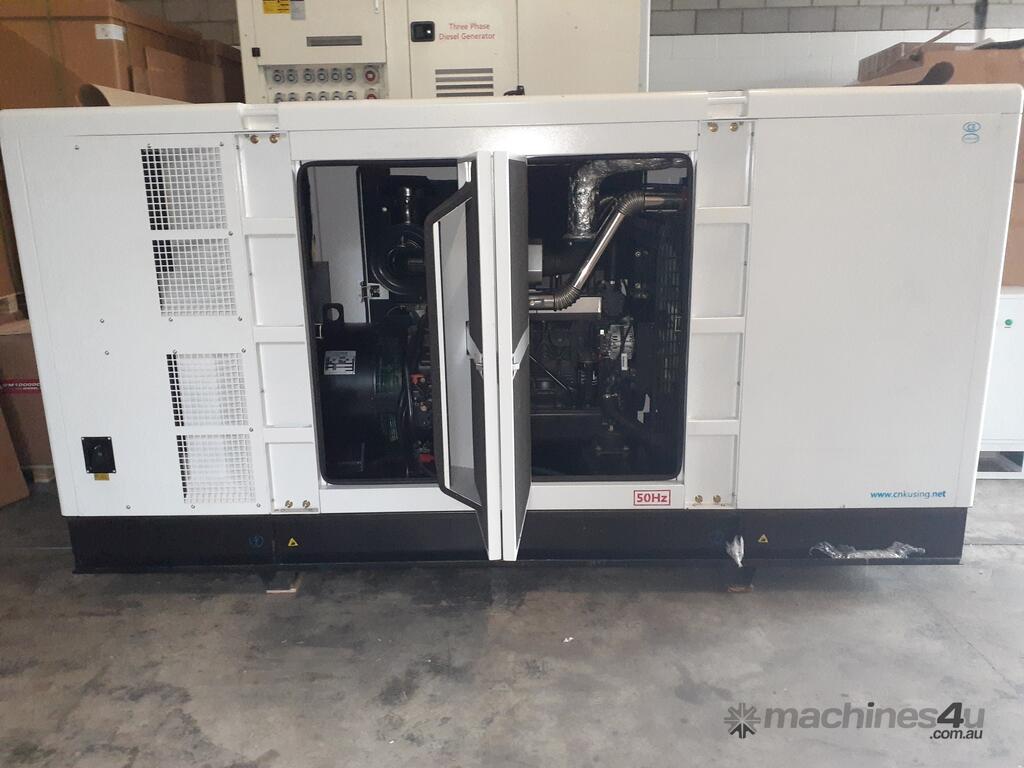

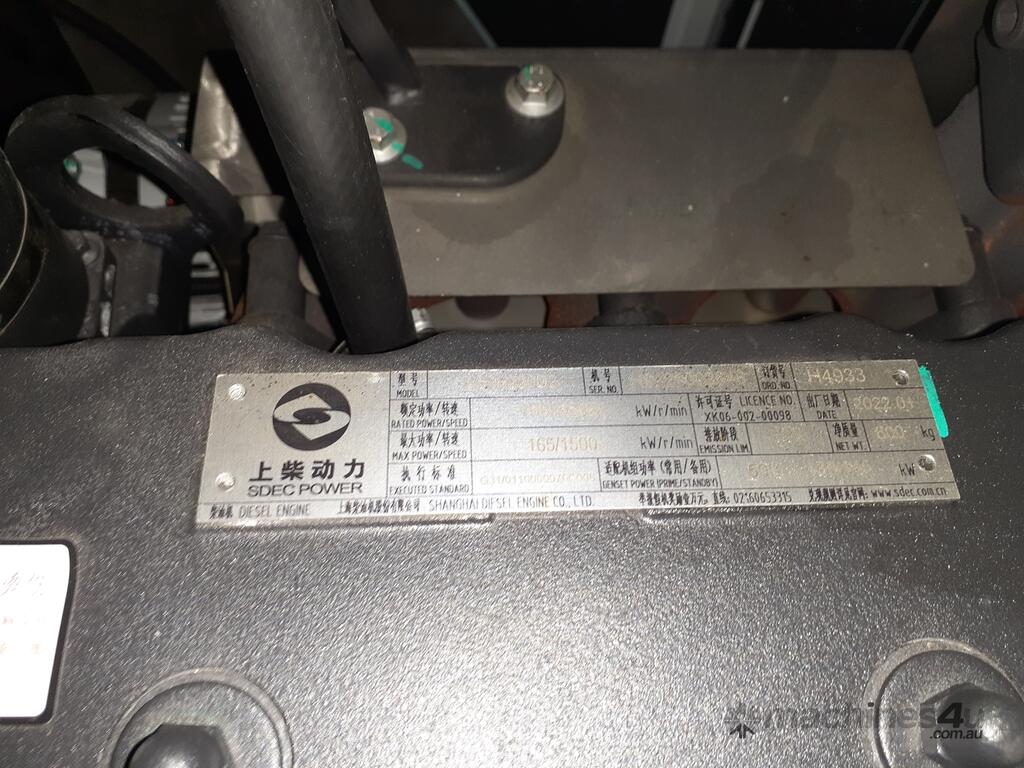

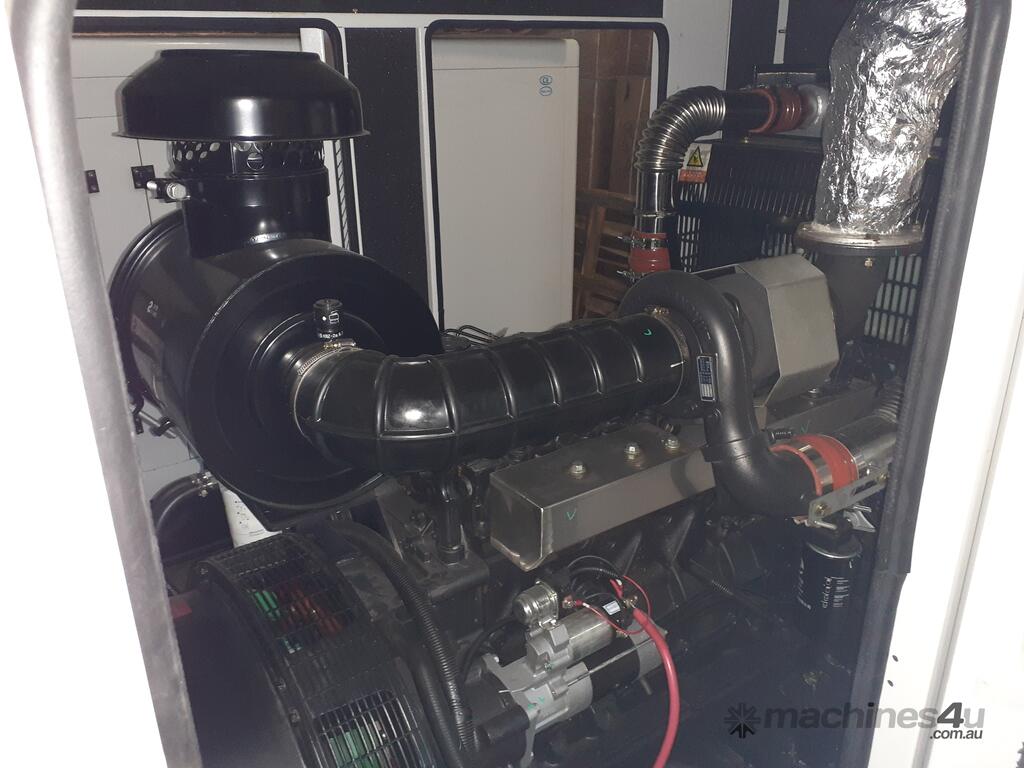

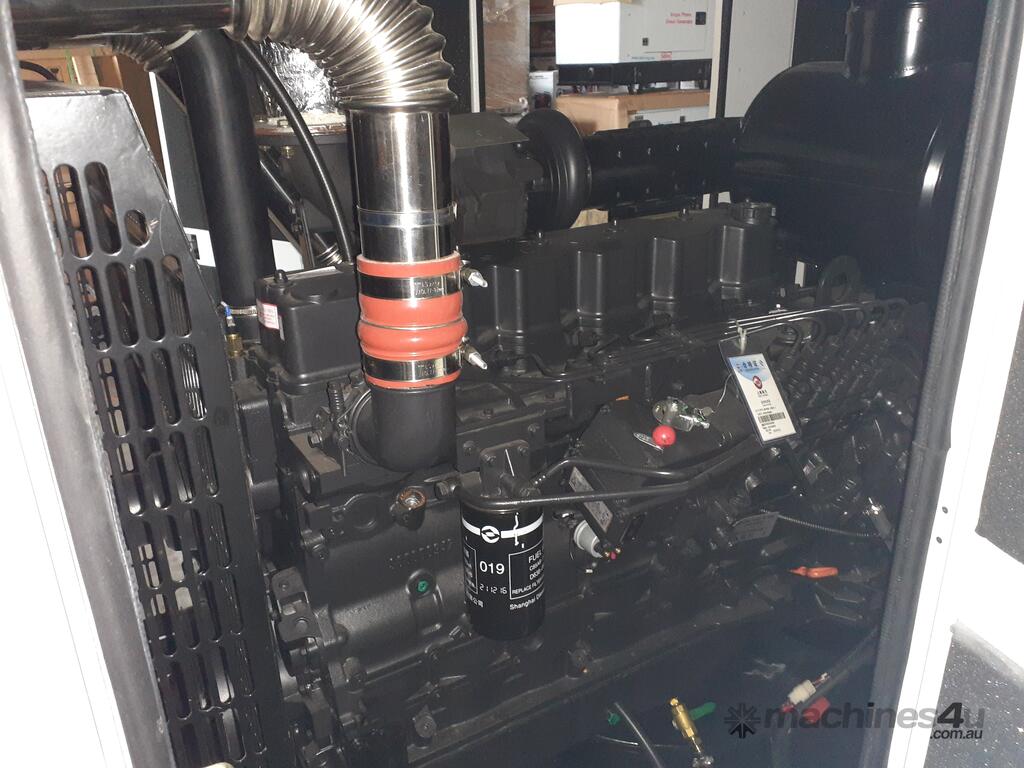

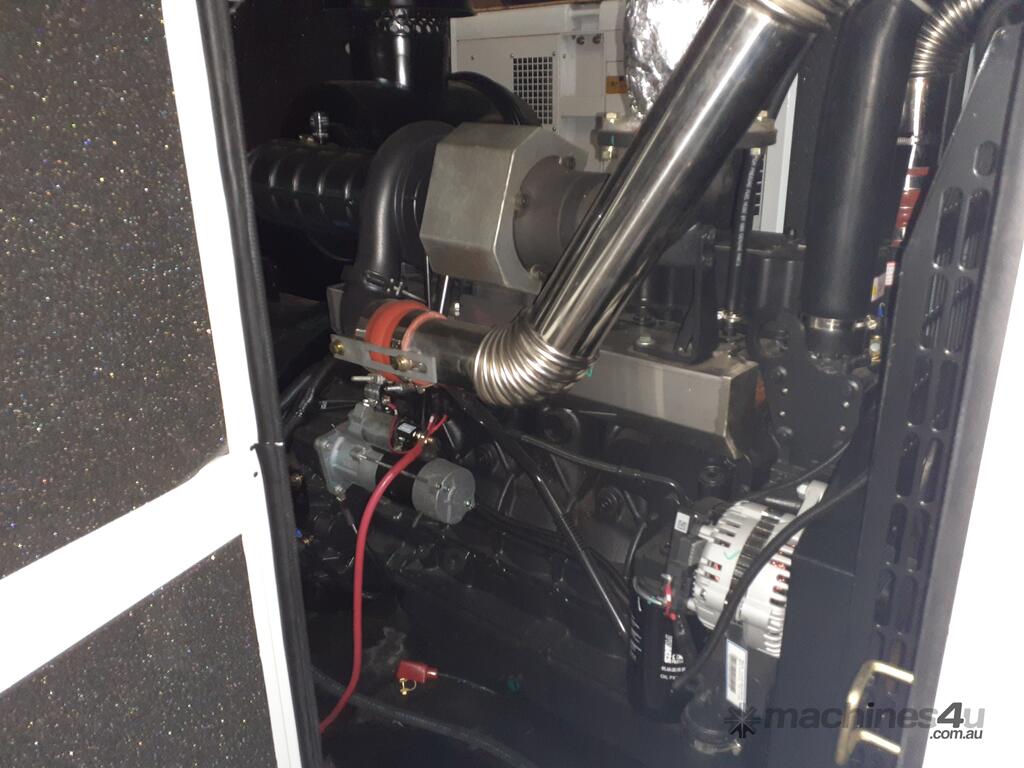

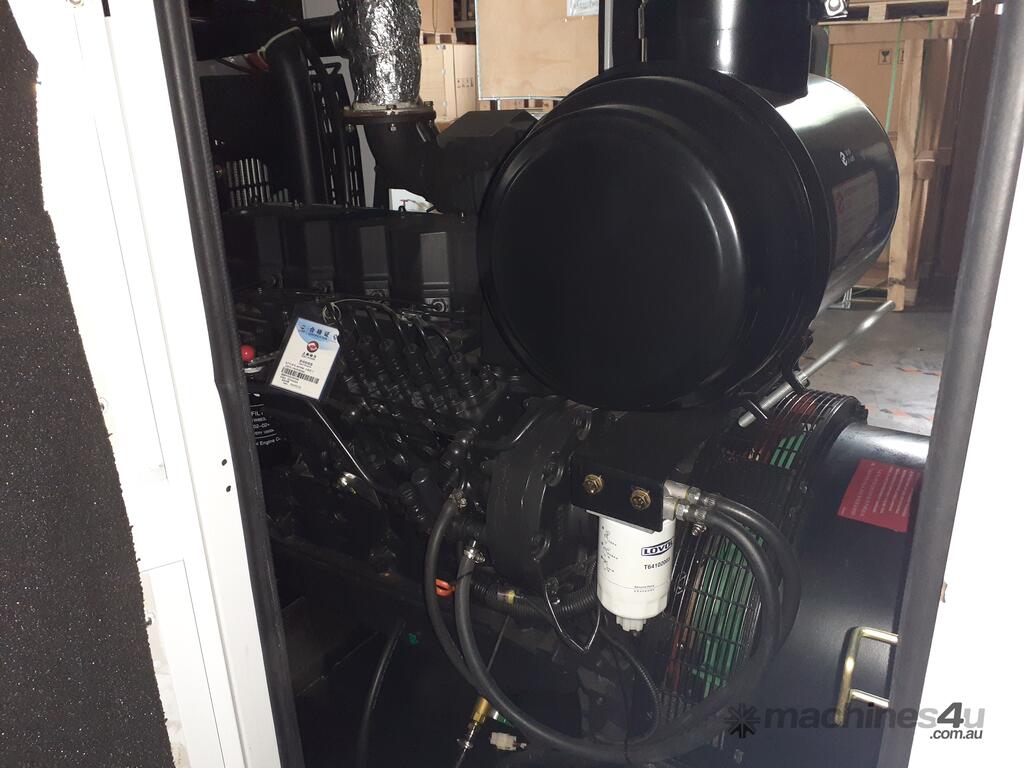

Engine Make SDEC
Engine Model SC7H22002 H
Bore ***
Stroke ***
Air Aspiration Turbo Charged
RPM 1500
Speed Governor Electronic
Start System 24V
Fuel Consumption Est. 34-38 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity Est. 30 Litres
Coolant Capacity Est. 30 Litres

Alternator Make Marathon
Alternator Model MP-
Voltage 415V
Phase 3 phase
Frequency 50Hz 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance +/- 1%
Insulation Class H


Main Features

• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.

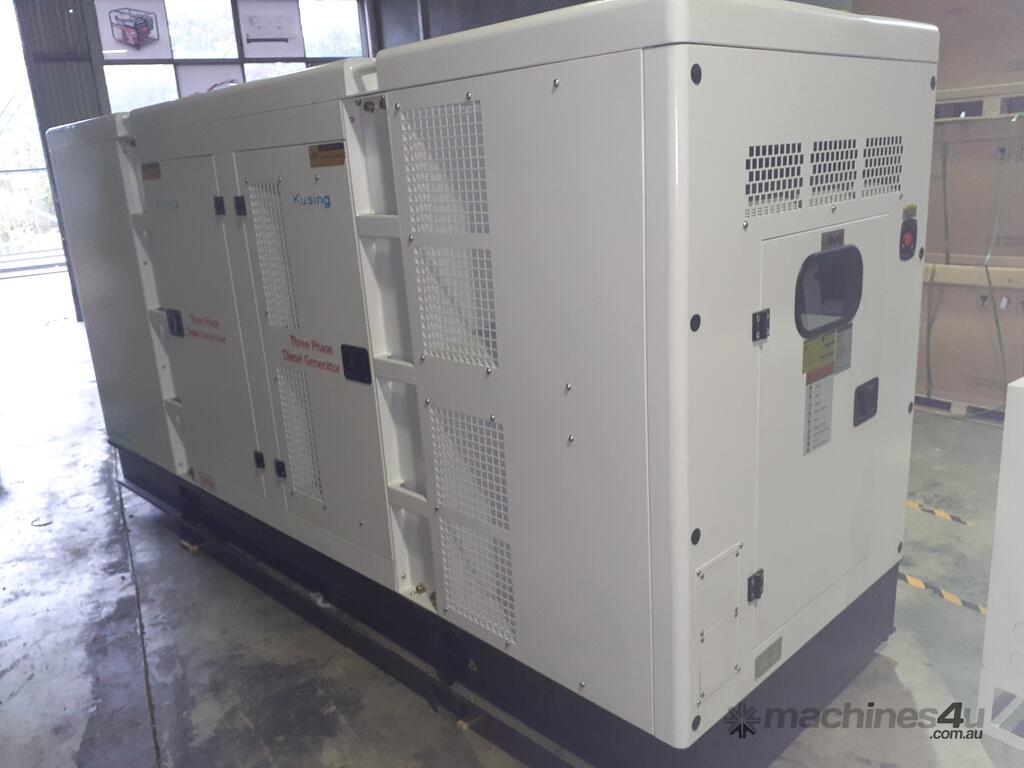

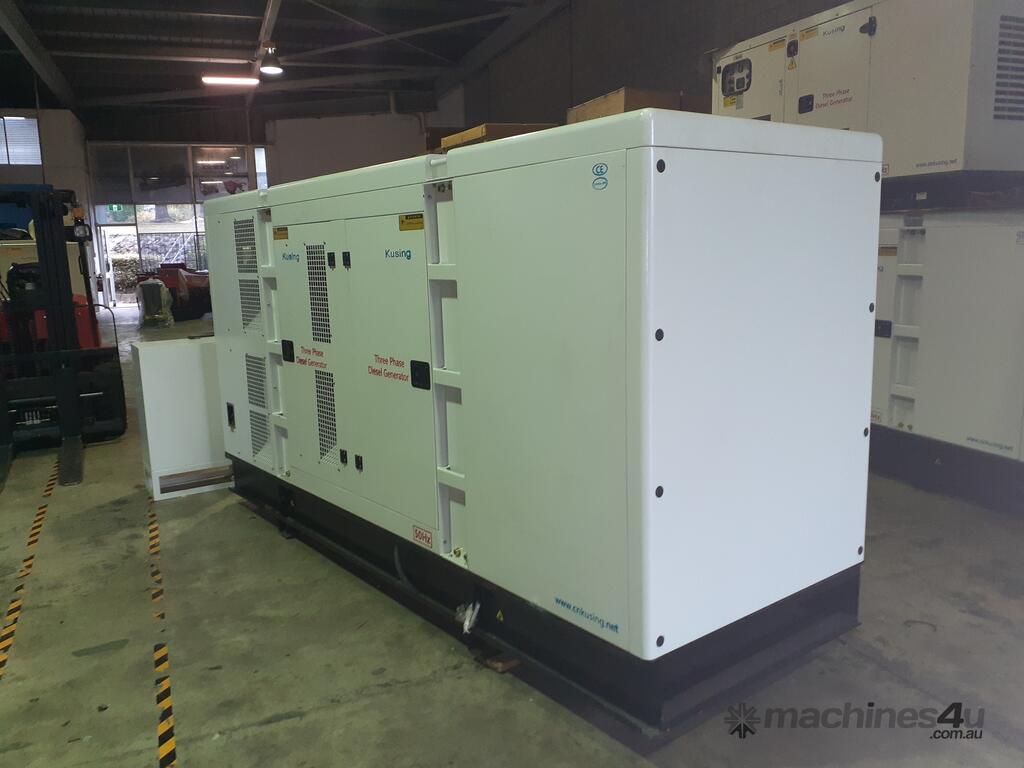

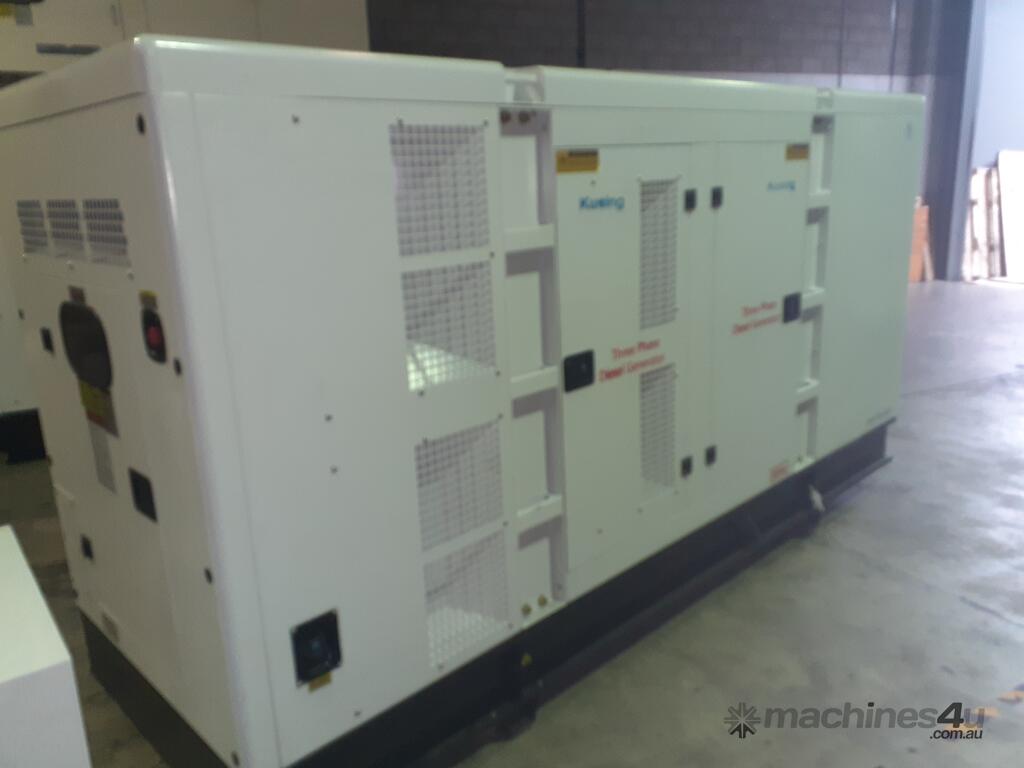

• Strong weatherproof silent canopy with various lifting locations
• See full spec sheet among photos.

Recommendations

• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your electrician for advice).
• Compatible for stationary and transportable use.

Safety Features

• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection

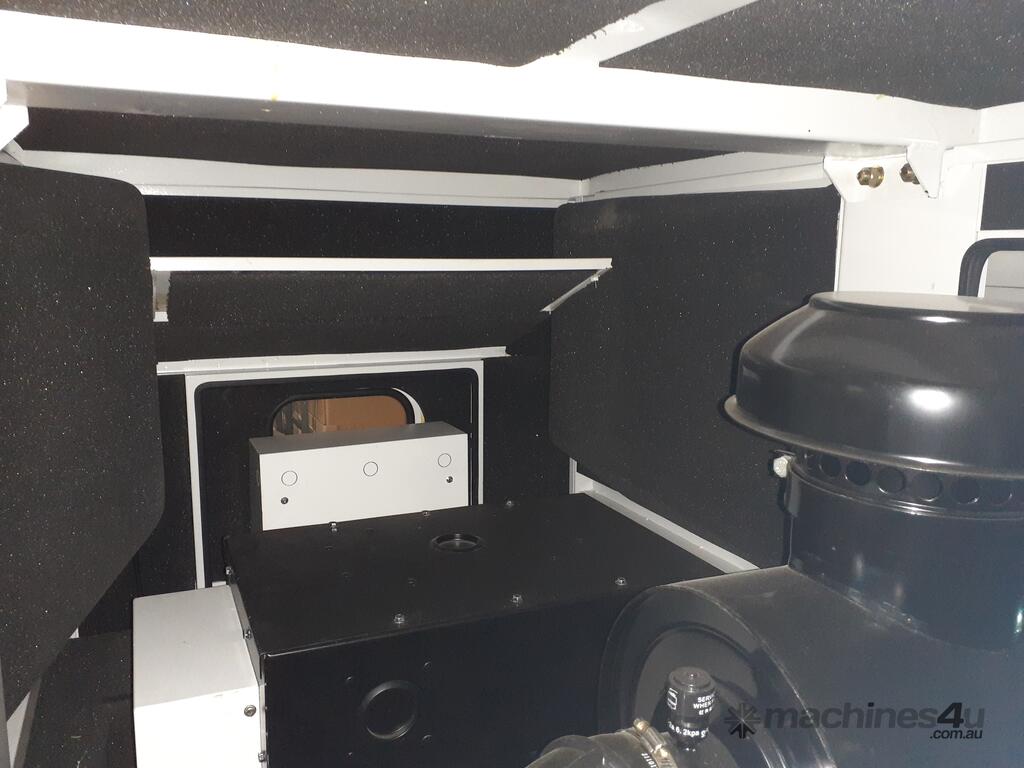

• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)


Warranty

All of our industrial diesel generators come with a standard 12 month/1000 hour warranty. Expert presales advice and after sales service provided by a real person and no frustrating computer answering nonsense.


Why you should buy from Wellku Power

Wellku Power Pty Ltd have been manufacturing diesel generators worldwide for over 15 years. Our factory currently produces industrial diesel water-cooled machines from as small as 8KVA up to 3000KVA or more.

Wellku Power focus mostly on manufacturing their generators using premium brand components like Cummins engines, Stamford alternators and a variety of popular brand Controllers. We also sell less expensive machines using our Kusing brand components which give customers great value for money whilst maintaining a reliable source of prime & standby power.

All generator sets have gone through rigorous testing before being released to the marketplace, including 50% load, 75% load, 100% load, 110% load.

If you require a custom build to meet specific requirements, we are your supplier who can provide exactly what you want.

Wellku Power offer attractive wholesale pricing discounts for bulk orders & and discounted prices for repeat customers.


Shipping

For a shipping price to deliver to your location, please contact us on or sales1wellku
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
For all deliveries, we recommend delivery to your nearest major centre for depot collection.
