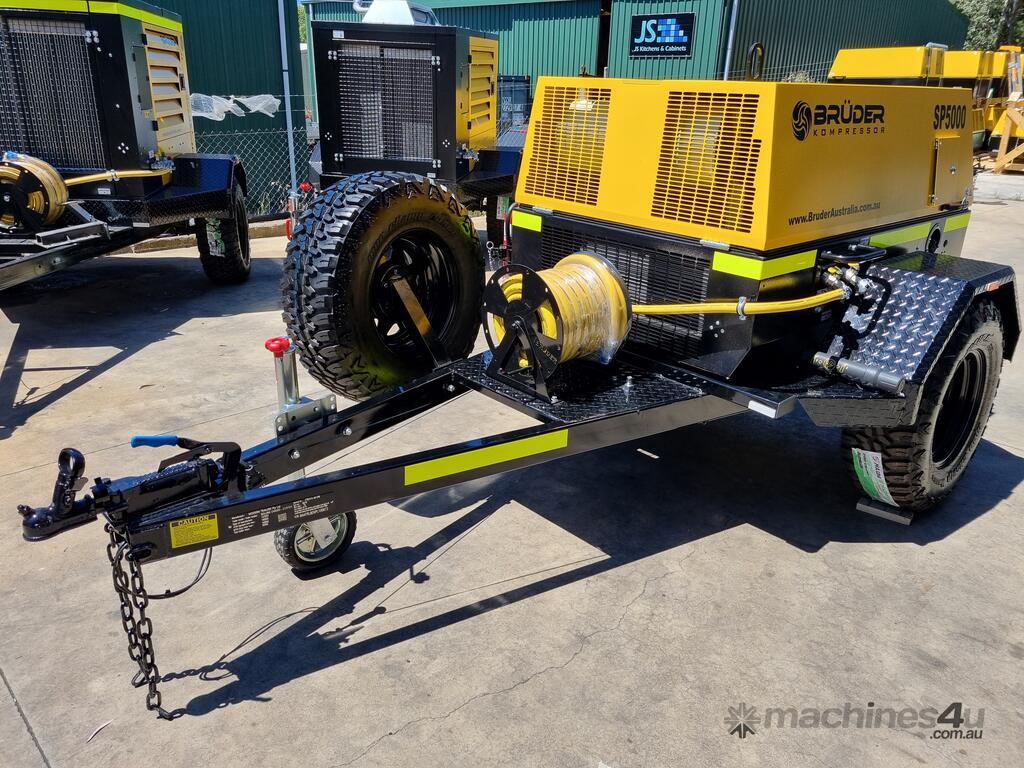

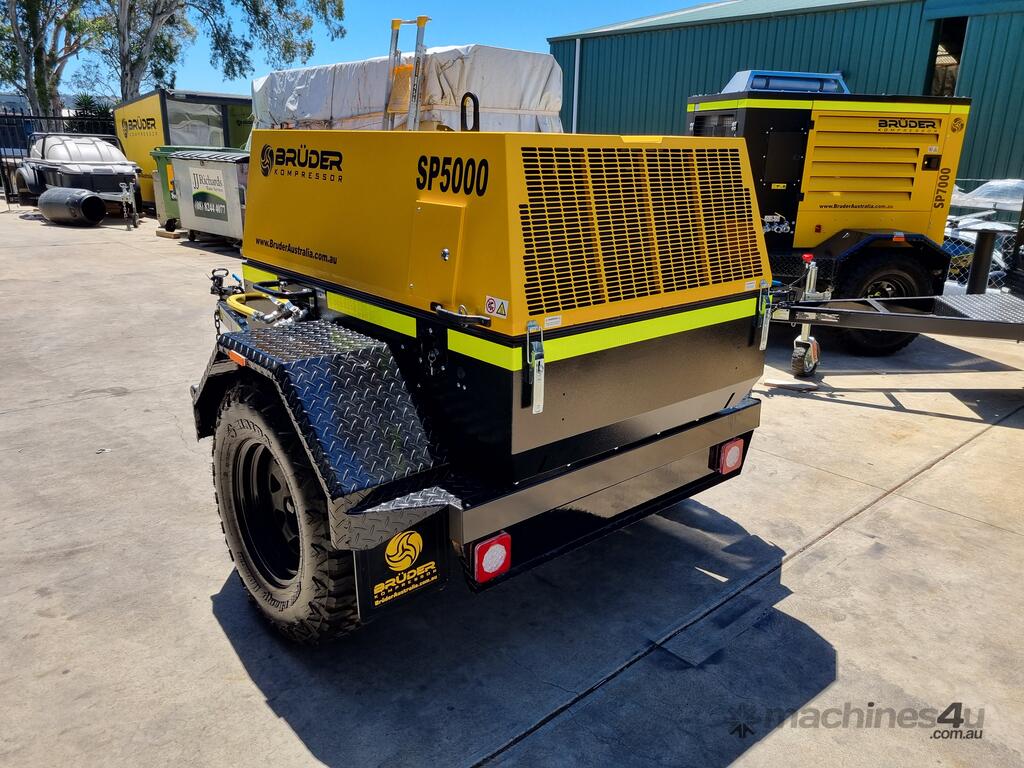

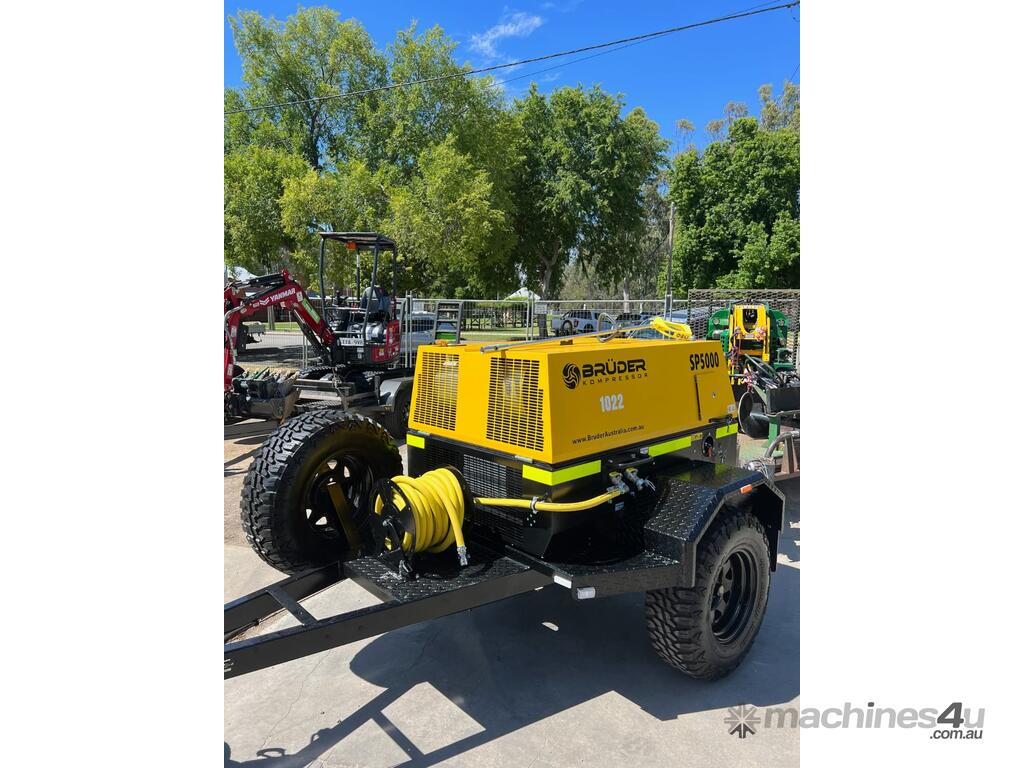

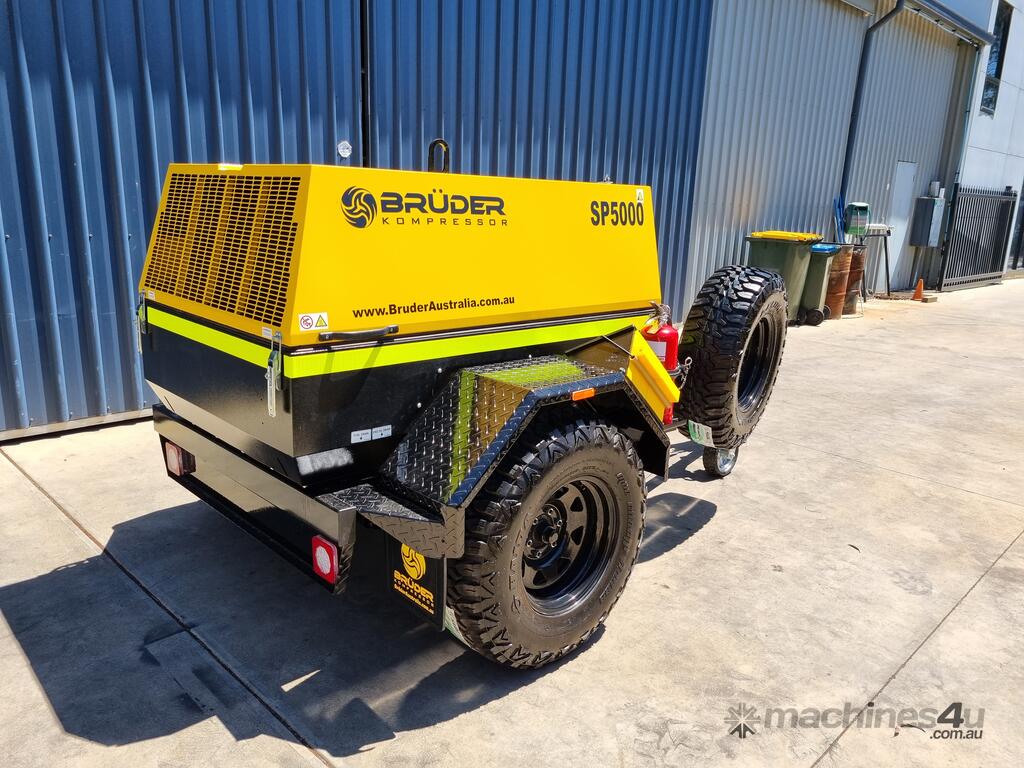

176CFM Rotary Screw Compressor, Diesel Driven, Mounted on Heavy Duty Trailer

Our Brüder SP5000 is based off our most popular compressor which has been developed in response to the growing need for a dependable, tough and practical machine for use in some of the world's most demanding applications and environments for air compressors.

Compact yet powerful, the SP5000 Kubota-driven rotary screw compressor pumps out 176 cubic feet per minute – the ideal flow rate for effective use in many applications in road construction, civil, and earthmoving industries. With a unique cooling system and filters designed for hot and dusty conditions, the Brüder SP5000 thrives in high ambient temperatures, ensuring reliability during long, hot days on the job.

QUICK SPECS:
Free Air Delivery: 176cfm (5m3/min)
Working Pressure: 7 bar (101 PSI)
Engine: Kubota V1505-T Turbo Diesel
Engine Rated Power at 3000RPM: 36.4 HP (27 kW)

SUPERIOR COMPRESSOR FEATURES:
Single piece steel canopy – for easy access to all service parts
Vertical top exit exhaust – reduces fire risk
Extra long drawbar, heavy duty jockey wheel – easier to maneuver
Unique airflow design and firewall – provides optimal cooling in high ambient temperatures
Side mounted valves and outlets – for operator safety and ease of access
Kubota turbo diesel – lightweight, compact, reliable, and powerful with established service network
IntelliDrive Nano – user friendly digital control system to protect and regulate compressor
70 litre poly fuel tank – longer running hours, visible fuel level

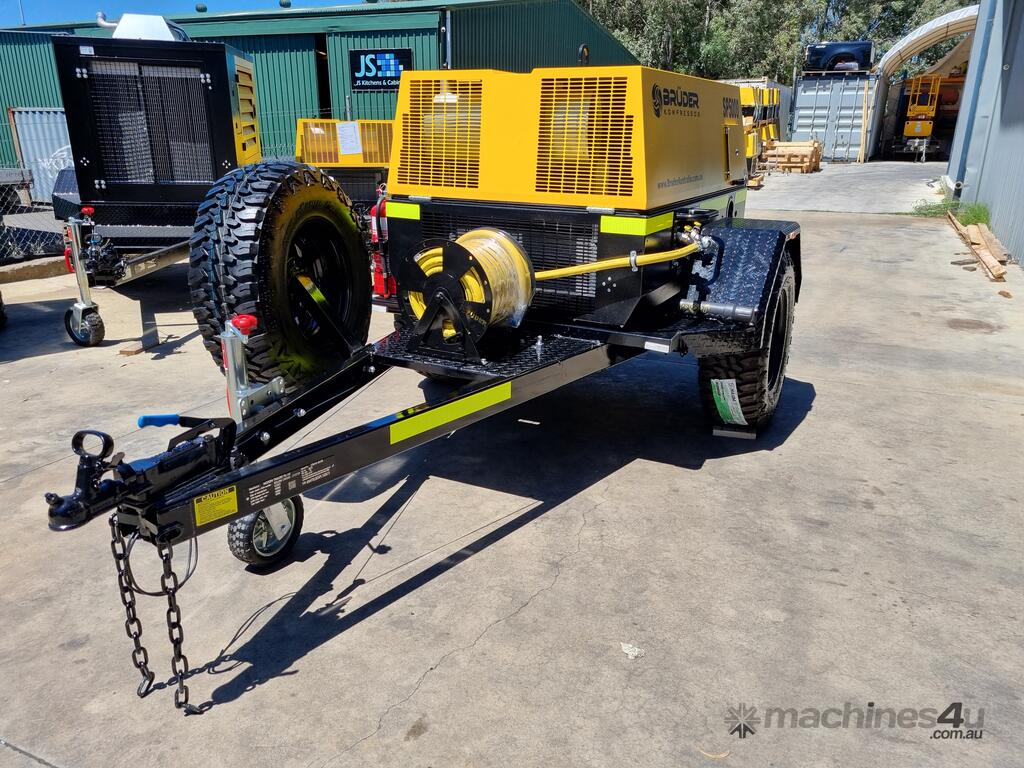

Heavy duty trailer, specifically designed for harsh environments with features like off-road springs, welded steel wheel arches, high ground clearance, and brakes, plus a generous platform on the front for mounting accessories

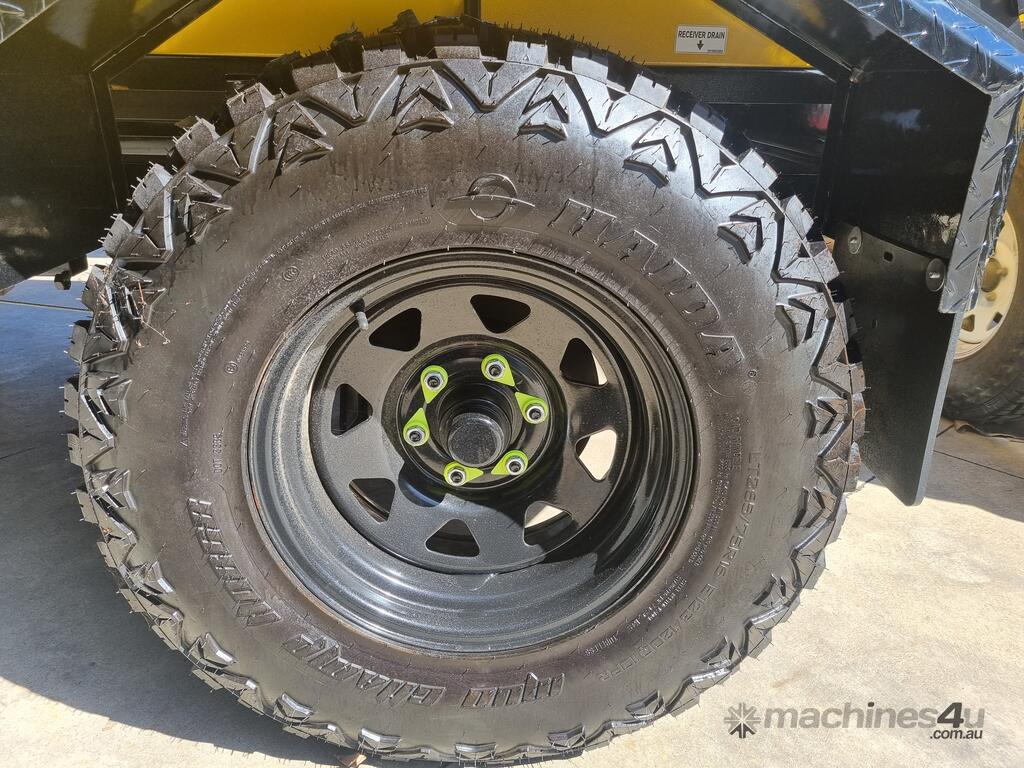

Large steel wheels with all-terrain tyres and a spare included as standard
Spin-on filters – easy servicing and replacement
Reflective tape - high visibility on site

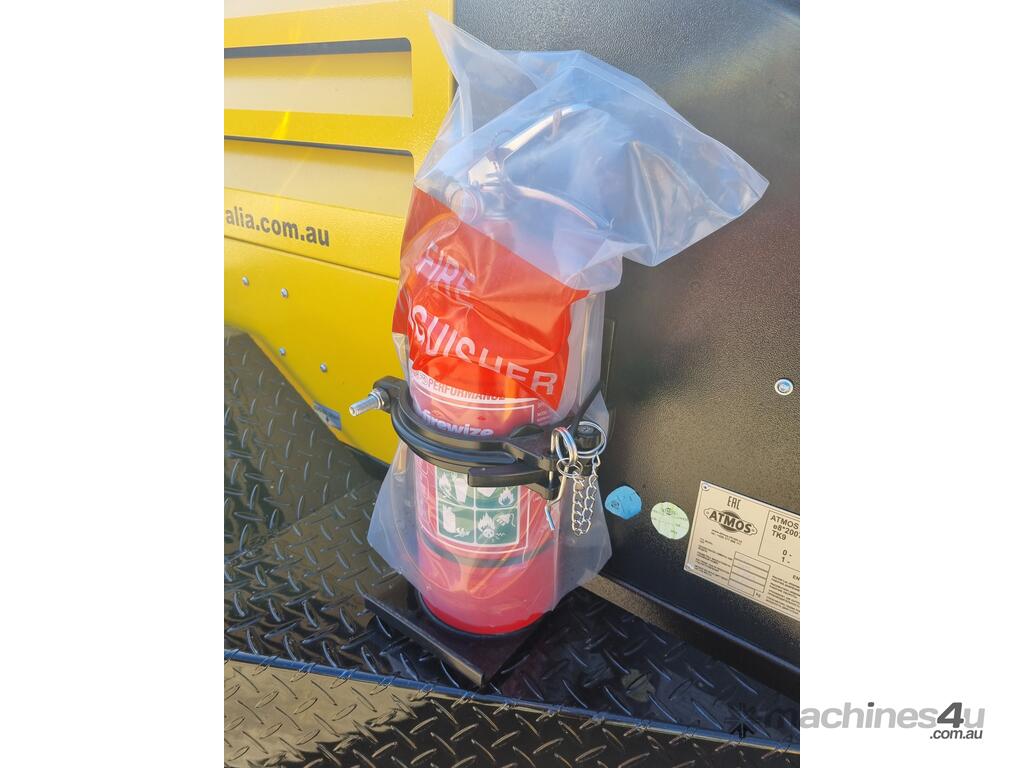

Fire extinguisher installed in a prominent location for ease of deployment in emergency situations
Wheel nut indicators - quick and easy visual indication

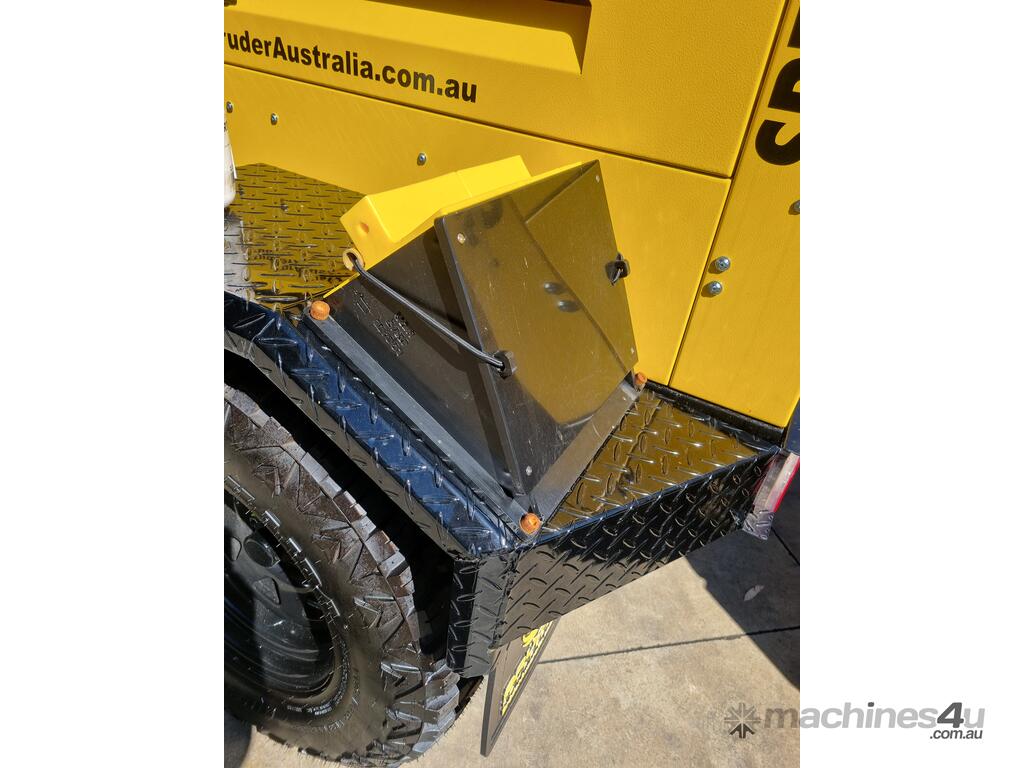

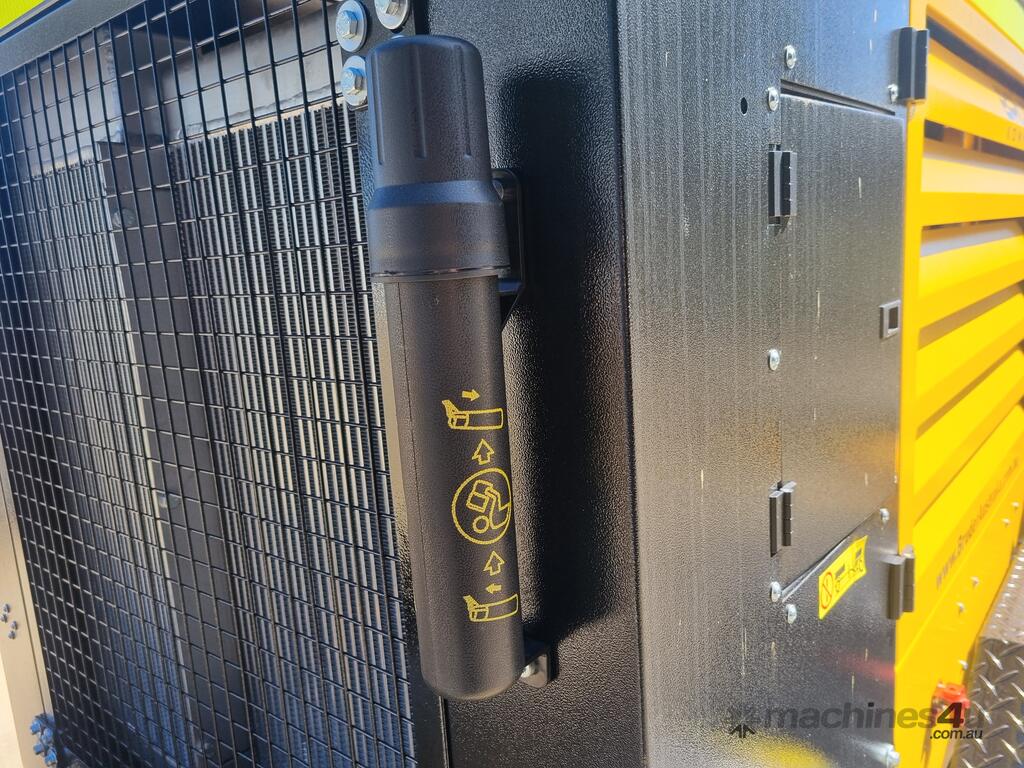

External operating manual holder - easy access
External lockable battery isolator for safety and security

TECHNICAL PARAMETERS:
SP5000 (7 bar)
Air end: B100
Nominal capacity [m3/min]: 5
Nominal overpressure [bar]: 7
Safety valve setting [bar]: 10
Ambient temperature [C]: -10 to +50
Max outlet temperature [C]: 110
Cooling system: Oil injection
Compressor oil filling volume [Litres]: 7.2
Max oil system temperature [C]: 110
Max oil system pressure [bar]: 8.6
Outlet valves: 2 x G3/4" BSP

ENGINE DETAILS:
Type/Model: Kubota 1505-T
Cylinders: 4
Load speed [rpm]: 3000
Idle speed [rpm]: 1500 ± 50
Oil filling volume [Litres]: 6.7
Fuel tank volume [Litres]: 70
Coolant filling volume [Litres]: 4
Battery [V/Ah]: 12/44

NOISE EMISSIONS:
Sound power level LWA [dB(A)/pW]: 98
Sound pressure level LPA [dB(A)/20 uPa]: 78
