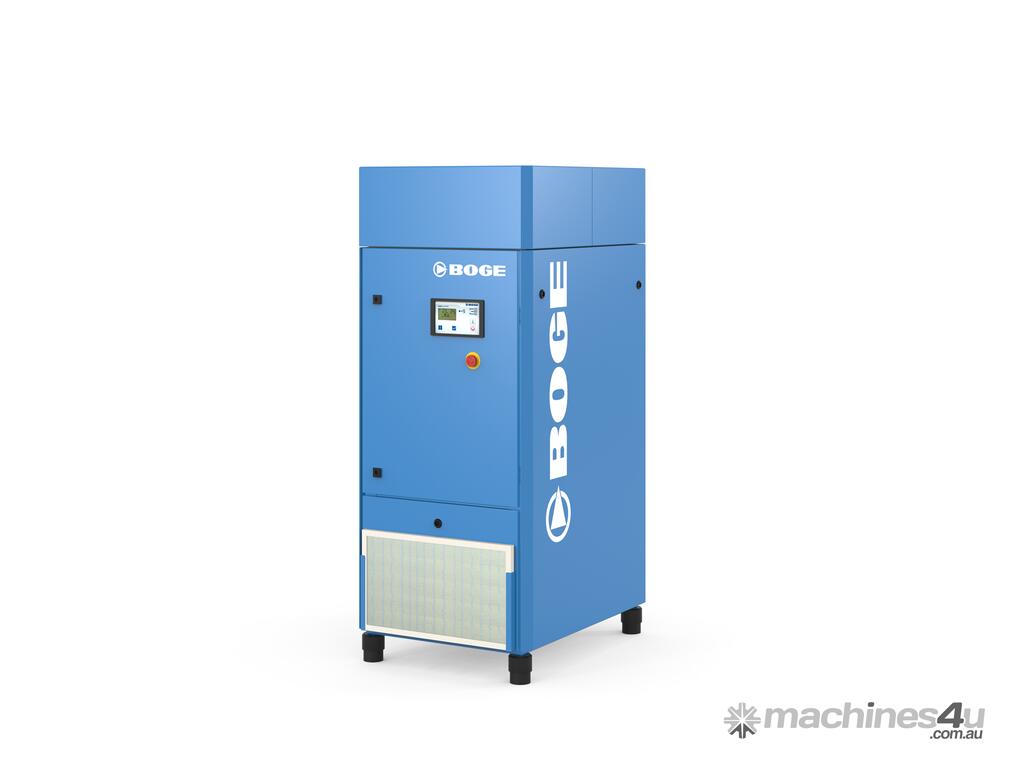

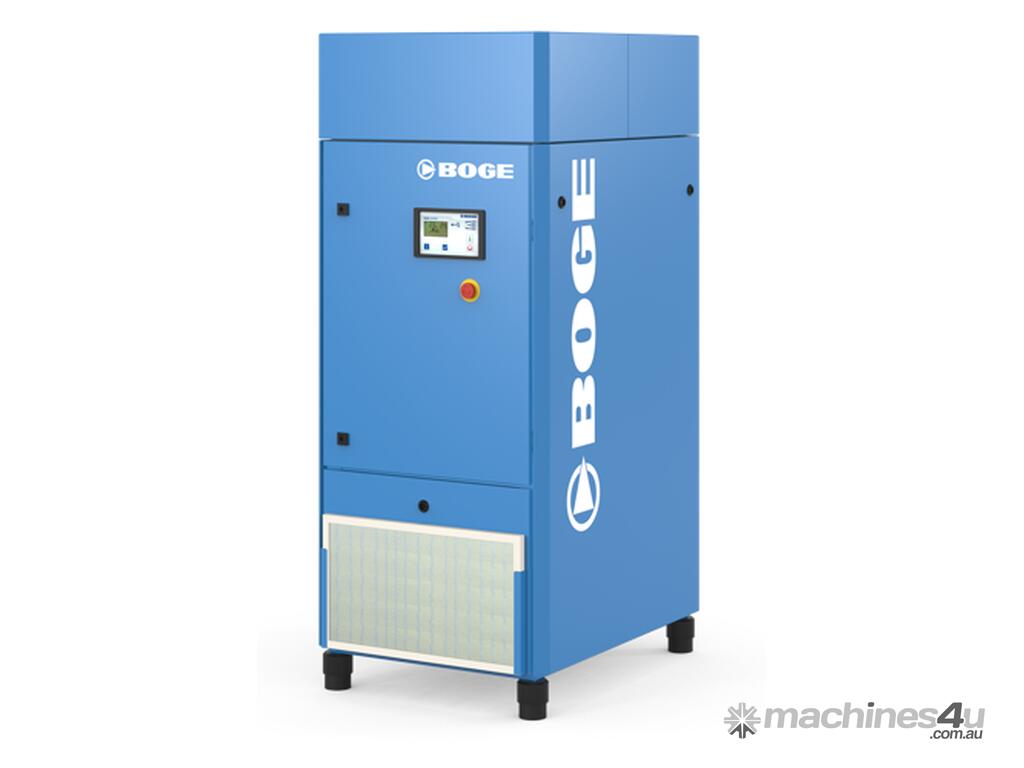

18.5kW - 109 CFM BOGE Screw Compressor

BOGE C 25 screw compressor air cooled
Complete and ready to connect, fully automatic operation, with CE approval stamp


Maintenance friendly
– For routine inspection and maintenance the entire inside must be
easily accessible through large doors and removable sheeting in the cover
– Very simple maintenance through common access opening for oil separator cartridge
and high efficiency oil filter; valveless oil circuit
– This minimises your maintenance and service costs

Additional features
– Compressor unit isolated from mechanical vibration
– Motor protection IP 55 with PTC thermistors
– Integrated electrical switch cabinet (IP 54)
– Belt guard for safe operation
and protection of the V-belt from dirt ingress
– Constant low oil carry-over in all operating phases due to efficient
pre-separation in the integral compressed air-oil separator
– Compressed air aftercooler for low compressed air outlet temperatures
– No condensate in the oil due to thermostatically controlled oil cooler
– Powder coated surface, light blue, RAL 5012

Technical Data:
Compressor Unit Specifications:
Effective free air delivery (measured according to ISO 1217 Part C): 3.10 m³/min
Maximum compressor overpressure: 8.0 bar
Main drive motor nominal power: 18.50 kW
Protection type / Insulation class of the motor: IP 55 / F
Operating voltage (compressor): 400 V / 50 Hz
Control voltage (compressor): 24 V AC / 24 V DC
Cooling air flow volume (if connected to ducting): 3100.00 m³/h
Suction or ambient temperature (min...max): +5...+45 °C
Compressed air outlet temperature above ambient temperature: 10 K
Residual oil content in compressed air: < 3 mg/m³
Super Silenced Version (according to dimensioned drawing): M 3200.0920
Unit Sound Pressure Level (in accordance with DIN EN ISO 2151): 68 dB(A)

Physical Dimensions and Connections:

Width / Depth / Height: 722 / 1060 / 1740 mm
Compressed air connection (ball valve): G 1
Weight: 499.0 kg
