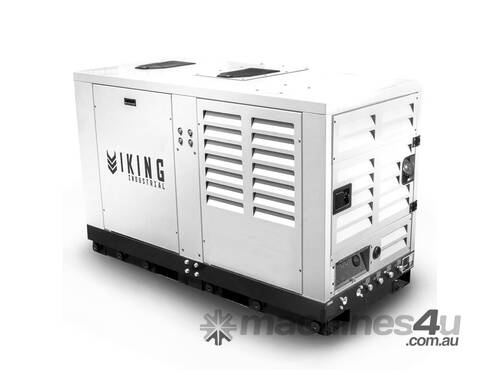

185CFM DIESEL AIR COMPRESSORS

VIKING MODEL: DS 53K
OPERATING PRESSURE: 7 bar – 102 psi
FREE AIR DELIVERY: 5200 It/min – 185 cfm
ENGINE: Kubota V-24030-M-DI
OUTLET VALVES: 2 x 3/4?
OPERATING HOURS: 13.15 hours

MAX ENGINE POWER: 36.5 kW – 49.0 HP
MAX ENGINE SPEED: 2700 RPM
MIN ENGINE SPEED: 1600 RPM
COOLING SYSTEM CAPACITY: 8 It – 2.12 gal
LUBRICATION SYSTEM CAPACITY: 9.5 It – 2.50 gal
FUEL TANK CAPACITY: 88 It – 23.5 gal.

Quiet and efficient Kubota Tier 2 engine
An exclusive pneumatic control system, developed by ROTAIR, to adjust automatically engine revs, depending on the air to be delivered
INTELLIGENT Start/Stop, exclusive from ROTAIR, to prevent the risk of incorrect procedures during specific functioning
Centre lifting point for easy cranage
