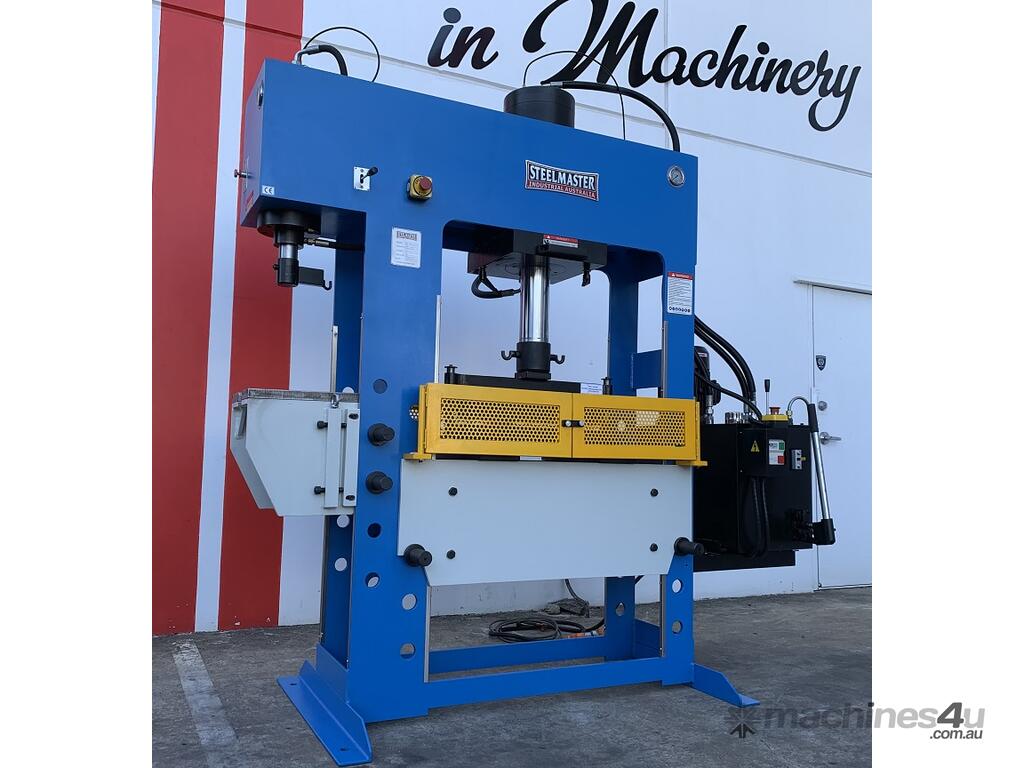

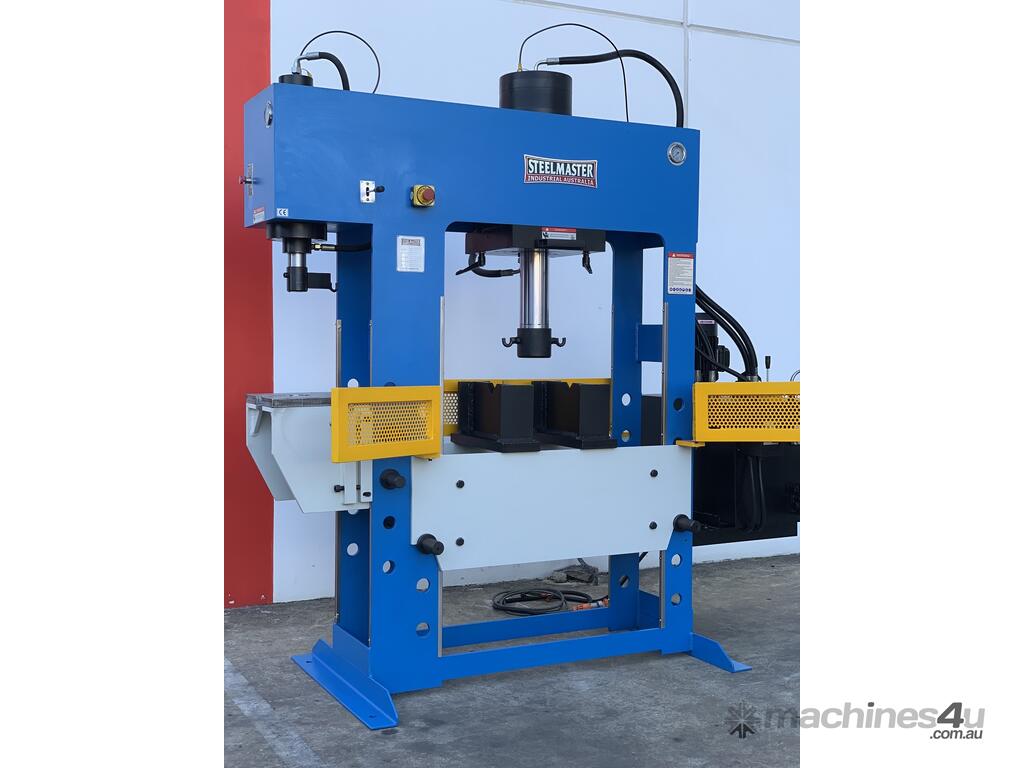

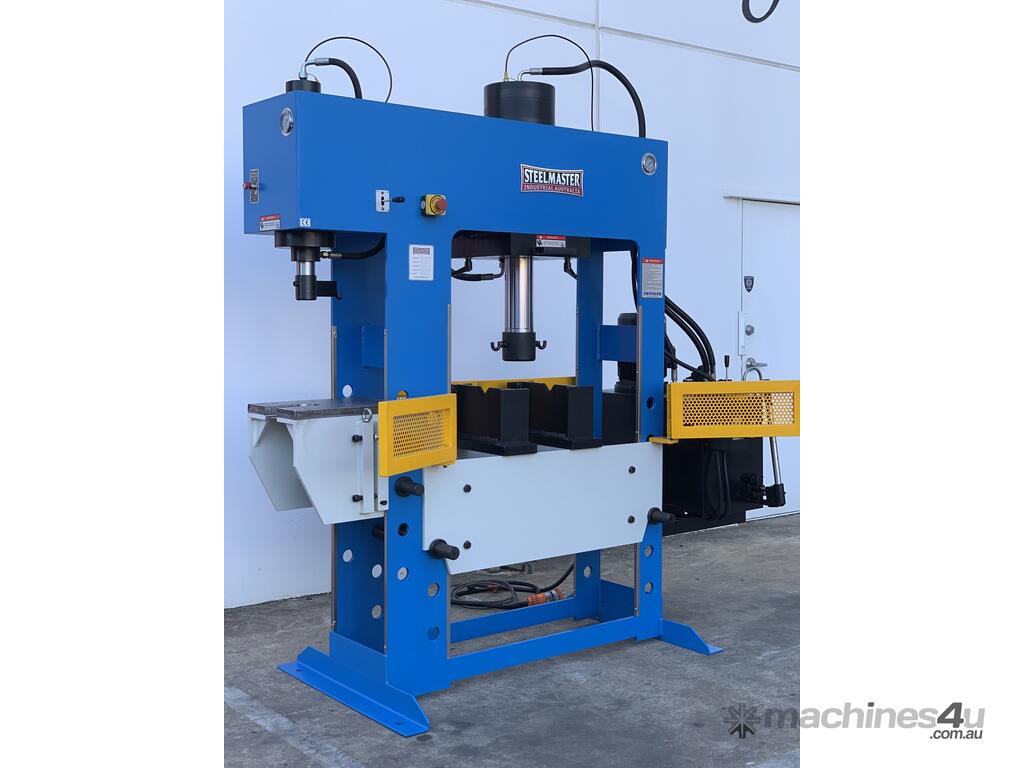

SM-HC200/20 Hydraulic Combination Sliding Head Workshop Press. 200Ton Main Press, 20Ton Broach Press 2 Speed Hydraulic Control With Manual Mode, Auto Return, Pressure Gauge, Lifting Chains. V
Description
USA designed and engineered – this two in one press covers all your requirements.

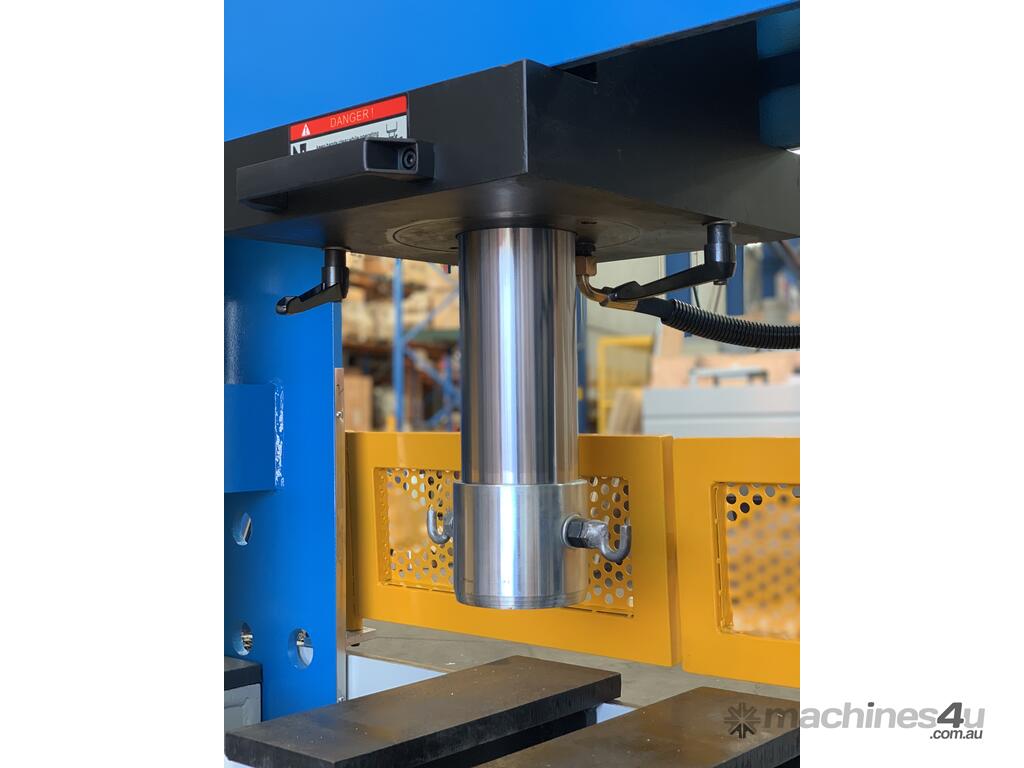

Sliding head cylinder – left & right!

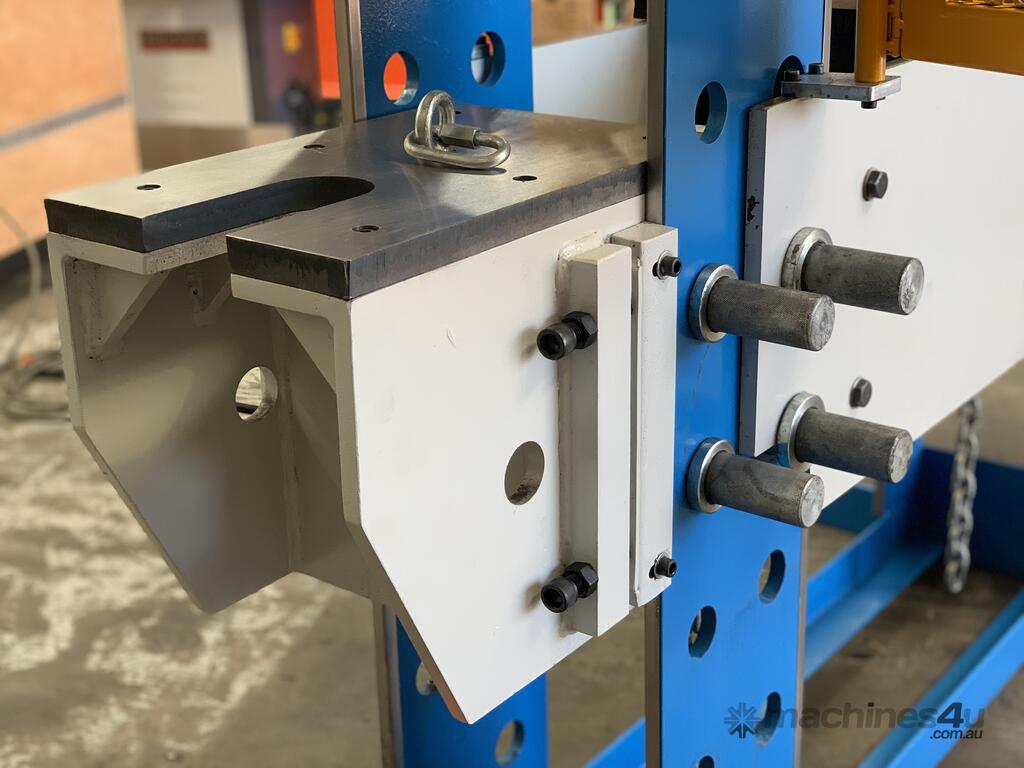

Side mounted ancillary presses – all with adjustable height tables!
All in One! For your toughest shop pressing needs, these Motorized Hydraulic Presses do it all.
Features
? Main 200 ton ram force / 20ton side mounted press capacity.
? fixed central position or sliding left or right positioning.
? offering more flexibility to your pressing applications

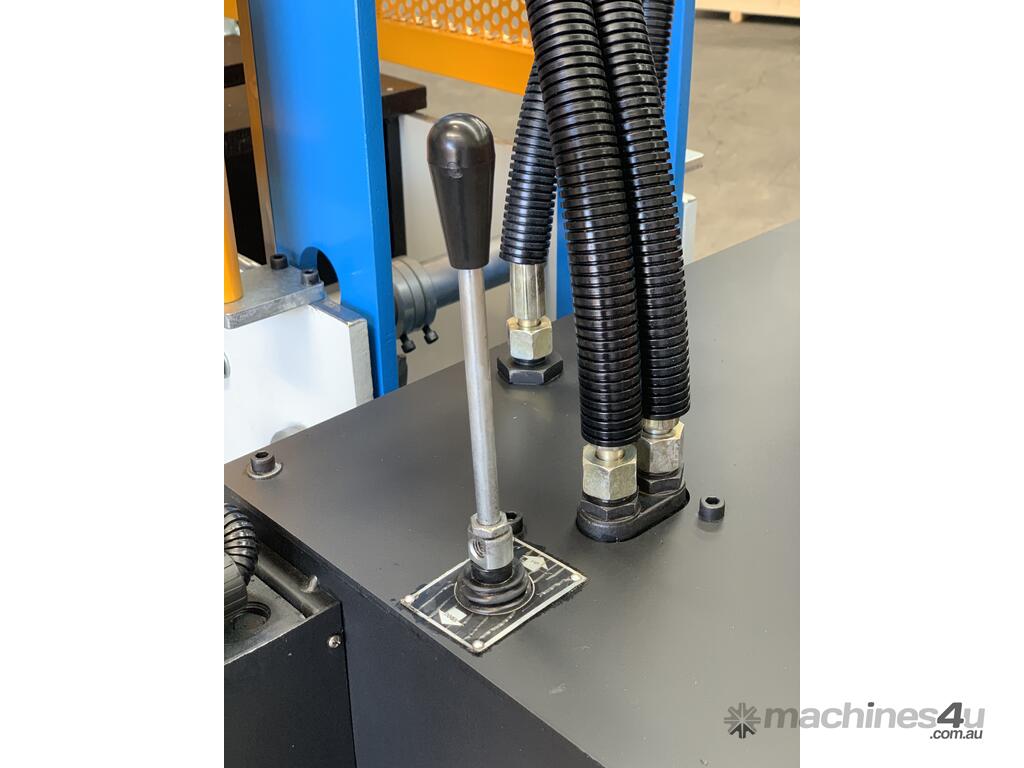

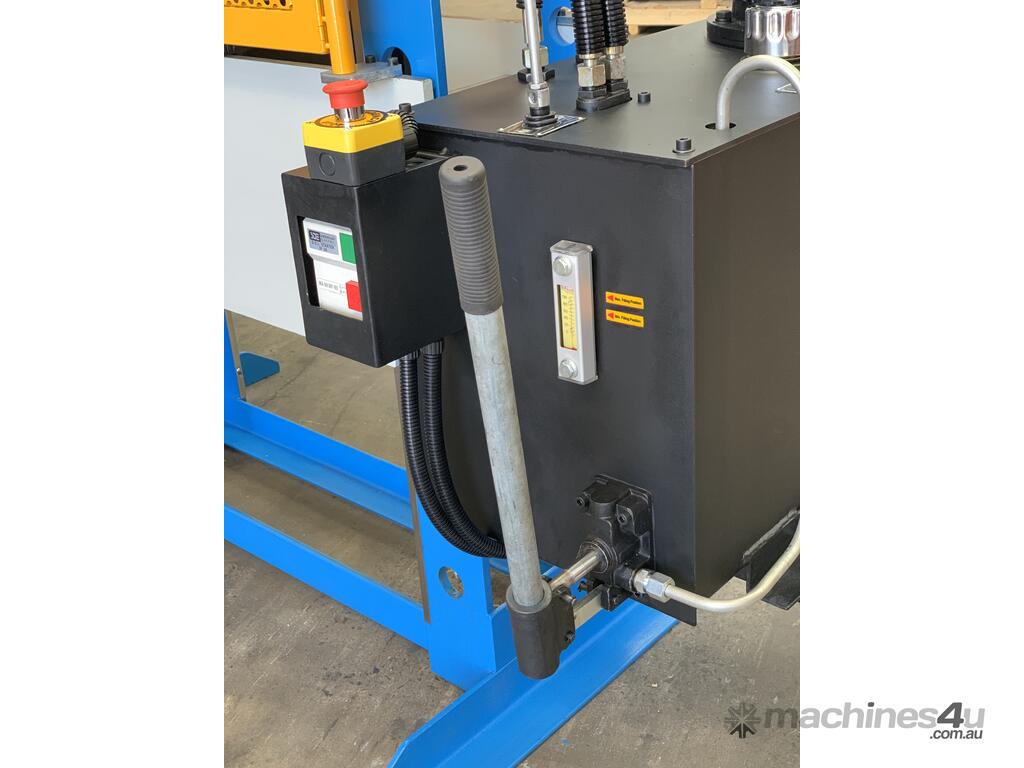

? twin speed control with manual adjustment
? for the removal and press-fit of bearings and bushings
? extremely torsion proof steel welded frame
? hydraulic pressure gauge fitted

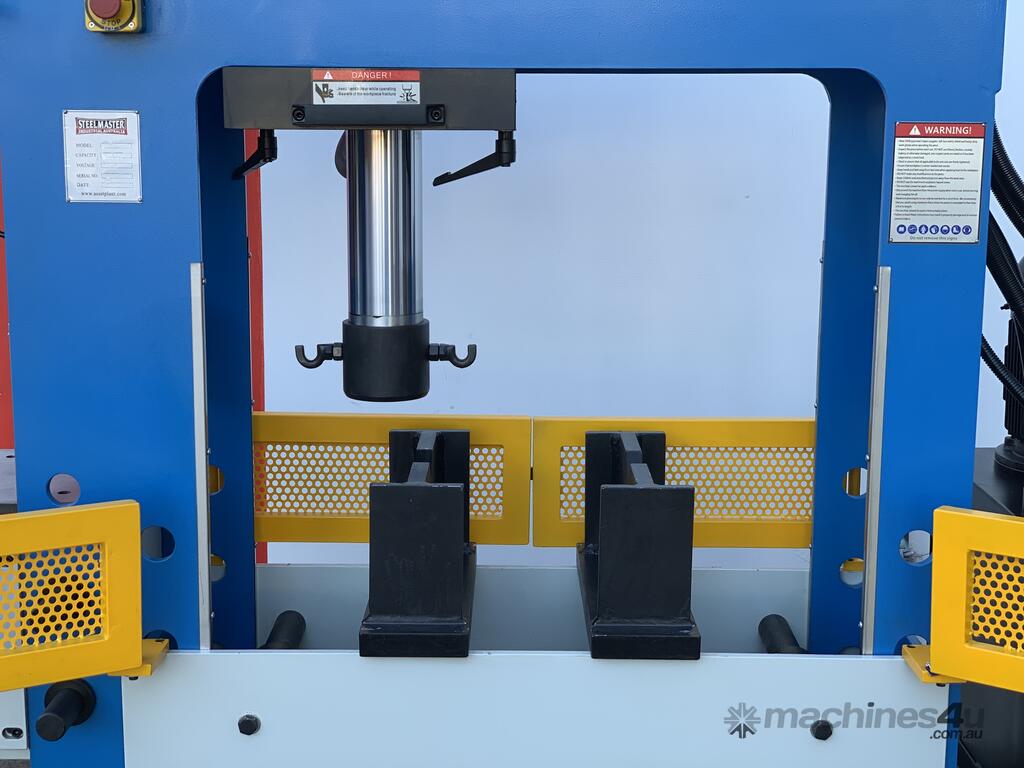

?quick fit work plate with vee blocks supplied.

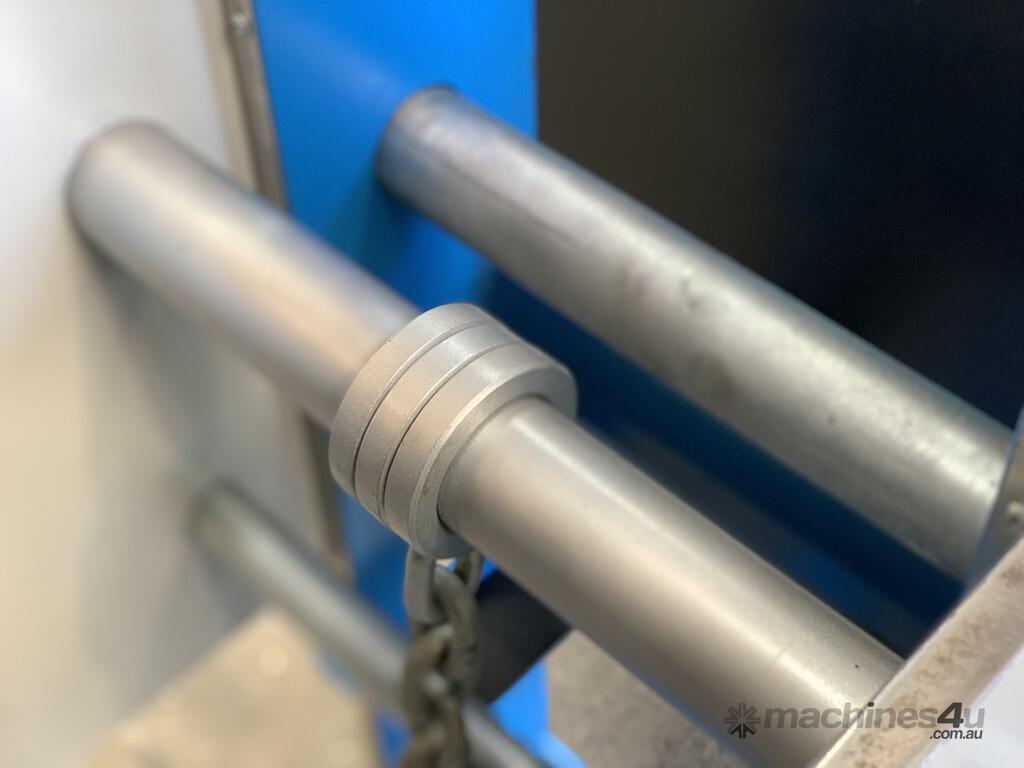

? lifting chains included
? offered in 60/100/150/200 & 300ton models
Technical Snapshot
?capacity - 200Ton main press capacity

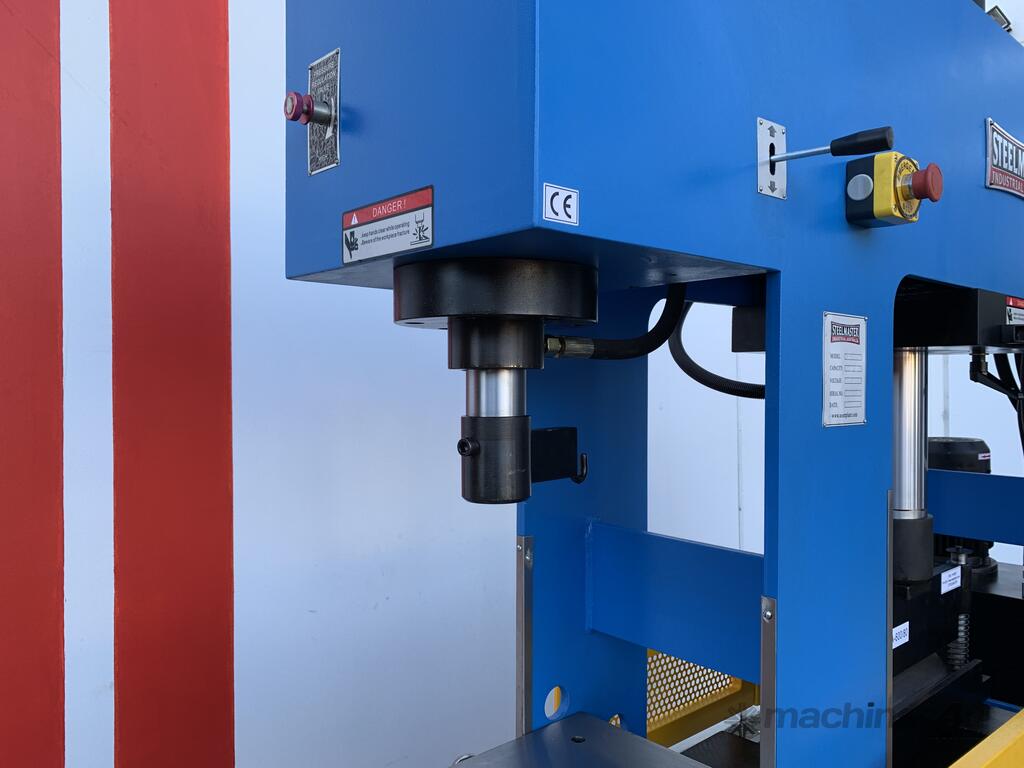

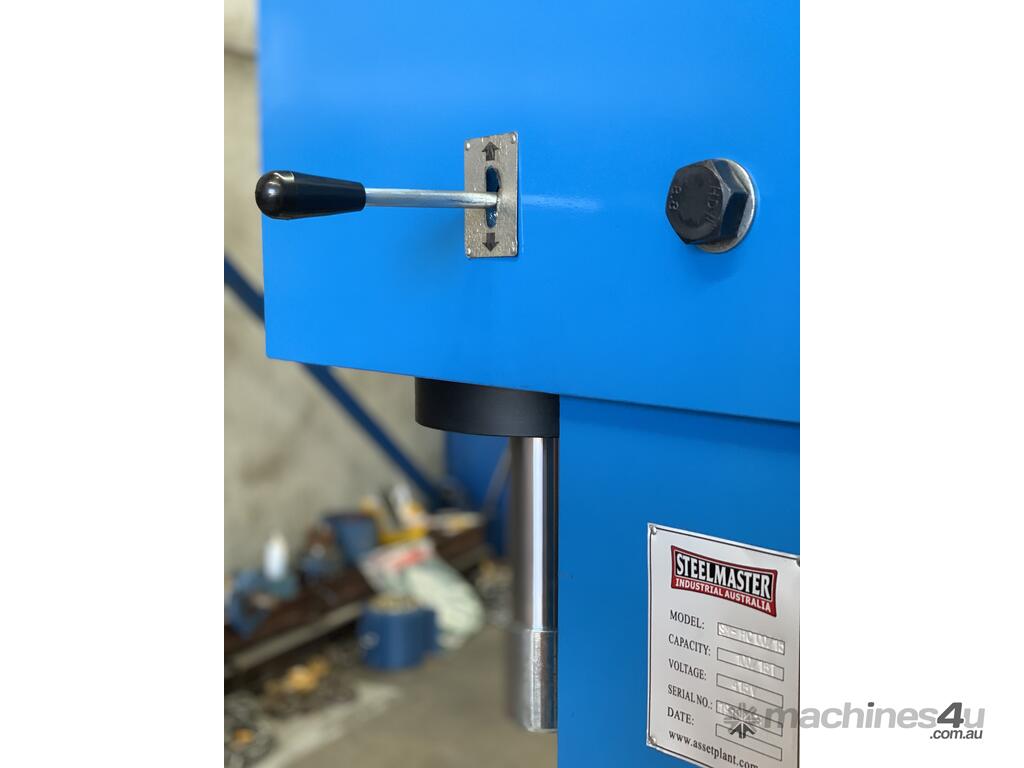

?capacity - 20Ton side broach press capacity
?overall frame width distance - 1500mm
?stroke length - 400mm
?max. pressure – 263 bar
?frame width – 1500mm
?cylinder – fixed & sliding
?working speed – 3.6 (main) & 18 (side) mm / sec
?approach speed – 7.3 (main) & 67 (side) mm / sec
?return speed – 10 (main) & 105 (side) mm / sec

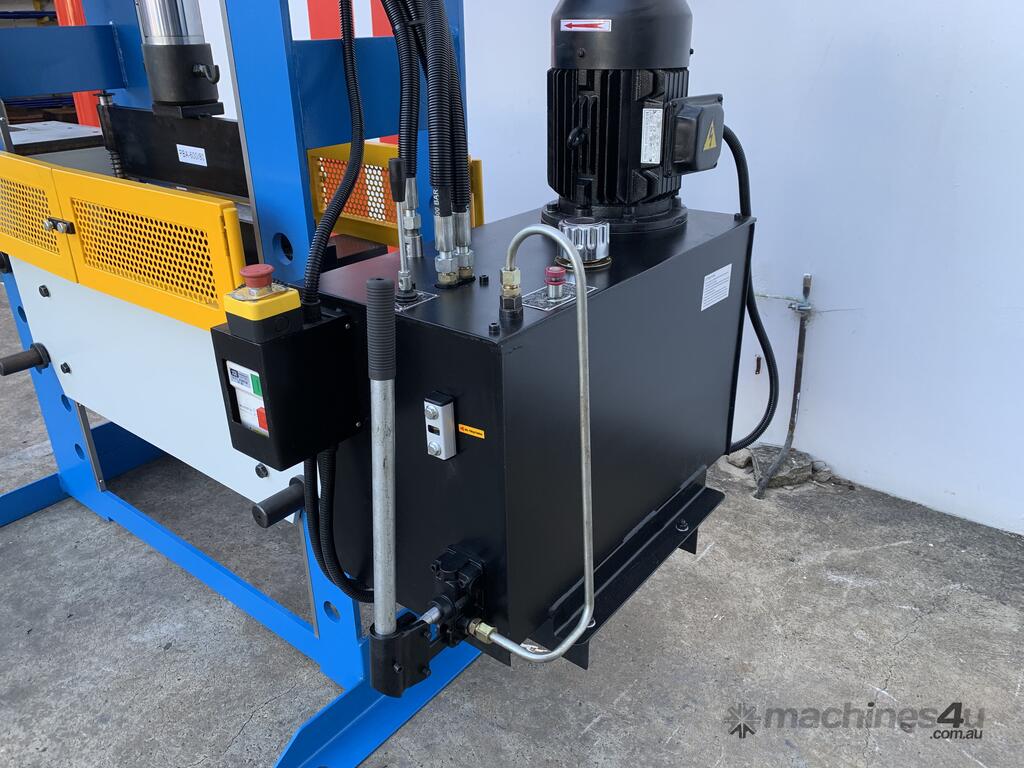

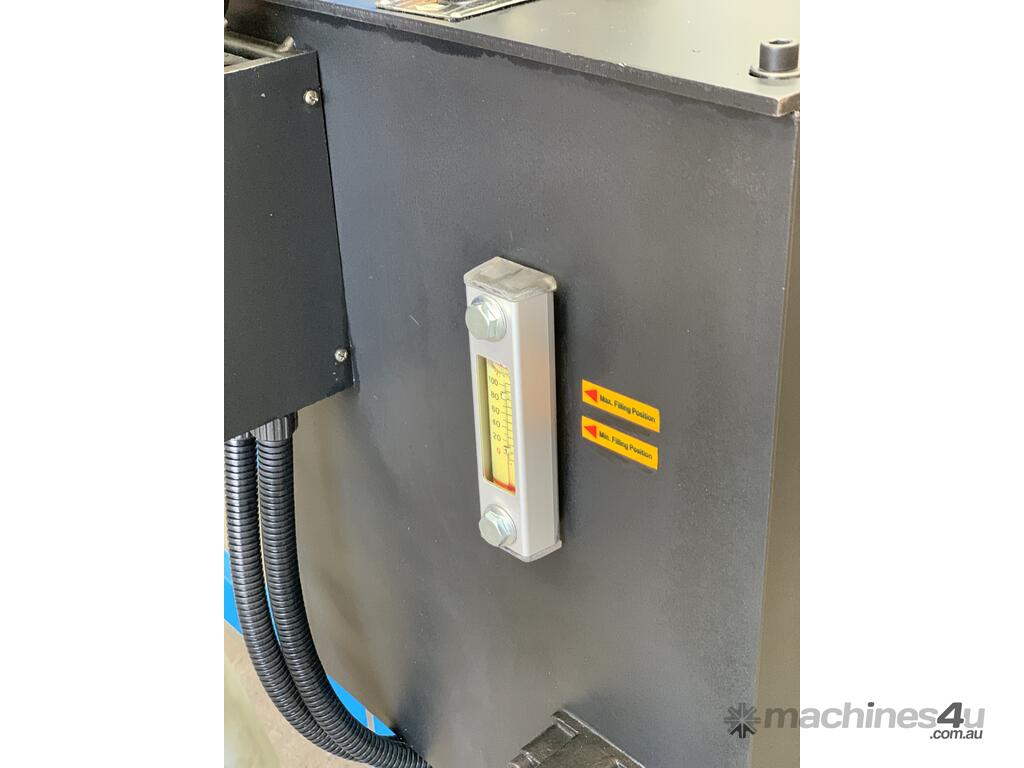

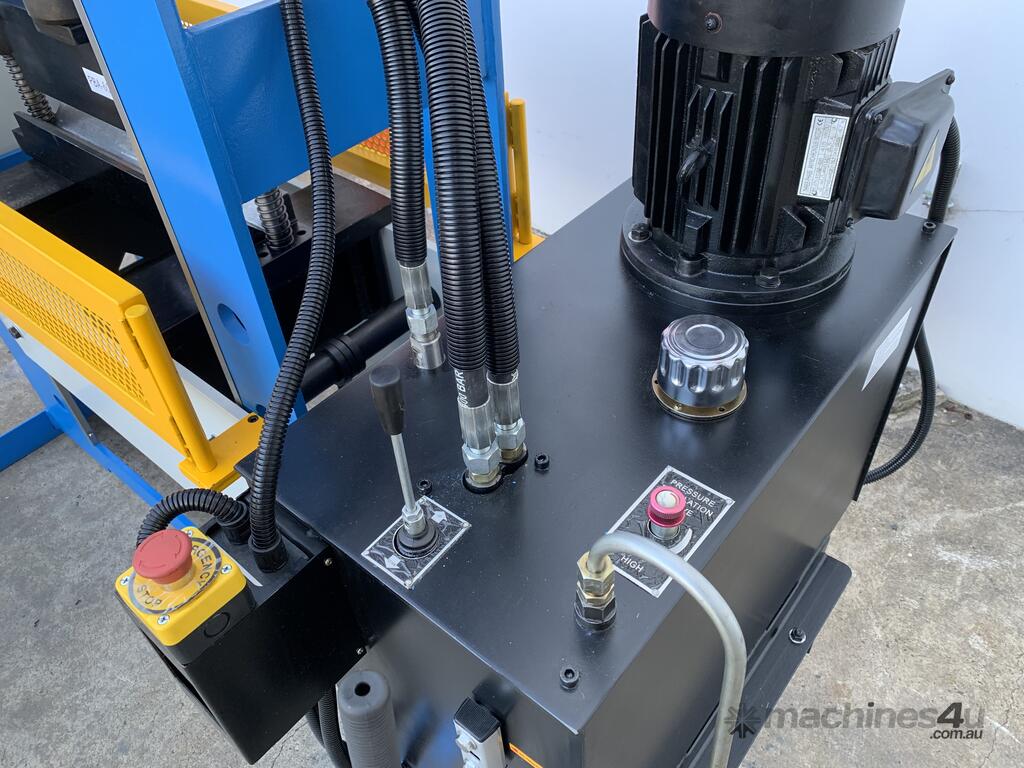

?oil tank capacity – 160 litres

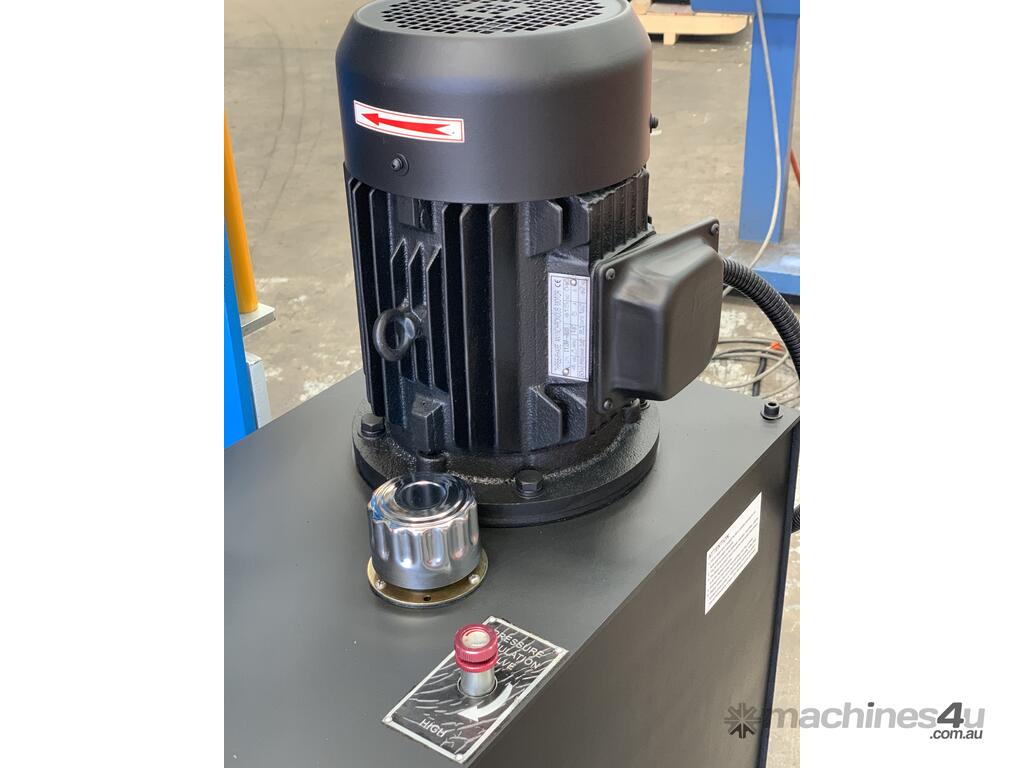

?power – 5.5Kw / Volt
?dimensions - 2450mm x 1000mm x 2350mm x 3800kg
Recommended Add On Accessories
?19+0282 - Pressbrake Bending Attachment – 450mm Long x 40mm Vee Opening, Spring Return

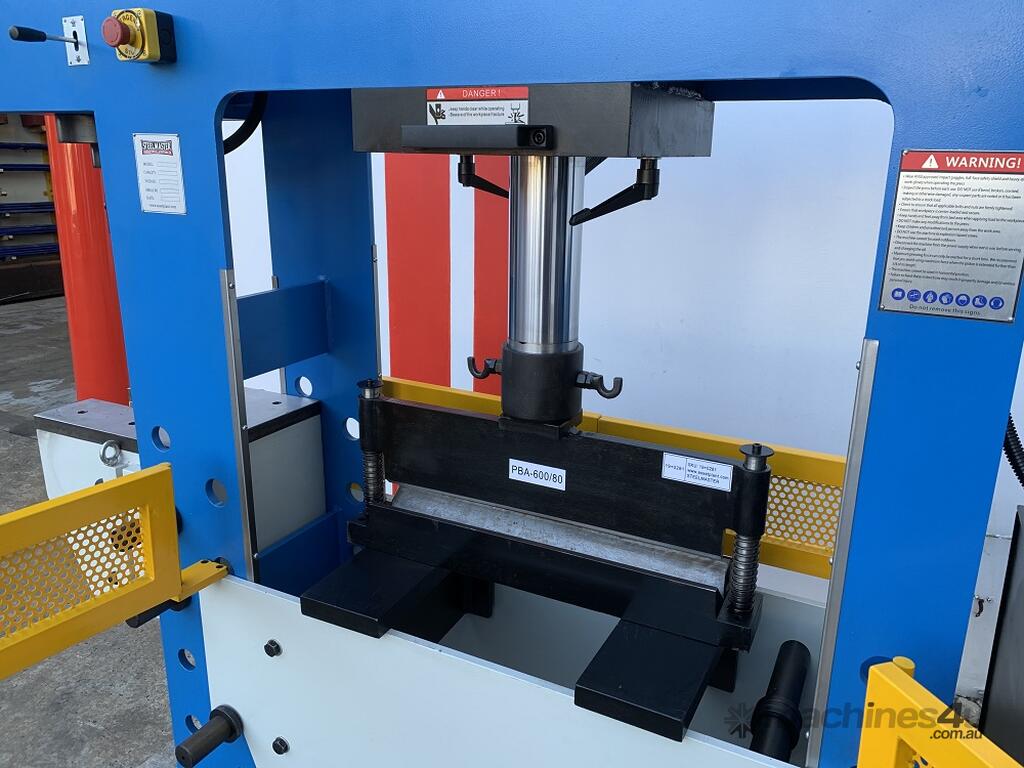

?19+0281 - Pressbrake Bending Attachment – 600mm Long x 80mm Vee Opening, Spring Return
?19+0283 - Pressbrake Bending Attachment – 600mm Long x 120mm Vee Opening, Spring Return
MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
