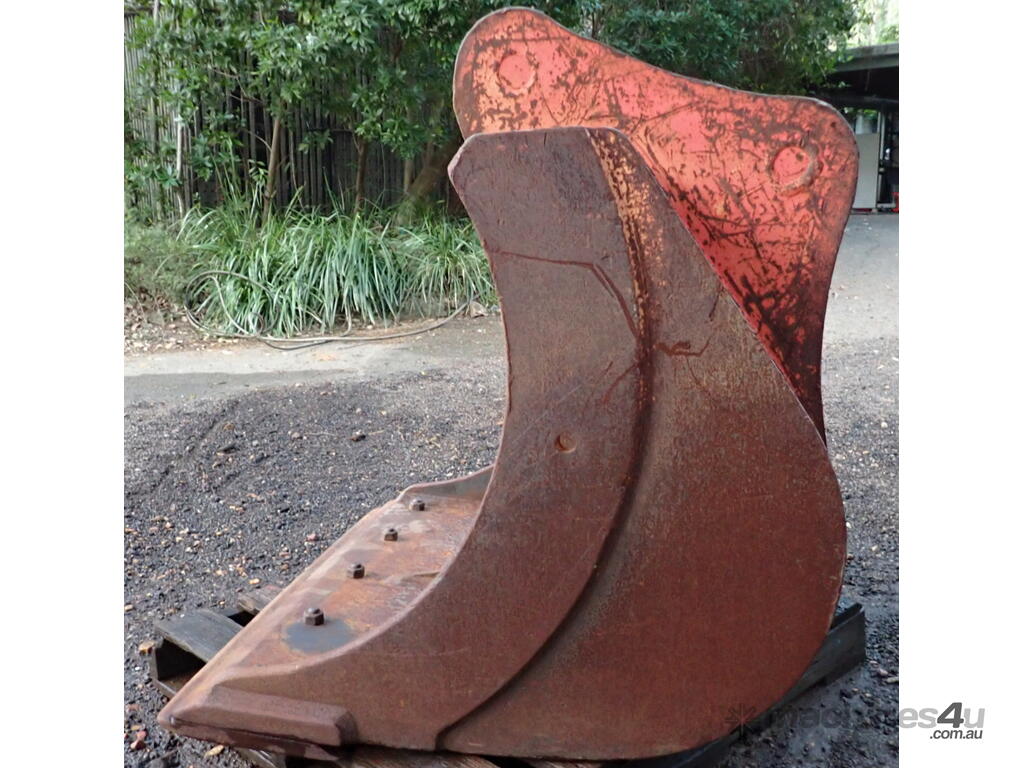

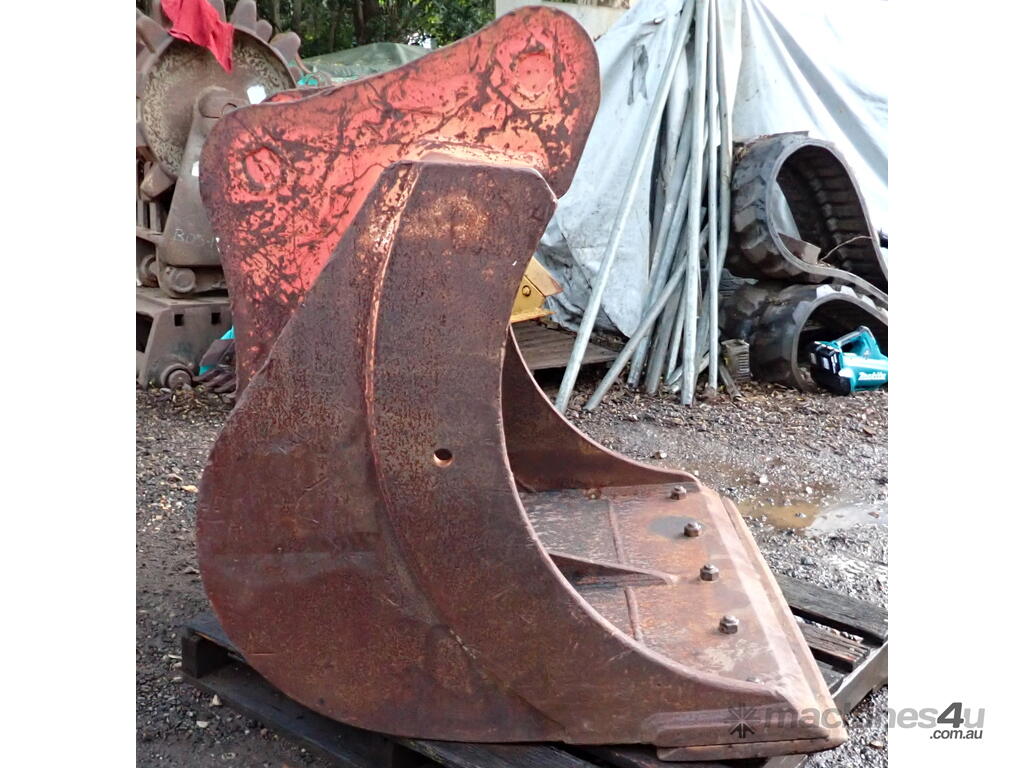

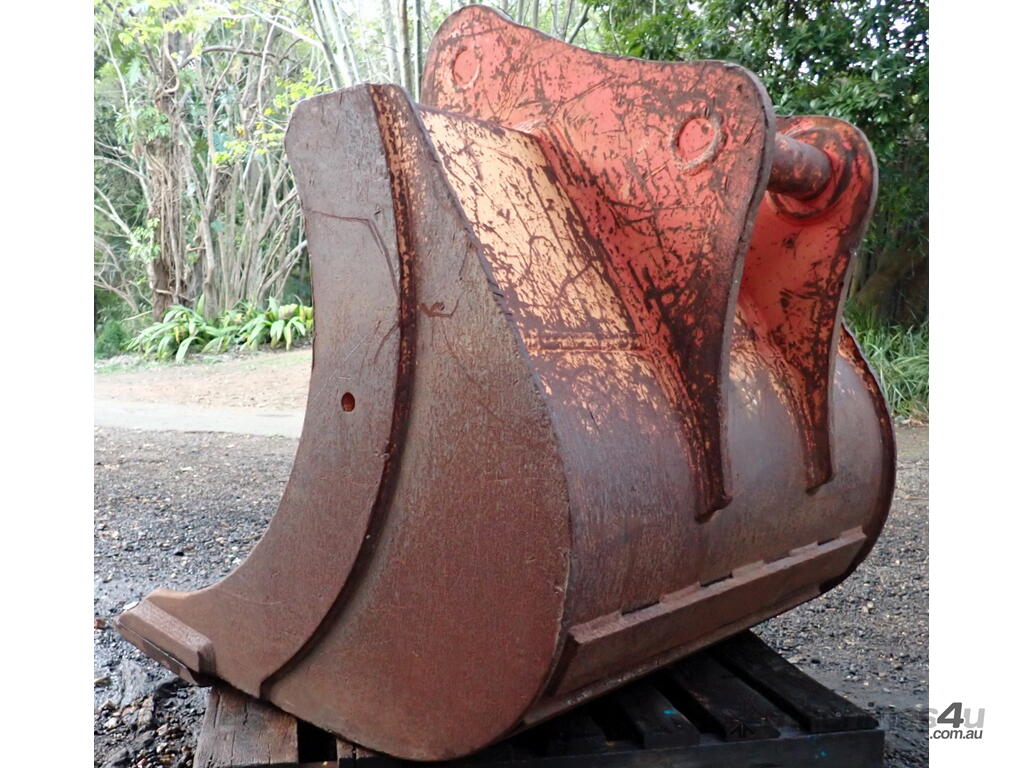

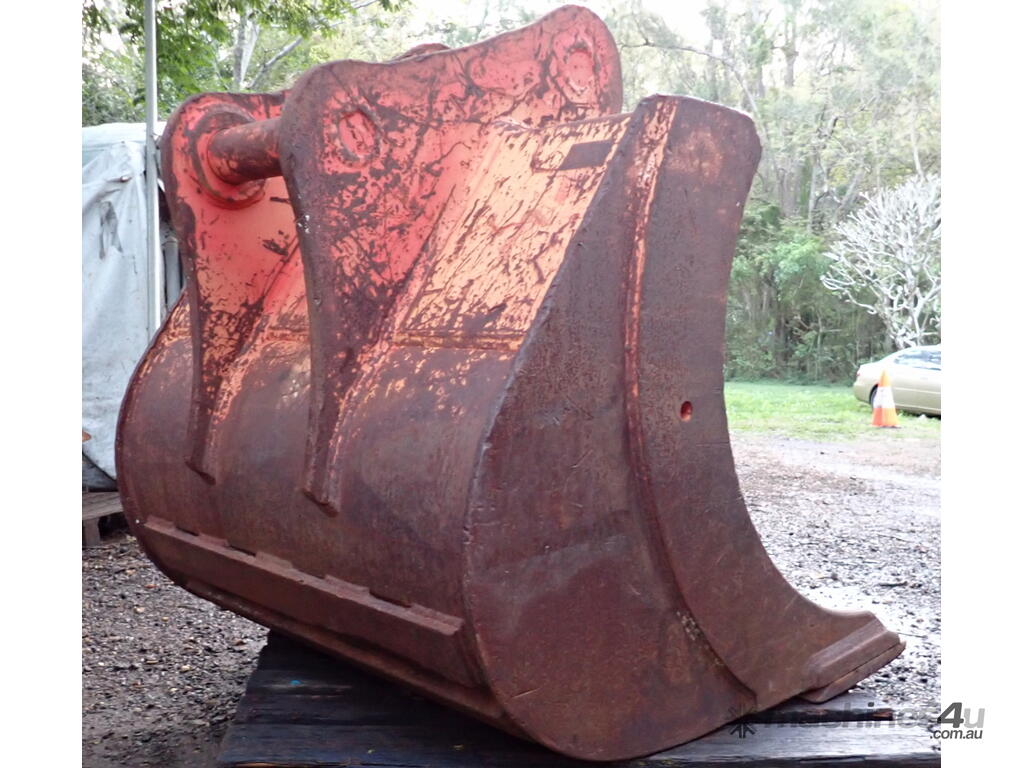

Used 1200mm thick and sturdy Excavator Trenching Bucket suit 20-38 Ton machine.
Condition is used but it is a very thick, well engineered bucket with minimal wear and plenty of life left.

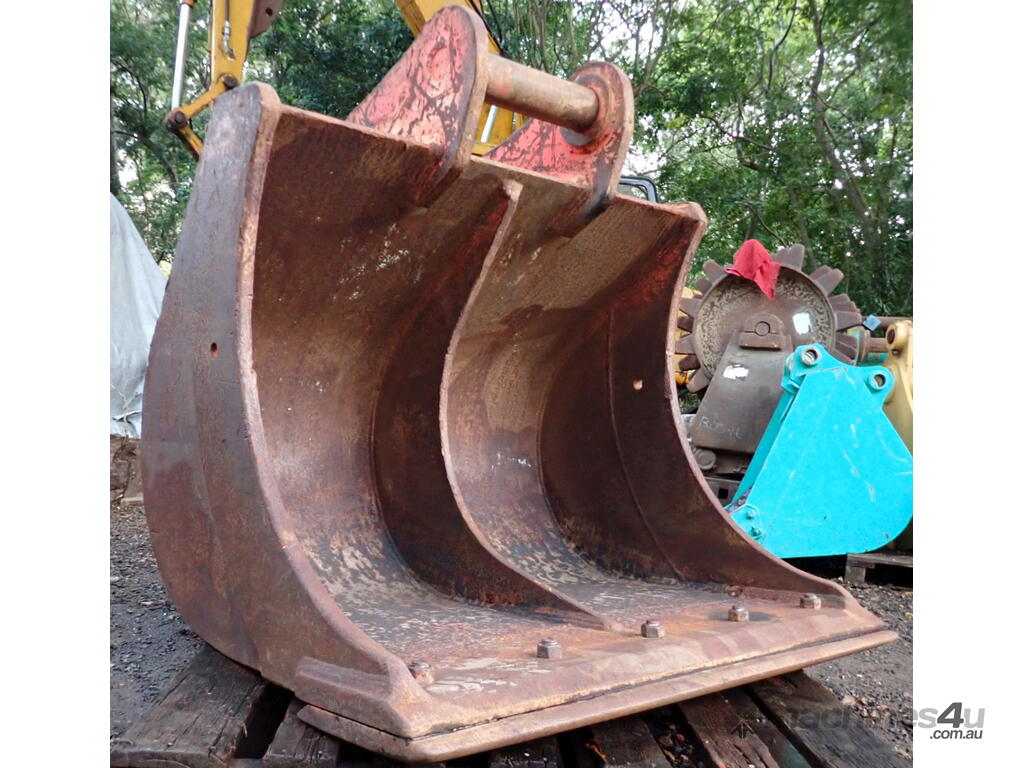

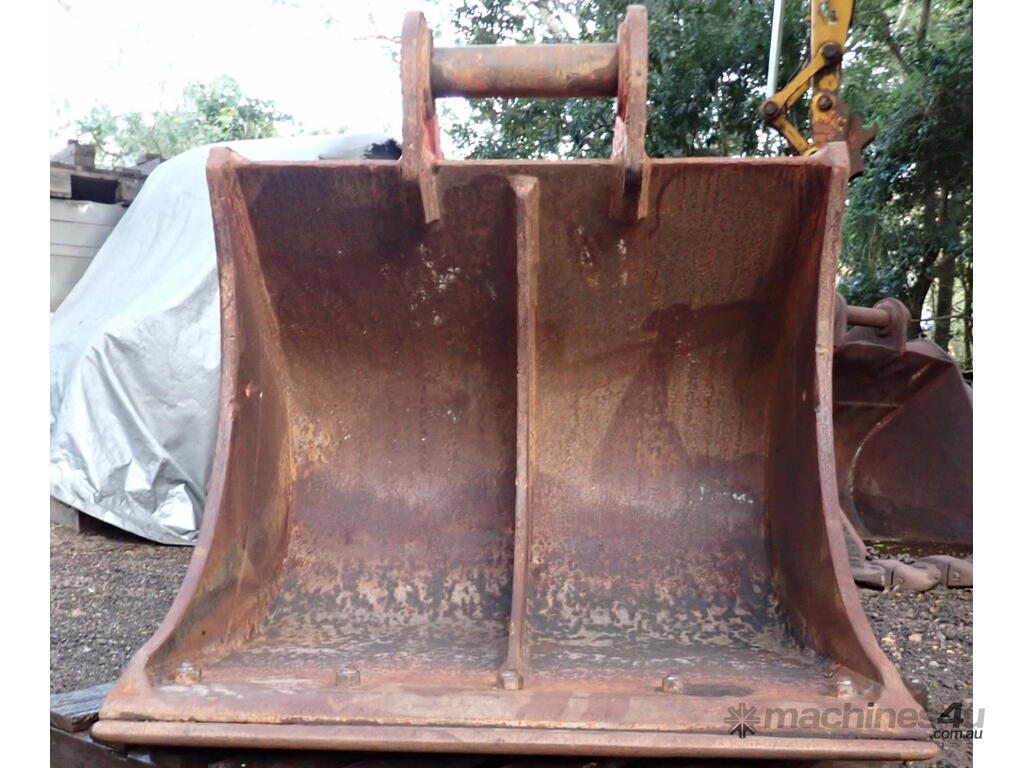

It has an internal curved middle support piece for extra strength.
It has a 40mm thick front cutting edge and a removable bolt-on front cutting edge of 35mm to make a 75mm thick total front cutting thickness.
The flat front cutting edge is great for flat bottom trenching and also safer when digging around pipes / cables / other services.
You could easily remove the bolt-on front cutting edge and weld on gums if you wanted to fit teeth.

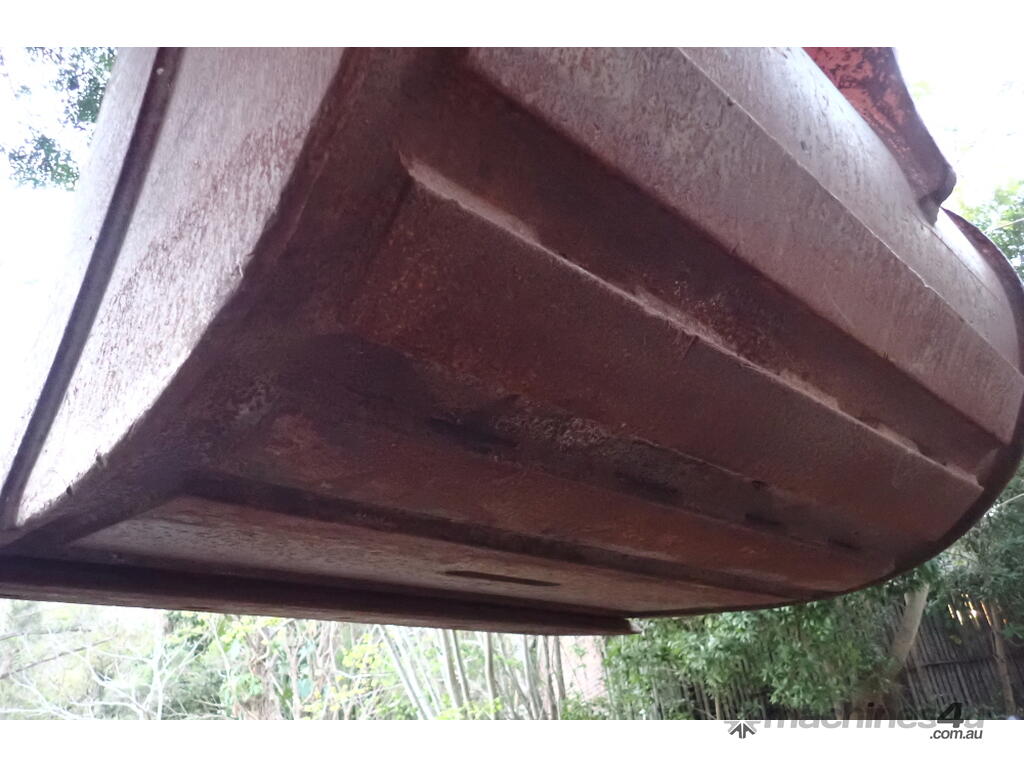

There are extra wear strips welded underneath for durability (see pic# 10).

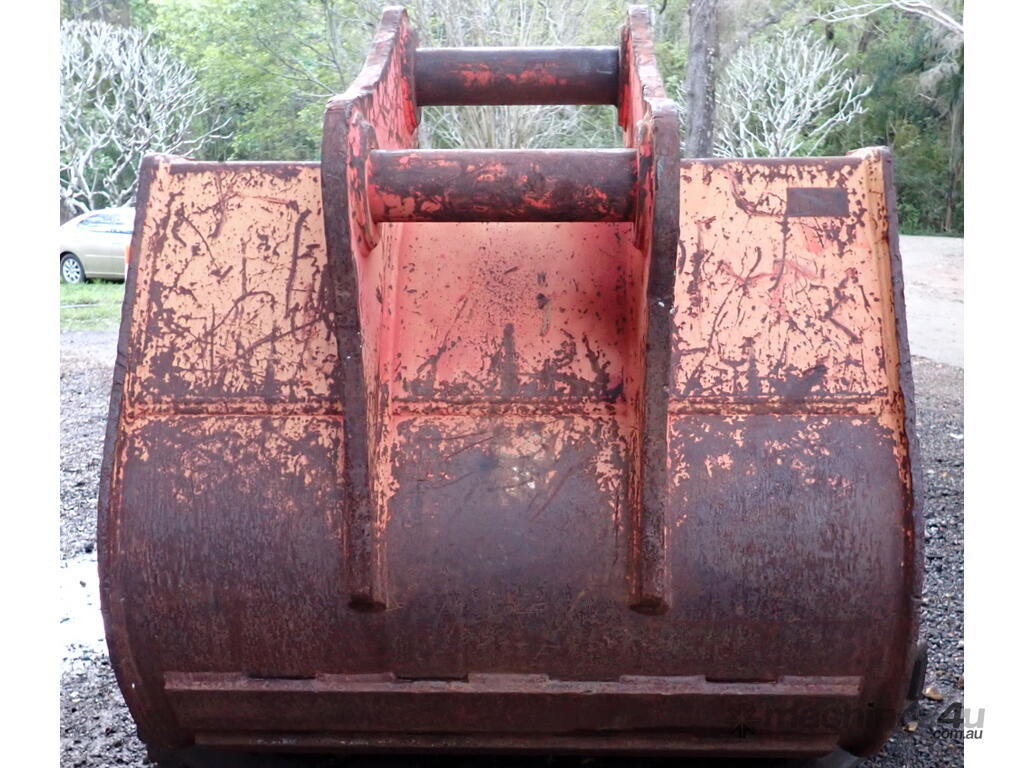

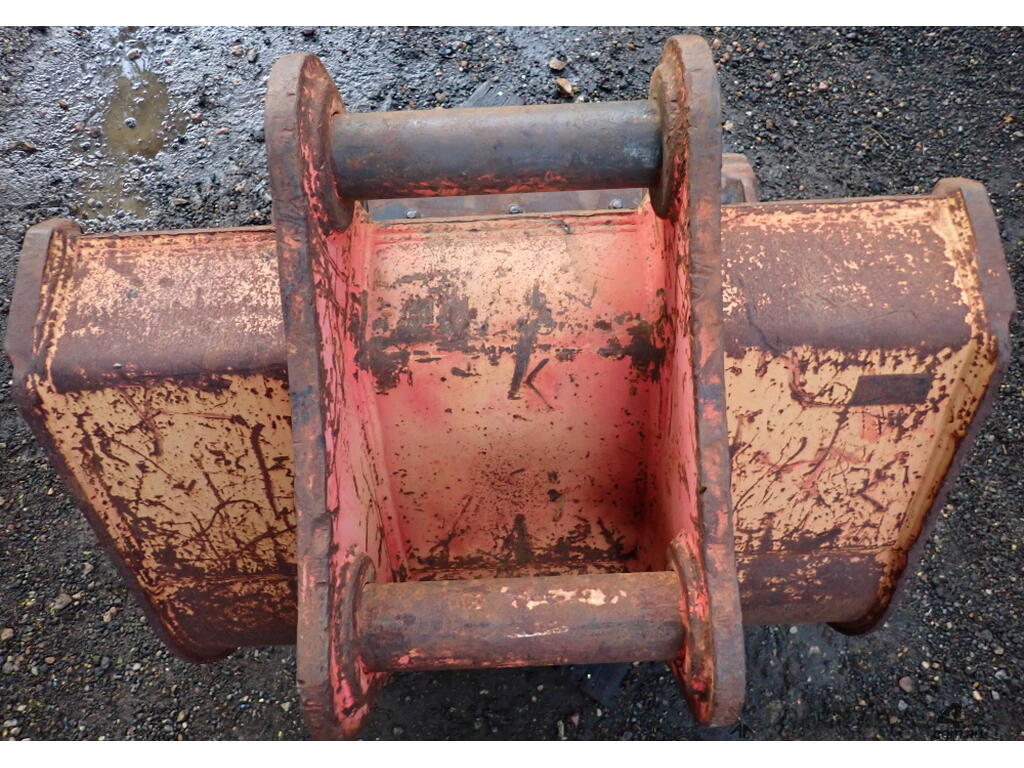

Current Headstock configuration:
90mm Pin Diameter, 505mm Pin Center to Pin Center (CtoC), 333mm Between the inside Ear Bosses (which can be shaved back up to 363mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
Should fit: Kobelco SK220 / SK230 / SK250 / SK250LC / SK260LC-8, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300LC-7 / PC340 / PC350 / PC360.
Maybe fit: Case CX240 / CX290, JCB JS240 / JS240LC (XO Machines) / JS260 / JS260LC (XO Machines), Kato 1220SE2 / 1250SE / HD700SEV / HD900SEV, Link-Belt 240LX / 290LX / 3400 QUANTUM / 3900 QUANTUM, Sumitomo SH220 / SH220-2 / SH220-3 / SH220LC / SH240 / SH290 / SH300-5 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).
Dimensions: 1200mm Wide (at the front cutting edge), 1160mm Deep, 1220mm High.
Weight: 970kg.
Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
