200-500mm Self-Propelled Butt Fusion Pipe Welder - Ritmo Delta 500 All-Terrain

Name: 200-500mm Self-Propelled Butt Fusion Pipe Welder - Ritmo Delta 500 All-Terrain
Brand: ritmo
SKU: 604295
Availability: InStock

KEILOR PARK, VIC - Delivers Nationally

Play Video

$153,499 - 157,999 AUD
($168,849 - 173,799 Inc. GST)
Confirm with seller if additional costs apply.

Commercial Finance
Estimate

$542.52
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Plastic Pipe Butt Welders

Make:

RITMO

Year:

Not specified

Member Since: Mar 2020

Bronze Member

Listings: 44

Description

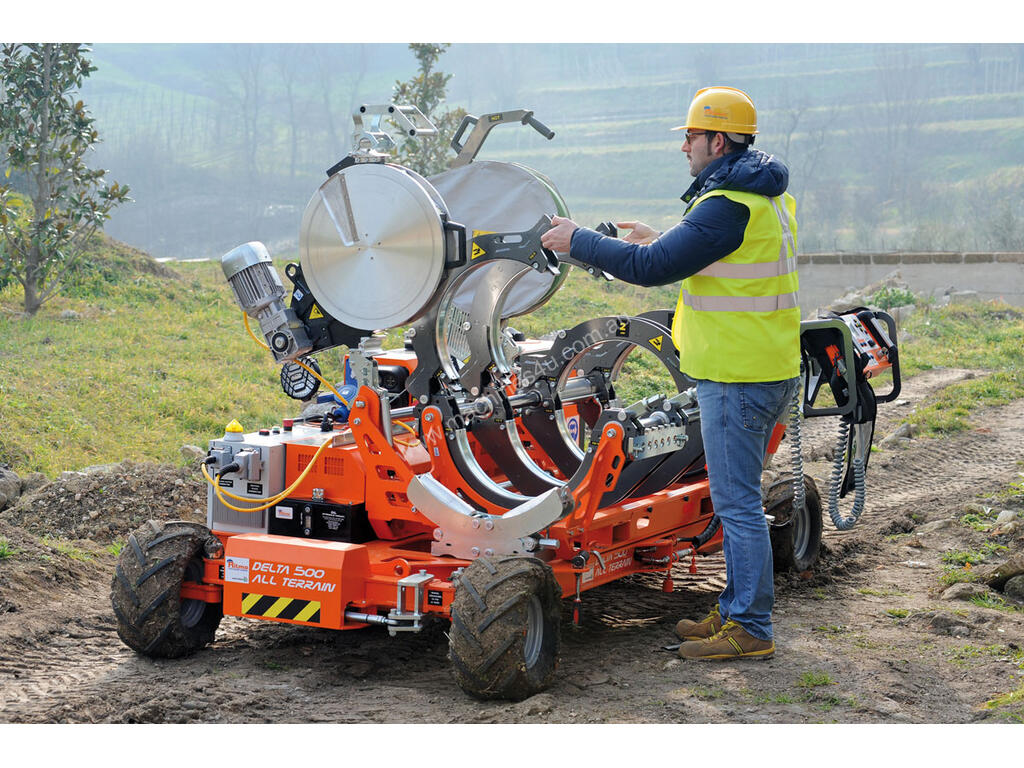

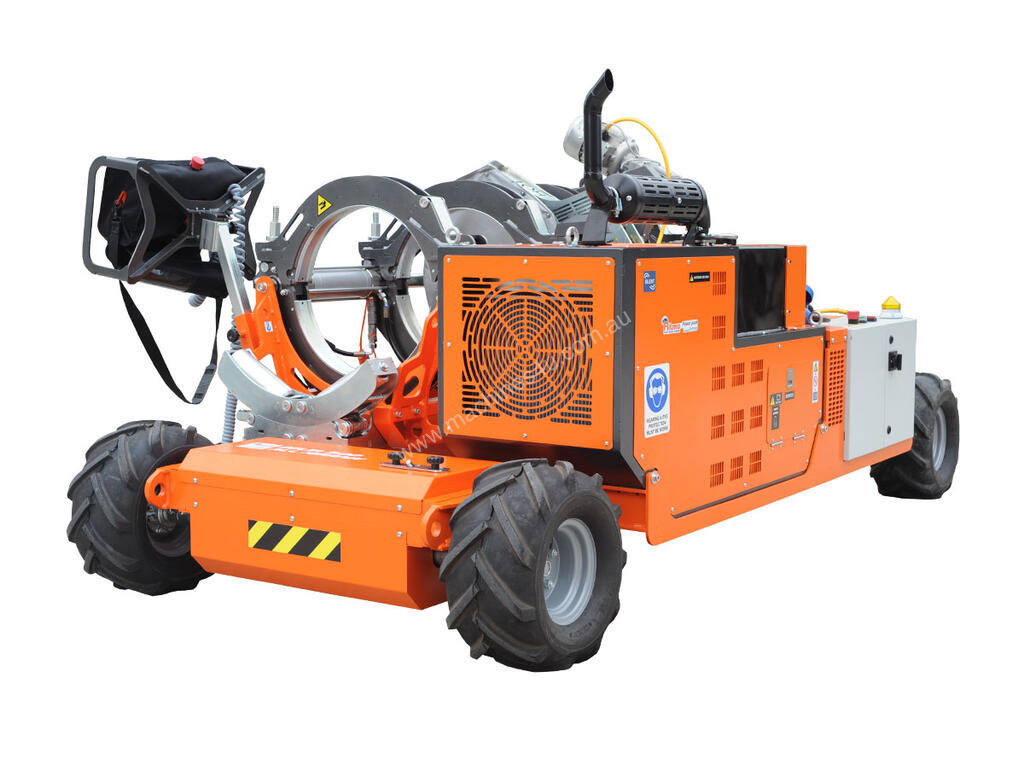

The Delta 500 All Terrain Butt Fusion Welder is powered by a low-vibration diesel engine and equipped with front steering wheels and rear traction. The machine is suitable for welding pressure pipes (HDPE, PP) for the transportation of water, gas and other fluids up to Ø 500 mm. The Delta 500 All Terrain is built according to the International standards ISO 21307 HIGH PRESSURE.

Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!

Standard Machine Features:

- Working range from Ø 200 to 500 mm
- Welds fittings like elbows, tees, Y-branches and stub flanges
- New RITMO Patented assisted system to open/close/lift clamps-heater-facer
- Fast-locking system which allows to place and remove inserts in seconds
- Easy Life welding system
- GPS traceability
- Data-logging included
- Memory up to 4000 joint reports - downloadable straight into a PDF file
- Possibility to pre-set 20 customised
- USB port for firmware upgrade
- Intuitive control panel and large graphic display

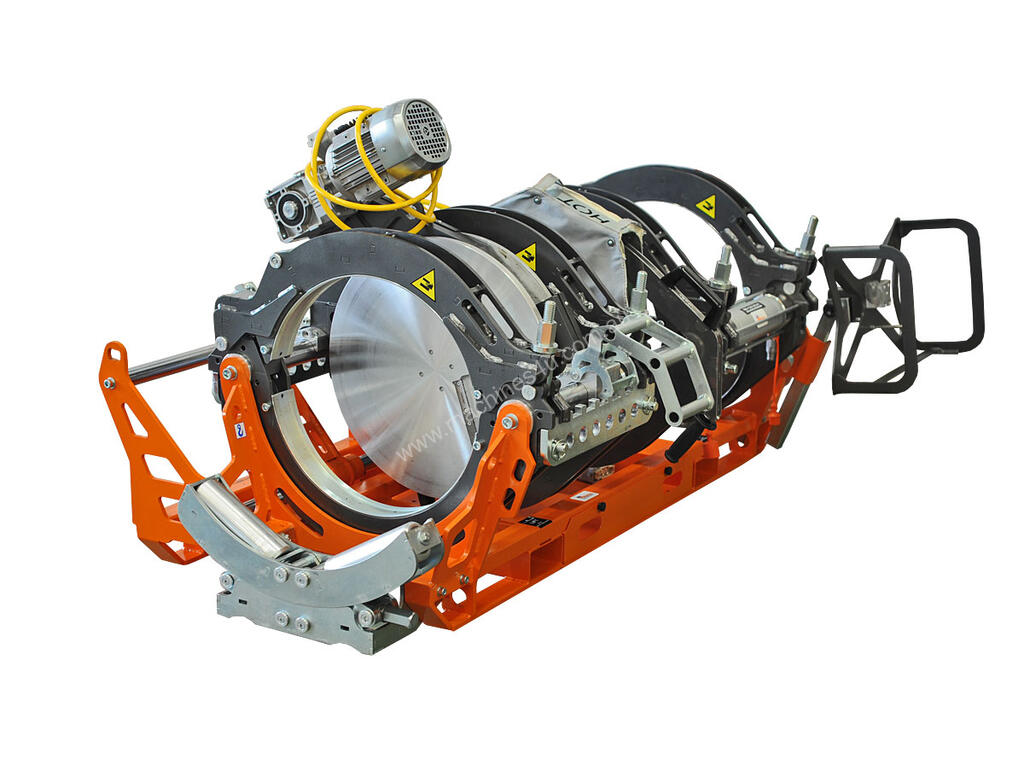

- Machine body and on-board generator easily removable for working in tight spaces
- Machine can be powered using 230 V Three phase 50/60 Hz

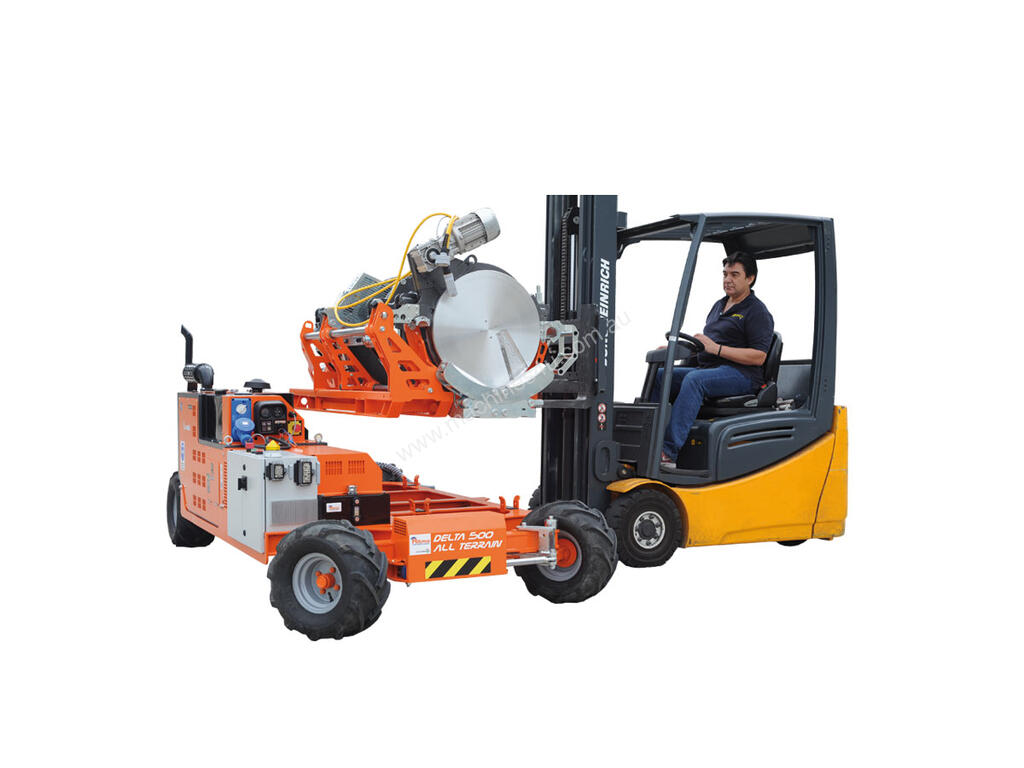

- Wheeled chassis designed to be lifted using a forklift
- Two lateral rollers that can be operated by a cordless drill
- On-board electric facer that is equipped with a safety microswitch
- On-board generator removable for independent use

Accessories Available on Request:

- Clamps’ inserts from Ø 200 to 500 mm
- Tool for flange necks
- Track Conversion Systems
- Kit for data transfer to printer ESC-POS
- HS ROLLERS 630

Technical features:

Materials: HDPE/PP
Working range: Ø 200 ÷ 500 mm
Power supply: 230 V Single Phase 50/60 Hz 230 V Three Phase 50/60 Hz
Total absorbed power: 7250 W
Working temperature: 180° ÷ 280°
Outside temperature range: -10° ÷ 40° C
Weight machine body: 580 Kg
Weight trolley: 270 Kg
Dimensions machine body: 1822 x 1152 x 814 mm
Dimensions trolley: 3295 x 1383 x 1331 mm
