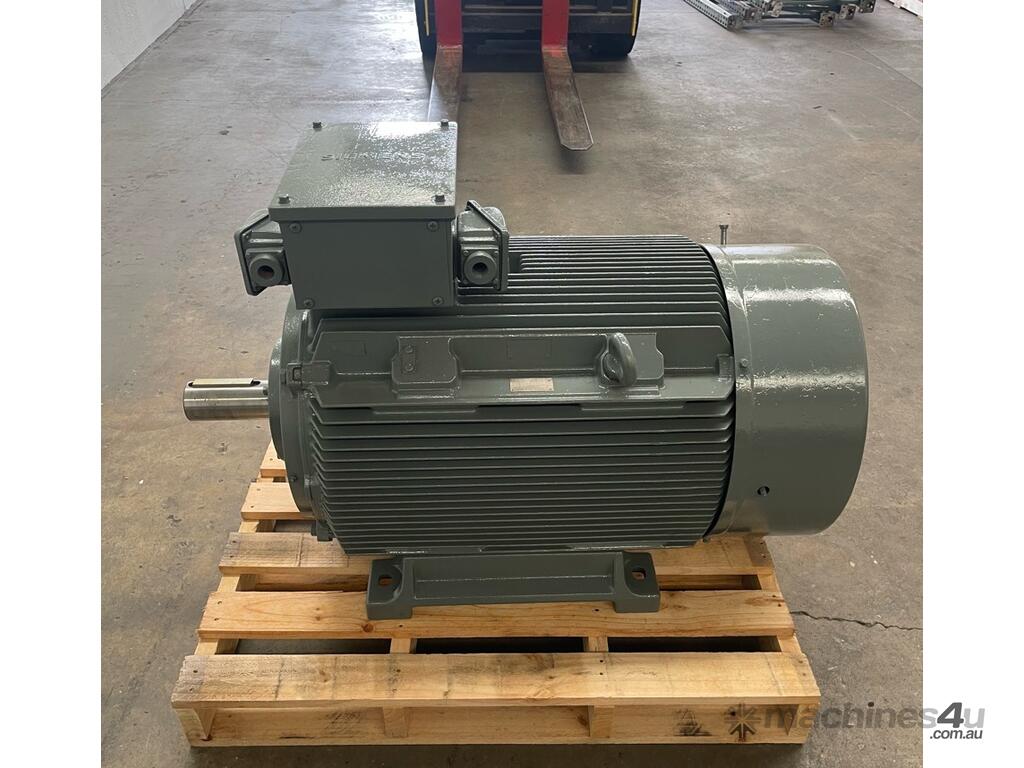

200 kw 270 hp 4-pole 1485 rpm 415v 315L frame IP56 AC Electric Motor Siemens Type 1LA6 317-4AA90Z

200 kw 270 hp 4-pole 1485 rpm 415v Foot Mount 315L frame IP56 AC Electric Motor Siemens Type 1LAAA90Z 315L

Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: Siemens
Origin: Germany
Type: 1LAAA90Z 315L
Power: 200 kw (270 hp)
Speed: 4-pole (1485 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415v
Full Load Amperage: 335 A
Mount: B3 Foot
Frame: 315L
Protection Rating: IP56
Weight: 1200 kg
Inclusions: Drive-end roller bearing (for belt-driven application), Thermistors

Critical Measurements:
Centre Shaft Height: 315 mm
Shaft DIA: 80 mm (by 170 mm long)
Total Length: 1230 mm (incl. shaft)
Total Width: 620 mm
Total Height: 830 mm (incl. top mount terminal box)
Feet Measurements: Front to Back 510 mm, Across 510 mm
Front hole to shaft: approx. 225 mm

Available QTY: 1
Condition: Fully reconditioned. decommissioned critical spare. New bearings (front roller), N/L test run & paint in motor workshop Aug'2023. Warehouse storage
exStock Seaford VIC 3198 Australia
Freight services available Australia Wide - immediate despatch
