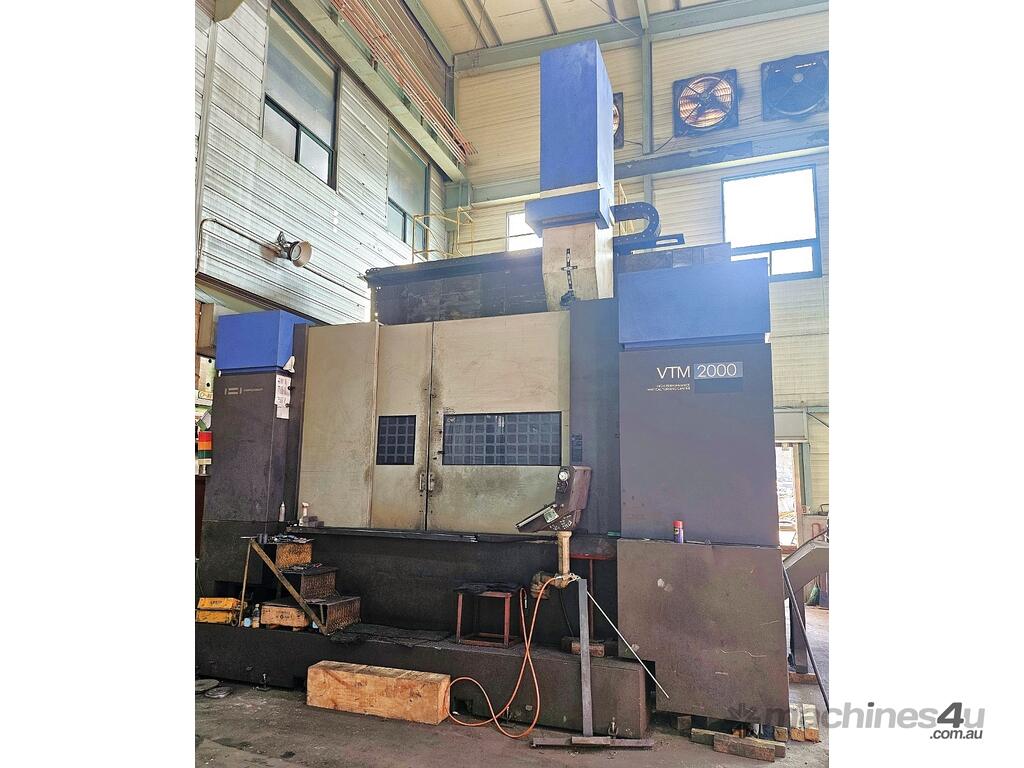

2011 Hwacheon Model : VTCM-2000 Turn Mill, CNC Vertical Borer, Long type

CNC MACHINERY SALES AUSTRALIA PRESENTS - Hwacheon Model : VTCM-2000 Turn Mill, CNC Vertical Borer, Long type

Date of manufacture : June 2011

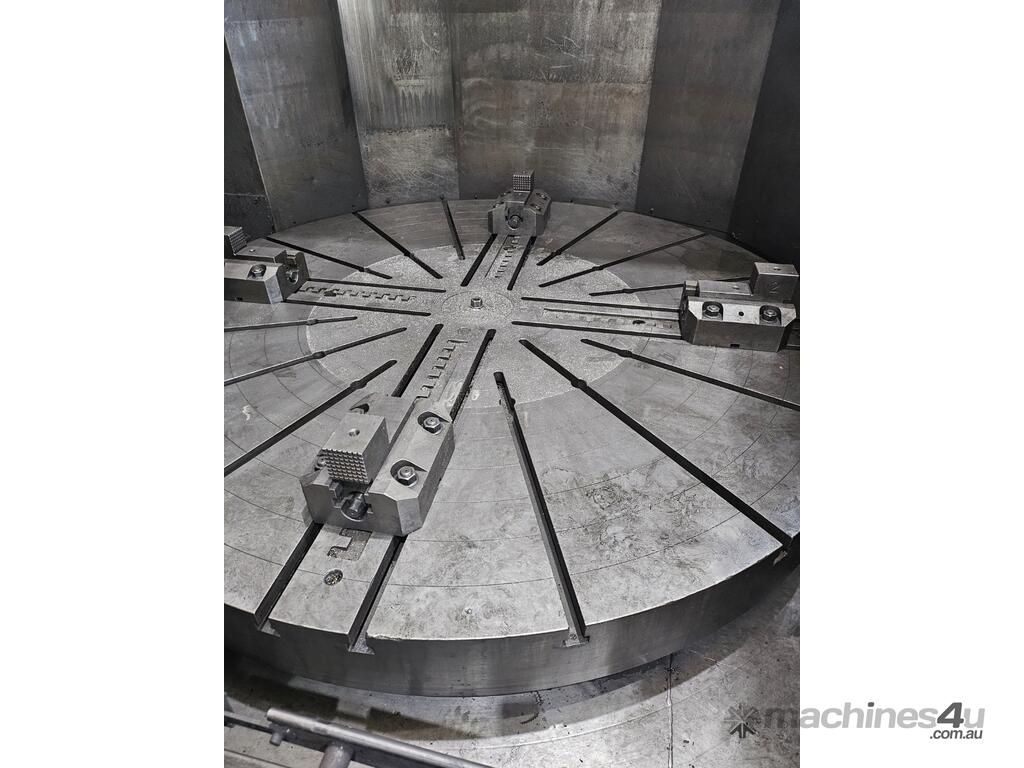

Table diameter : 2400mm (4-jaw manual chuck)

Max swing : 2650mm

Max cutting diameter : 2500mm

Turning height : 2100mm

Table speed : 1-240rpm

Milling spindle : 3000rpm

Z axis : 1000mm

Cross rail : 1100mm

Table motor : 60/75kw

Milling head : 15/18.5kw

12 tool ATC

Chip conveyor

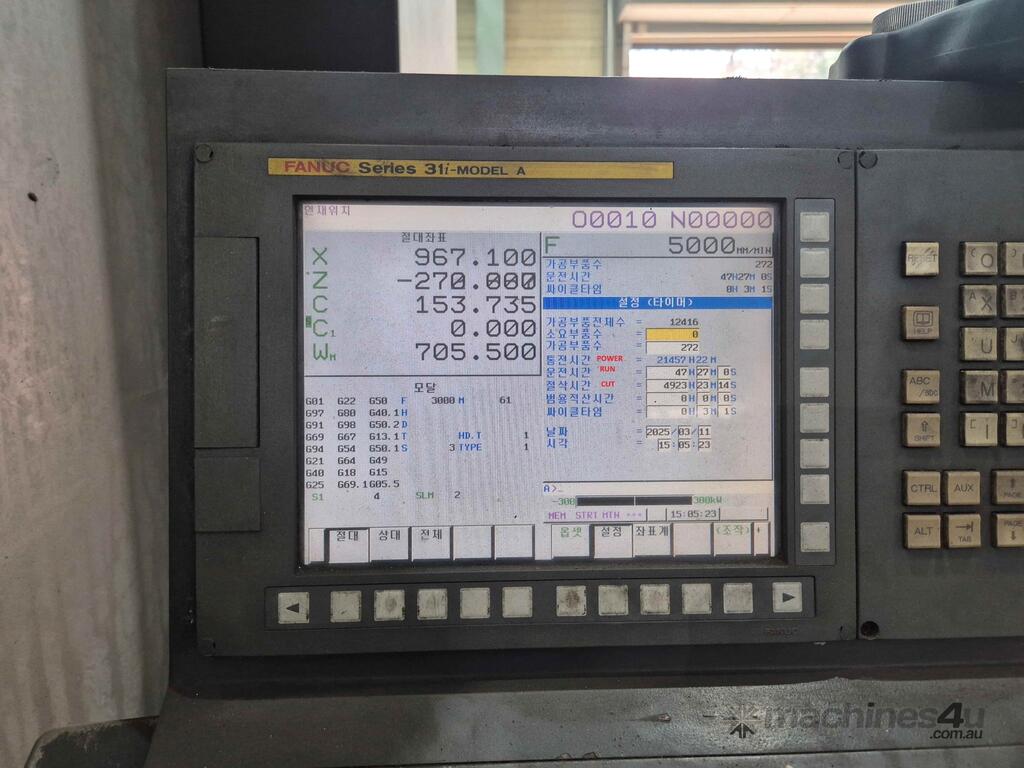

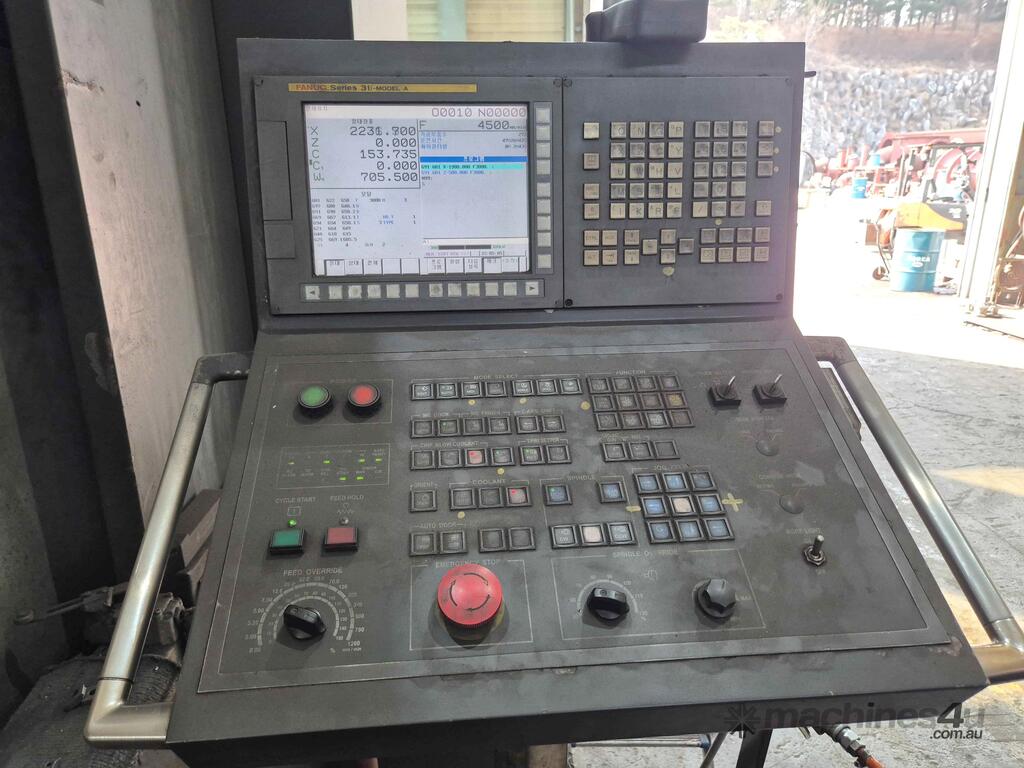

Fanuc 31iA control

Delivery, commissioning, training and ongoing support Australia wide.

Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.

Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
