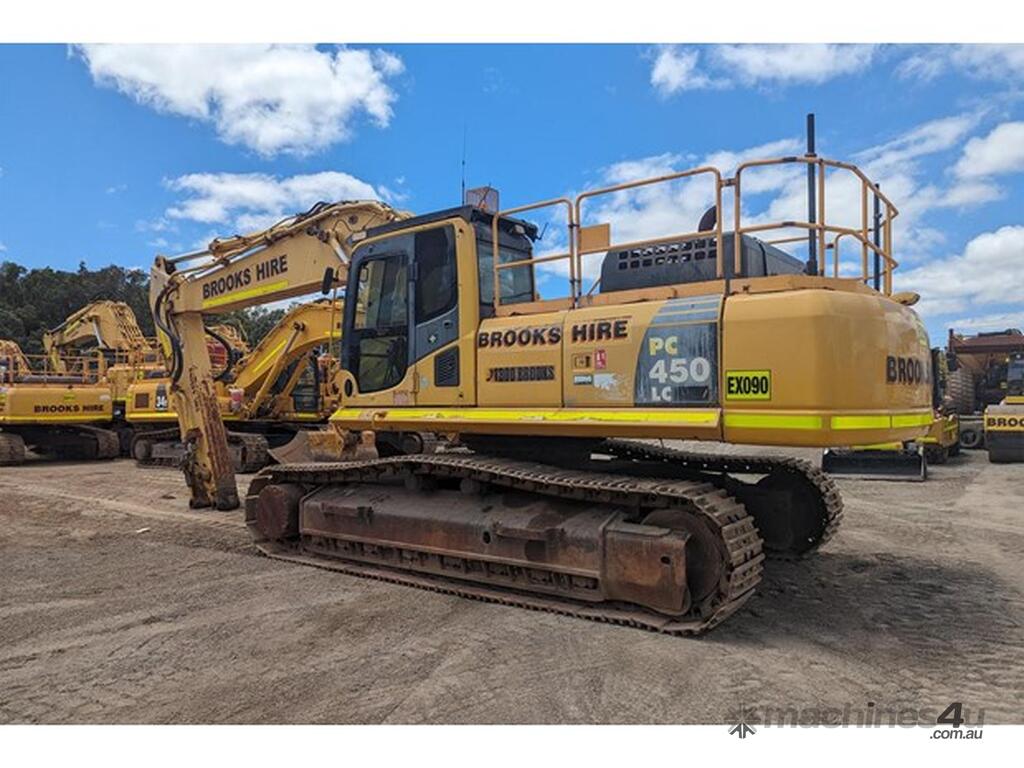

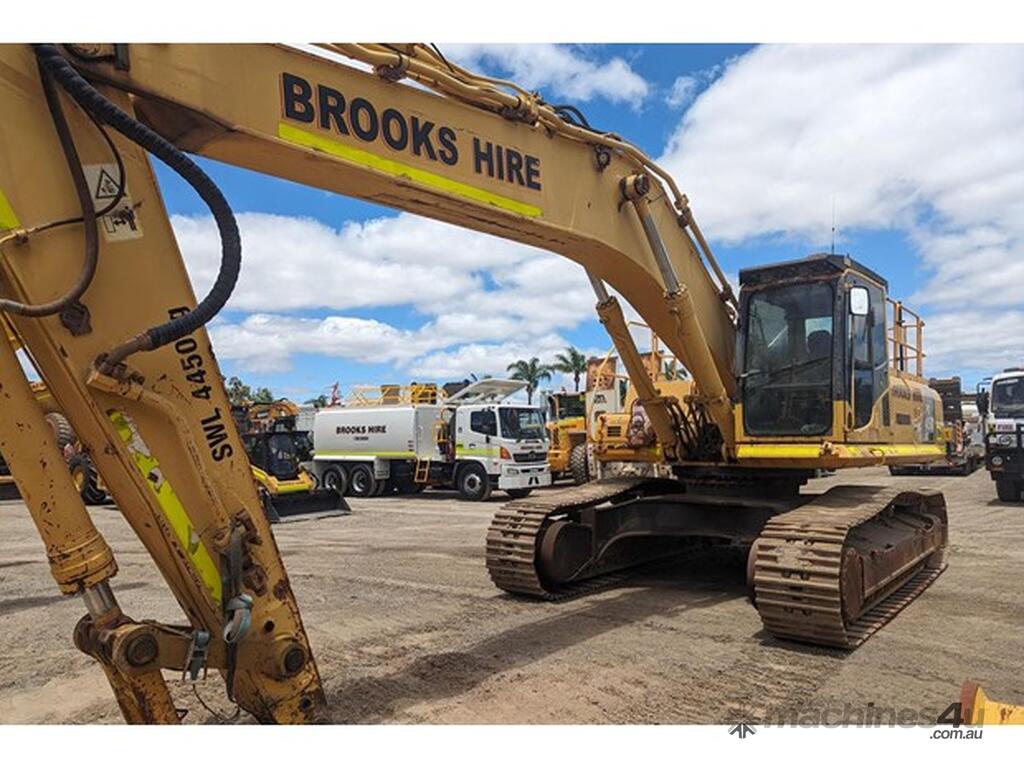

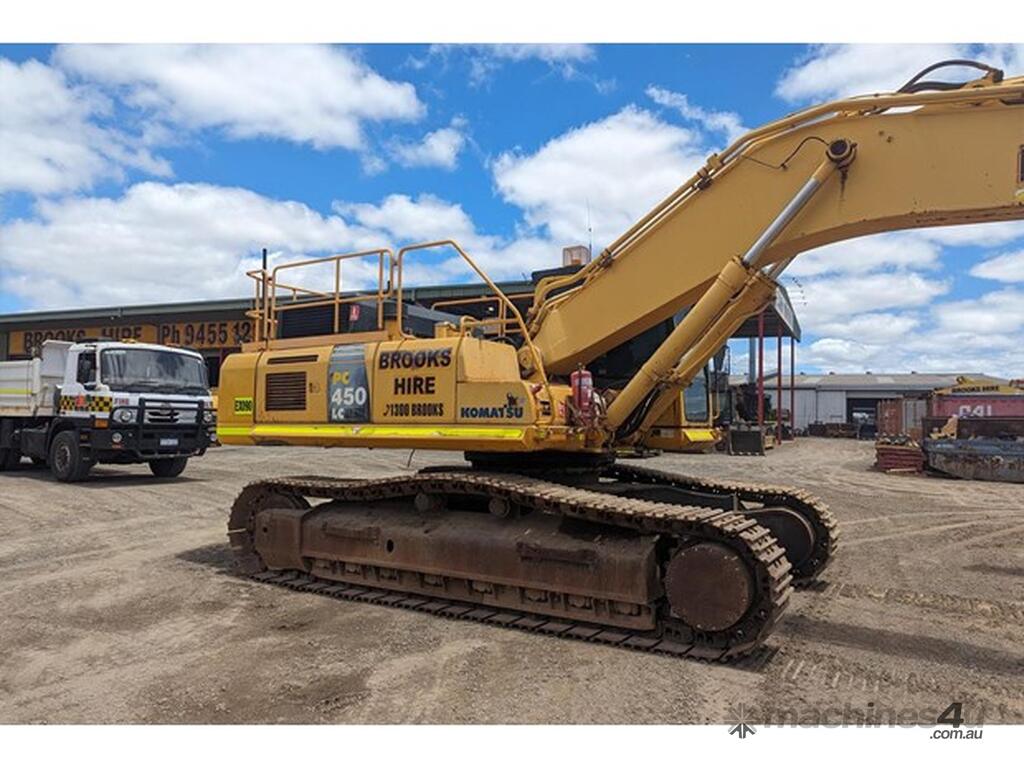

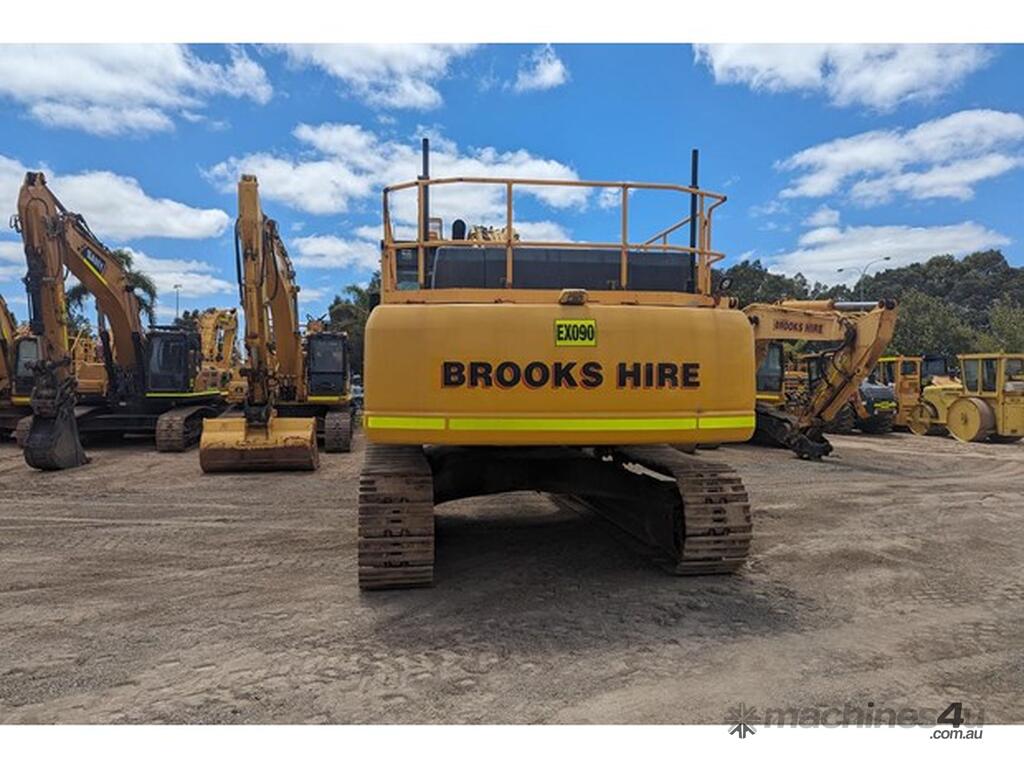

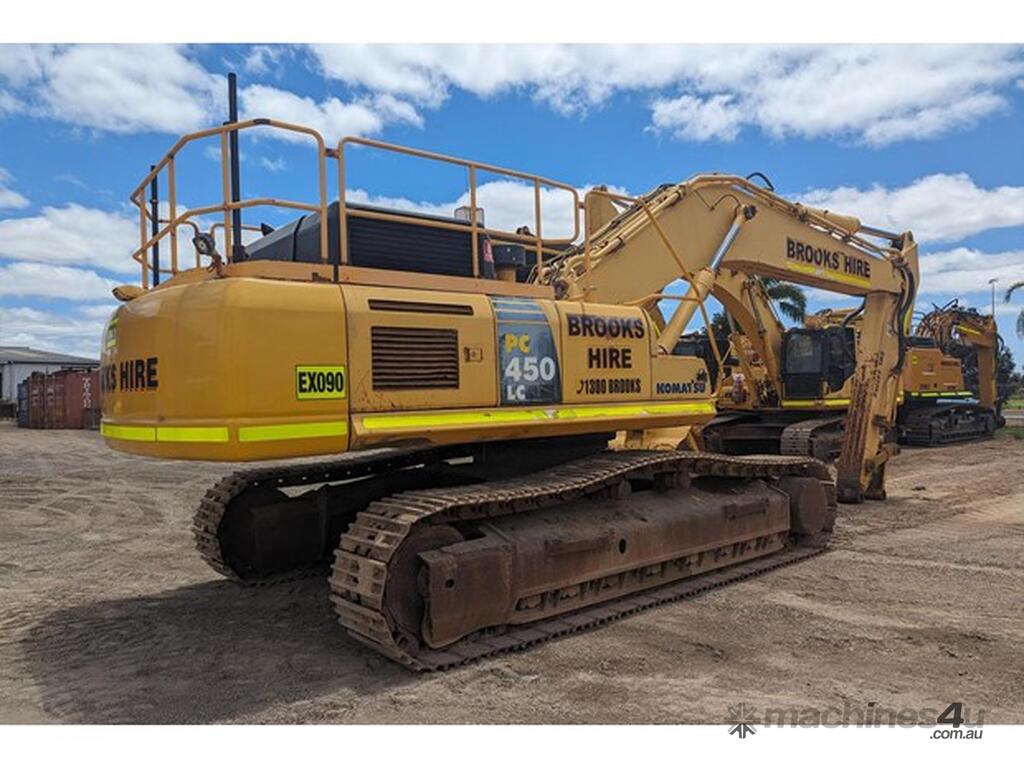

2011 KOMATSU PC450LC-8 Excavator | 11640Hrs | For Sale

Located in Canning Vale, WA (Perth)
Comes with a Pin on GP bucket.

This unit incorporates the latest technology, ergonomics, and features to ensure high productivity at a minimal operating cost. It is an integrated design that now includes a host of standard factory-installed items, such as a large ROPS Cabin, Emergency Stops, Quick Hitch and Attachment Piping to name a few! This holistic approach means a piece of mind and compliance with industry and customer expectations; additionally, it ensures a quiet comfortable environment for the operator. The Komatsu Dash 8 excavators have been founded on an impeccable lineage of proven thoroughbred machines.


EQUIPMENT DETAILS
Year 2011
Make Komatsu
Model PC450LC-8


PERFORMANCE
Operating Weight 44320 kg
Swing speed 9.1 rpm
Bucket digging force (ISO) 28300 kgf
Arm crowd force (ISO) 23800 kgf
Digging depth maximum (mm) 7790
Digging reach maximum (mm) 12005
Maximum reach ground level (mm) 11800
Horsepower, Gross SAE (kW) 270
Horsepower, Net ISO (kW) 257
Horsepower, Net SAE (kW) 257
Rated RPM 1900
Fan drive method mechanical
Displacement (litre) 11.04
Number of cylinders 6

DIMENSIONS
Overall length 12040mm
Length on ground (transport) 6725 mm
Overall height (to top of boom) 3660 mm
Overall width 3430 mm
Overall height (to top of cab) 3285 mm
Ground clearance, counterweight 1320 mm
Ground clearance (minimum) 550 mm
Tail swing radius 3645 mm
Track length on ground 4350 mm
Track length 5385 mm
Track gauge 2740 mm
Width of crawler 3340 mm
Shoe width 600 mm
Grouser height 37 mm
Machine cab height 2920 mm
Machine cab width 3165 mm
Distance, swing centre to rear end 3605 mm


WORKING RANGE

Max. digging height 10925 mm
Max. dumping height 7625 mm
Max. digging depth 7790 mm
Max. vertical wall digging depth 6600 mm
Max. digging depth of cut for 8 level 7650 mm
Max. digging reach 12005 mm
Max. digging reach at ground level 11800 mm
Min. swing radius 4805 mm
