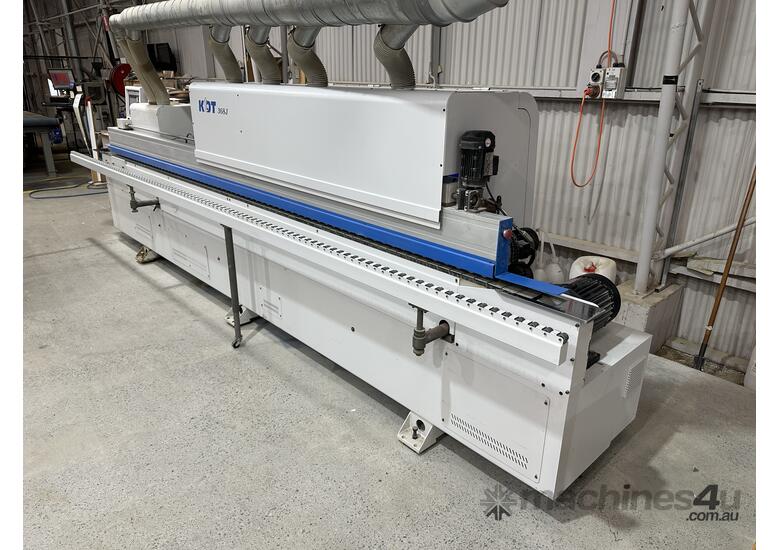

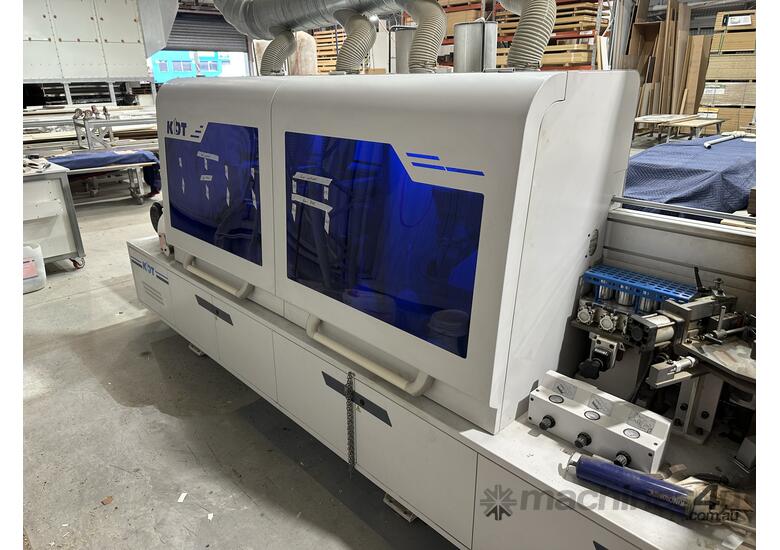

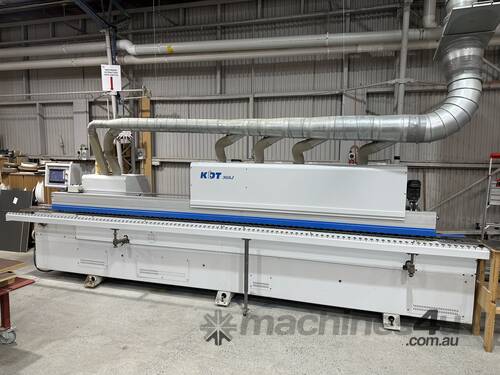

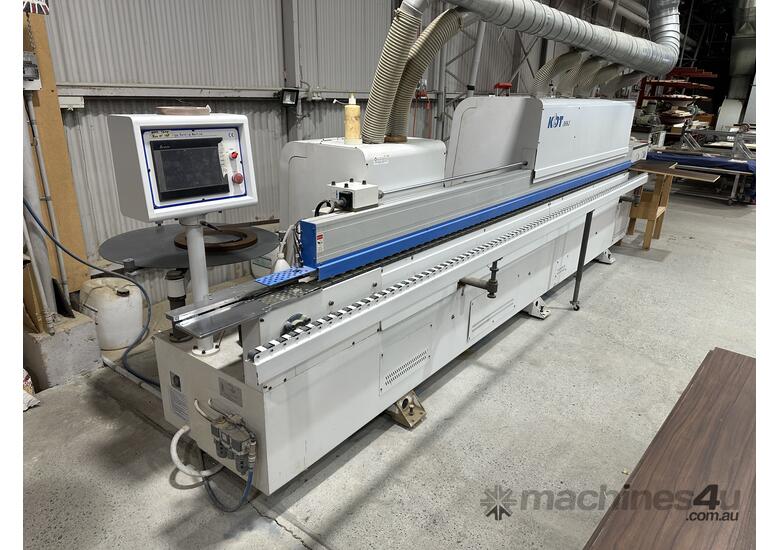

2019 KDT 368J Pre Milling Edge Bander
Model - KE-368JM
Privately used edge bander, purchased brand new in 2019. Machine is still currently being used until 28th of April which is the day the machine will be pulled out.
We are upgrading the machine due to production constraints, unit is regularly serviced along with being cleaned daily.
Whilst the machine is still in operation in our facility we are happy to offer viewings of the machine whilst its in working operation.
This machine will be in full operation until the 28th of April, on the morning of the 28th it will be decommissioned meaning from mid to late morning the machine will be ready for collection on the same day. There is no option for early or later pick up of this machine other then after its decommissioned on the 28th.
Specs + features below,
Machine dimensions - 5397mm long x 1000 wide x 1680 tall
Panel thickness 10 - 60 mm
Edge thickness 0.4 - 3 mm
Minimal Panel Length 150mm
Manual height adjustment via the touch screen
Fitted with Pre - milling 3 sprays & 1 extra trimming station
Pneumatic shut-off gate on glue roller.
Twin diamond tool pre-mill heads with pneumatic jump in/ out control
Large 3” (75mm) dust exhausts hoses on trimming units for efficient extraction.
2 sets of Top & bottom trimming stations for 1st rough and 2nd fine trim, 2mm Radius
Top and bottom radius scraper station to fine finish PVC edging, 2mm Radius
Mop buff units mounted on 50mm round bars – will not flex under load.
Full safety covers over motorised cutting and trimming units.
High feed rates – 15, 19 or 23 metres/min.
Fluorescent lights inside safety hoods
High precision slideways on cut-off saws.
High frequency motors on saws and trimmers.
Pneumatic blowers on scraper tracer wheels to keep swarf from affecting accuracy.
Digital readouts on adjusting knobs for changes in edge strip thickness.
1440rpm motors on buffs to prevent scorching.
New glue pot only 6 months old
Full ducting manifold included with the sale of machine.
We can get you in contact with an installer / trainer for the machine after purchase.
Forklift on site available to be used for loading the machine
Please contact Alex for questions or for viewings of the machine.
