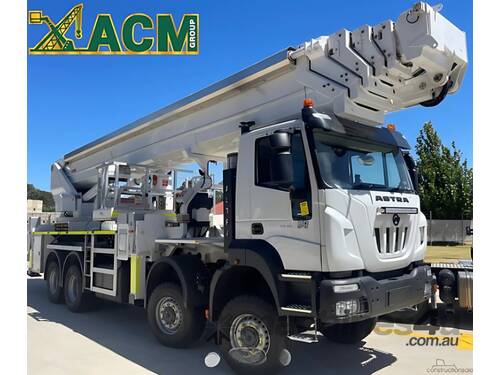

2020 Astra 8x8 ACM700 - 70m Truck Mounted EWP - Hire

The ACM700 Truck Mounted EWP Unit is specifically designed for the high-voltage power transmission and wind farming industries, built to withstand the tough Australian environment. Tested in extreme weather and challenging terrains, it ensures safety, reliability and performance in demanding conditions.

* This unit is built using a combination of new and refurbished parts

HEIGHT AND WEIGHT CAPACITIES
- Working height 70.0m maximum
- Working Radius - 36 Metres
- Basket loading capacity 600KGs or three (3) persons

AERIAL PLATFORM
- Variable jacking system
- Automatic jacking system
- Variable cage load with optimised outreach
- Automatic drive to transport position for booms
- Out of level alarm
- Electro-hydraulic control system
- Joystick control levers for boom movements in the cage
- Electro-hydraulic cage levelling system
- Double safety system
- Slow speed movement before meeting outreach limit and rotation limit
- Extension cable safety switches
- Engine start prevention gear connected.
- Automatic interlock system to prevent the lifting of the booms when the outriggers are in transport position.
- Signal lights for outriggers and boom transport position in driver's cab
- Backup system for hydraulics by battery-operated pump
- Bleed down system for emergency lowering.
- Push button in the cage for sound signal
- Cage rotation ± 90º
- Changeable working cage system
- Overload warning system
- Covered turntable.
- Aluminium decking frame
- Outrigger ground pads with brackets
- One locker at the rear of the vehicle with hinged door for outrigger control panel
- Outrigger flashlights
- Side lights (yellow)
- Plastic mudguards for rear axle
- Hydraulic oil grade 46 for "hot" environment
- Working range diagram
- Plate for safe working load
- Aluminium Extendable Work Basket
- Set off warning labels and operation instructions.
- Timbers Included
