HEIGHT AND WEIGHT CAPACITIES:
Working Height: 70.0m maximum
Working Radius: 36 Metres
Basket Loading Capacity: 600KGs or three (3) persons
AERIAL PLATFORM DETAILS:
Variable jacking system for stability
Automatic jacking system for ease of setup
Variable cage load with optimised outreach
Automatic drive-to-transport position for booms
Out-of-level alarm for enhanced safety
Electro-hydraulic control system for precision movements

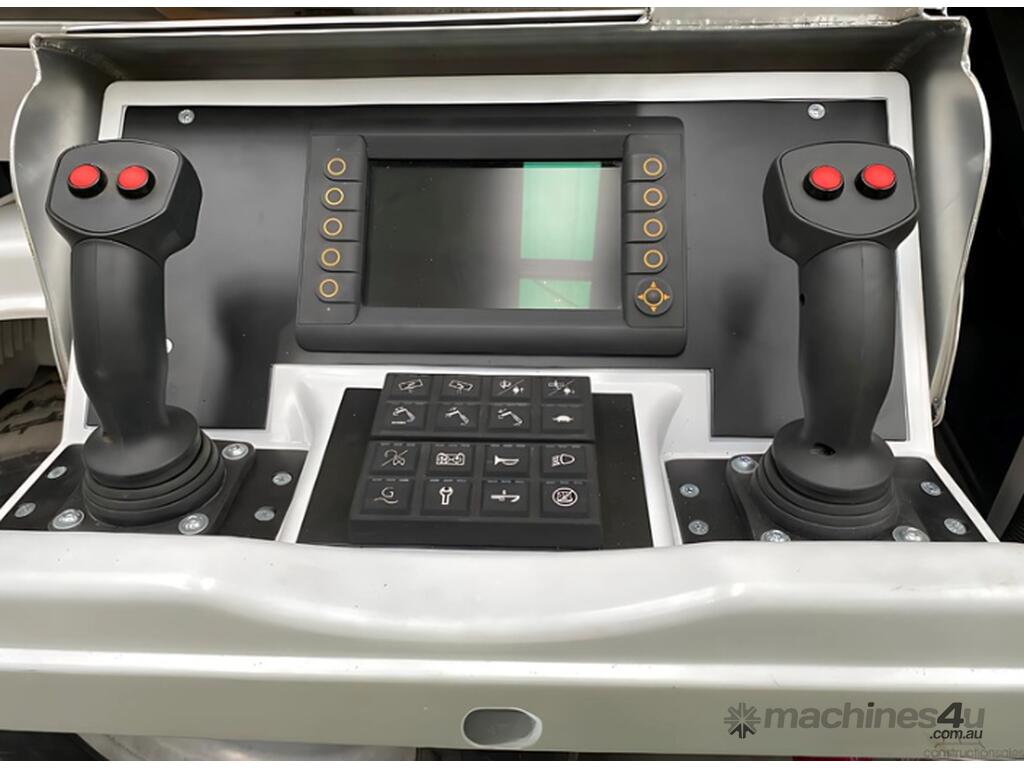

Joystick control levers in the cage for intuitive operation
Electro-hydraulic cage levelling system
Double safety system for fail-safe operation
Slow-speed movement before outreach and rotation limits
Extension cable safety switches
Engine start prevention gear for safety
Automatic interlock system prevents boom lifting if outriggers are in transport position
Signal lights in the driver’s cab for outrigger and boom transport position
Backup hydraulic system via battery-operated pump
Emergency lowering system with bleed-down functionality
Push-button sound signal in the cage
Cage rotation ± 90º for flexible positioning
Interchangeable working cage system
Overload warning system to prevent excess weight risks

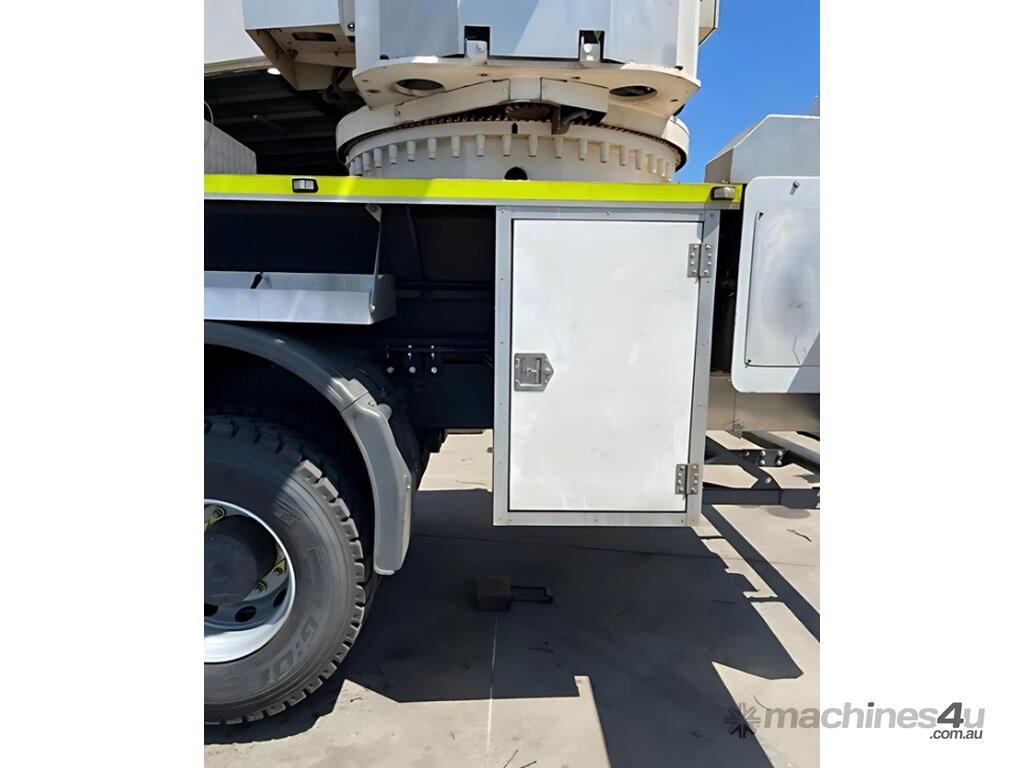

Covered turntable for protection
Aluminium decking frame for durability
Outrigger ground pads with brackets

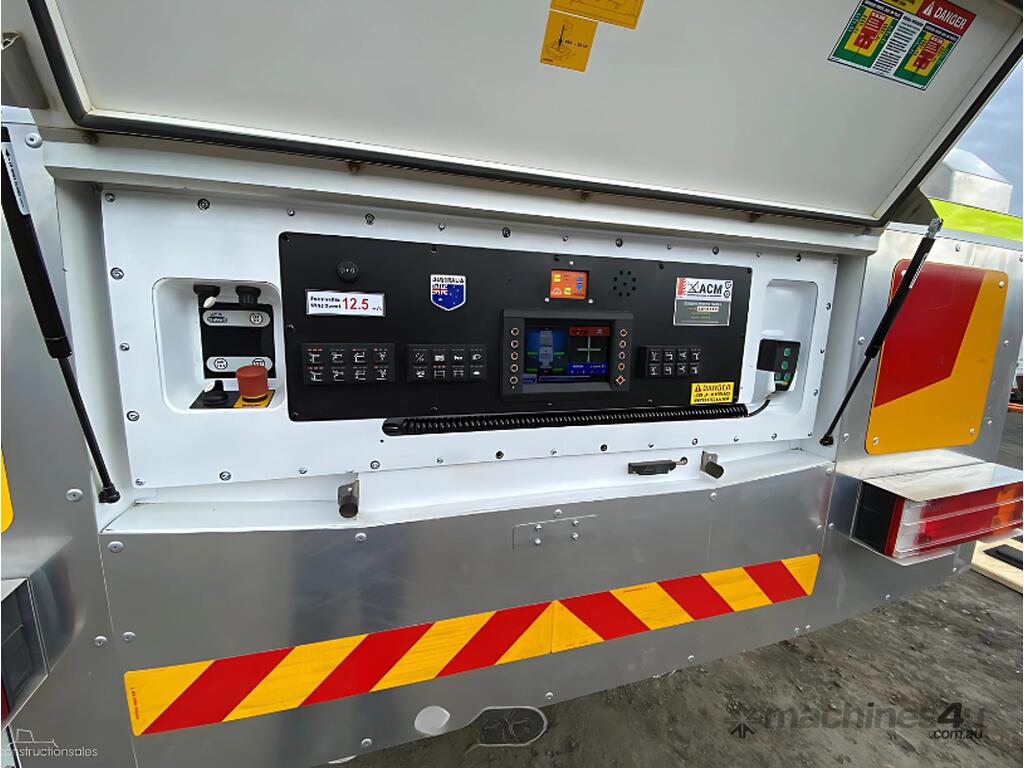

Rear locker with outrigger control panel
Outrigger flashlights for visibility
Side lights (yellow) for safety compliance
Plastic mudguards for rear axle protection
Hydraulic oil grade 46 suited for hot environments

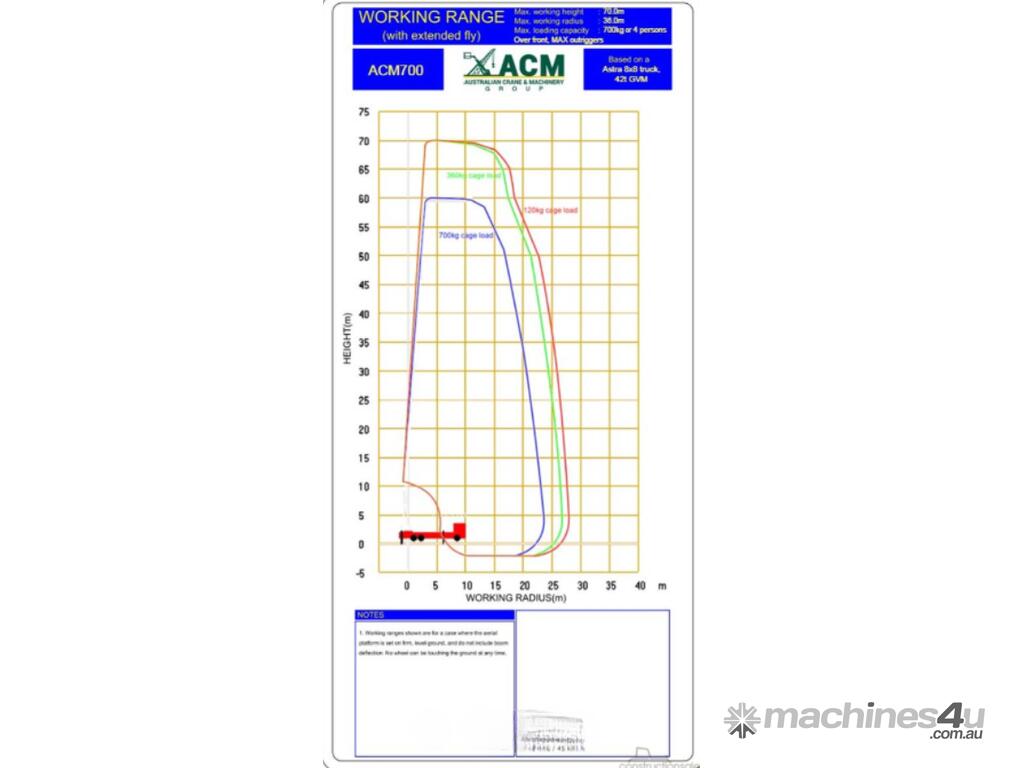

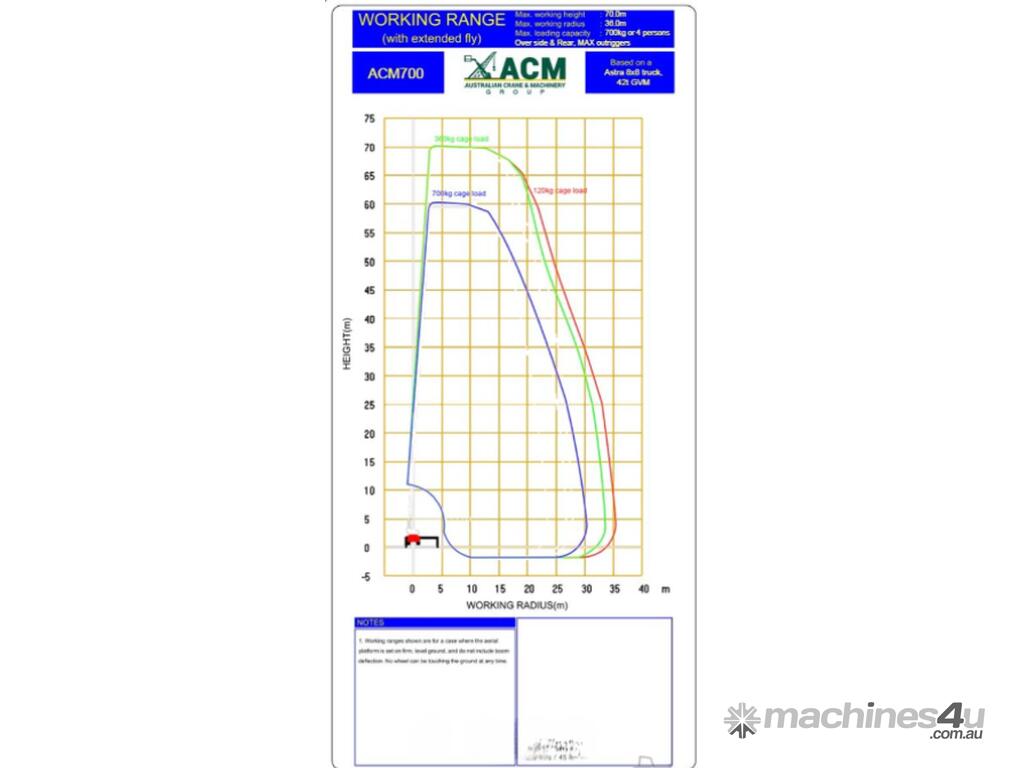

Working range diagram included
Safe working load plate for reference
Aluminium extendable work basket
Set-off warning labels and operation instructions
Timbers included for additional stabilisation

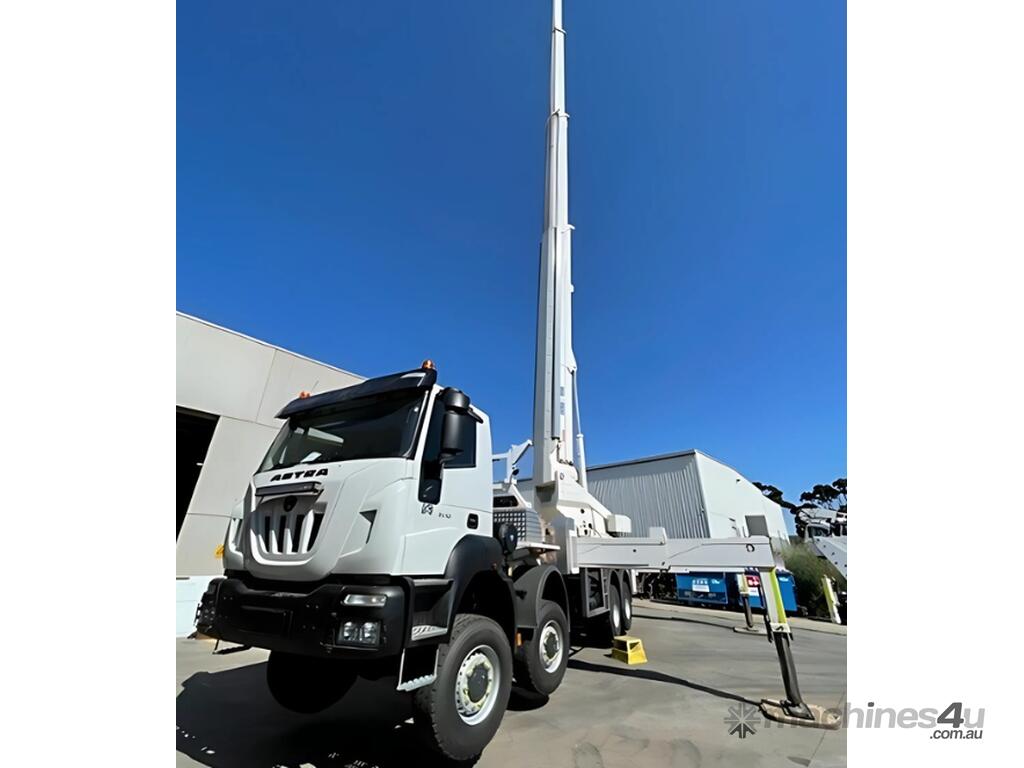

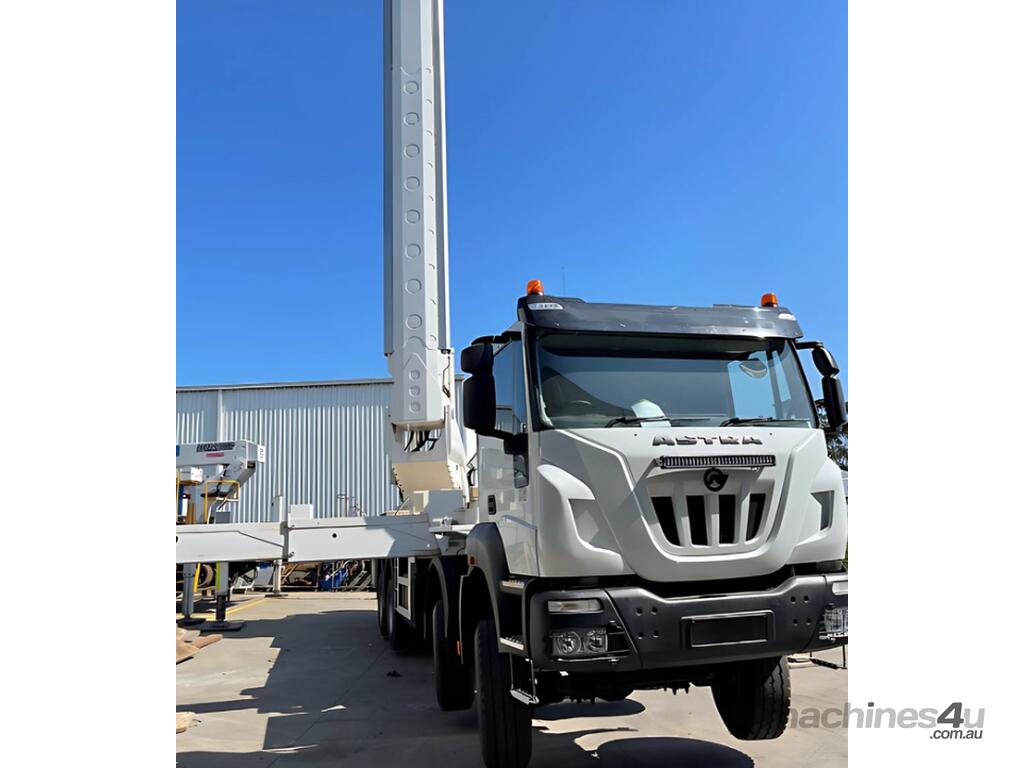

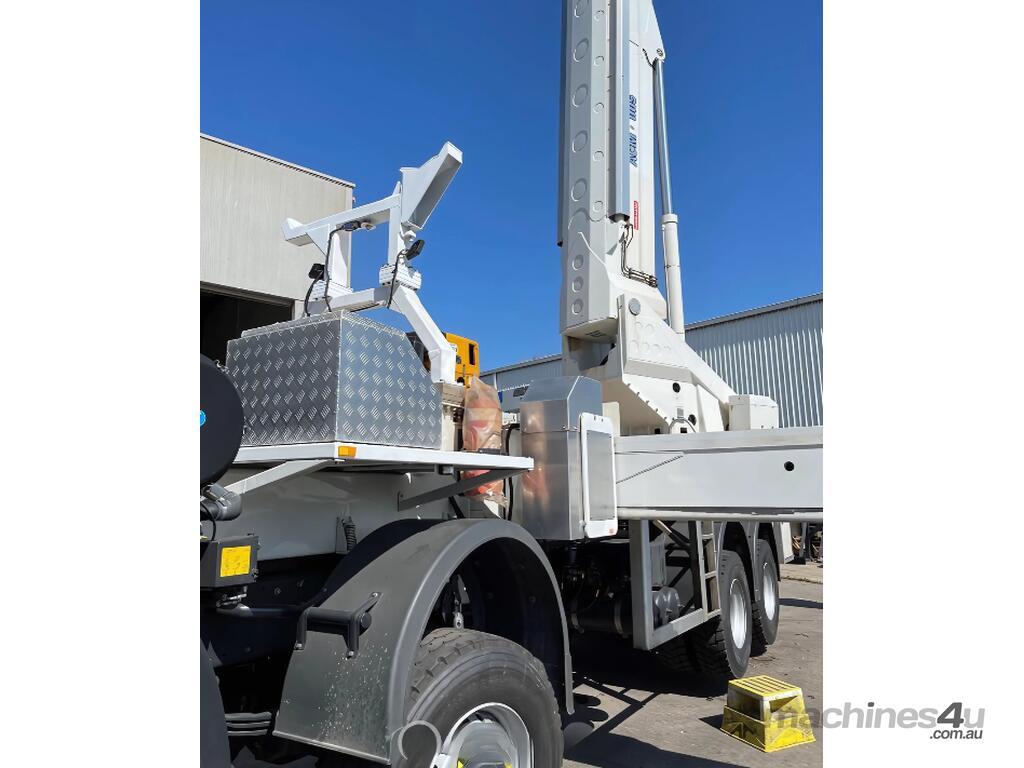

The ACM700 Truck Mounted EWP Unit is engineered for high-voltage power transmission and wind farming industries, ensuring optimal safety and reliability in extreme Australian conditions. Built with a mix of new and refurbished parts, it delivers superior performance in challenging terrains.
