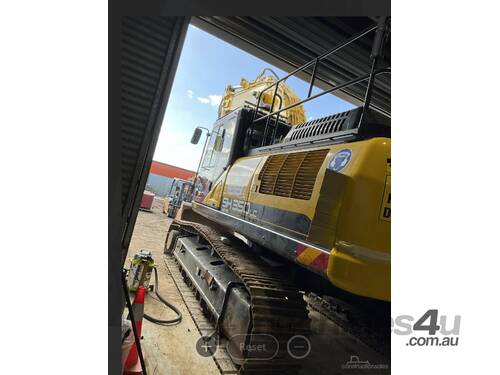

2021 Sumitomo SH350LC Excavator

The Sumitomo SH350LC Excavator is designed to deliver superior performance in a range of construction, mining, and earthmoving projects. With a powerful engine, advanced hydraulics, and impressive digging capabilities, this machine is built for maximum efficiency, productivity, and reliability.

Key Specifications:
Engine Model: 6WG1T
Engine Type: Turbocharged, 6-cylinder, water-cooled
Engine Power: 261 hp (195 kW) 1,950 rpm
Displacement: 7.79 L
Fuel Tank Capacity: 400 L
Emissions Standard: Compliant with Tier 3
Operating Weight:
Operating Weight: 35,100 kg (77,350 lbs)
Hydraulic System:
Hydraulic Pump Flow Rate: 2 x 345 L/min
Operating Pressure: 34.3 MPa (5,000 psi)
Boom Reach: 6.3 m
Arm Reach: 3.1 m

Dimensions:
Length (with Arm): 11,680 mm
Width (Undercarriage): 3,340 mm
Height (Top of Cab): 3,420 mm
Ground Clearance: 460 mm
Track Width: 600 mm
Track Length on Ground: 4,500 mm

Performance:
Max Digging Depth: 7,130 mm
Max Reach at Ground Level: 11,020 mm
Max Dump Height: 7,800 mm
Bucket Capacity: 1.3 m³ (standard bucket)
Max Bucket Digging Force: 175 kN
Max Arm Digging Force: 125 kN
Under Carriage:
Track Type: Steel track with triple grouser
Track Frame: Full track frame with reinforced undercarriage for maximum durability
Shoe Width: 600 mm

Operator's Cabin:
Operator’s Seat: Ergonomically designed for comfort with adjustable features
Climate Control: Air-conditioning system for operator comfort
Control System: Advanced electronic control for improved fuel efficiency and machine performance
Cab Design: Spacious, with good visibility for increased safety and productivity

Located in Melbourne. For further inquiries regarding freight, finance, or additional information about this Excavator, feel free to reach out to the designated team for assistance.
