2023 Putzmeister BSF 42-5.16H

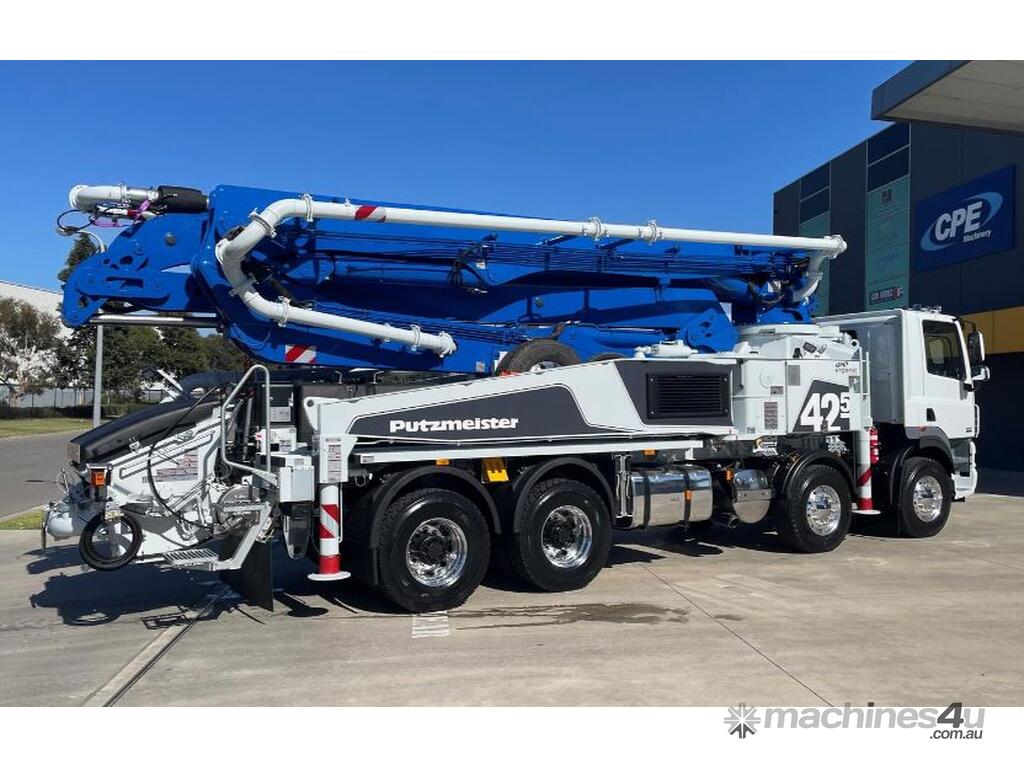

Putzmeister BSF 42-5.16H Ergonic 3 Concrete Pump, mounted on a DAF FAD 530, 8x4, 530HP, Air suspension.

The BSF .16 H is designed for high-efficiency and reliable performance. On the rod side, it delivers an output of 160 m³/h at a pressure of 85 bar with 31 strokes per minute. On the piston side, models .16H LS and .17 i LS deliver outputs of 160 m³/h and 170 m³/h respectively, both at 85 bar with strokes of 26 and 27 per minute. Featuring a delivery cylinder diameter of 230 mm or 250 mm and a stroke length of 2100 mm, ensuring optimal fluid handling for demanding industrial applications.

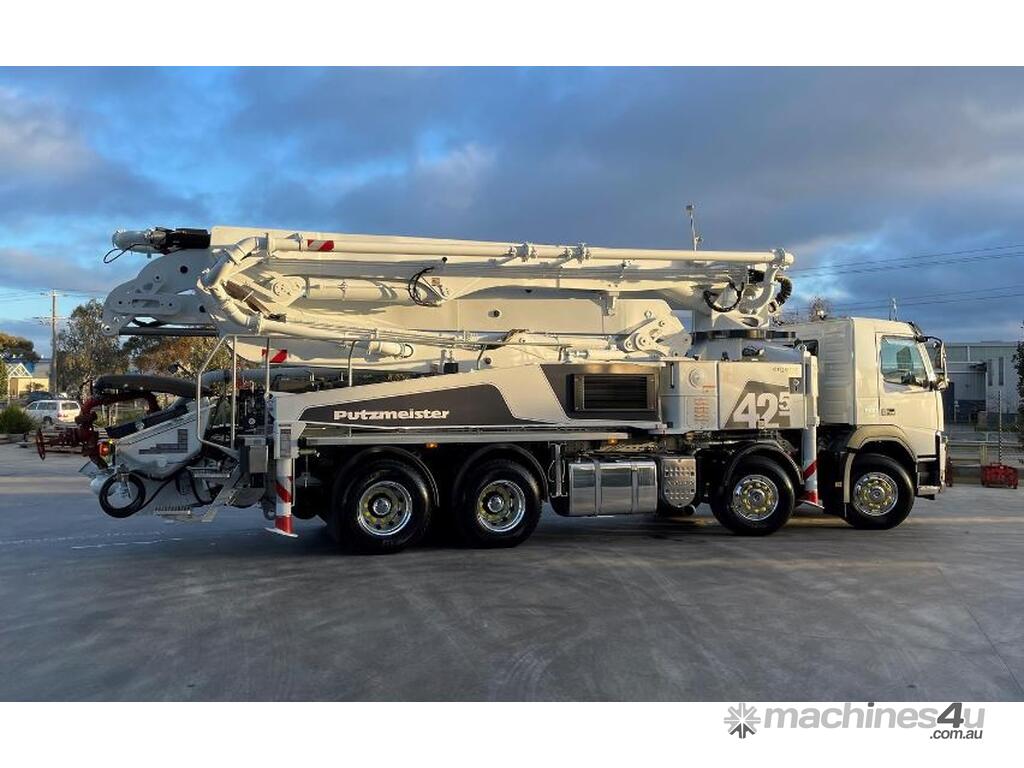

Boom is a 42metre, 5 stage, Roll Z configuration, 125mm (5inch) PutzmeisterTwin wall pipeline, fitted with End hose Squeezer, Putzmeisters unique OSS - One Side Support. Smallest outrigger footprint in the market, 7.5m front to front outrigger, 7.9m rear outriggers, or OSS = 4.8m on front and 6.2m on rear.
Pump is a 16H Kit, which has 160 cubic metre per hour output, 85 bar hydraulic pressure, 230mm x 2100 concrete cylinders. Putzmeister radio remote with digital display, with spare RRC.
Also included is LED side markers, Flashing beacon on rear of boom, spotlight kit for work zone, high pressure concrete pistons, hardmetal wear parts, additional safety handrails, vibrator, foldable splashguard on hopper, non skid working decks, foldable rear steps and additional timber supports, pressure washer and loads more

Mounted on new Euro 6 DAF CF 530 8x4 Chassis, manual/auto transmission, air suspension.

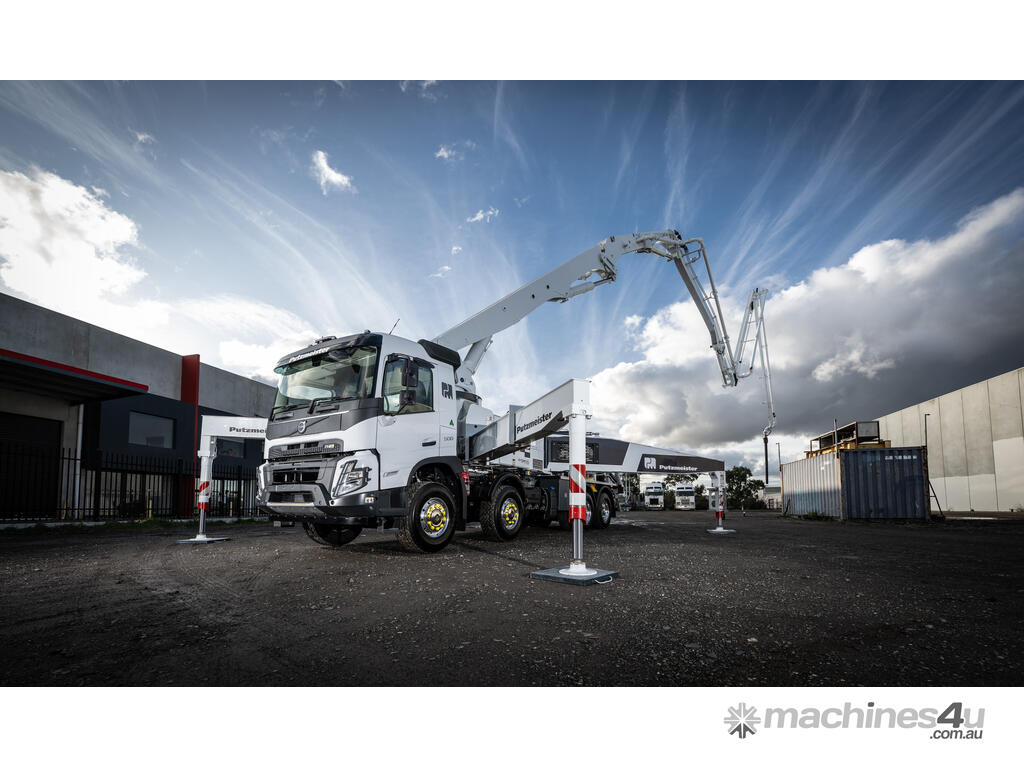

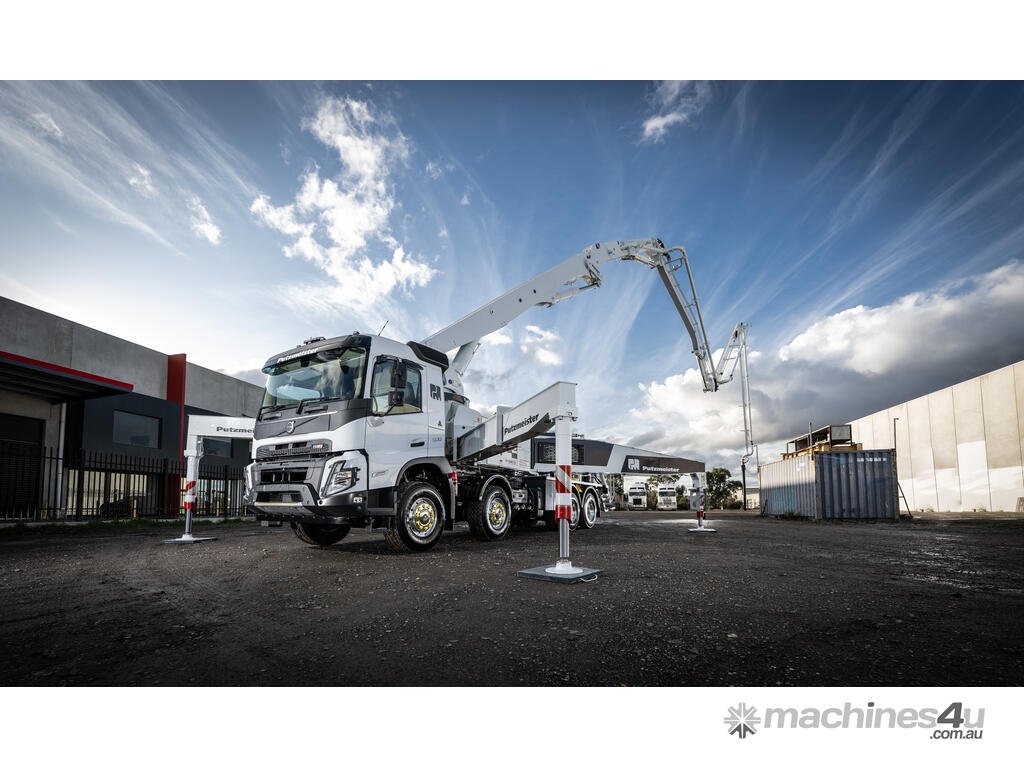

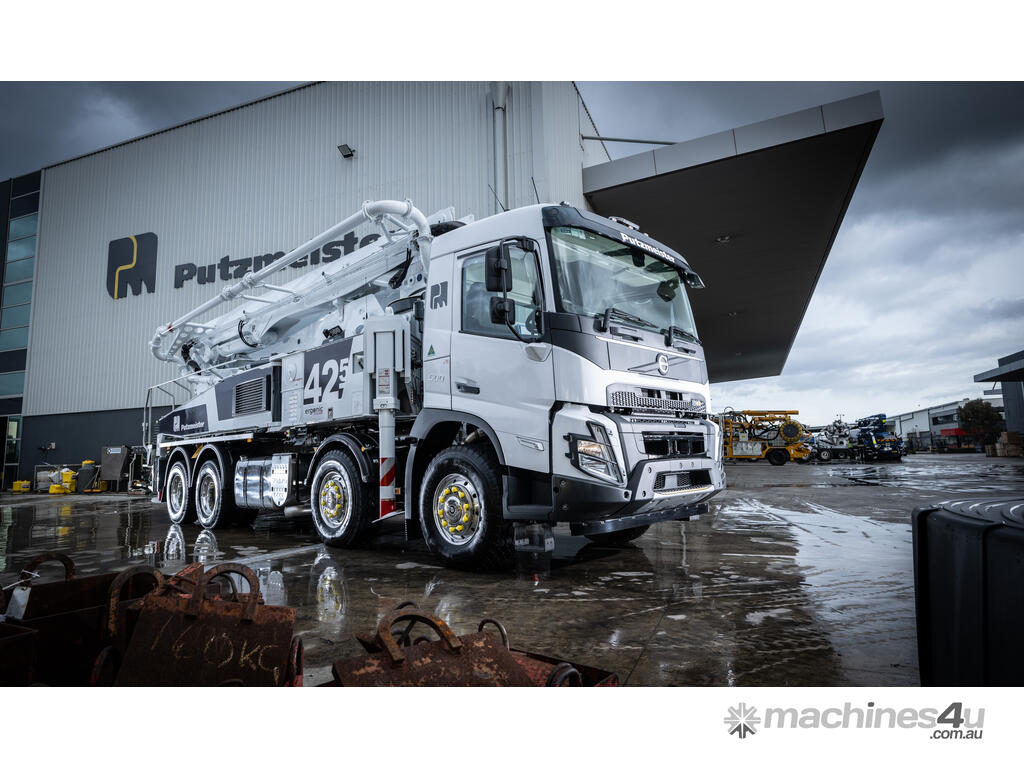

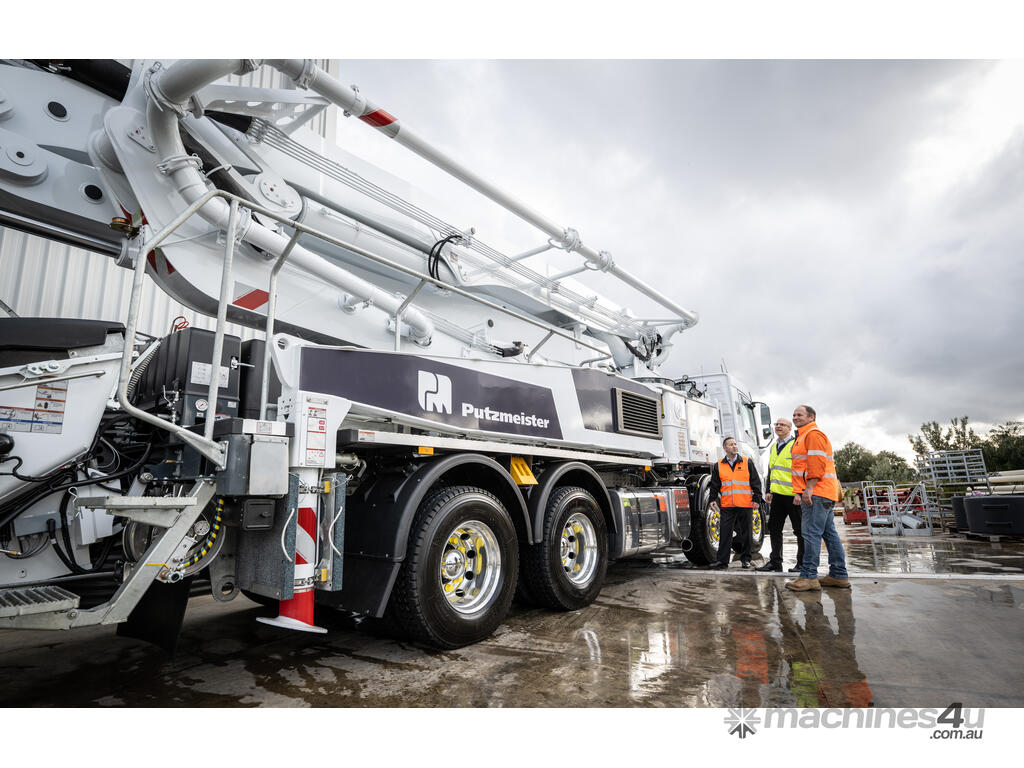

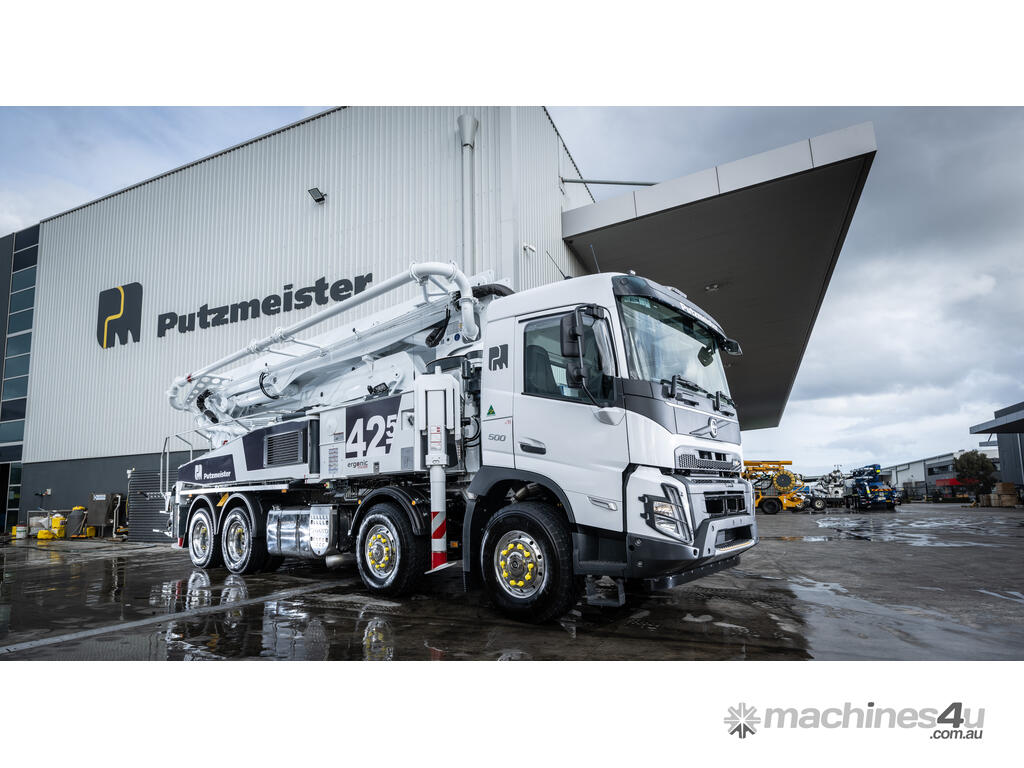

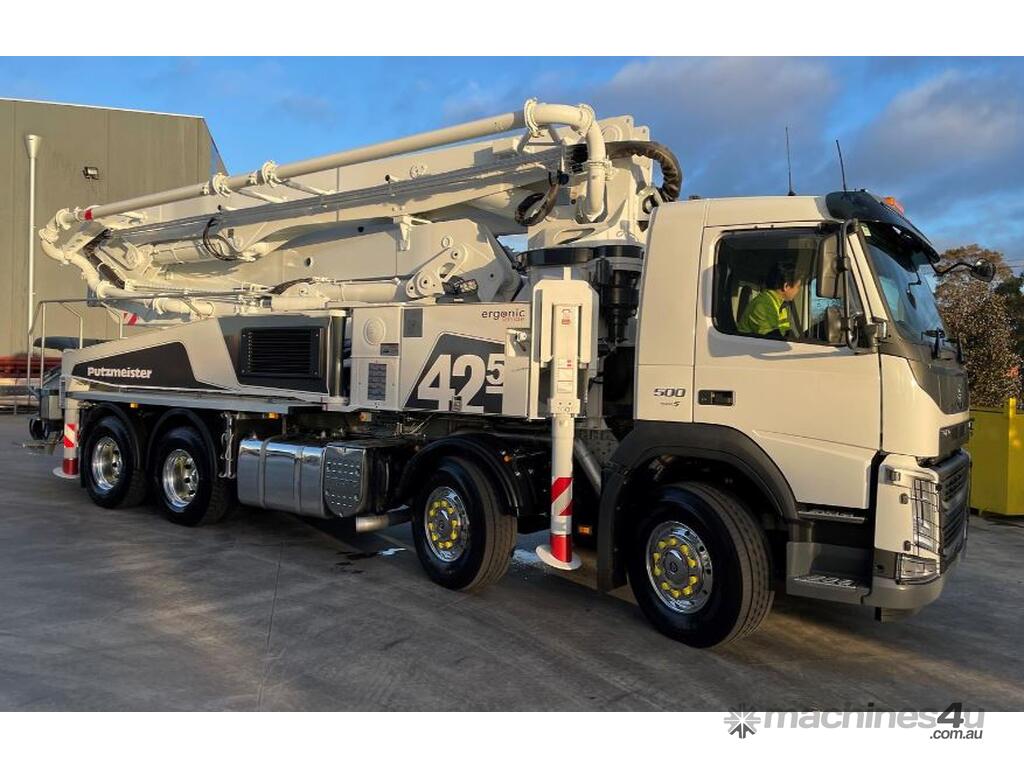

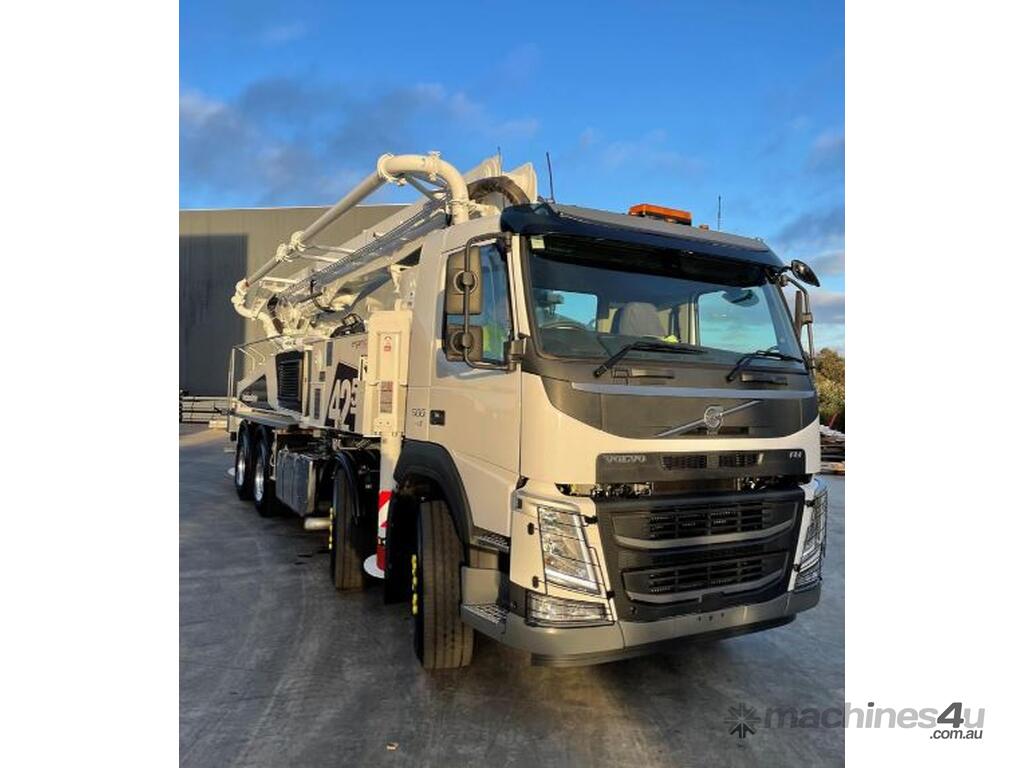

Unit also available to order on a Volvo 8x4 Chassis as seen pictured.

Price = $890,000 + GST
