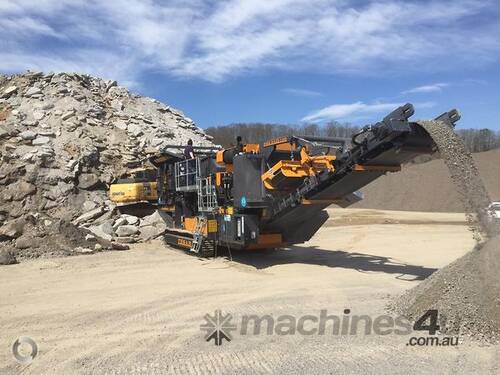

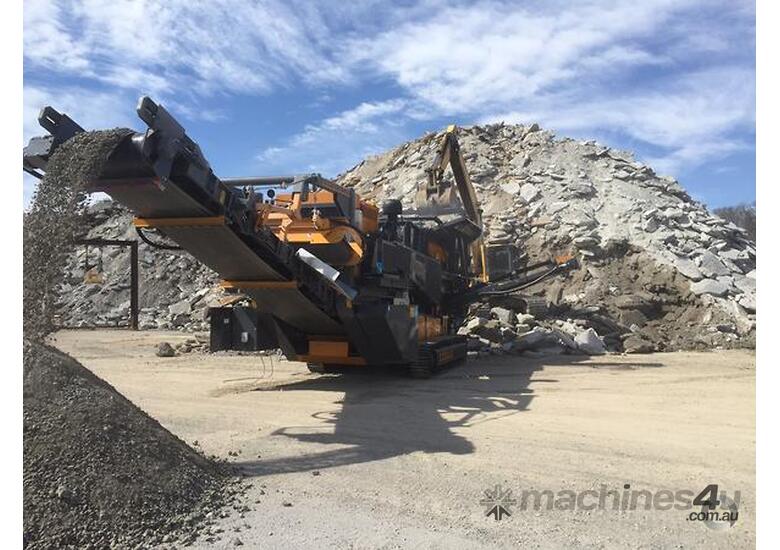

2023 TESAB 1012TS Tracked Impactor Crusher

Maximize your production capacity and efficiency with the 2023 TESAB 1012TS Impact Crusher, designed for demanding operations and built to handle high volumes with ease. Whether you're in construction, mining, or aggregates, this robust machine offers exceptional performance and versatility to meet all your crushing needs.

Key Features & Specifications:

Production Rate: 350+ TPH* — Achieve exceptional throughput, ensuring your project stays on track and ahead of schedule.
Max Feed Size: 300mm (12”) — Capable of handling larger feed sizes, reducing downtime and increasing overall productivity.
Reduction Ratio: Up to 20:1 — High efficiency and precise reduction, delivering optimal material sizes for your application.
Engine: CAT C13 (Tier 3 / Tier 4) — A powerful, reliable engine providing the performance required for consistent output and operational excellence.
Feeder Belt: Included — Ensures smooth material feeding for a more efficient and continuous operation.
Transport Dimensions:

Height: 3560mm (11' 8”)
Width: 3200mm (10' 6”)
Length: 15,100mm (49' 7”)
Working Dimensions:

Width: 3850mm (12' 7”)
Length: 17,030mm (55' 10”)
Weight (Estimate): 42,700kgs (94,137 lbs) — Engineered for heavy-duty performance and stability during operation.

The 2023 TESAB 1012TS is designed to provide a powerful, high-performance solution for crushing and material handling. With impressive capacity, low operating costs, and durability, this impact crusher is your ideal partner for high-volume, efficient crushing operations.

Ready to enhance your operations with the TESAB 1012TS? For quotes on freight, finance, and more information about this Tesab unit, please reach out to one of the team members, and we will be happy to assist you.
