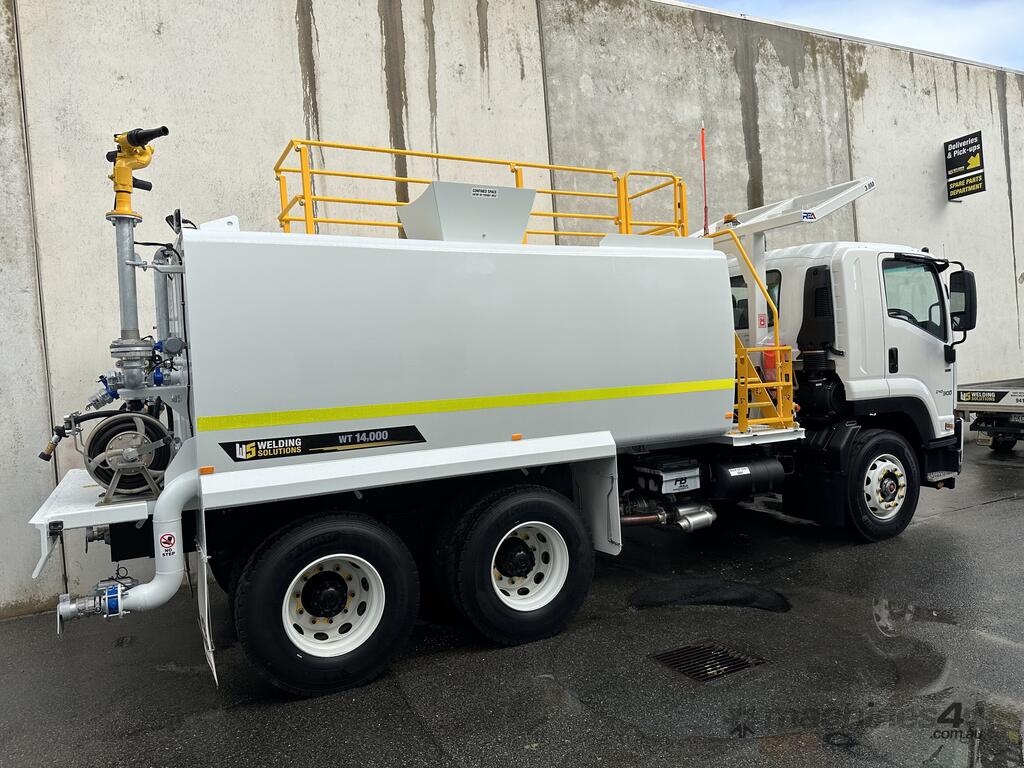

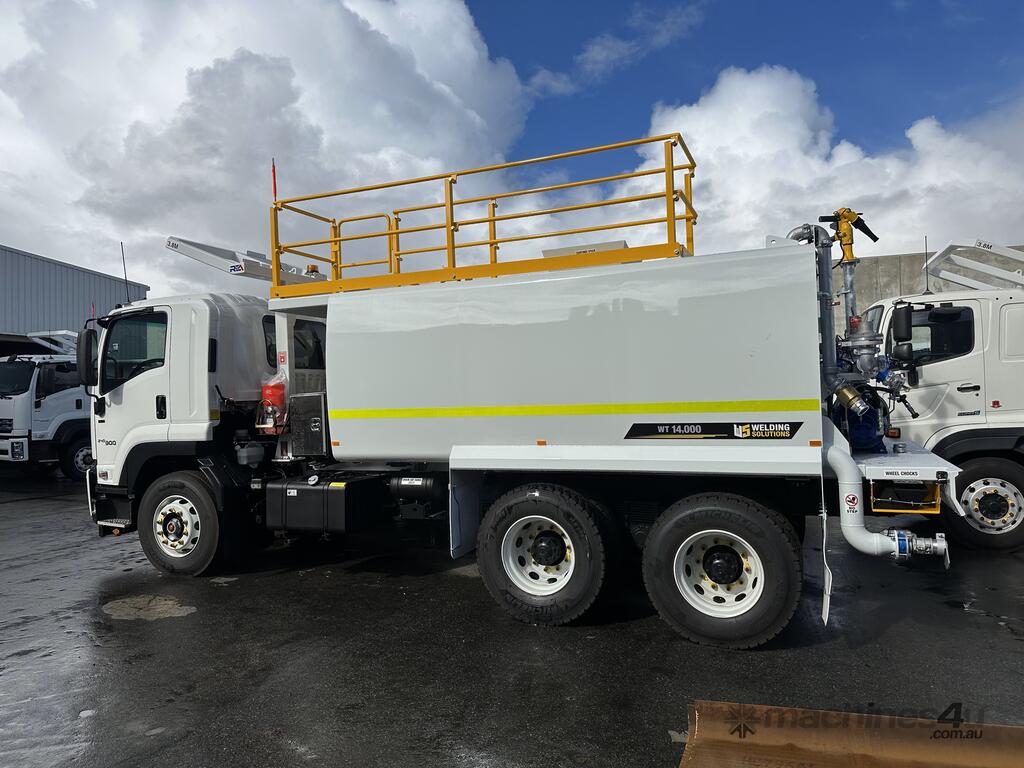

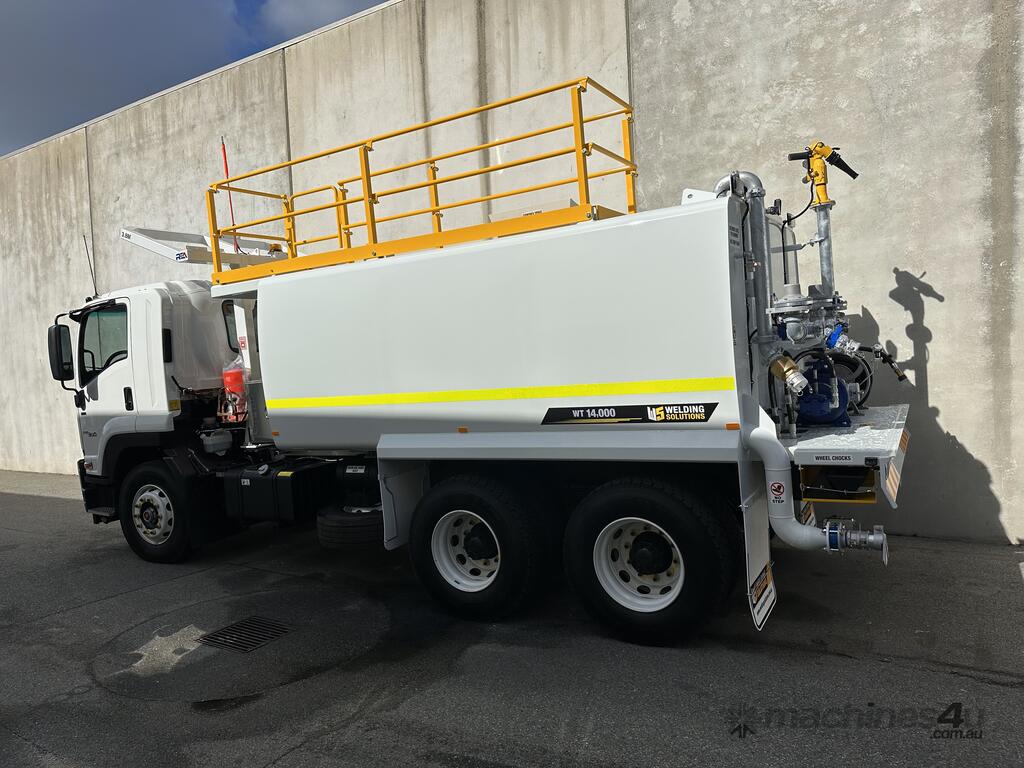

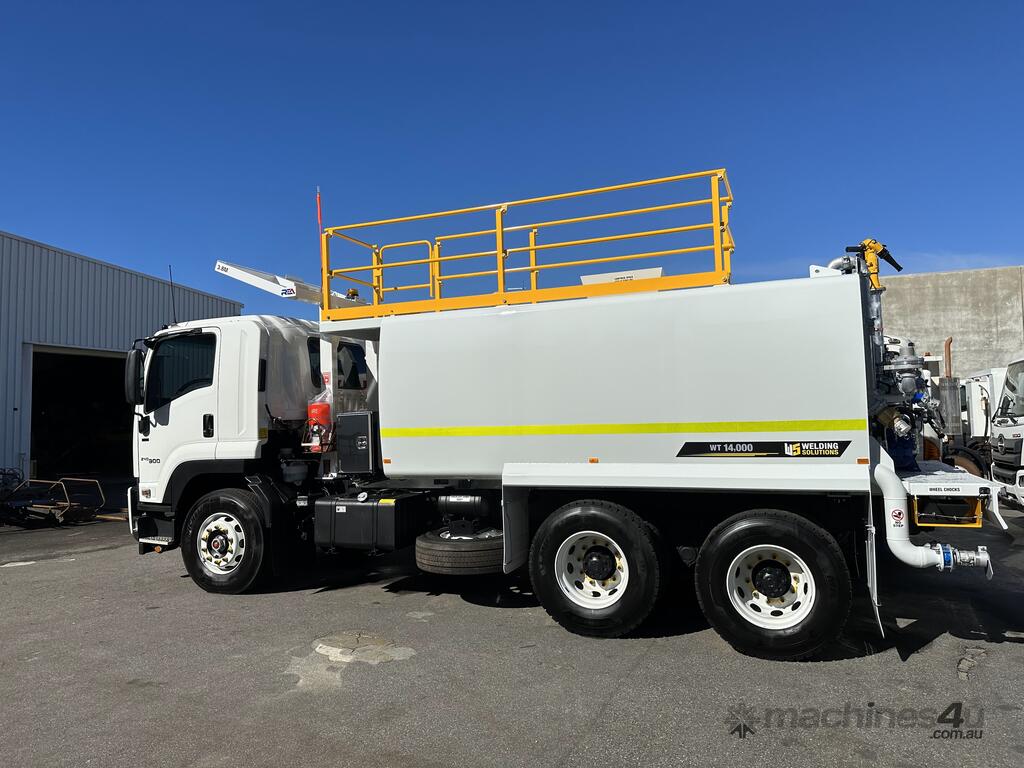

2024 Isuzu FVZ 240/300 Mine Spec Water Truck 14,000L ROPS - Australian Made

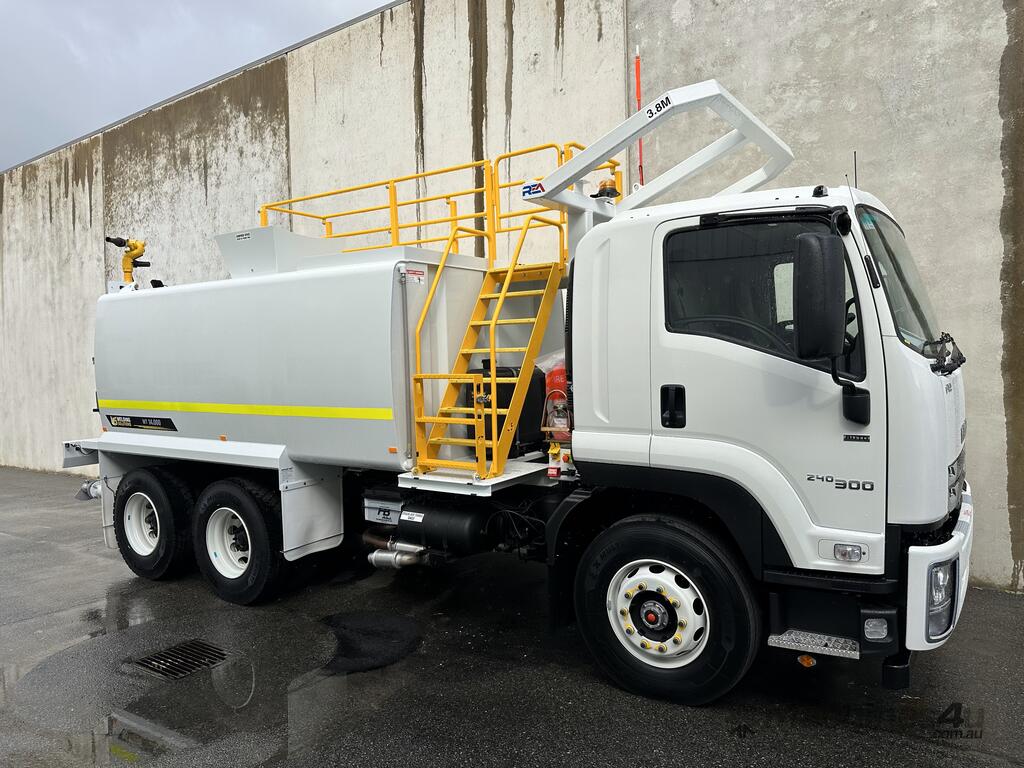

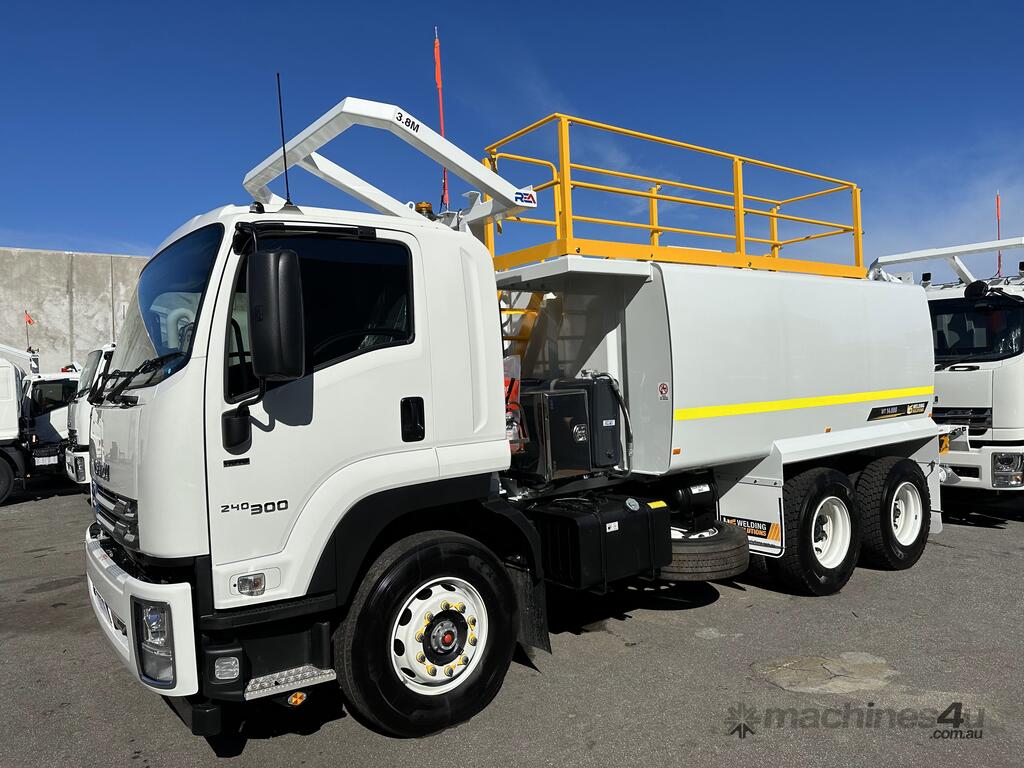

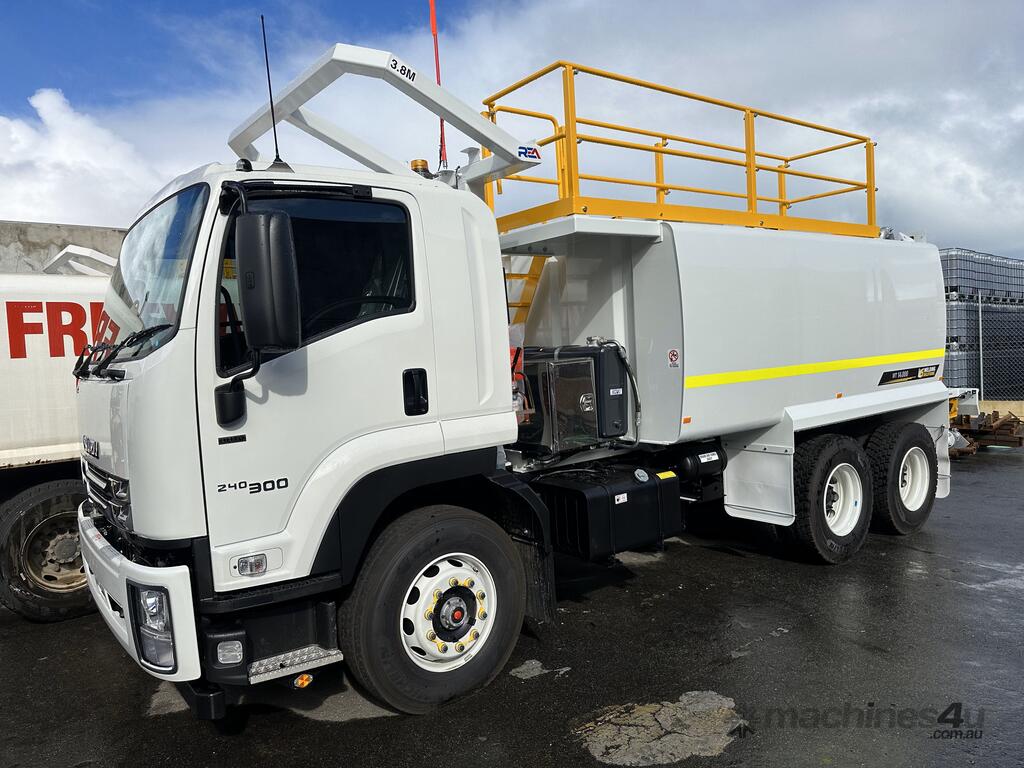

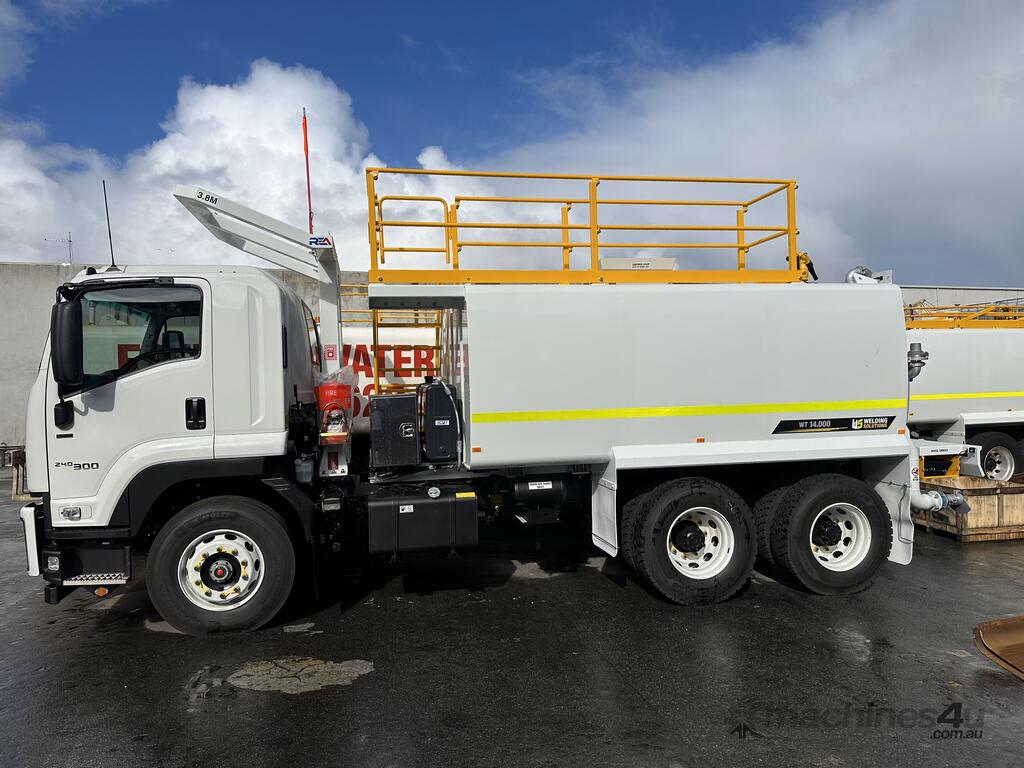

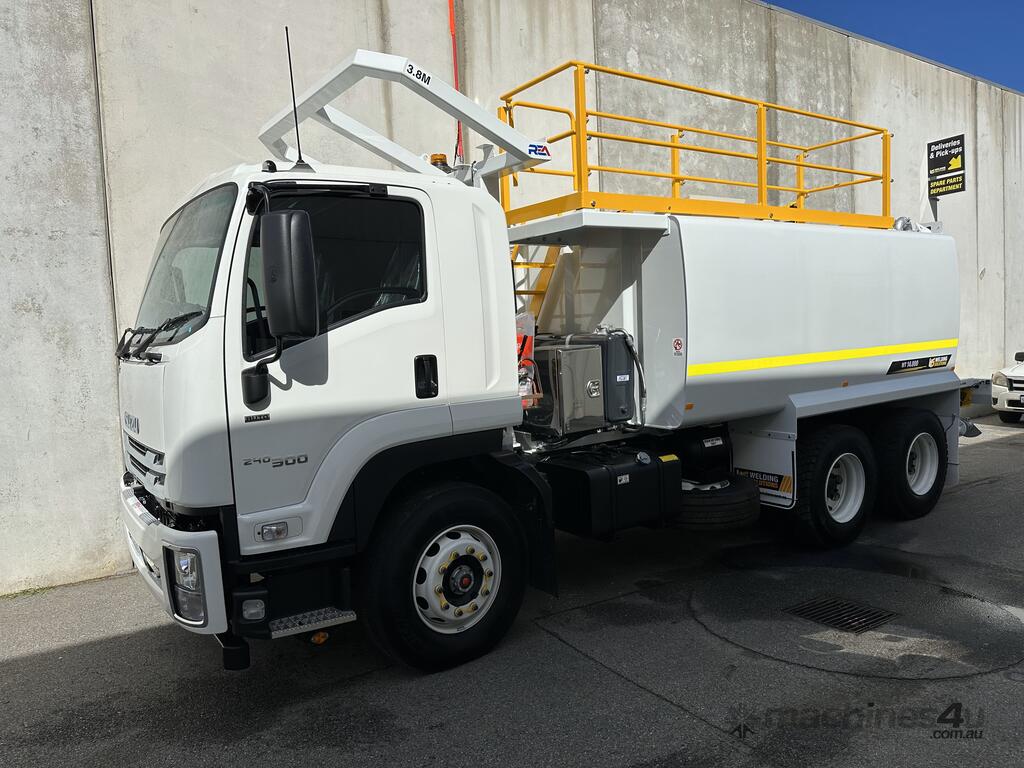

NEW 2024 ISUZU FVZ 240/300 Mine spec water truck with Welding Solutions 14,000 Litre water tank and ROPS.
Interstate delivery available.
OPTIONS AVALIABLE WITHOUT ROPS AND HAND RAILS

Proudly Australian made to the highest standard.
Extremely reliable with reduced running costs.
Full spare parts backup and after sales support.
Specifications for new 2024 steel 14,000 L water tank:
• 14,000 L steel water cart tank heavy duty and built to lasyt. Tank sides, ends and baffles pressed for greater strength.
• Steel guards with flexible mudflaps will be fitted.
• Top fill funnel for standpipe filling, fitted off centre for ease of standpipe alignment, fitted with lockable cover.
• Splash guard around the front of the water tank preventing water run off over front of tank.
• Spring mounted to new 6X4 Isuzu FVZ 6X4 AUTO.

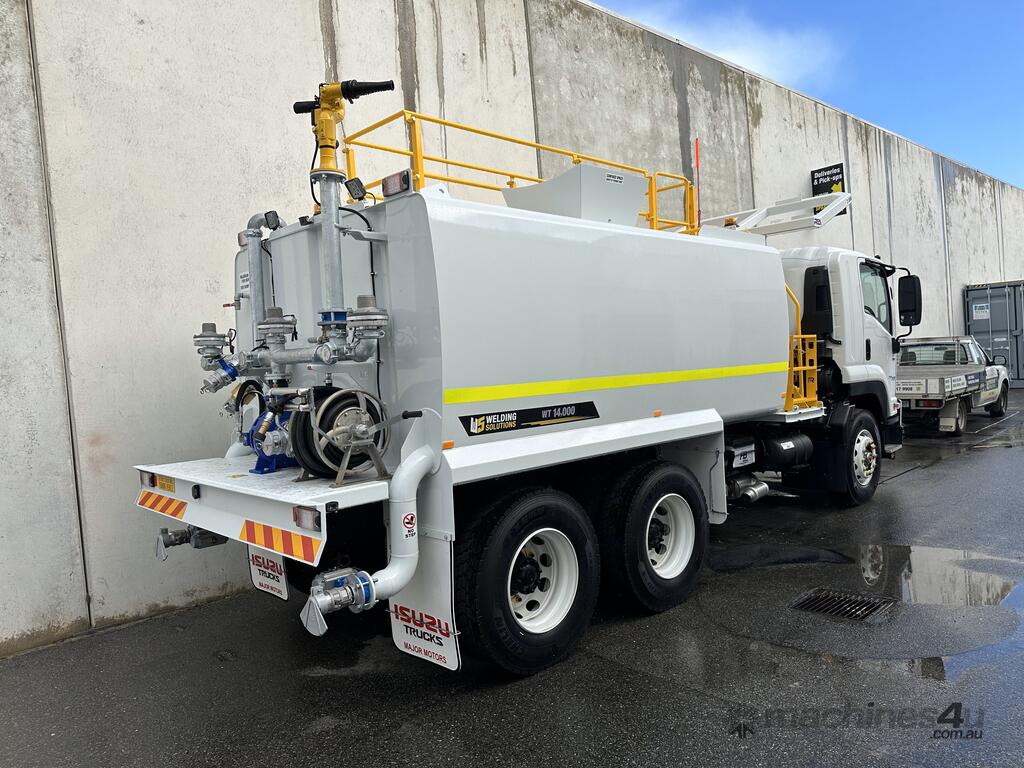

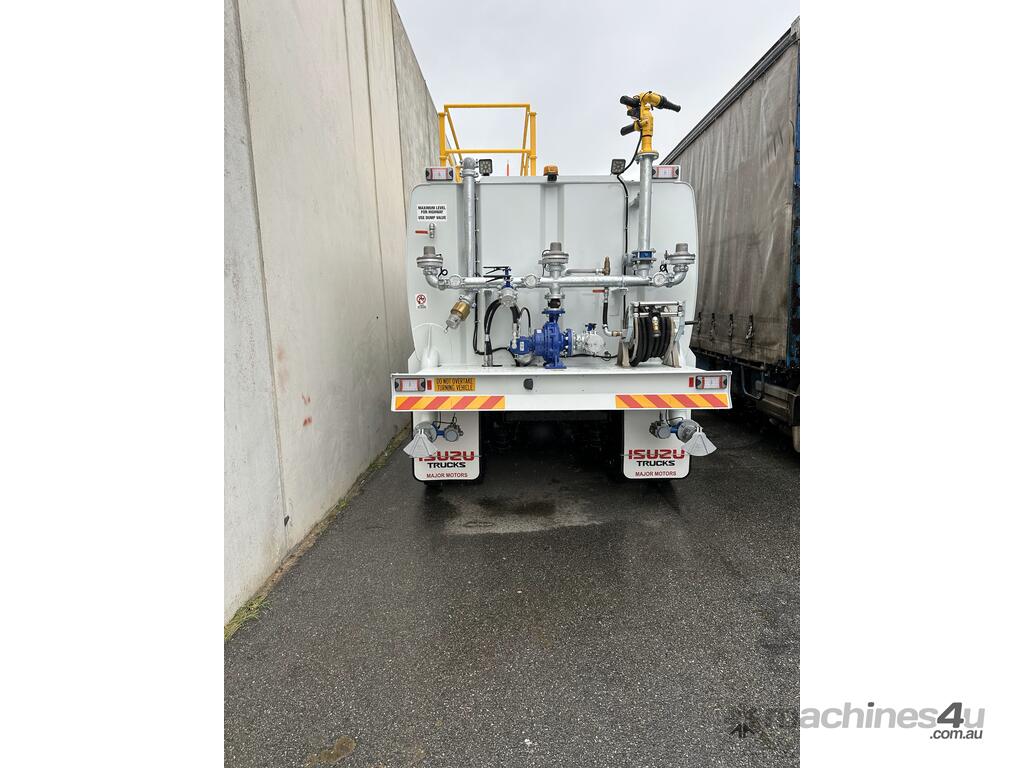

Pumping equipment and hydraulics:
• Stalker water pump size 100 x 65 x 250 hydraulically driven by Permco 48 cc hydraulic motor close coupled, low maintenance with no coupling required.
• Hot shift PTO and pump for hydraulic circuit
• Pressure relief valve on hydraulic circuit pressure set on commissioning.
• WS Heavy duty hose reel manual rewind 1” rubber hose and adjustable fire fighting nozzle.

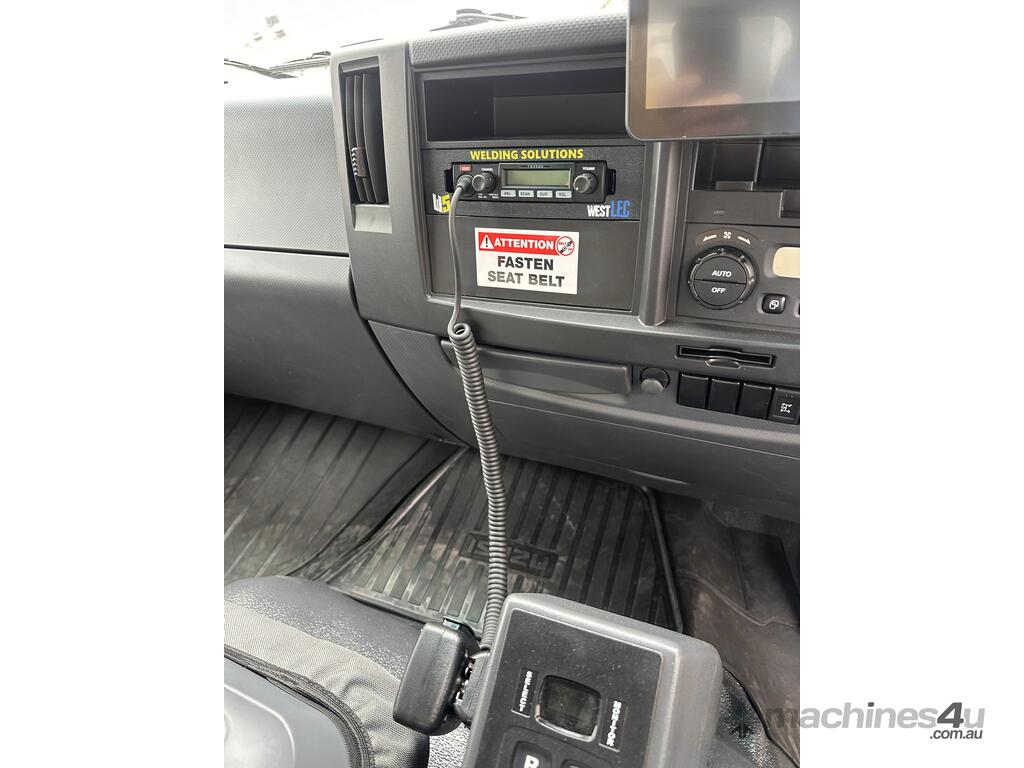

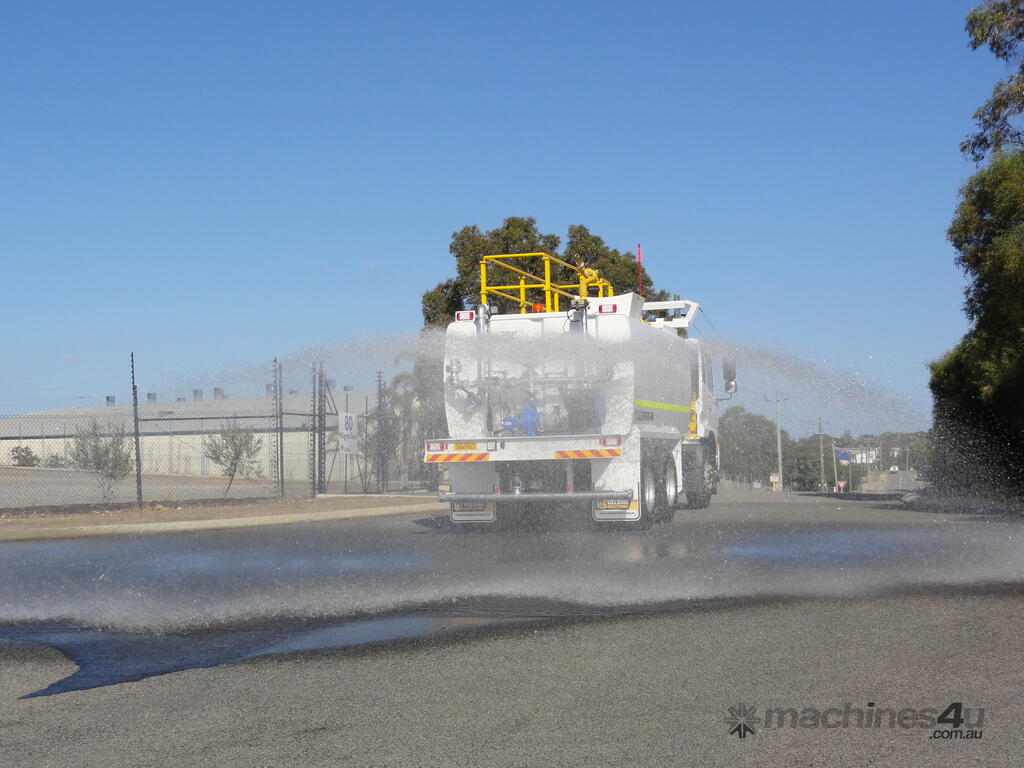

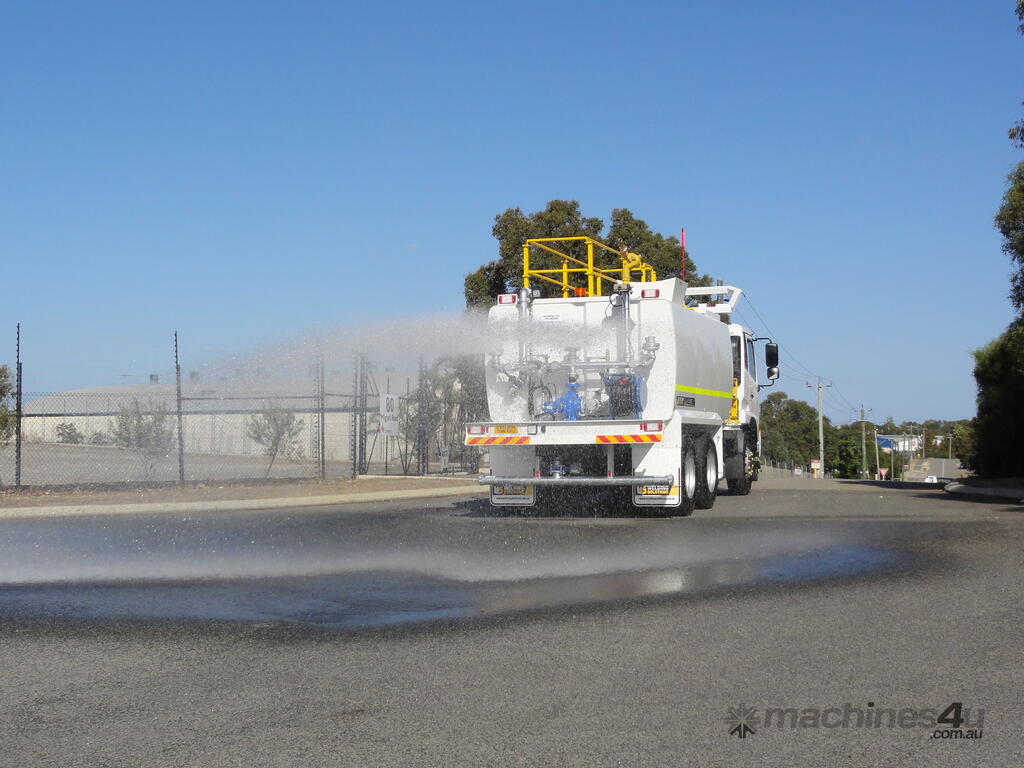

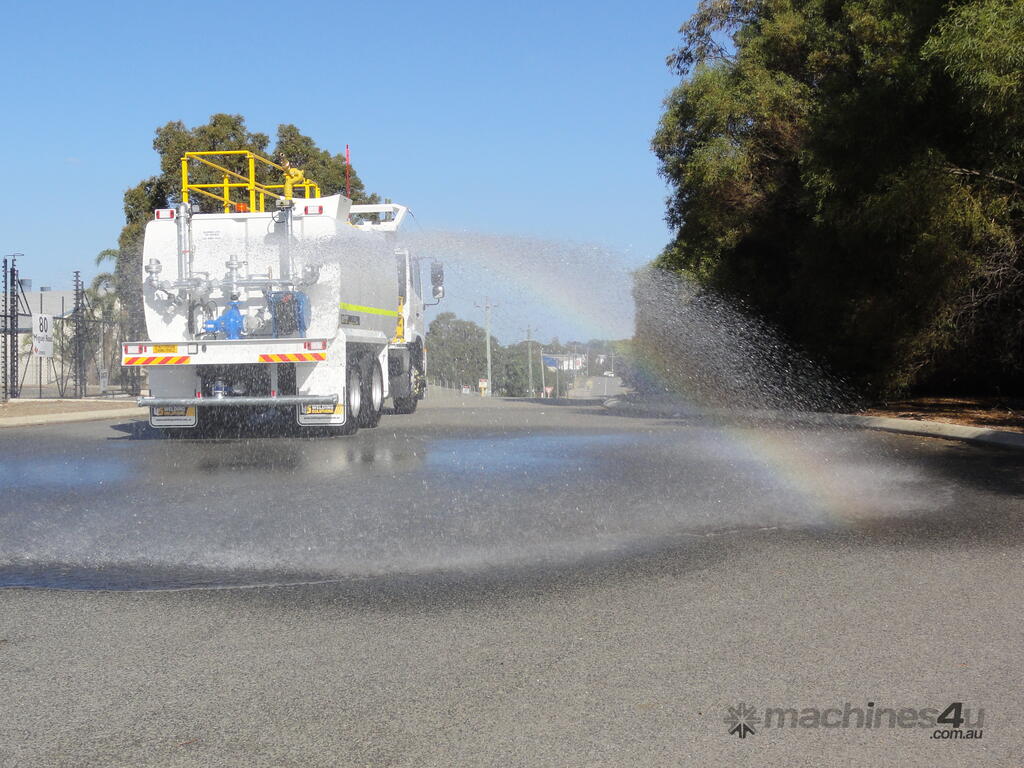

• 3 x 3” Spray Head valves Air operated from in-cab control box. Left, Right, centre, sprays.
• Quick exhausts valves fitted to all valves for quicker action.
• 1 x 3” discharge outlet with manual valve for water transfer duties.
• 3” Rear fill point at chassis level with ball valve, cam lock fitting and cap.
• Pipe work set up with creek suction for self-filling,
• 2 x 5"- 3" Gravity fed drop bars.

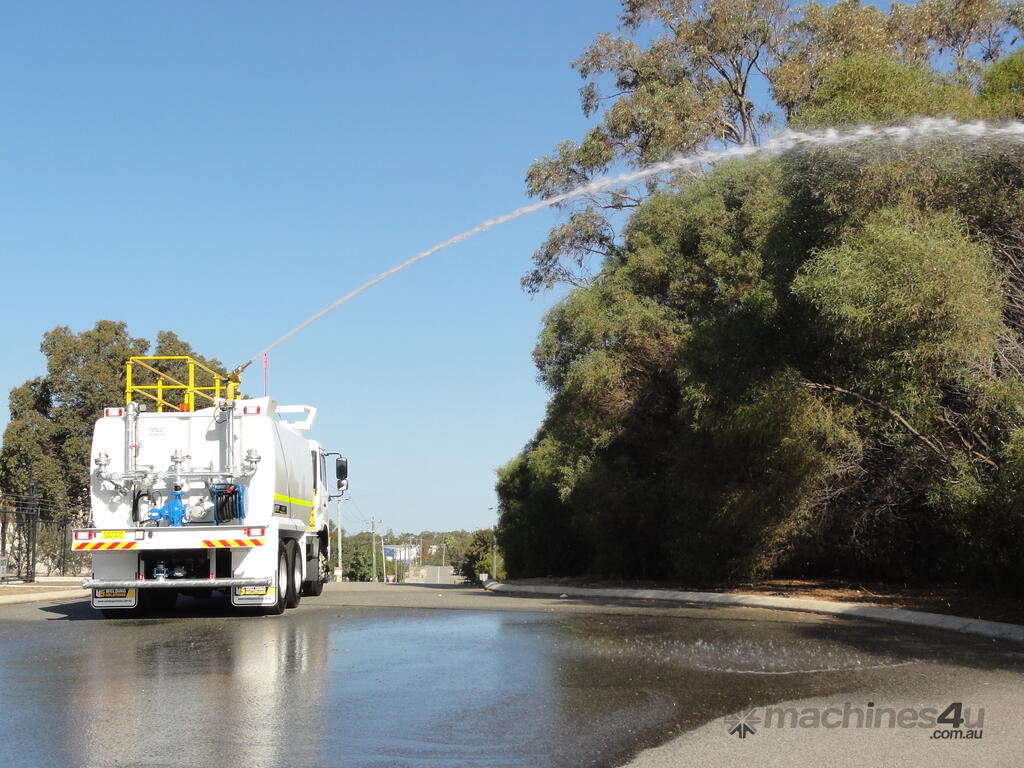

• Elkhart Brass 65 mm Nitro electric water cannon, Heavy duty swivels, made in the USA. Straight stream nozzle, Optional electric adjustable nozzle available as an option.
• Pressure relief valve on water circuit to prevent cavitation of water pump when sprays are closed.
Electrical work:
• Electrical work to mining specifications with quality braided harnesses
• 4 X Hella LED tail lights to rear bumper and on top of tank,
• 2x LED work lights,
• 2 x LED amber revolving beacon, 1 on ROPS, 1 on rear top of tank.
• Reverse alarm,
• Number plate light
• Pad lockable Locksafe battery and starter isolators,
• 2 x Emergency stops, 1 inside cab 1 outside.
• Buggie whip aerial
• Side clearance lights,
• Headlight’s On kit

Safety:
• Safety labels around the vehicle and on the tank module for identification.
• Safety hand railing with stairway, new quick fold down system, lays down in 1 motion saving time and eliminates lost railing during mobilisations. Blasted and painted Safety yellow.
• Non slip surface to top of tank.
• Tested and tagged 2 X 9 KG dry powder fire extinguisher fitted to over centre holding bracket, fitted to ROPS
• High Vis reflective yellow tape around the vehicle 75 mm width.
• Operators and spare parts manual in cab.
• Certified ROPS fitted
• Side mounted spare wheel carrier.

• Warranty on tank: 12 months manufacturer’s warranty on parts and labour. Excluding consumable items.
pricing is plus GST and on road costs
