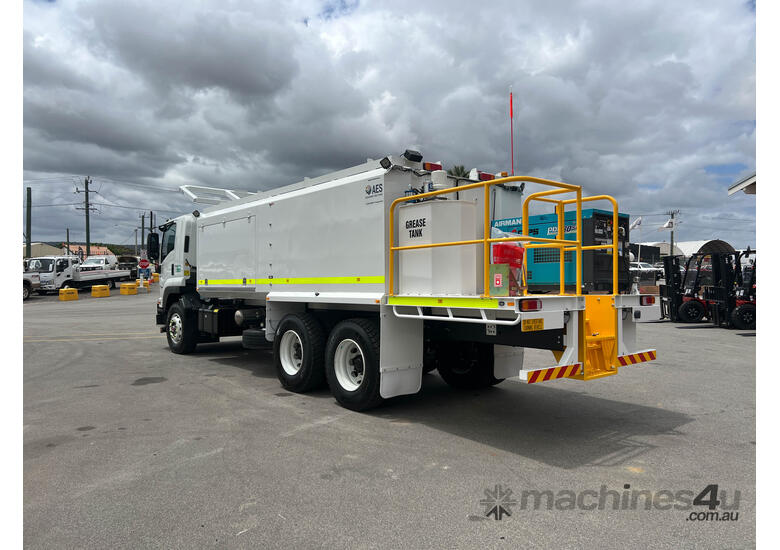

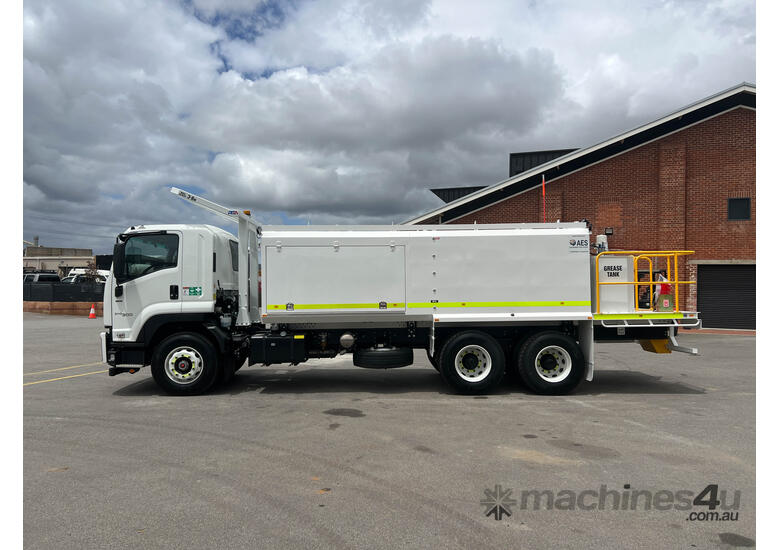

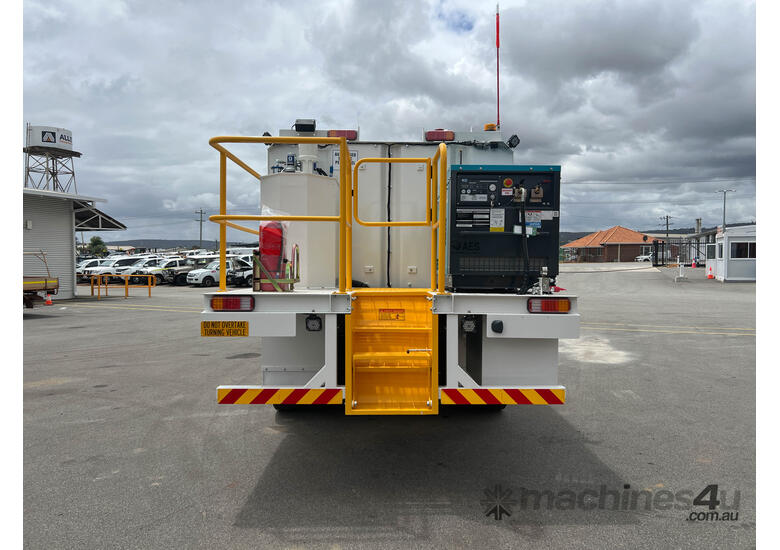

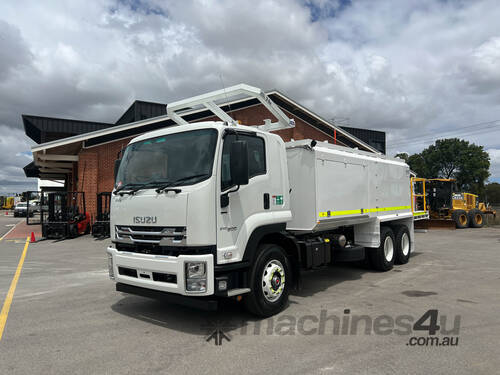

2024 ISUZU FVZX4 SERVICE TRUCK
Large 8 compartment heavy duty steel chassis mounted tank module, rear tray with steel checker plate floor, safety rails and steps and steel guards over tandem wheels c/w fully independent ROPS system tested and certified to ISO 3471/3449
Tank 1 – Water 650 Litres
Tank 2 – Coolant 550 Litres
Tank 3 – Spare 560 Litres
Tank 4 – Waste Oil (Evac Tank) 680 Litres
Tank 5 – Hydraulic Oil 1430 Litres
Tank 6 – Engine Oil 1100 Litres
Tank 7 – Gear Oil 540 Litres
Tank 8 – Diesel Fuel 7000 Litres
Externally Fitted Grease Pod 300 Kilos
1 x PDS screw compressor
• Compressor fueled from sub tank inside main diesel tank
• Lockable start isolators for remote compressor controls conveniently located drivers’ side of the module at the reel cabinet
• Fully sealed dust resistant pump and reel cabinet fitted with horizontally hinged compartment door for ground level access on Left- and right-hand side
• All fill points and easy to view internal site glasses located inside the reel cabinet and Diesel fill site Glasses external
• Single action ball valve isolators to all tank compartment outlets.
• All hose reels and tanks are hard labeled for easy identification
• Bunded pump and reel compartment
• Filter drain box chassis mounted
• Air cleaner and filter storage box left hand side of the module with sealed door
• 300 kg grease pod
• Banlaw fast fill fuel system c/w vent system to diesel tank
• Graco 1½” hose reel for diesel
• 1 x 10 -1 grease pump
• Husky double diaphragm pumps for Diesel 2”, Waste 1”, Water ¾ ” & Coolant ¾ ”
• 1 x 5 – 1 high volume oil pumps for gear oils
• 2 x 3 – 1 high volume oil pumps for hydraulic and engine oils
• ¾” hose reels for oil delivery and waste suction
• ½” hose reels for coolant, air and water
• easy grip hand piece with non drip nozzles for oil dispensing reels
• Six (6) service LED roof mounted lights at rear, front and cabinet of the module for better operator vision and safety
• Reversing camera
• First aid and eyewash kits conveniently located in truck cabin
• 2 pack paint
• Two 2 x 9kg DCP fire extinguishers accessible from ground level
• Emergency Stops fitted 1 x inside and 1 x outside of Cab area.
• 1 x Battery Isolator
• 1 x Starter Isolator
• LED Whip Aerial
• Beacons Fitted Front and rear
• UHF Radio
• DG3 Hi Vis Tape
• Auto on Headlights
• Safety Triangles
• Seat Covers
• Wheel Nut indicators
• Wheel Chocks
• 1 x Jump start Receptacle
Manufacturers Warranty
Pit Passed
