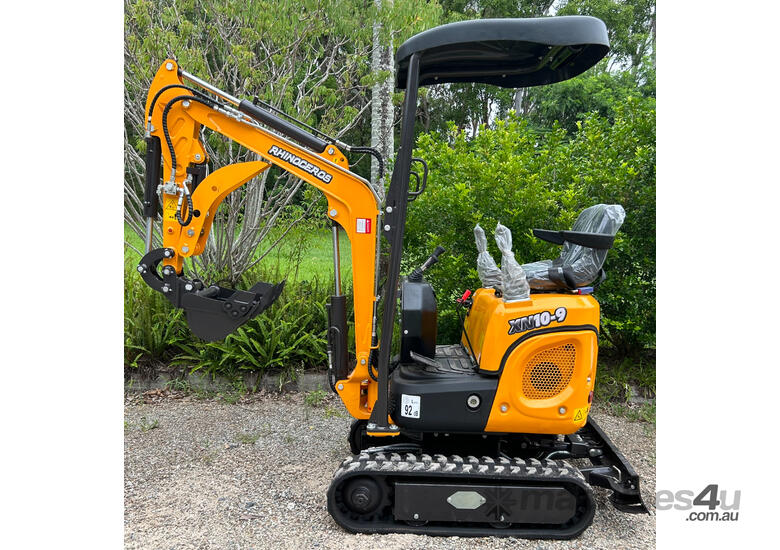

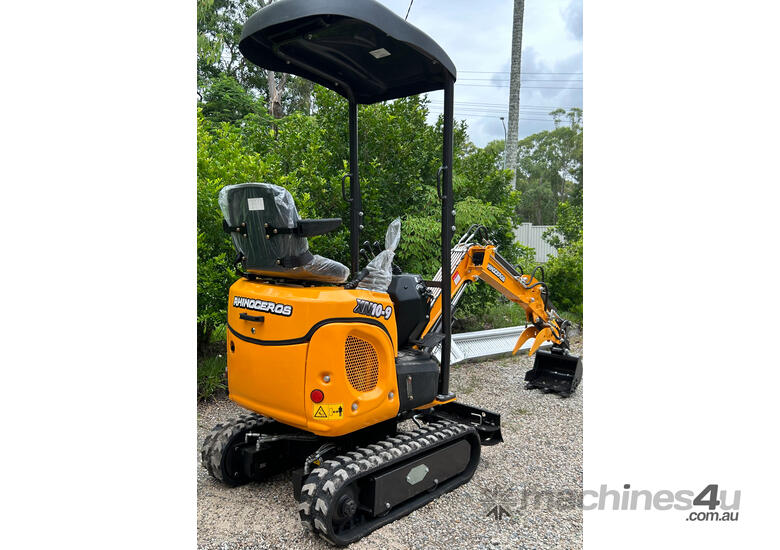

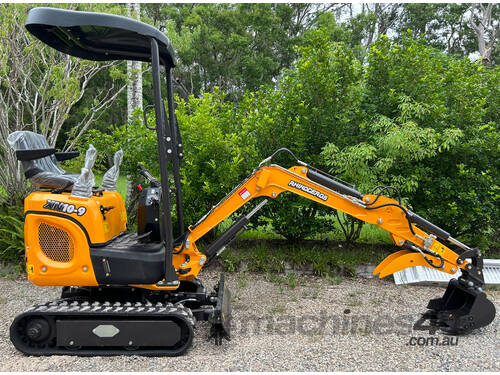

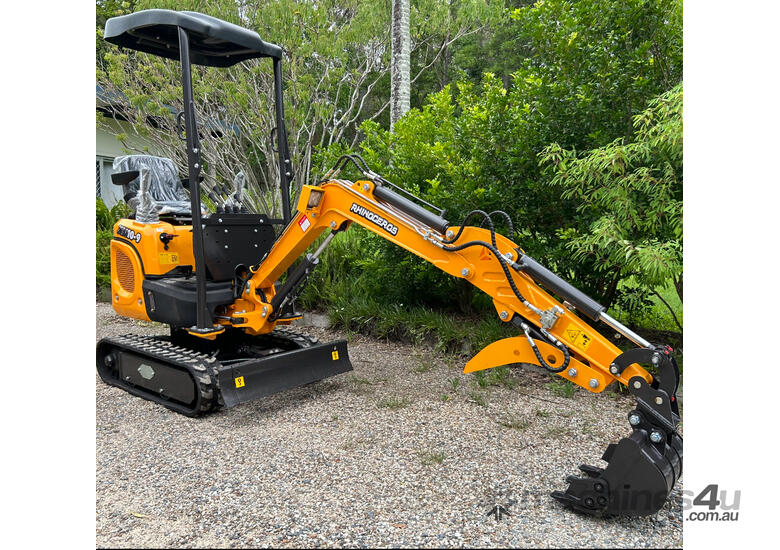

2024 New Genuine RHINOCEROS XN10-9SE mini excavator just arrived ,equiped with side control handle ,The NEXT generation Rhinoceros 1Ton mini excavators , DIESEL ENGINE,MORE RELIABLE AND MORE ECONOMIC TO RUN , EXPANDABLE TRACK (770MM-950MM) ,WITH SWING BOOM , Hydro thumb grab . NEW HYDRAULIC PIPES SET UP (METAL MIDDLE PART ) AND MORE......
THIS listing is WITH ONE 400MM STANDARD BUCKET only ,, THE FULL PACKAGE ,(200MM,400MM BUCKETS AND 800MM TILTING BUCKET, Hydraulic THUMB GRAB, RAKE,RIPPER,QUICK HITCH ,200MM AND 300MM AUGER ,ALL $12990.
Buy from a long-term seller who is committed to serving your technology needs
FOR SPARTS, SERVICE , AND TECHNICAL SUPPORT JERRY
Have more different models, please check my other listings.
Specification
Operating Weight 1100kg
Digging bucket capacity 0.025cbm/100kg
Engine KOOP 192F diesel
Rated power 12HP/3600r/min
Displacement 499cc
Bore stroke 70x55
Main pump CBK-F7.2
Displacement 7.2ml/r
Swing motor EATON (USA)
Traveling motor EATON (USA)
Travel speed 2.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH) 2770x896x1490 mm
Wheelbase 910 mm
Total length of track 1230mm
Platform ground clearance 380 mm
Platform back turning radius 784 mm
Chassis width 780-950 mm
Track width 180 mm
Chassis ground clearance 132 mm
Track height 320 mm
OPERATING RANGE
Max. Digging depth 1650 mm
Max. Vertical digging depth 1375 mm
Max. Digging height 2610 mm
Max. Dumping height 1850 mm
Max. Digging radius on ground 2850 mm
Min. Rotation radius 1330 mm
Max. Upgrade height of bulldozer blade 345 mm
Max. Digging depth of bulldozer blade 255 mm
