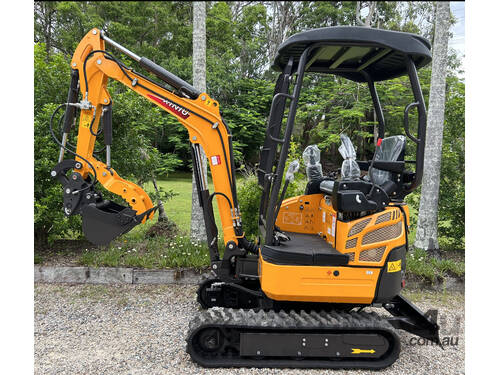

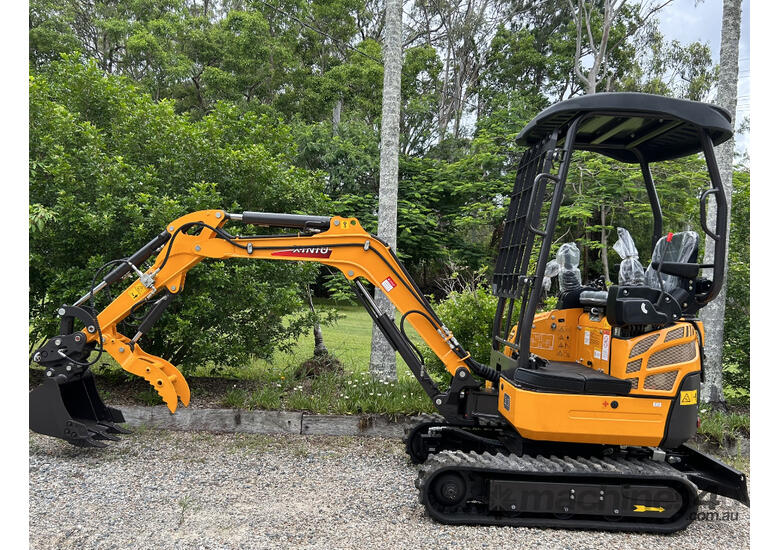

2024 BUILD NEW RHINO MINI EXCAVATOR XN17S JUST ARRIVED , EQUIPED WITH A MOST POPULAR YANMAR 3TNV74 3 CYLINDER WATER COOL WITH HYDRAULIC OIL COOLING SYSTEM . 20.4HP AT 3600 RPM. SWING BOOM FUNCTION AS STANDARD . AND IT IS A GENUINE RHINOCEROS.
THE PRICE IS FOR ONE XN17 MACHINE AND ONE 400MM DIGGING BUCKET ONLY

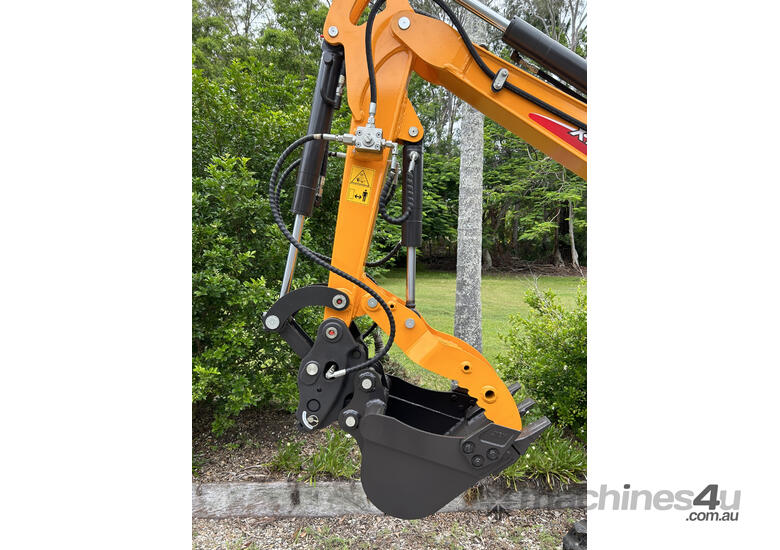

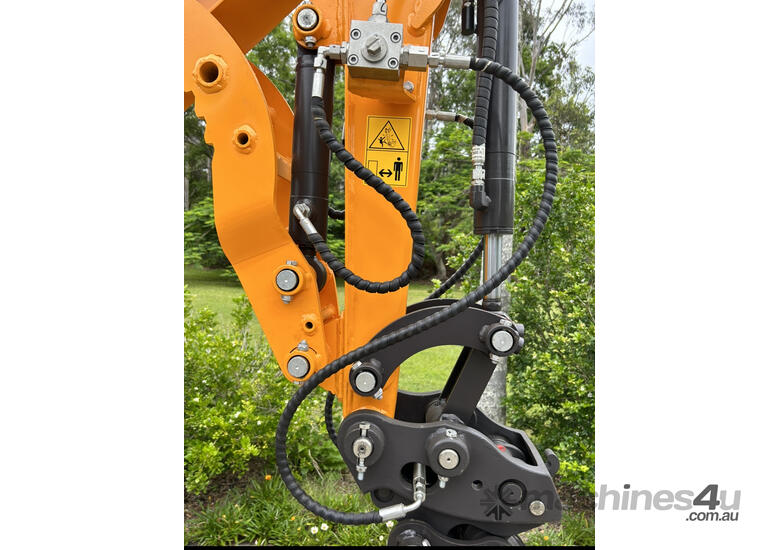

IF YOU WANT THE COMBO PACKAGE WITH 200MM ,400MM ,1000MM BUCKETS ,RAKE,RIPPER ,ESPECIALLY HYDRO QUICK HITCH AND HYDRO THUMB GRAB . WILL BE $25990. GST INCL
Main Spec
Operating Weight. 1800kg
Engine. YANMAR 3TNV70
Rated power. 20.4hp at 3600rpm
Swing motor. EATON 2K-195
Traveling motor. EATON
MAIN DEMENSIONS
Overall dimension( LxWxH). 2330x1150x2280 mm
Total length of track. 1450mm
Platform ground clearance. 420mm
Platform back turning radius. 900mm
Chassis width. 1110mm
OPERATING RANGE
Max. Digging depth. 2267 mm
Max. Vertical digging depth. 1740mm
Max. Digging height. 3258mm
Max. Dumping height. 2293mm
Max. Digging radius on ground. 3513mm
Min. Rotation radius. 1440 mm
