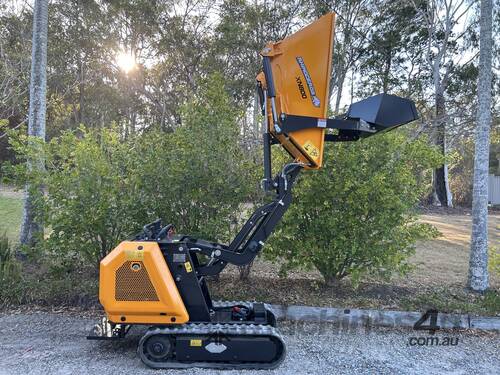

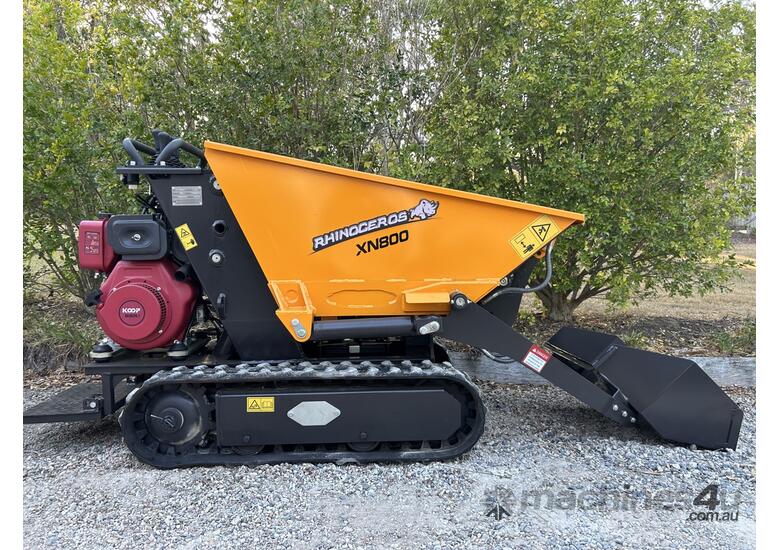

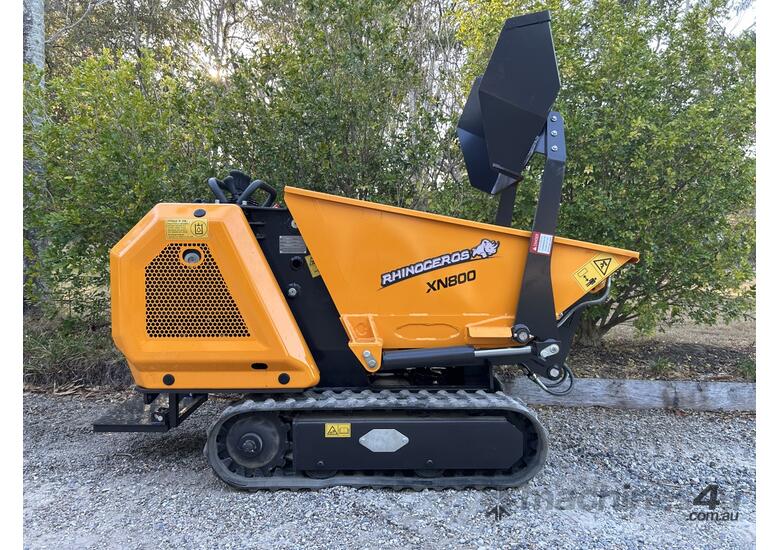

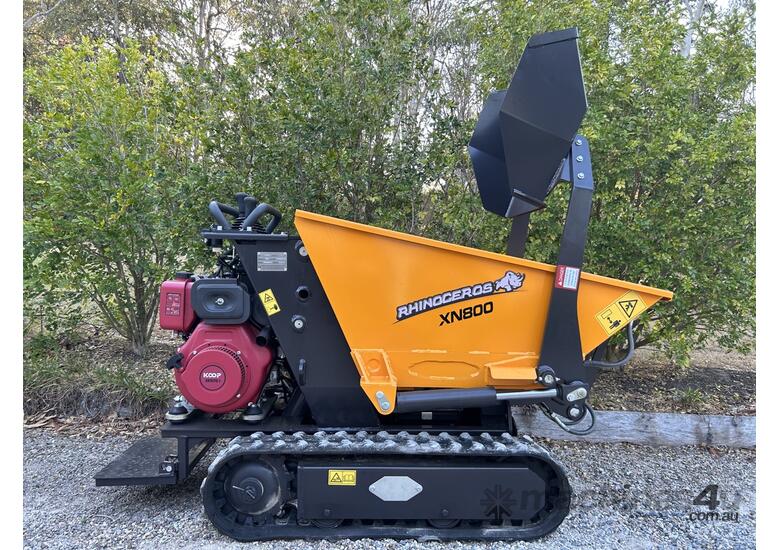

2024 upgrade model just arrived. Rhinoceros XN800 Tracked , 800Kg load capacity . Fully hydraulic operated ,scissor lift ,Self loading mini dumper. easily lift up to a height of 1740mm , easy loading to a Ute or trailer , and easy access to narrow space .price for Koop single cylinder air cool Diesel engine is $9990. Kubota 3 cylinder water cool Diesel engine is $14990.all GST incl. contact me if you have any question.
Model. XN800 Koop/kubota
Overall Weight. 710kg/810kg
Maximum Load Capacity. 800/800kg
Bucket Capacity 0.26/0.26 m3
Track Leigh 1300mm
Engine. Koop 192F/ Kubota D722
Displacement 500cc/722cc
Max dump high 1740mm
Dimension. L1850 x W820 x H1080mm
Loader lift capacity 280Kg
Maximum Travel Speed. 5 km/h
Minimum Travel Speed 2 km/h
Maximum Climbing Ability 30°
Ground Pressure 26.13 KPa
TRANSMISSION Fully Hydraulic
Tension Control Type Screw adjustment
Pump Type Double Gear Pump
Working Pressure 16MPa
Flow Rate 30L /min
Hydraulic Oil Tank Capacity. 12.8L/14 L
Fuel Tank Capacity 5.5L/16 L
