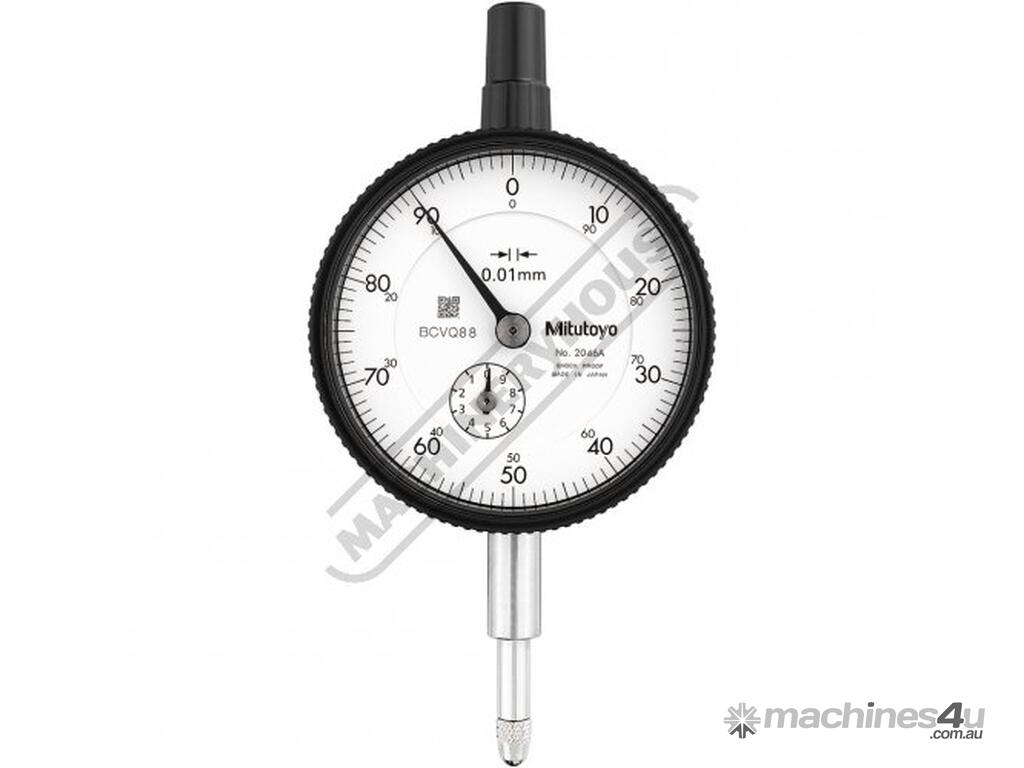

#2046A Metric Dial Indicator 0-10mm Continous Scale

MITUTOYO #2046A Metric Dial Indicator 0-10mm Continous Scale
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M078

Mitutoyo’s dial indicators have long been used by many of our customers. In full recognition of their needs, Mitutoyo have devoted themselves to the research and development necessary to produce high-quality and high-accuracy dial indicators.
The stems, which ensure the fixture reliability, and the spindles, which are the basis of accuracy, have excellent resistance against harsh use thanks to the hardened stainless steel construction. 0.01 mm resolution dial indicators have a main gear made of stainless steel with high resistance to wear and deformation.
Mitutoyo's dial indicators are manufactured and inspected according to JIS B 7503:2017.

Features:
0.01 mm graduation dial gauge with a 57mm outside diameter bezel.
0-10mm measuring range.
Damper at top rest point
Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
Carbide contact point.
The grand gear is made of stainless steel with high resistance to wear and deformation.
Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.


Specifications:
ORDER CODE: M078
Range (mm): 0 - 10
Graduations (mm): 0.01
A (mm):
B (mm):
C (mm):
D (mm):
E (mm):
F (mm):
G (mm):
H (mm):
