2059T 2 Stage Hydraulic Transmission Lifter Hydraulic Lift: 820 - 1768mm 500kg Capacity

TRADE QUIP 2059T 2 Stage Hydraulic Transmission Lifter Hydraulic Lift: 820 - 1768mm 500kg Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: A3452

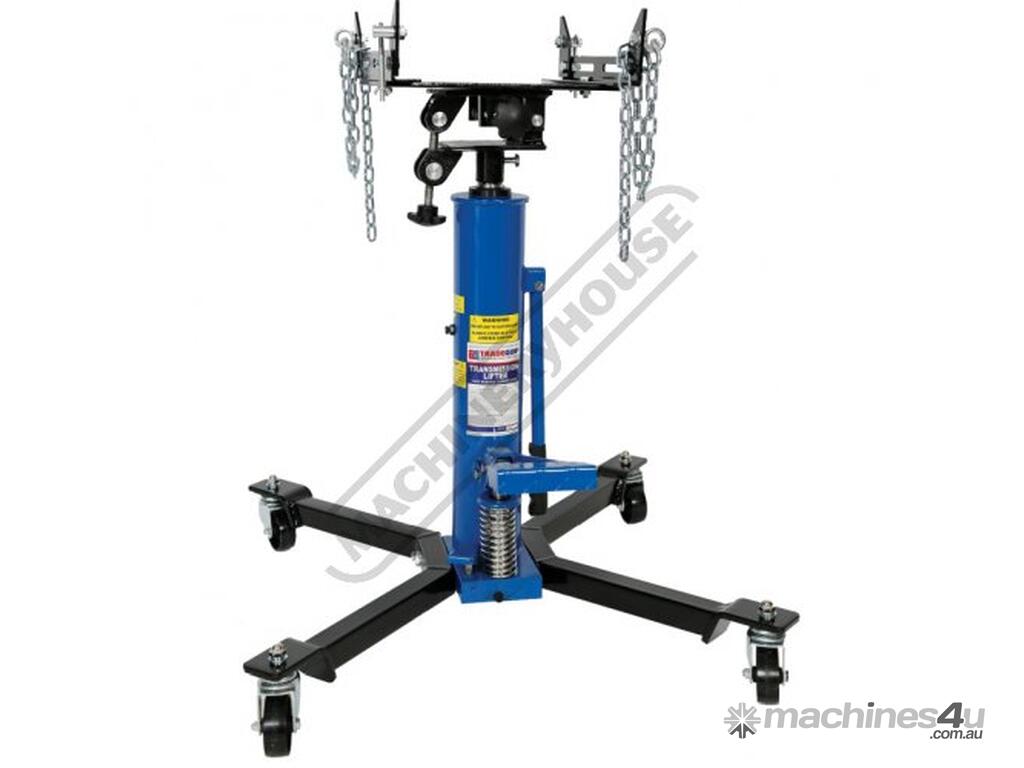

This 2-Stage hydraulic TradeQuip “Made for the Trade” Telescopic Transmission Lifter offers a wide range of versatility designed to help increase workshop productivity. Rated to safely work with Transmissions from vehicles with a GVM of less than 2,000kgs, the universal mounting head provides a wide fore and aft tilt range. The foot operated manual

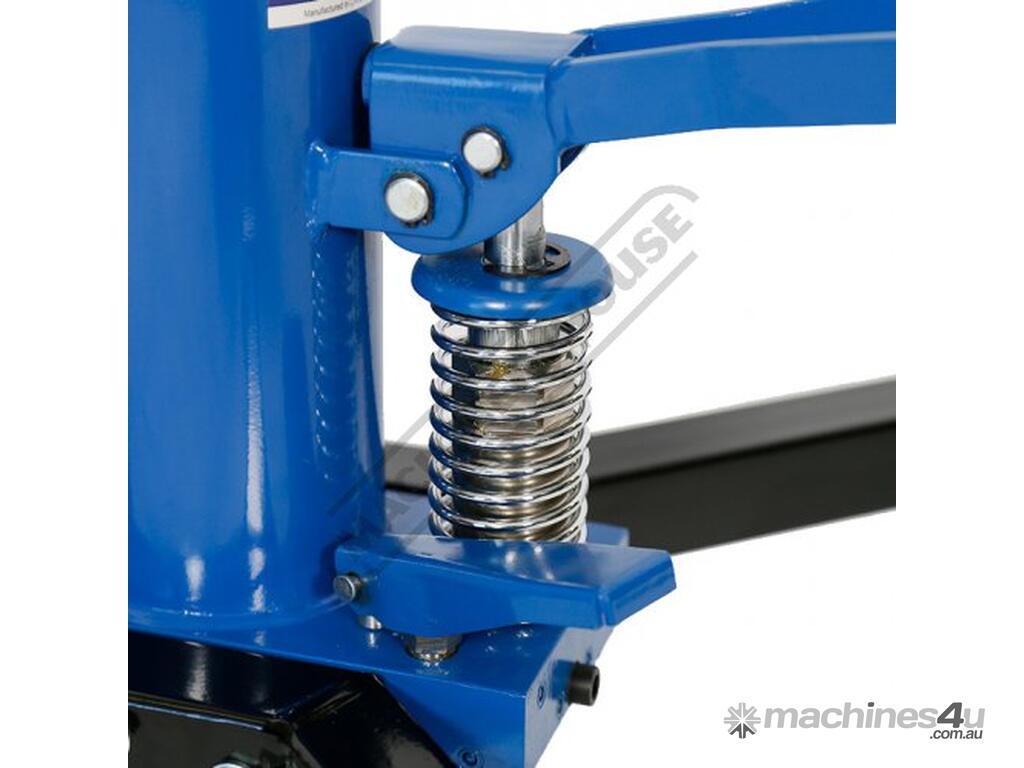

hydraulic system has a smooth hydraulic lift and descent. The foot operated pump with a foot release valve lever
provides a steady and mechanically controlled safe descending speed.

Features:
Designed for lifting & lowering passenger car transmissions
Durable steel frame

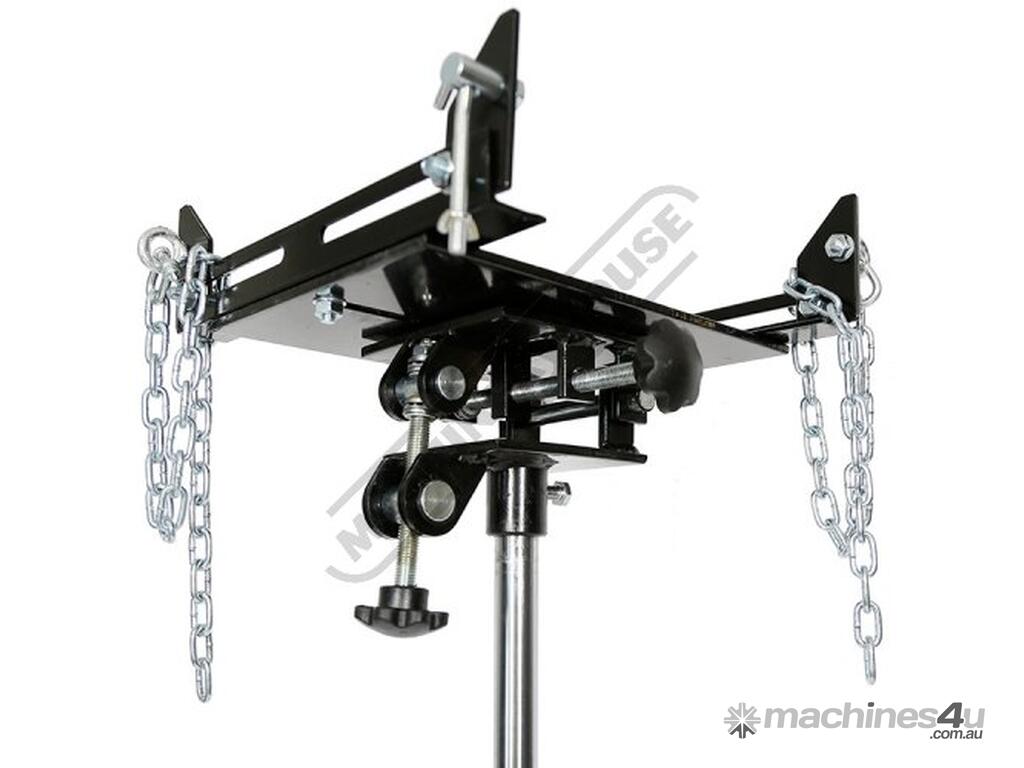

Adjustable lifting platform for quick adjustment for most pan configurations
Load control chains hold transmission in place

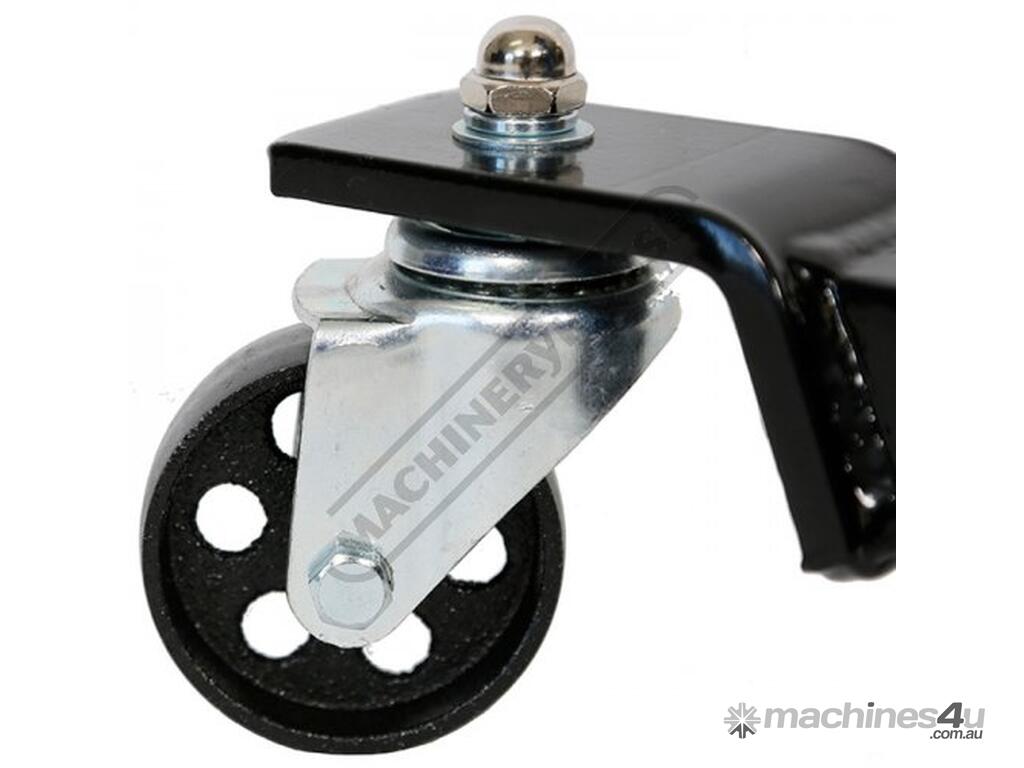

4 swivel castors provide stability and easy manoeuvrability


Specifications:
ORDER CODE: A3452
MODEL: 2059T
Load Capacity (kg): 500
Tilting Type: 2-Way Tilt
Forward ~ Backward Tilt Angle (deg): 9° Forward, 17° Rearward
Left ~ Right Lateral Movement (mm): ~
Minimum Lift Height (mm): 820
Maximum Lift Height (mm): 1768
Nett Weight (kg): 52
