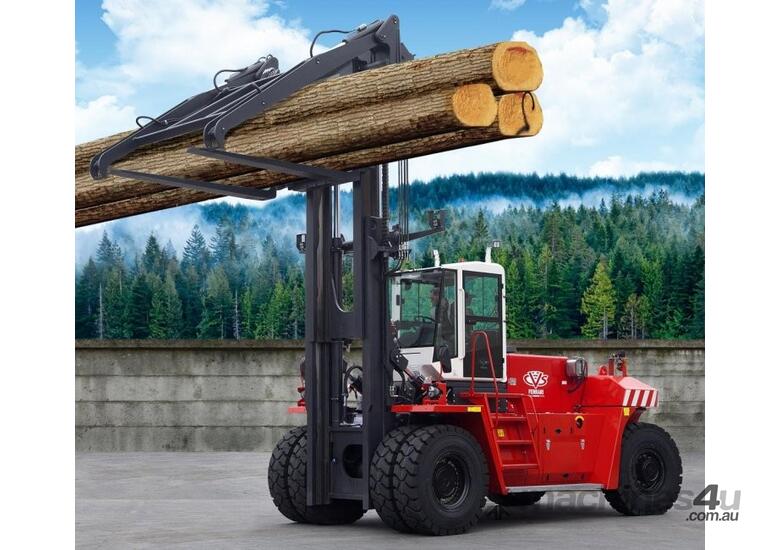

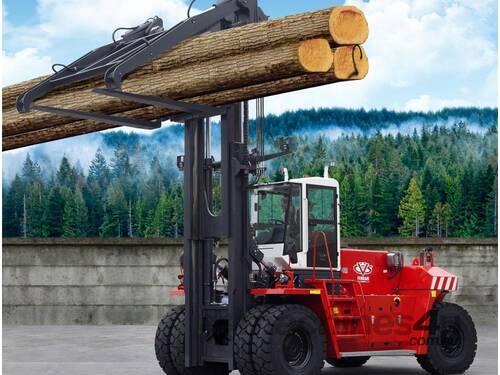

HEAVY DUTY FORKLIFT
4-wheel drive heavy forklift trucks by CVS Ferrari
Need to operate loads on rough, soft, icy or muddy surfaces? CVS Ferrari heavy forklift trucks have you covered. With lift capabilities ranging from 16 to 25 tonne and a 1200mm Load Centre:, this range of heavy-duty forklift trucks offers the ideal solution for businesses that require materials handling solutions on uneven or rough terrain.
Attachments like log and pipe clamps, load retainers and hydraulic slewing carriages are available to enhance the efficiency of these machines off-road.
A high mounted engine is standard but cold weather packs are available (-40 Deg): making these machines extremely well suited to cold soft and muddy yards where snow and rainfall make conditions difficult to work in.
FEATURES & BENEFITS
The best machines are always made with the best components and with the best manufacturing processes. That is why at CVS Ferrari we never compromise on quality and our big forklifts are no exception to this principal.
They are fitted with powertrains, hydraulics and electrics that are oversized and produced by world leading manufactures. We combine the quality of our components with experience and attention to detail to deliver both exceptional performances plus superior service access integrated within a modular chassis which is boxed welded structure type and it entirely made of high resilience steel
SPECIFICATIONS
Model:
FH20 4×4
Attachment Type:
Forks (On optional Hydraulic Swiveling Carriage):
Load Capacity: on tires:
20,000kg
Load Centre: distance (+/- out/in rach):
1200mm
Load Centre: to centre of front axle:
2250mm
Standard lifting height on forks:
4600mm
Max available lift height on forks (option):
7000mm
Wheelbase:
4000mm
Service Weight: (unladen):
37,000kg
EU Stage 3a Engine make & model (Rated Power):
CUMMINS QSB6.7 (164): (kw):
EU Stage 4 Engine make & model (Rated Power):
CUMMINS QSB6.7 (164): (kw):
Transmission make & model:
ZF 3WG 190
Service Brakes:
Wet Disc on front wheels + Dry Drum on rear wheels
Tires size
14.00-24
Overall Width:
3000mm
Overall Length: (including forks):
8630mm
Overall Height: (mast lowered):
4600mm
Seat height:
2550mm
Mast tilt, forward / backward
5/10 deg
Forks side-shift
+480 / -480
Forks size (L x W x T):
2440 x 250 x 100mm
