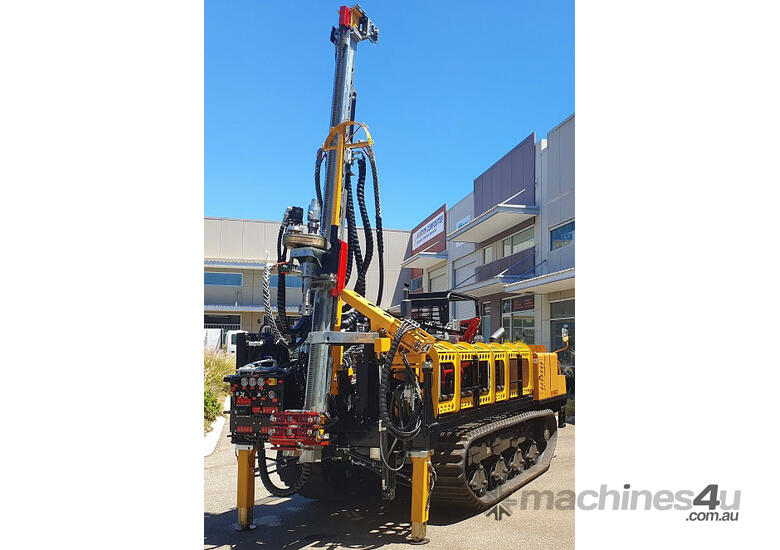

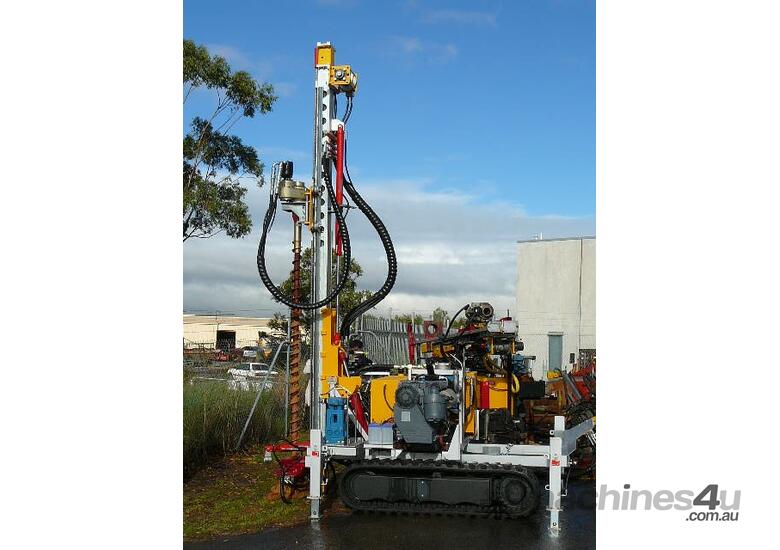

2100 Explorer Drill for Mineral Exploration

With a small footprint the 2100 Explorer drill has proven technology as a practical drill for those locations where a compact machine is required but more power is needed for deeper drilling, The drill is simple to use and easy to maintain. Designed and built in Australia for tough operating conditions.

Depending on the options fitted the machine can be used for:

Solid and hollow auger
Diamond drilling
Rotary air blast (RAB)
Mud circulation
Reverse circulation (RC)
Vacuum drilling

Specifications:

-> Power
33 Hp water cooled Diesel engine (std, minimum, depending on the options)

-> Hydraulics
Gear pumps and motors (standard)
Piston Load sense (option)

-> Mast
2.1 m stroke (standard)
3,600 kg pull back
Fine feed
Bit weight control
Oil cooler
Foot extension
Standard rod guide mx 152 mm

Applications:

+ Environmental Sampling
+ Geotechnical Testing
+ Mineral Exploration

About Us
101 Sampling Solutions Pty Ltd are manufactures of drilling rigs and systems for environmental sampling, agricultural soil testing, geo-technical testing, mineral exploration, earth stake, ground anchor installation and shallow water wells. Using their base machines and standard options, 101 is able to custom build a drill to suit your “particular drilling application”.

We can make a difference and help you find the right equipment for you and your business requirements.

With the motto of “little drills for big jobs“, 101 was established in 2015 to build small drills for hard logistical locations or where the expense of a larger machine is not warranted. To this end 101 has focussed on 5 main modules: the easy mount and affordable Meredith Sampler, the light weight 1750 Scout, the 2100 Explorer, the 3300 Drill and the Eziprobe. All machines are multi-purpose and have a range of options enabling the end user to have a purpose built machine from standard components. This enables the operator to start with the base model in the range, adding the options, as necessary, when the work requirements change, keeping the investment to a minimum.

For Geo-technical and environmental work, 101 manufactures and supplies a range of push tube and small hand held soil sampling machines and tooling that includes solid and hollow augers.
