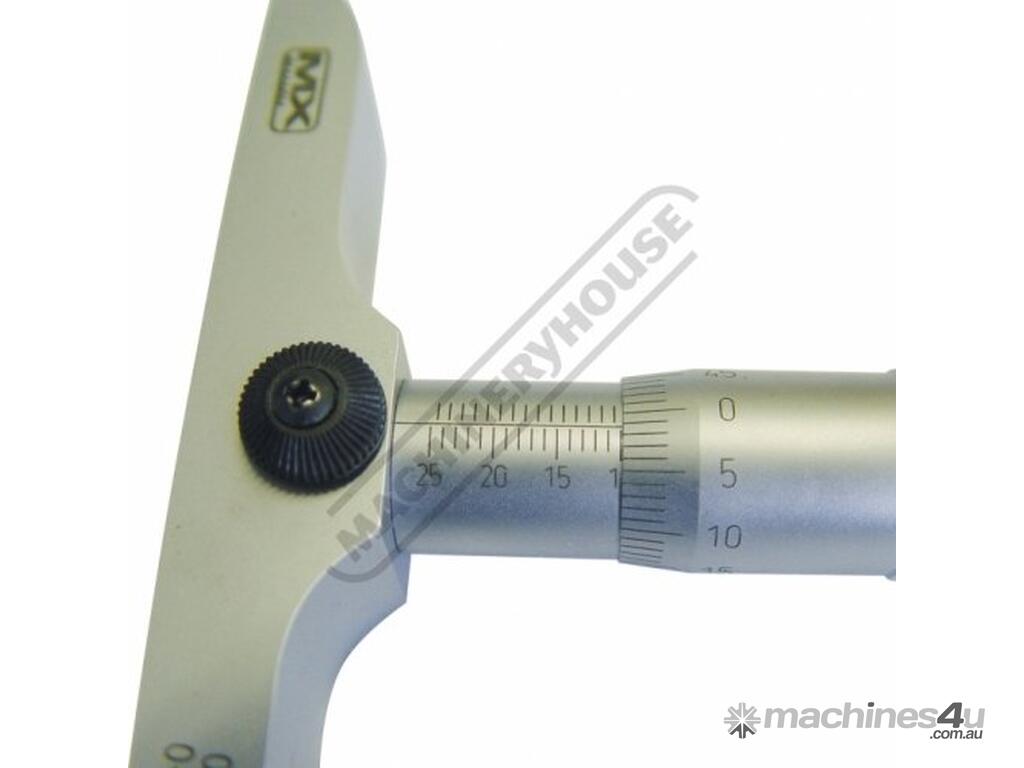

22-146 Depth Micrometer 0-100mm Metric

MEASUMAX 22-146 Depth Micrometer 0-100mm Metric
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q146

High accuracy interchangeable rods with hardened and micro lapped anvils, provide a wide measuring range

Features:

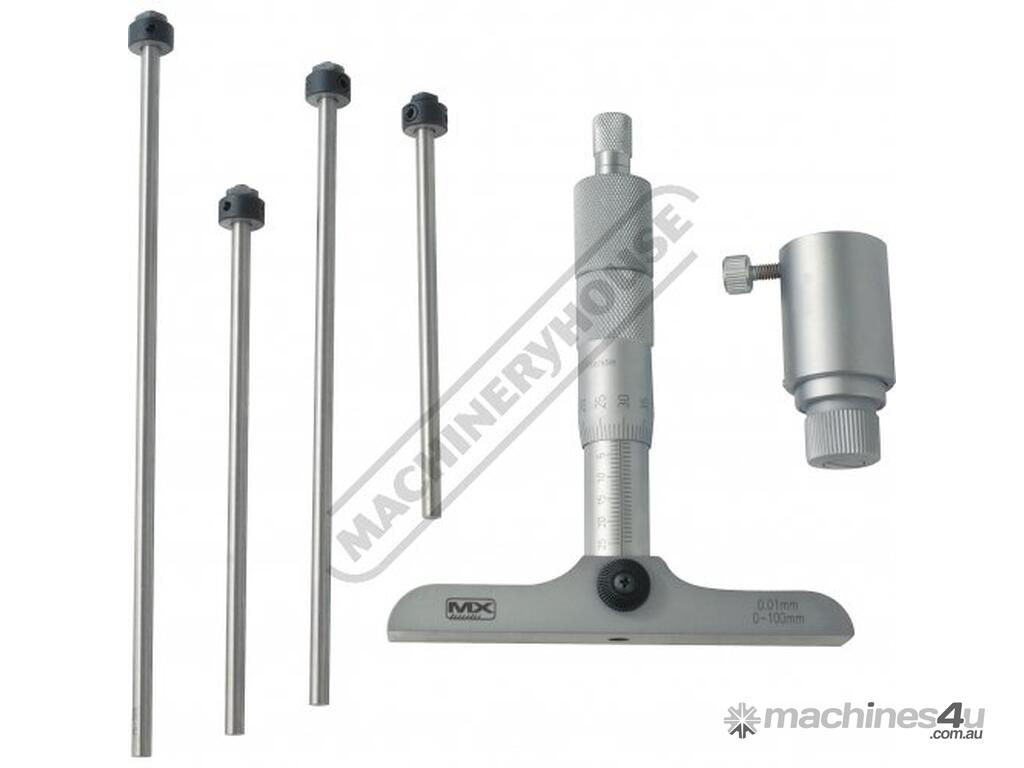

High accuracy interchangeable rods with hardened and micro lapped flat anvils provide a wide measuring range

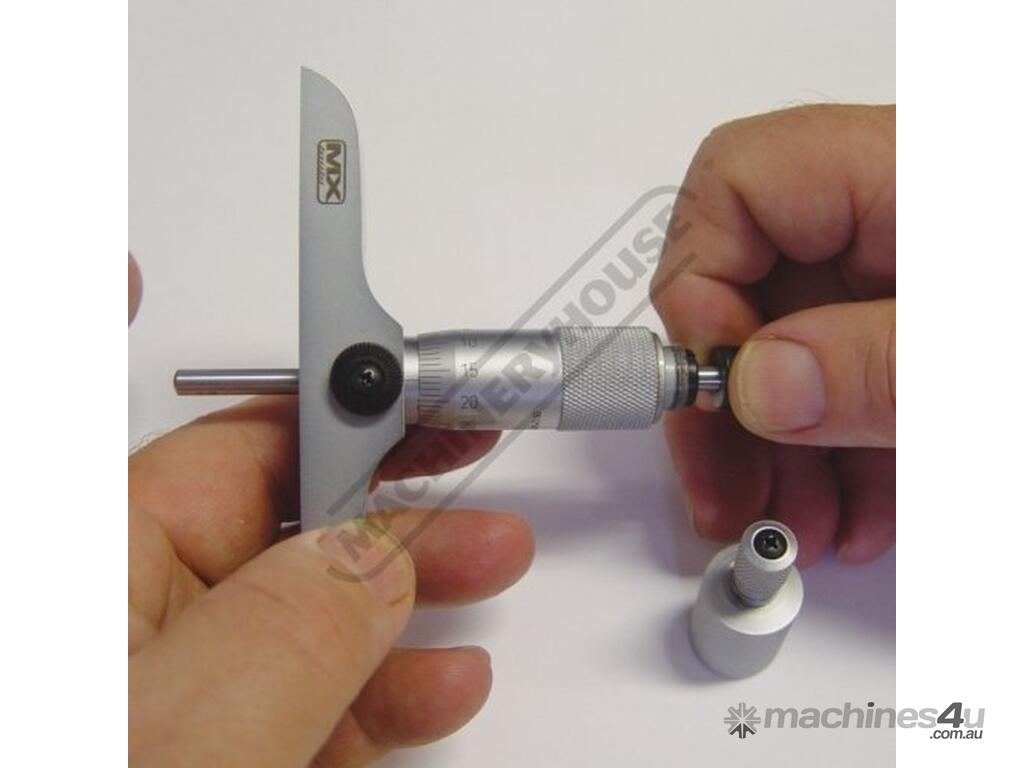

The interchangeable rods are held securely under the top ratchet section and have individual adjustment for resetting if required

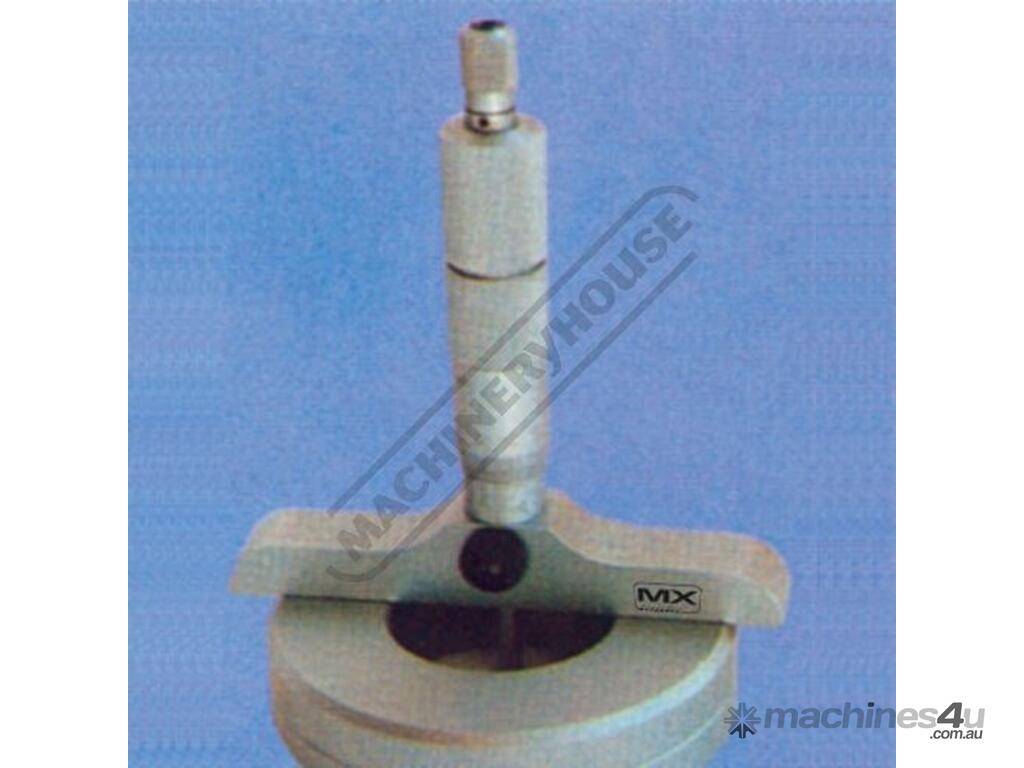

The base is hardened ground and lapped for accuracy

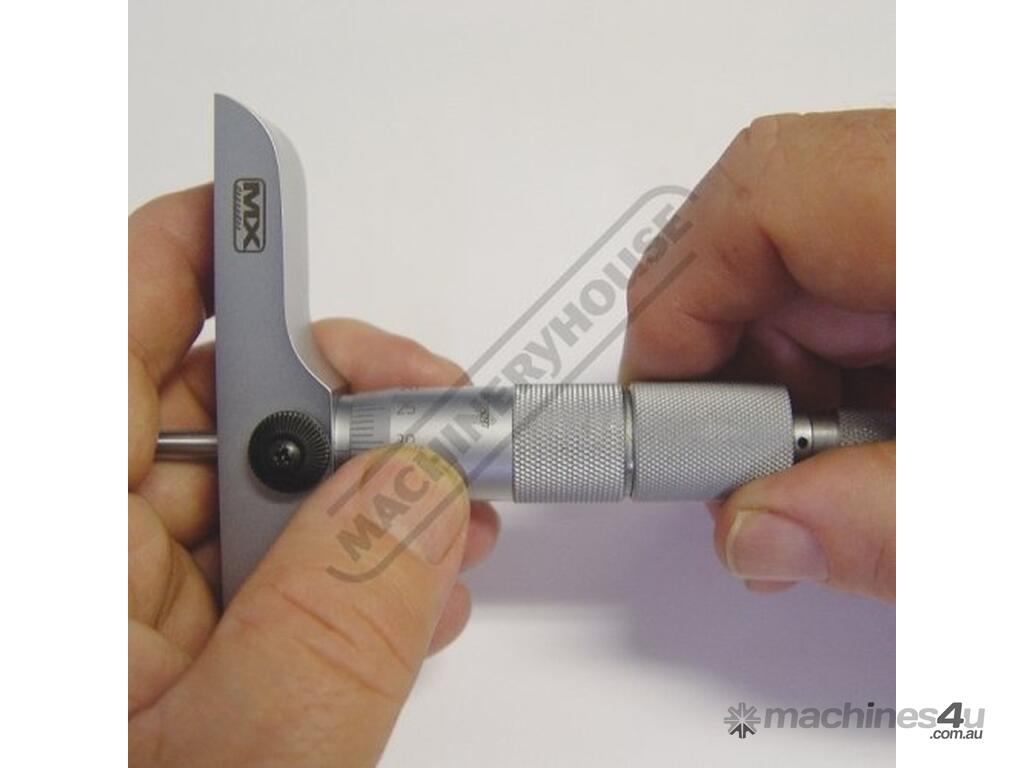

Ratchet stop for exact repetitive readings

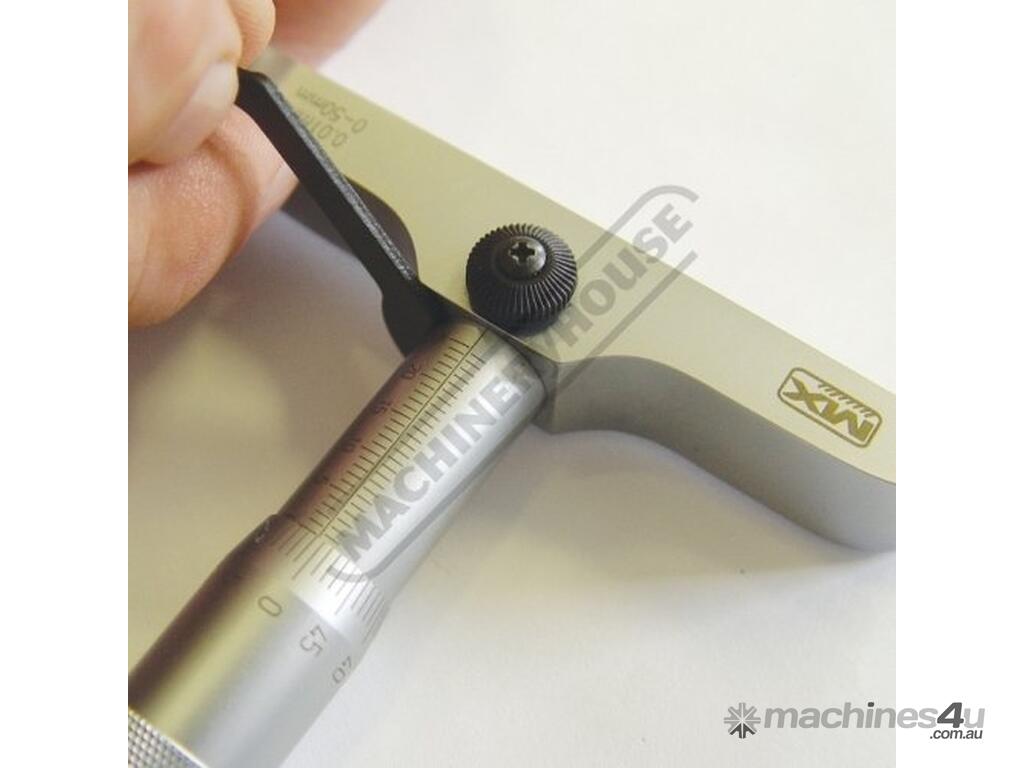

Positive locking clamp
Resolution: Metric 0.01mm


Specifications:
ORDER CODE: Q146
Range (mm / inch): 0 - 100mm
Graduation (mm): 0.01
Accuracy (mm / inch): ±0.005mm
A (mm / inch): 100mm
Rods (No.): 4
