22-50 ton (100/90/80mm pin) Titan Excavator Compaction Wheel

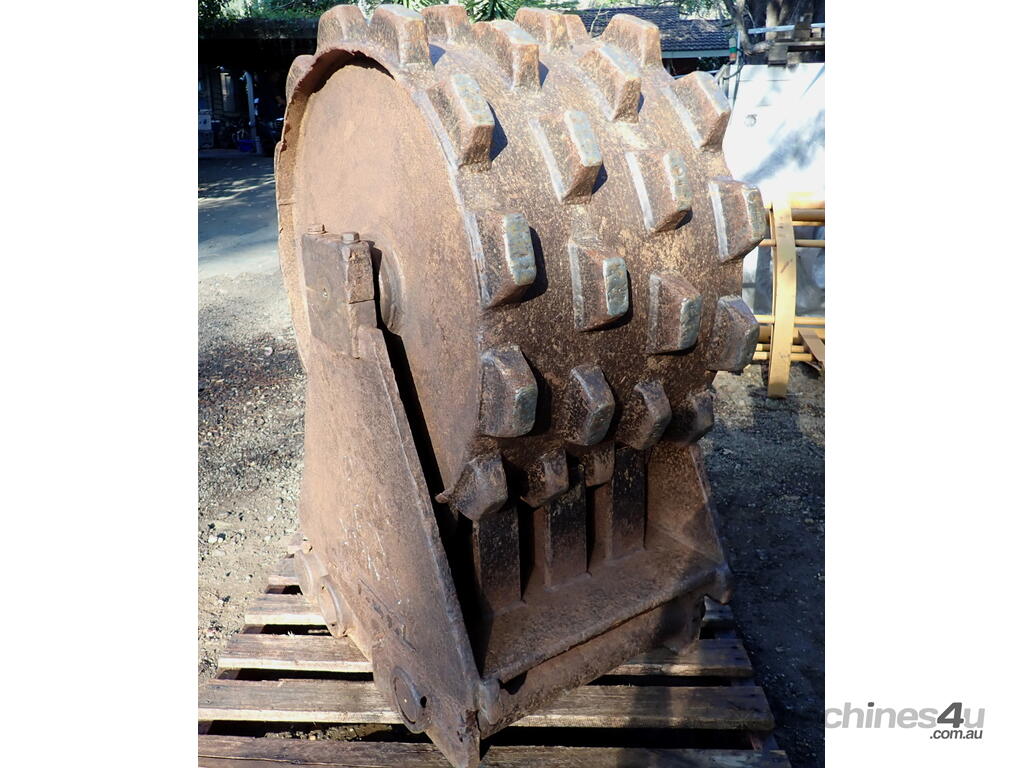

Used 545mm Wide Drum, Titan Excavator Compaction Wheel suit 22-50 Ton machines.

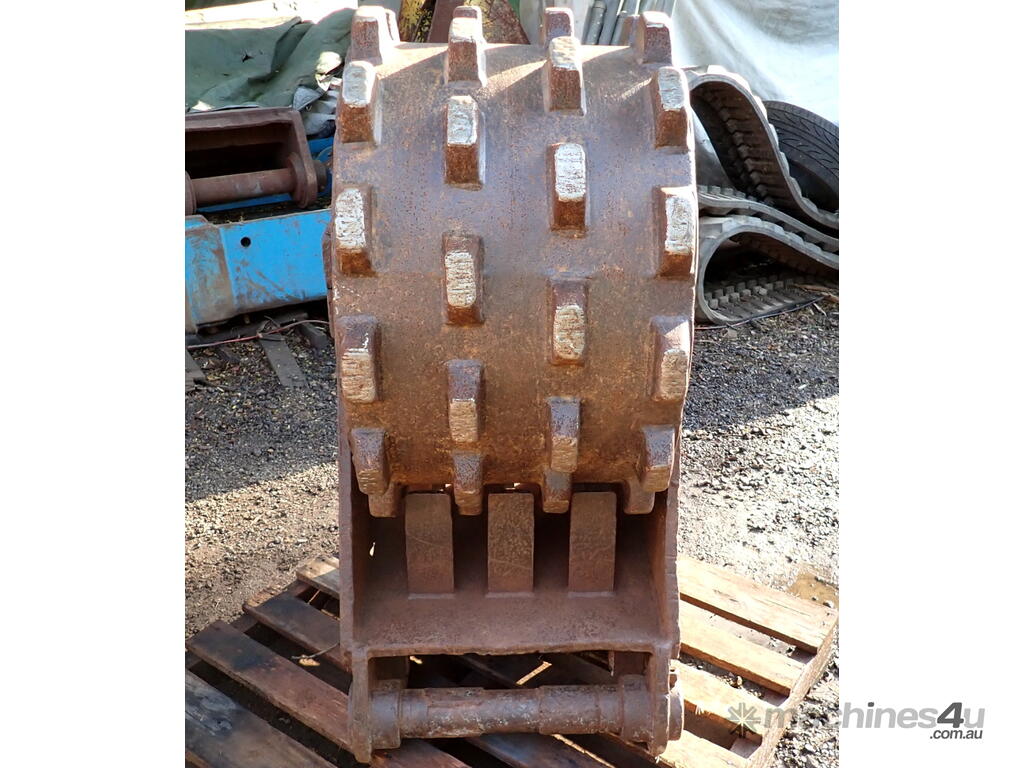

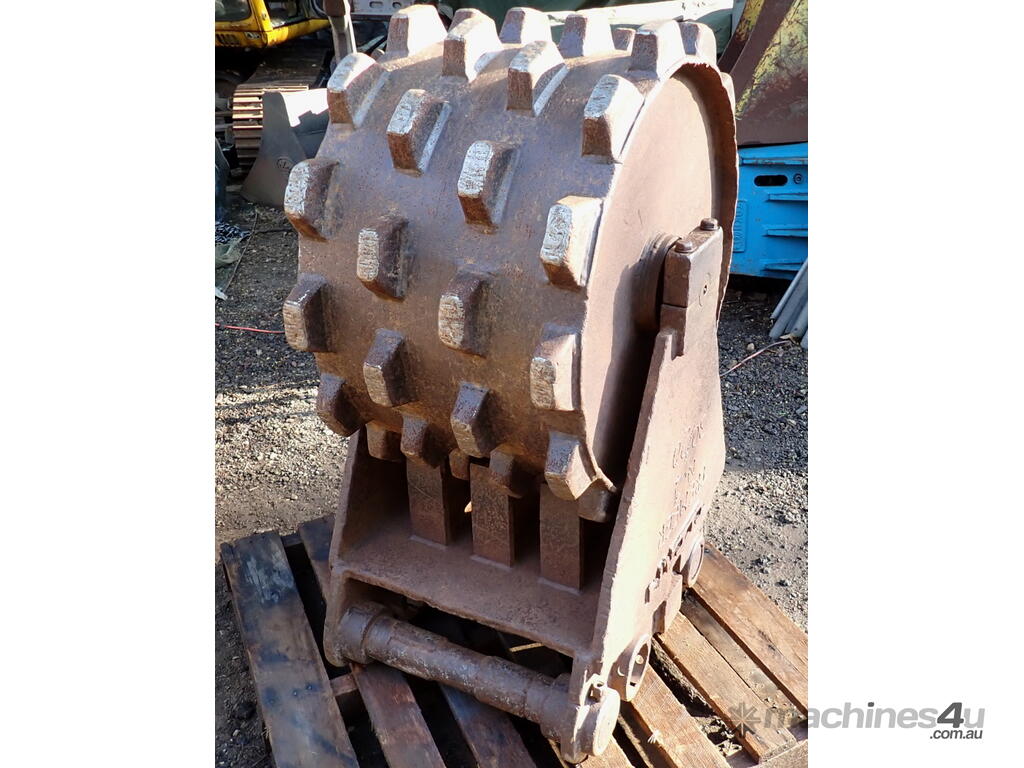

4 rows of pads and fitted with dual Mud Scrapers between the pads.

Conditions is used, it has a few bangs & dints but rolls smooth and has plenty of life left.
It has had several Headstock Pin Spacing modifications done which allows for a greater range of machines it can fit.

This is a well engineered, heavy duty Compaction Wheel, made in Australia by Titan Manufacturing.

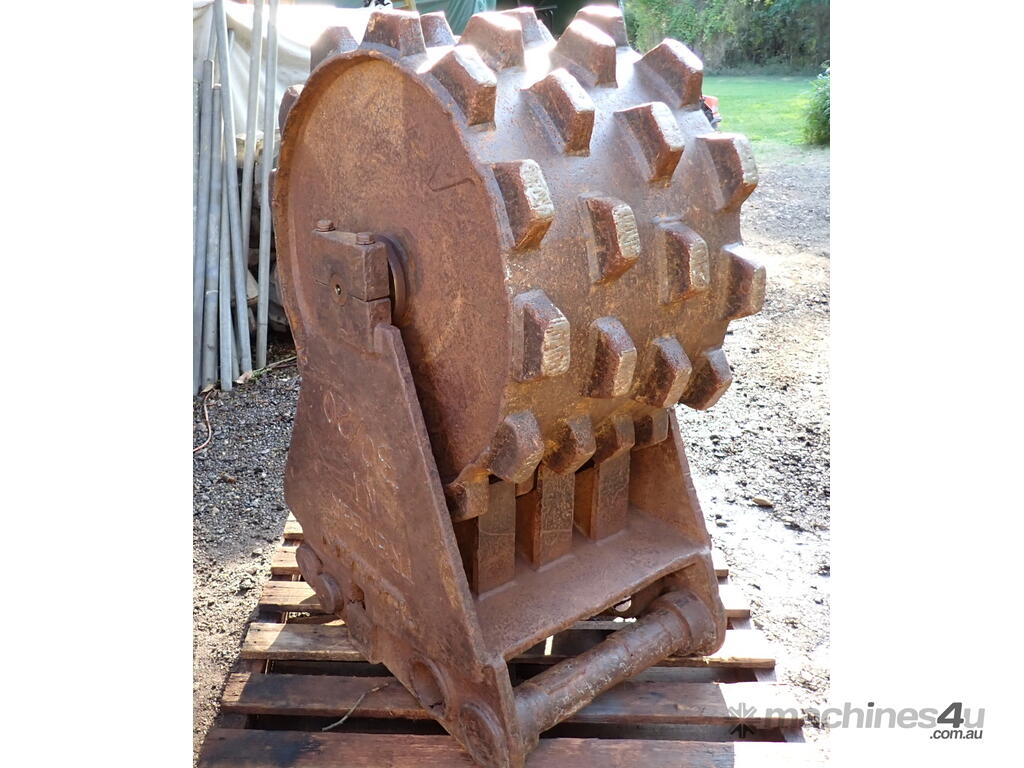

Drum:
* Width: 545mm.
* Curved Steel Plate Diameter: 800mm (not including pads).
* Total Drum Diameter (including pads): 920mm.

Pads (tapered):
* Height: 60mm.
* Size at Top: 45mm wide x 90mm long.
* Size at Base: 50mm wide x 130mm long.

Dimensions (standing up): 660mm Wide, 920mm Deep, 1310mm High.
Weight: 1016kg.

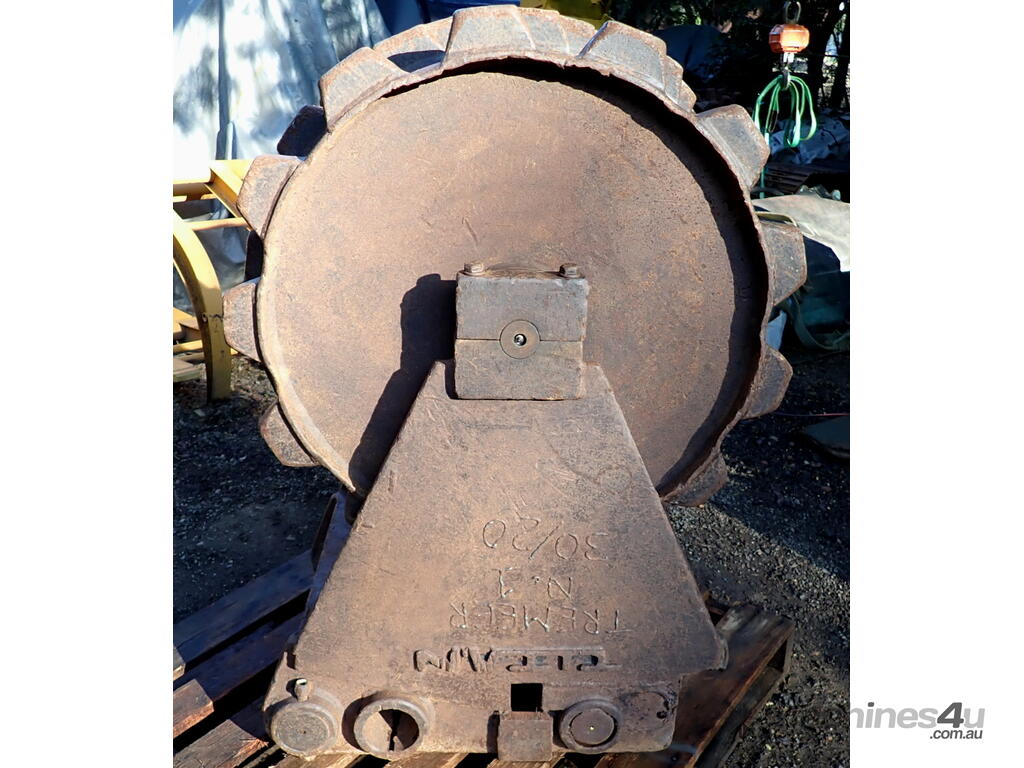

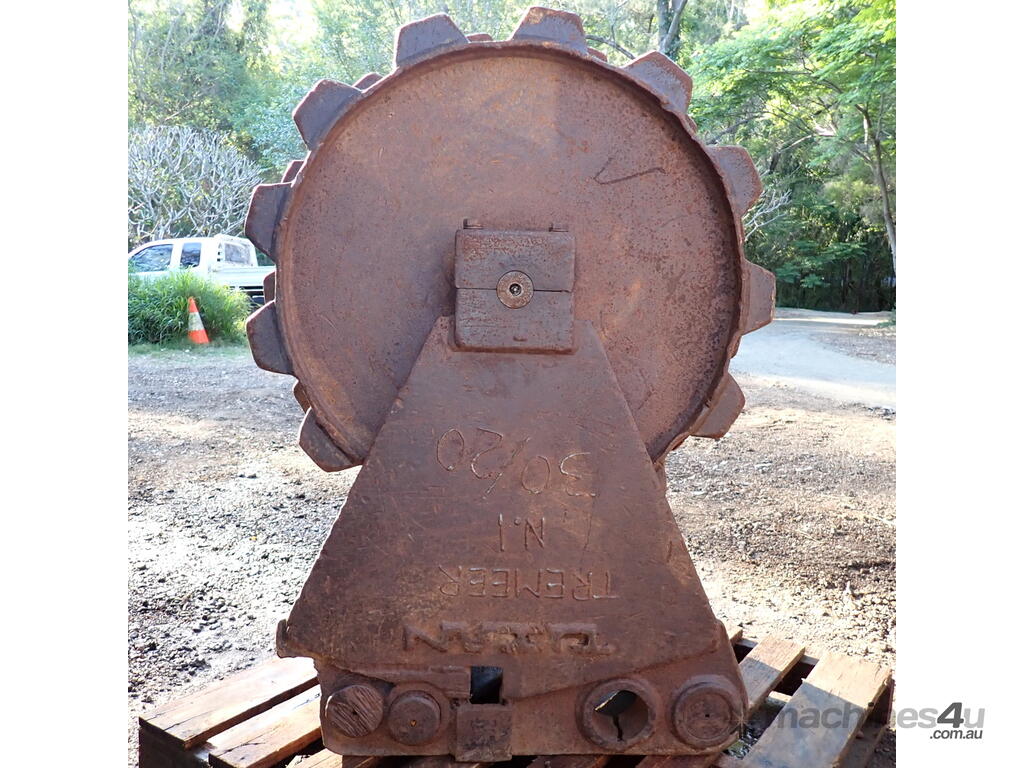

Headstock Configuration:

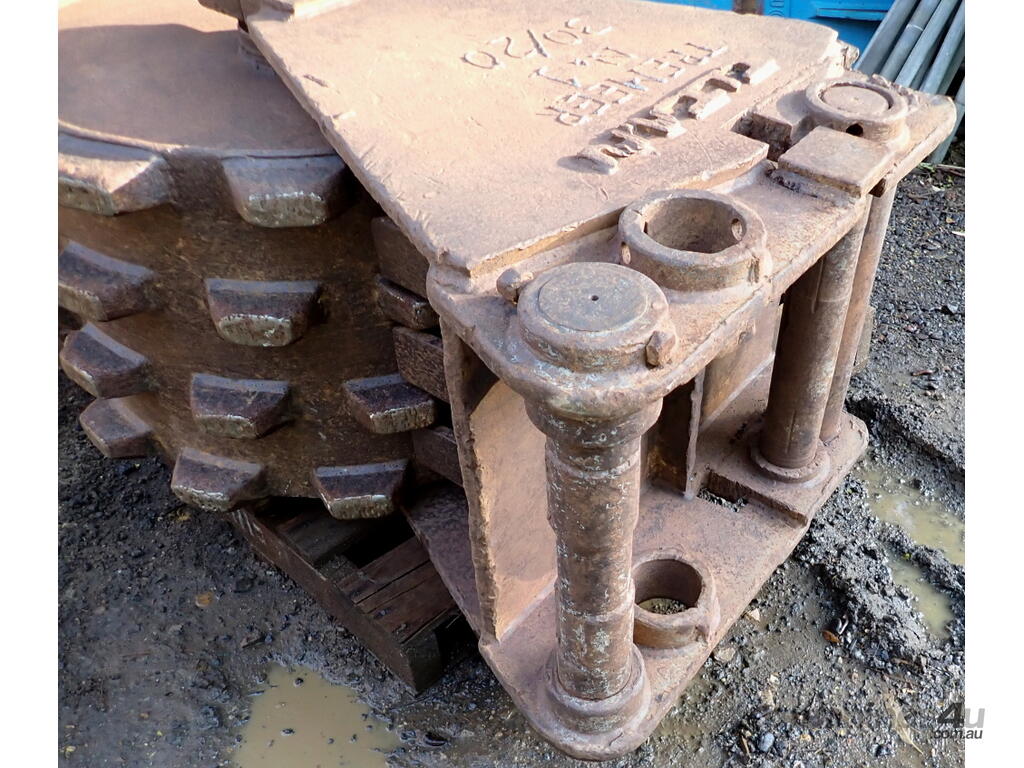

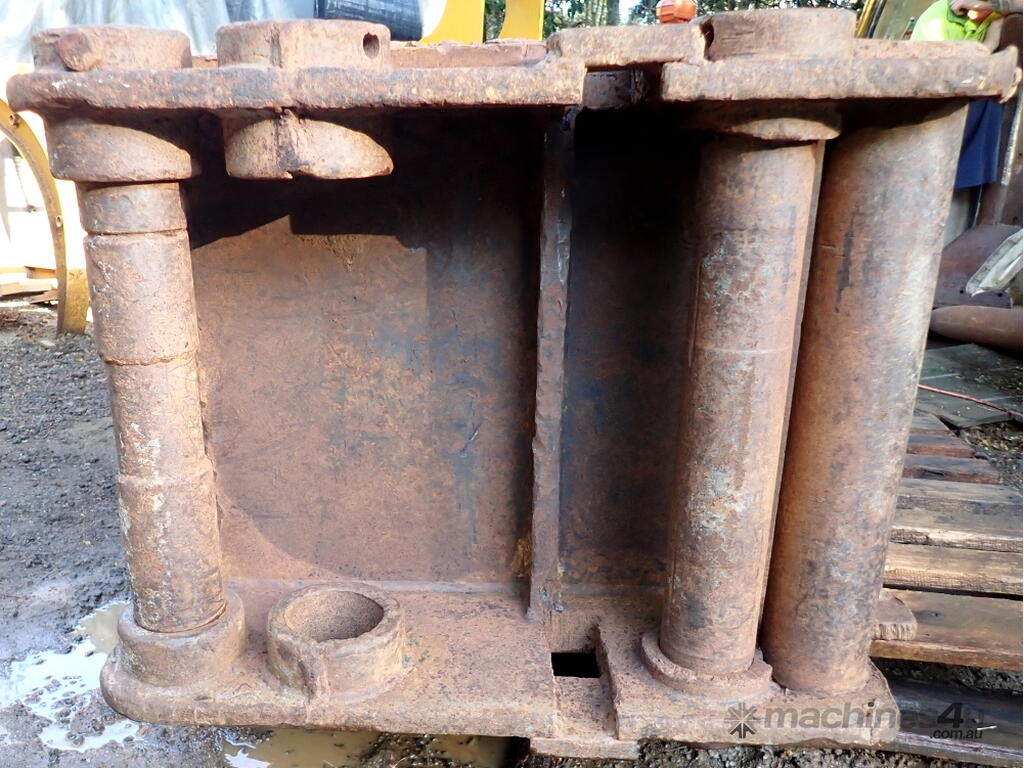

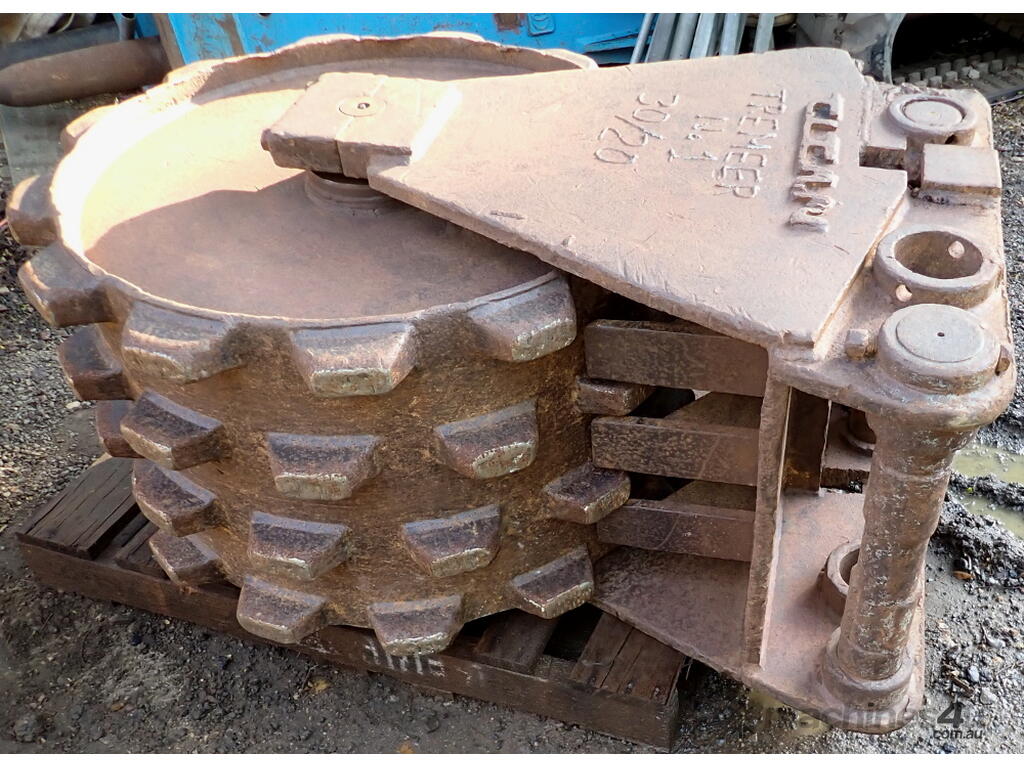

Rather than places for 2 Pins there are 4. Using Pic# 10 as a guide, here are the Pin size & spacing options.
Place 1 (left side) is an 80mm Pin (removable) that has tube sections welded on to make it a 90mm Pin.
Place 2 (hole) is a 100mm hole that is positioned at 160mm pin centers from place 1.
Place 3 (removable pin) has a 90mm Pin positioned at 368mm pin centers from place 2 & 528mm pin centers from place 1.
Place 4 (pin welded in) has a 100mm Pin positioned at 475mm pin centers from place 2 & 635mm pin centers from place 1.
This allows for a CtoC (pin Center to pin Center) of either 368mm, 475mm, 528mm or 635mm.

BTE (Between The Ears): Based on the first Pin, there is 420mm Between the inside Ear Bosses (which can be shaved back up to 530mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

There are many Pin size & Pin Center combinations possible.
Here are just 3 possibilities to suit the below machines:


*** As a 90mm/90mm Pin with 528mm CtoC (current setup with pin in place 3):

Should fit: Case CX330, Caterpillar 235, Daewoo Solar 320 / 330-3, Halla HE280, Kato 1220SE2 / 1250SE / HD700SEV / HD900SEV, Kobelco SK250LC / SK300 / SK310 / SK320 / SK330 / SK330LC / SK350LC, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300LC-7 / PC340 / PC350 / PC360, Link-Belt 330LX, Samsung SE280LC, Sumitomo SH300-3 / SH300LC-3 / SH330-5 / SH350HD-3.

Maybe fit: Case 9033 / 9050B / CX240 / CX290, Caterpillar 322 / 325B w/D Link / 325C w/D Link / 325C w/Mass Linkage / 330B w/D Link / 330C w/D Link / 330C w/Reach Linkage / 330D w/D Link / 330D w/DB Link / D Family Linkage, Daewoo DX300 LC / Solar 290LC-V / Solar 300LC-V / Solar 300LC-V SLR, Doosan DX300 / DX300LC-3 / S300LC-V / S470LC-V, Hitachi EX220 / EX255 / FH220 / FH285 / EX270, Hitachi Zaxis 230 / 230 & LC / 240 / 250 / 270, Hyundai R250LC-7 / R290LC-7, JCB JS300 / JS330, Kato 1800 / HD1430, Kobelco SK220 / SK230 / SK250, Link-Belt 4300 QUANTUM, New Holland FX350, O & K RH 9PMS, Samsung SE240LC / SE240-3 / SE280-3, Sumitomo SH300, Volvo EC240 / EC240B / EC240C / EC290 / EC290B / EC290C / ECR305C / MX255LS / SE240LC-3 / SE280LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As a 90mm/100mm Pin with 635mm CtoC (remove pin from place 3, use pin in place 4):

Should fit: ?.

Maybe fit: ?.


*** As a 100mm/100mm Pin with 475mm CtoC (add a 100mm pin in place 2, remove pin from place 3):

Maybe fit: Caterpillar 330D L w/DB Link, New Holland EC350LC and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
