22 kw Grundfos Vertical Multistage Centrifugal Water Pump 64m3/h 91m Head

22 kw Grundfos Vertical Multistage Centrifugal Water Pump 64 m3/h 91m Head
Brand New

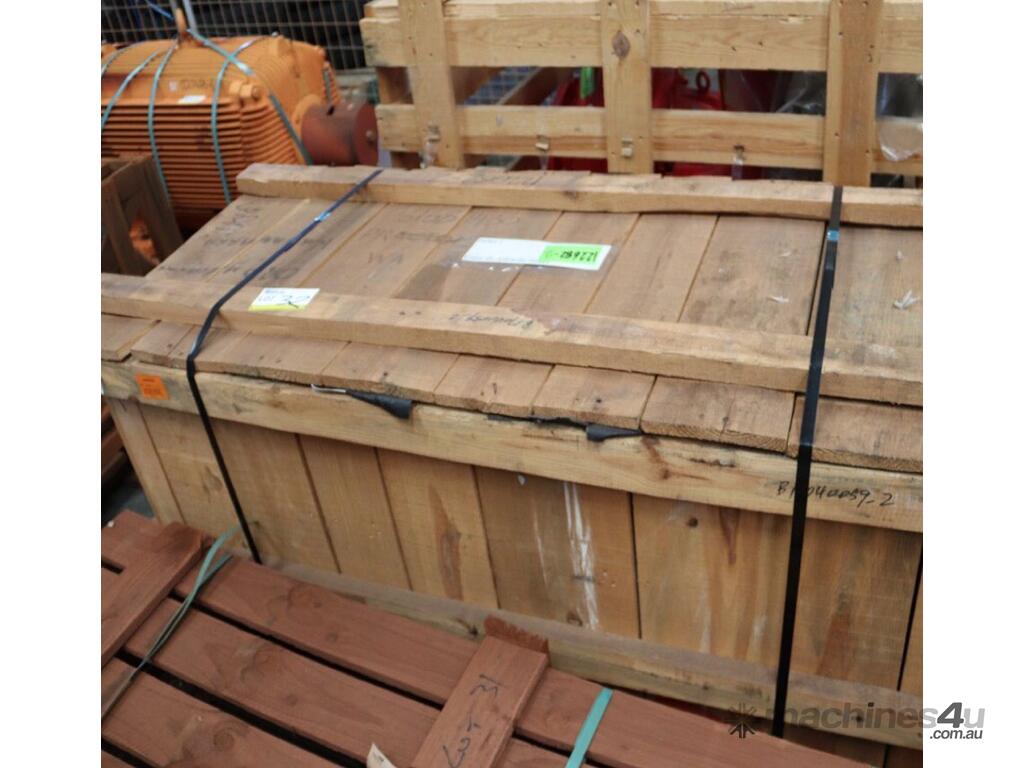

Still in box

Make: Grundfos
Type: Vertical Multistage Centrifugal

New in Box
- Pump fitted with 3-phase, 22kw, fan cooled asynchronous motor

- Inlet & Outlet port on the same level (inline)
- Pump materials in contact with the liquid are in high-grade stainless steel
- A cartridge shaft seal ensures high reliability, safe handling, and easy access & service.
- Power transmission is via a rigid split coupling

Technical:
Pump speed on which pump data is based: 2947 rpm
Rated Flow: 64 m3/h (17.8 L/S)
Rated Head: 91m

Electrical:
Motor Standard: IEC
Rated Power: 22 kw
Mains frequency: 50 hz
Voltage: 380-415vD / 660-690v Star
Rated Current: 39.5 / 22.8 Amps
Rated Speed: 2950 rpm
Efficiency Full Load: IE3 92.7%
Efficiency 3/4 Load: 93.7%
Efficiency 1/2 Load: 94.4%
Enclosure class: IP55 Dust/Jetting

Total weight: 244 kg

Data & Flow Rate provided upon request
Available now
