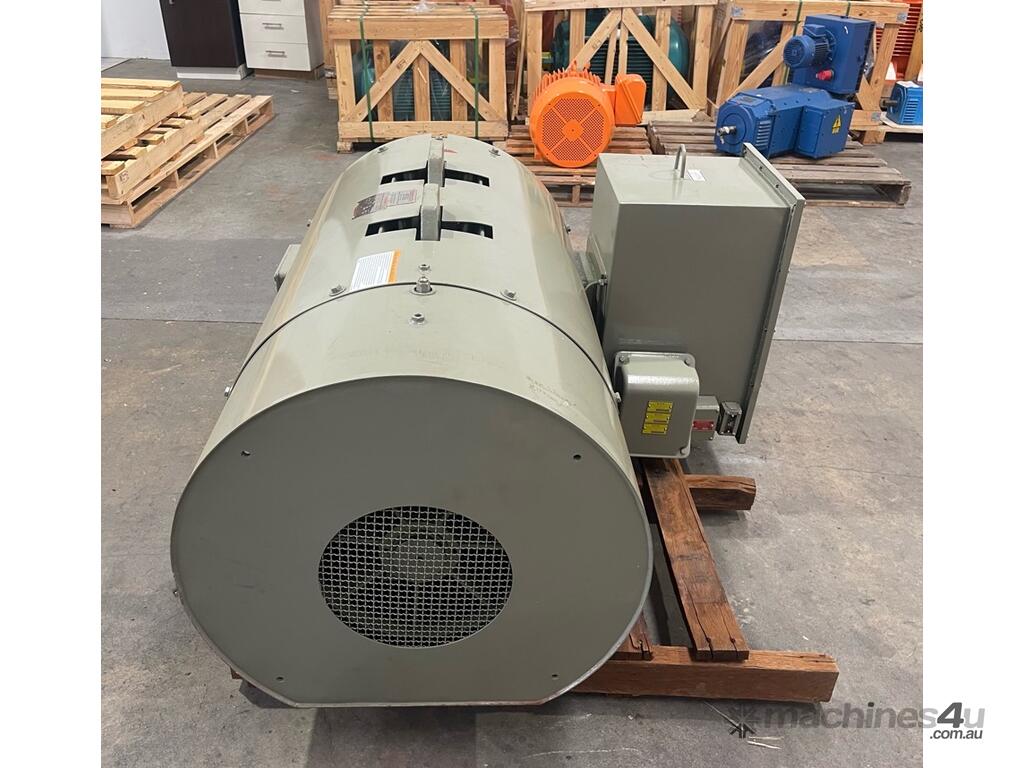

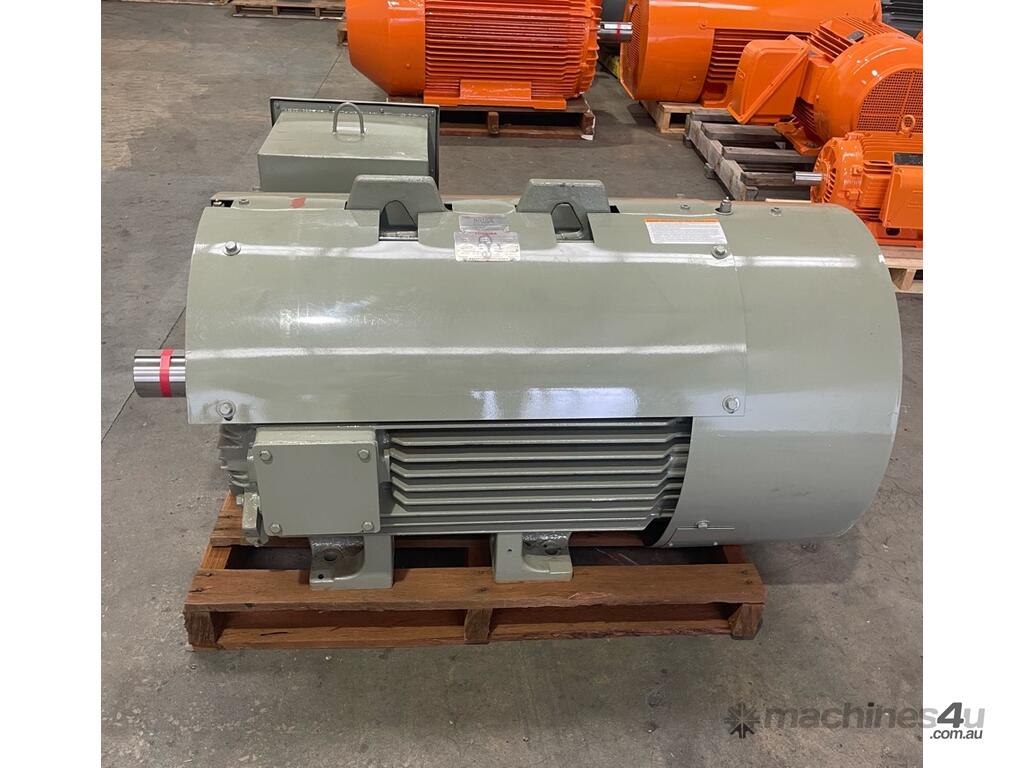

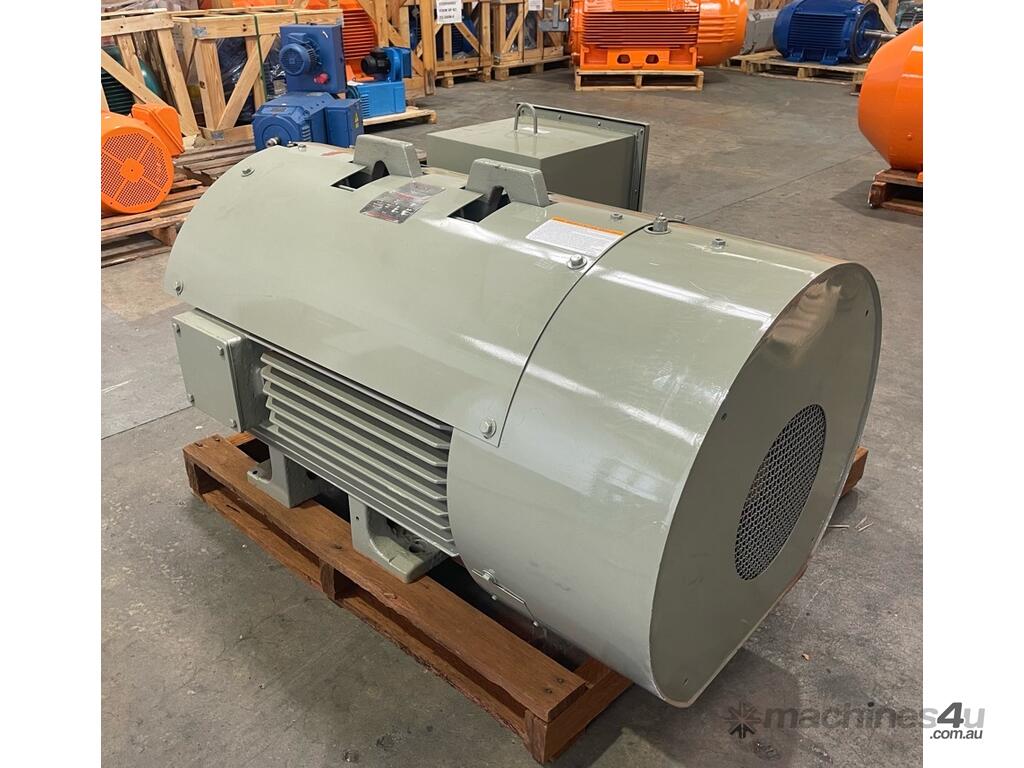

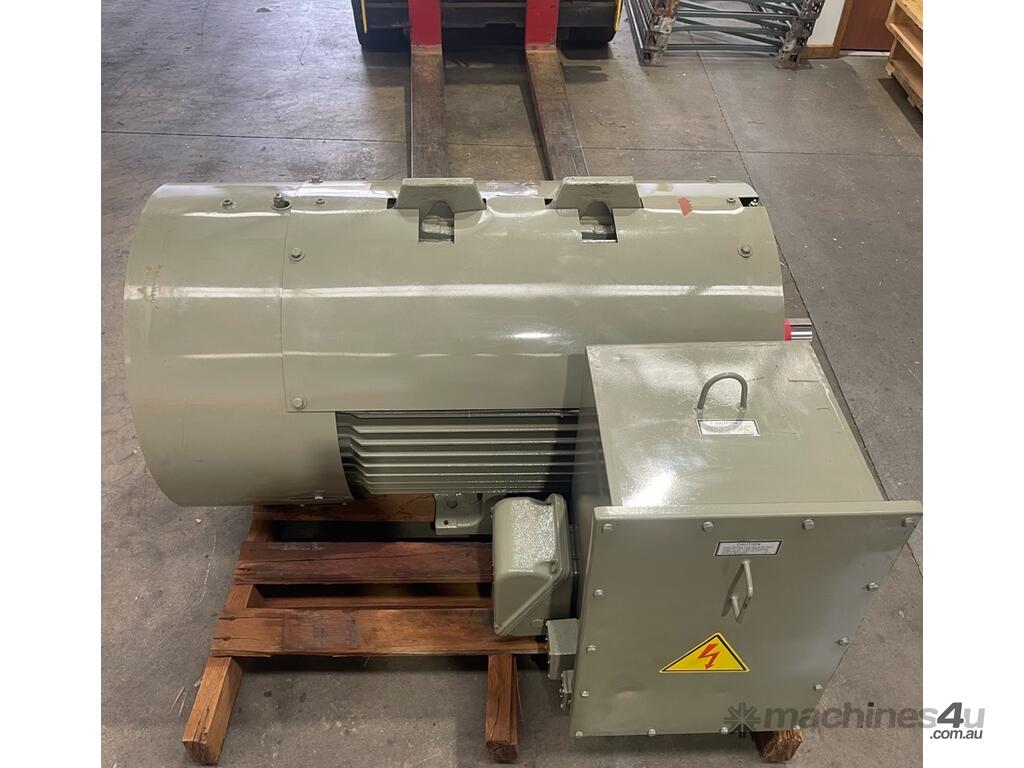

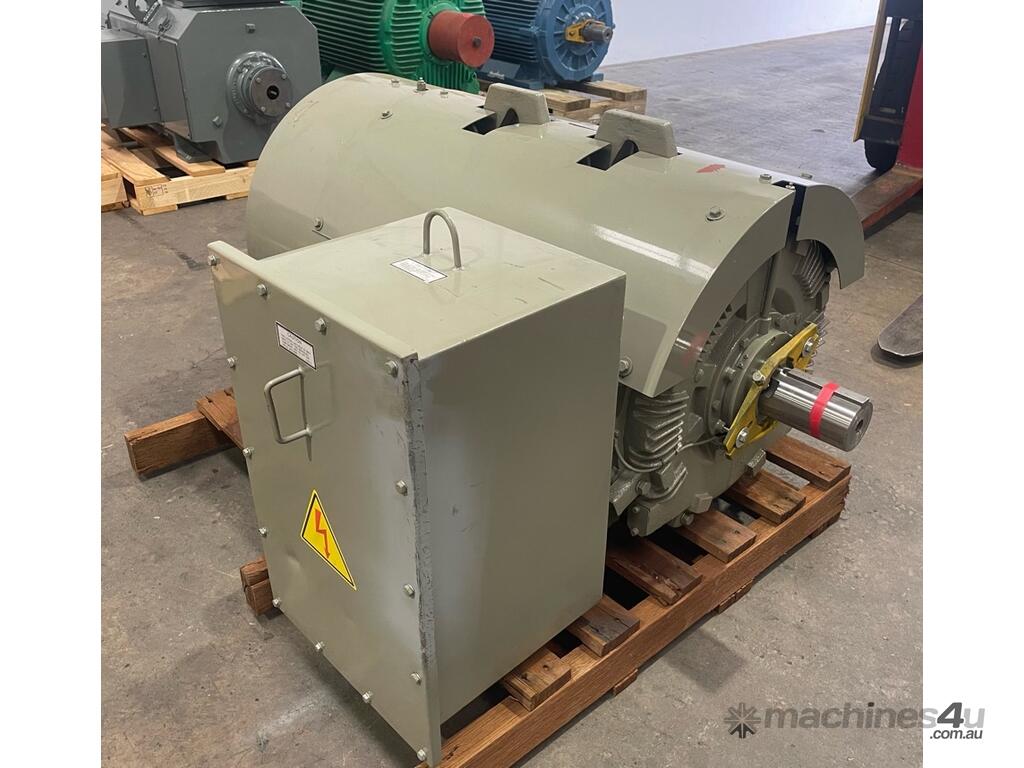

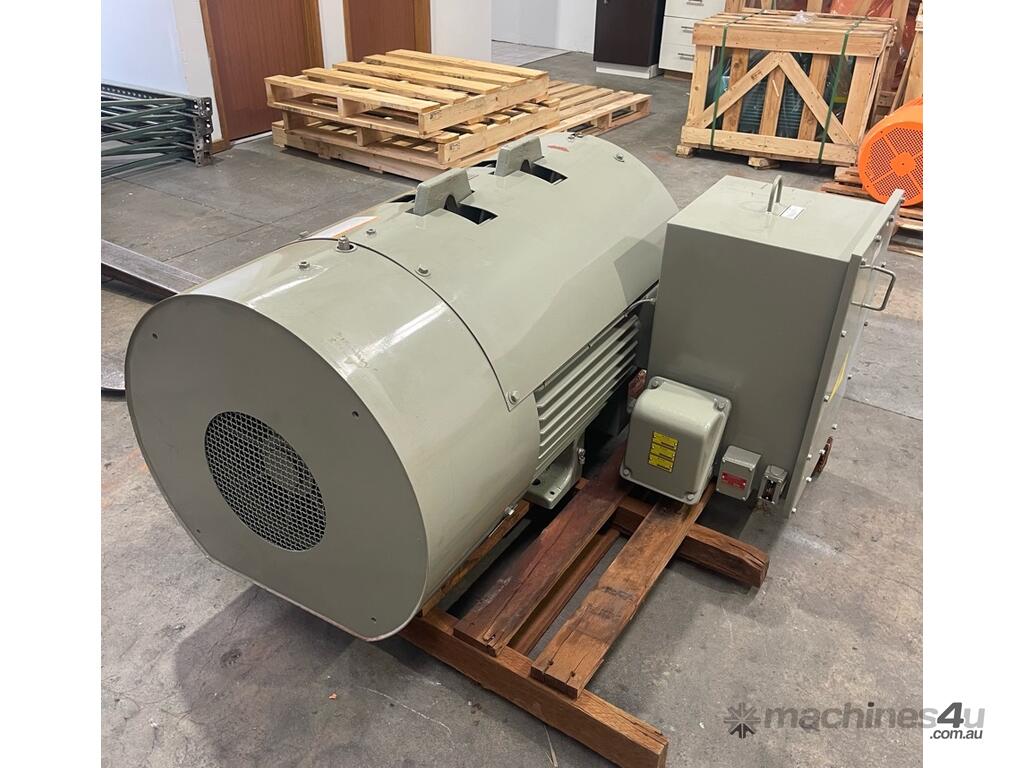

220 kw 300 hp 4-pole 1480 rpm 415v Foot Mount D315M frame Mining Spec AC Electric Motor Toshiba Model TKEH-FBKW4 New Unused
Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: Toshiba
Model: TKEH-FBKW4
Power: 220 KW (300 HP)
Speed: 4-pole (1480 rpm)
Rated Frequency: 50 hz
Rated voltage: 415 v
Full Load Amperage: 347 A
Mount: B3 Foot
Frame: D315M
Terminal Box: LHS to D.E.
Weight: 1670 kg
Extras:
- Mining cover
- D.E. roller bearing NU2224C3 for belt-driven application
- Suitable for VSD use. Fitted with N.D.E insulated bearing housing, plus earth brush fitted
Centre shaft height: 315 mm
Shaft DIA: 95 mm
Shaft Length: 140 mm
Total Length: 1435 mm (incl. shaft)
Total width: 1245 mm (incl. LHS to D.E. terminal box)
Total height: 740 mm
Feet Measurements: Across 'A' - 508 mm, Front to Back 'B' - 457 mm
Front hole to shaft 'C' - 216 mm
Available QTY: 1
Condition: New / Unused. N/L test run in motor workshop 2024
exStock Seaford VIC 3198 Australia
Available for immediate despatch
Freight services Australia-wide available on request
