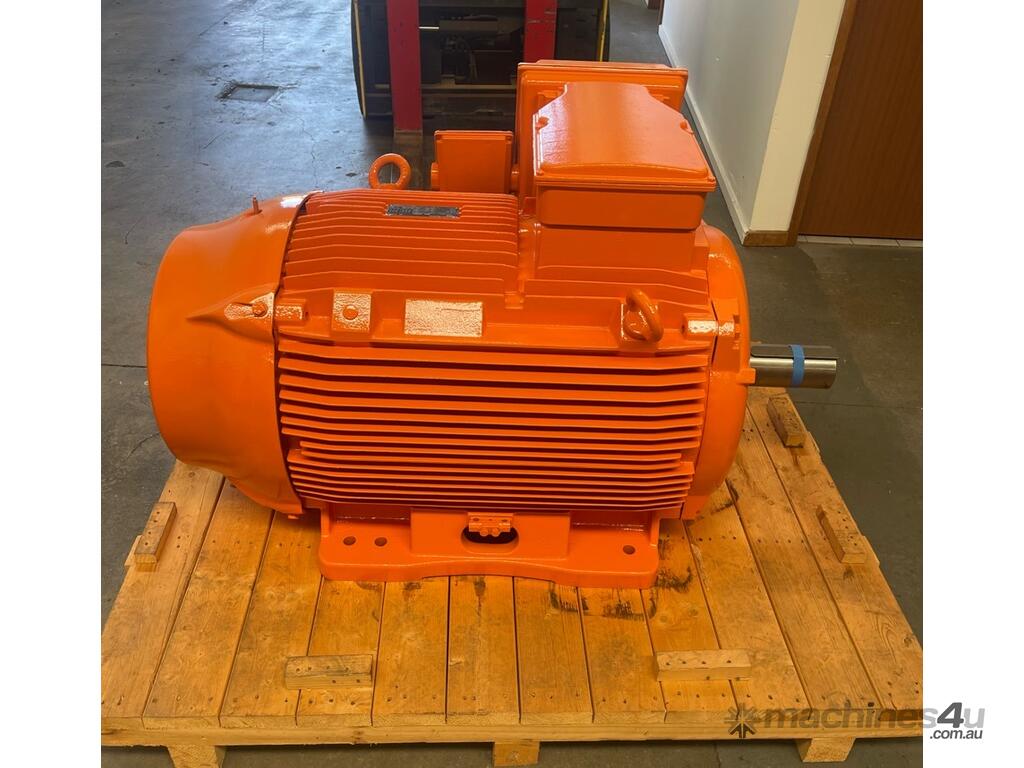

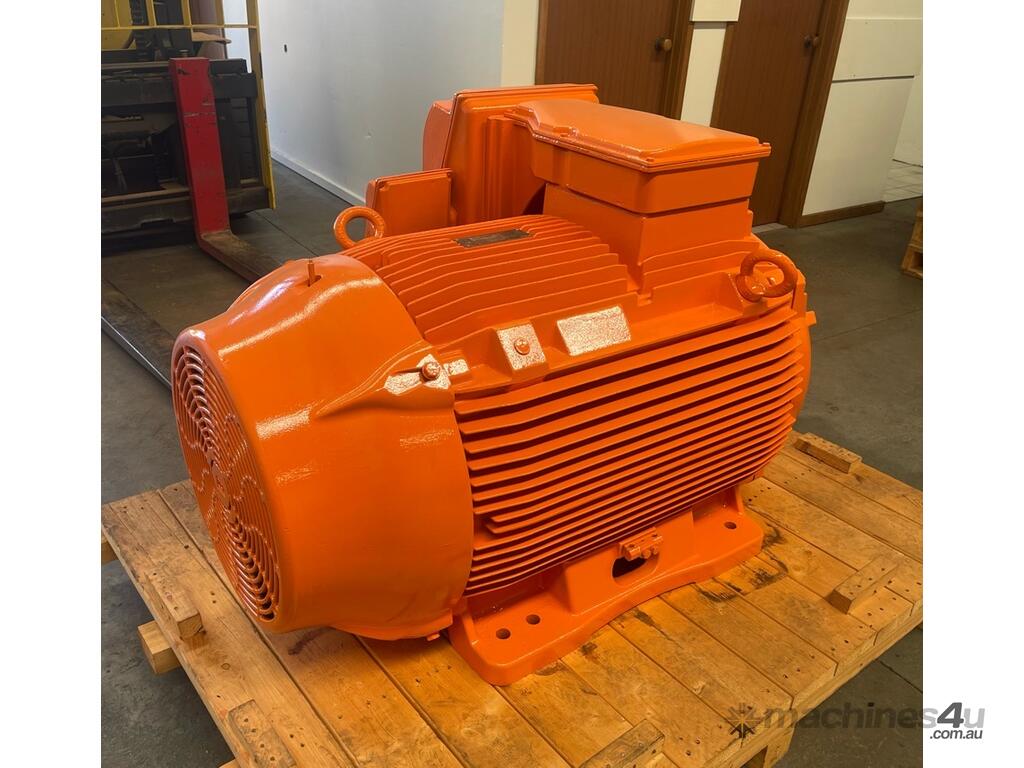

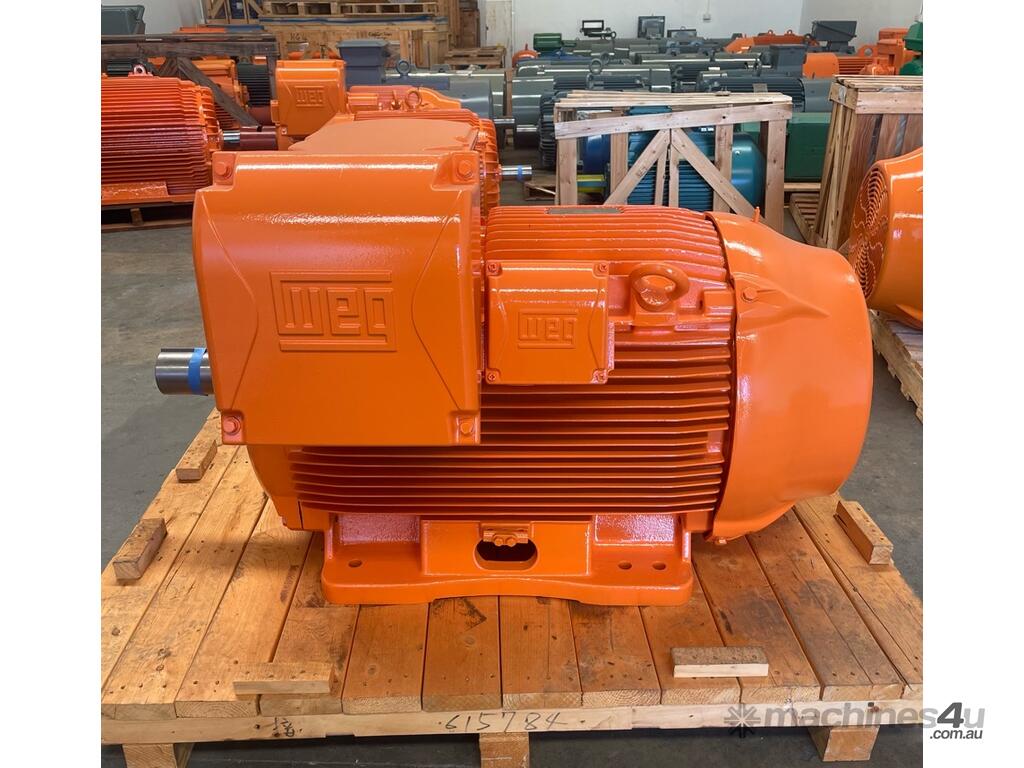

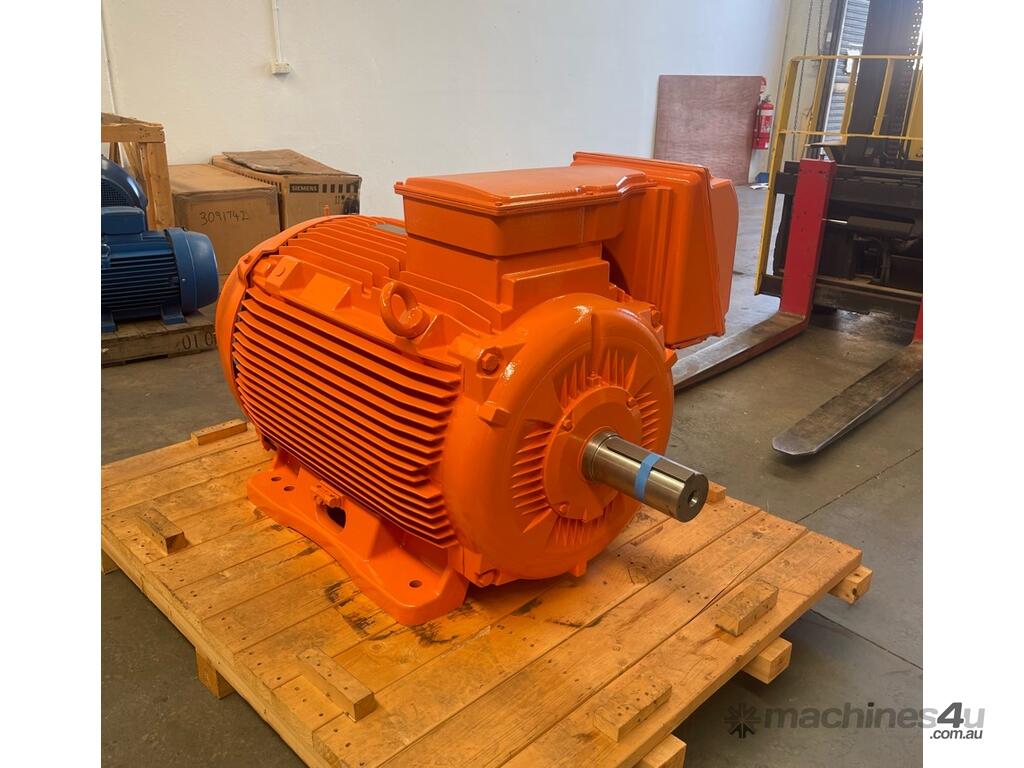

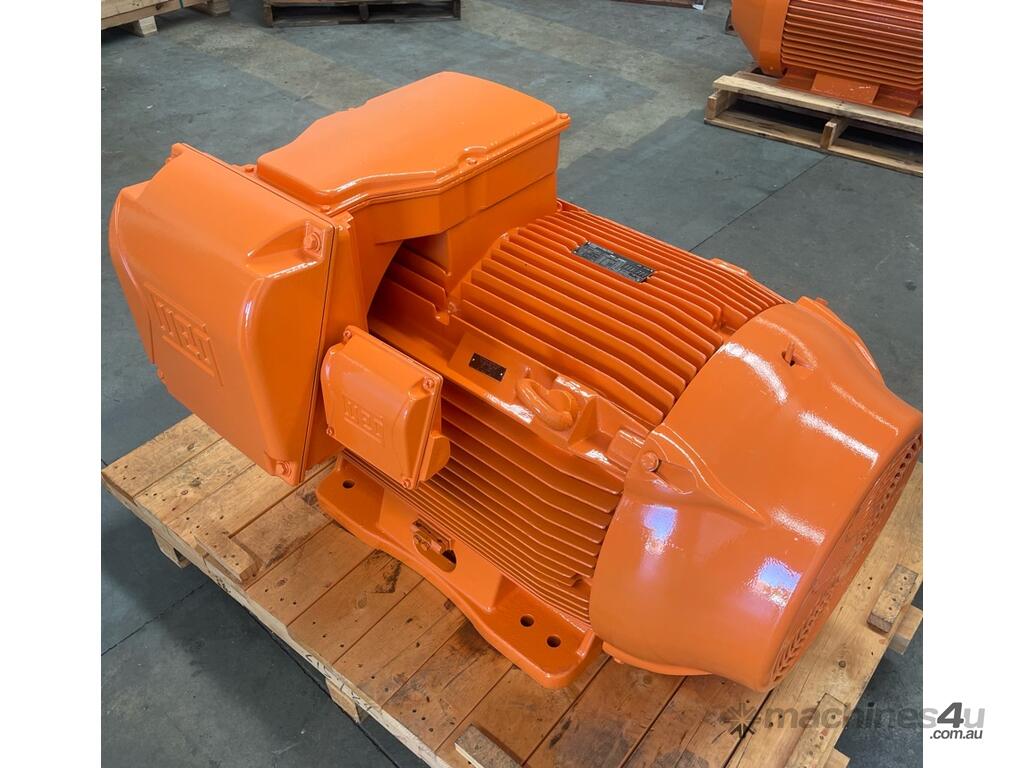

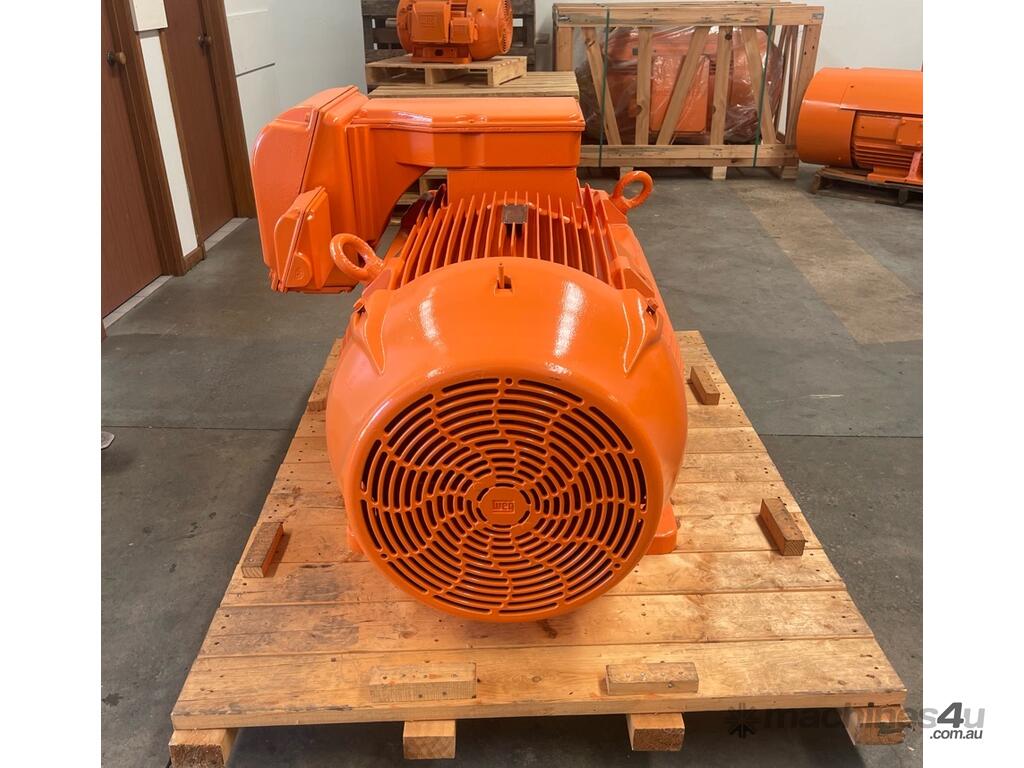

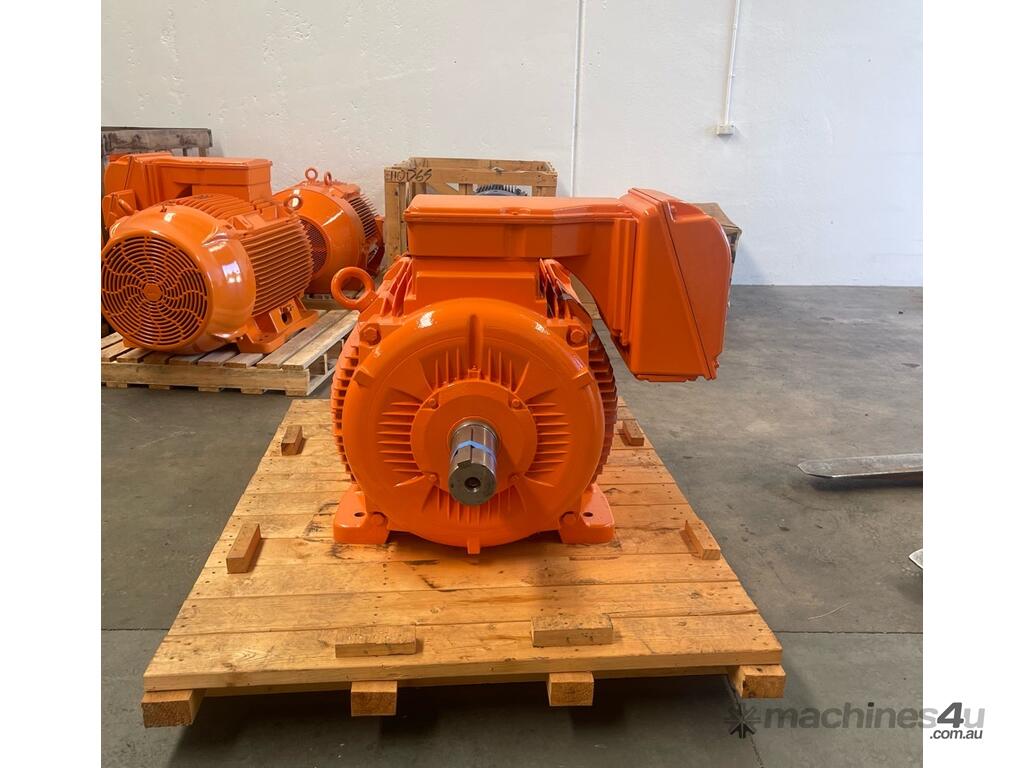

220 KW 300 HP 4-pole 1490 rpm 415 volt Foot Mount 355M/L frame IP66 AC Electric Motor WEG Model K56 W22 VSD
Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: WEG
Model: K56 W22 VSD
Origin: Brazil
YOM: 2016
Power: 220 KW (300 HP)
Speed: 4-pole (1490 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415v v
Full Load Amperage: 376 A
Mounting: B3 Foot
Frame: 355M/L
Insulation class: H
Protection Rating: IP66
Weight: 1640 kg
Notes: Includes insulated endshield, for VSD Application
Shaft DIA: 100 mm
Shaft length: 210 mm
Centre shaft height: 355 mm
Total Length: 1482 mm (incl. shaft)
Total Width: 900 mm (incl. Standard RHS to D.E. terminal box)
Total Height: 898 mm
Feet Measurements: Across 'A' - 610 mm, Front to back 'B' (2 holes) - 560 mm & 630 mm
Front hole to shaft 'C' - 254 mm
Available QTY: 1
Condition: Unused & Decommissioned critical spare, N/L test run in motor workshop - warehouse storage.
exStock Seaford VIC 3198 Australia
Freight services Australia-wide available on request
Australian wide distribution of leading Electric Motor brands WEG & TECO.
As well as a large stock of Surplus mining/industrial electric motors, saving our customers cost & downtime.
