225-630mm Self-Propelled Butt Fusion Pipe Welder - Ritmo Delta 630 All-Terrain

Name: 225-630mm Self-Propelled Butt Fusion Pipe Welder - Ritmo Delta 630 All-Terrain
Brand: ritmo
SKU: 604411
Availability: InStock

KEILOR PARK, VIC - Delivers Nationally

Play Video

$369,999 - 388,499 AUD
($406,999 - 427,349 Inc. GST)
Confirm with seller if additional costs apply.

Commercial Finance
Estimate

$1,321.03
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Plastic Pipe Butt Welders

Make:

RITMO

Model:

DELTA 630 ALL-TERRAIN

Year:

Not specified

Member Since: Mar 2020

Bronze Member

Listings: 44

Description

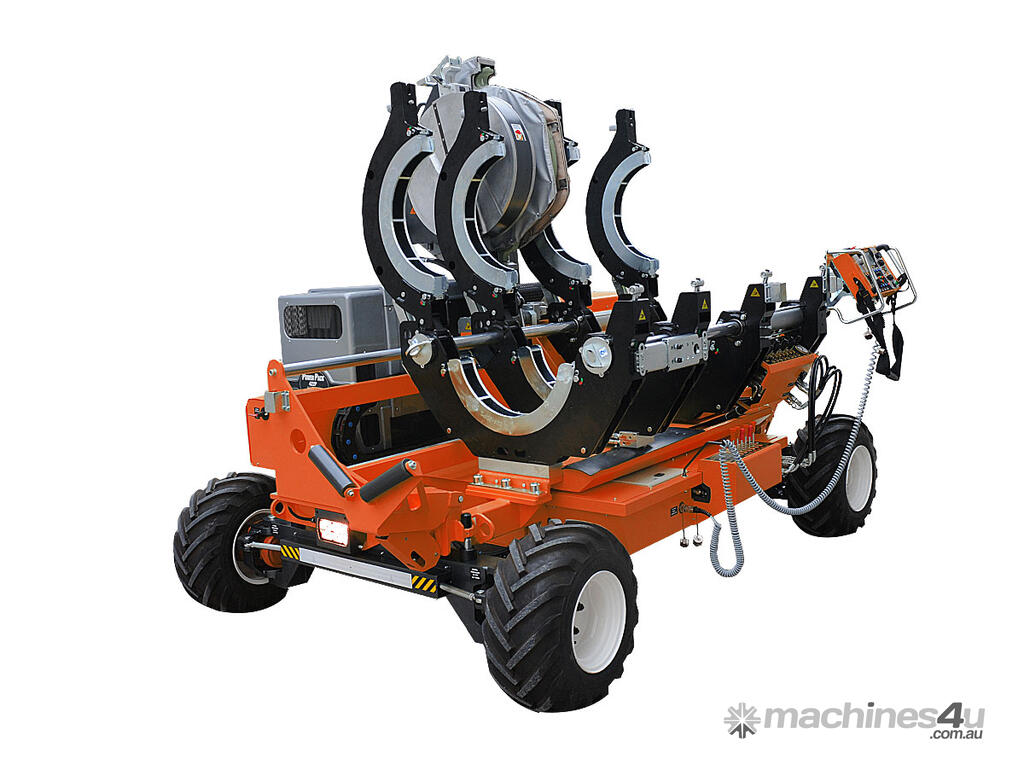

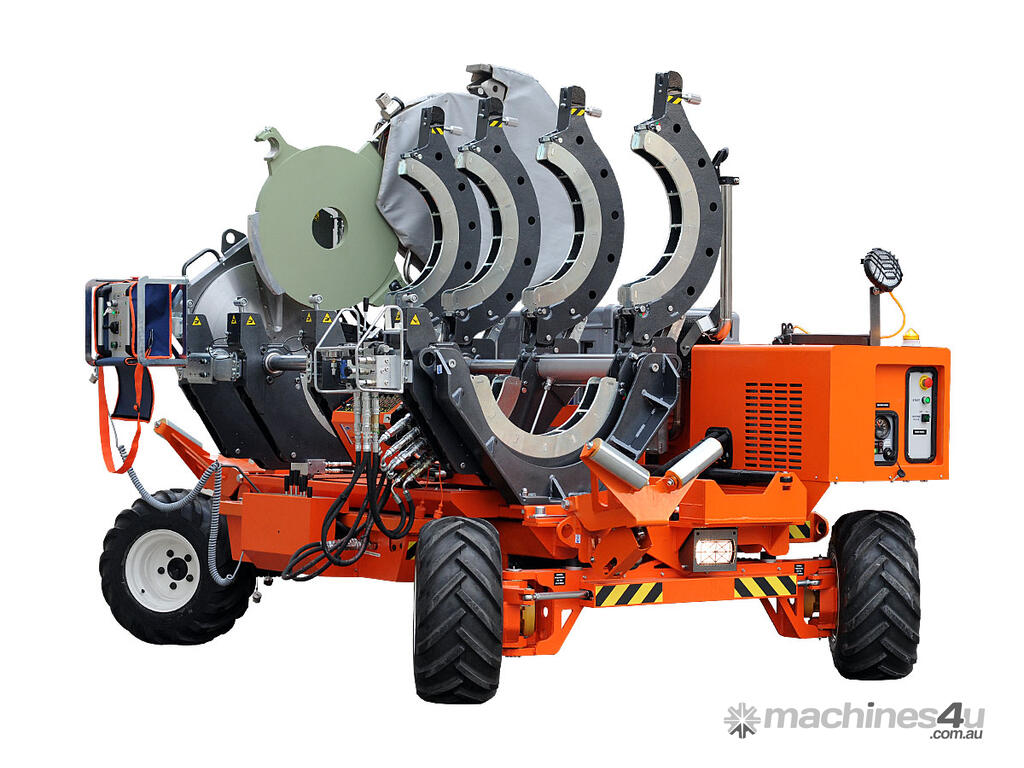

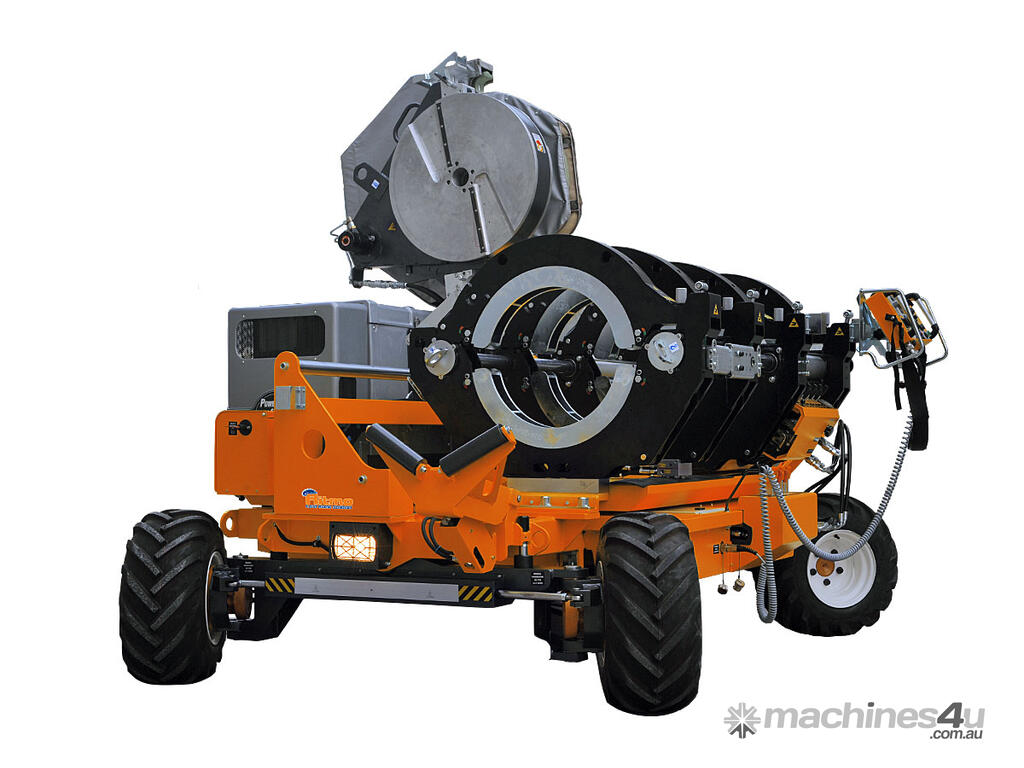

The Ritmo Delta 630 All Terrain Butt Welder is a Pipe and Fittings Fusion Machine designed to face the toughest working conditions. This machine mark a turning point to the world of Field Fusion. The heating plate and facer disconnecting system ensures that the positioning / removal of the pipes is made without obstacles, giving the operator more time for what really matters.

Italian design, known for paying particular attention to details, gives the Delta 630 All Terrain many technical innovations that are indeed practical. The hydraulic clamp system is not only an aesthetical maneuver, but also a protection against collisions while positioning the machine inside the trench. The low fuel consumption and soundproofing gear protects the environment, your health and saves your money!

Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!

Delta 630 All Terrain is available in 2 models:
Delta 630 All Terrain CNC (automatic welding control system)
Delta 630 All Terrain M (manual welding control system).

Machine Composition:

- Welding standard: ISO 21307 High Pressure.
- 4 steering wheels drive
- Diesel-engine 2200 cc 22,7 Kw
- Self-contained with on-board generator
- Sliding 3rd CLAMP for fittings welding
- Automatic welding System “Easy Life”
- DATA-LOGGING with GPS
- Possibility to pre-set 20 customized
- Memory 4000 welding cycles
- Report PDF
- Detachable Control Panel
- Remotely wire-controlled up to 12 m
- Trench-Friendly
- SmartLock Inserts
- Hydraulic Lifts
- Hydraulic-controlled Clamps and Milling cutter
- Climbs rough terrain up to 30%
- Wi-Fi ready App "SET and GO PRO"

Accessories Available on Request:

- Clamps’ inserts from Ø 225 to 630 mm
- Tool for flange necks/stub-end holder
- Kit for IN-DITCH use

Technical features:

Materials: HDPE/PP
Working range: Ø 225* ÷ 630 mm * (SDR 26 ÷ 7)
Power supply: diesel engine Perkins 2200 cc 22,7 kW
Fuel tank capacity: 40 litres
Operational tank capacity: 12 hours
Weight: 3000 Kg
Dimension: 2200 x 3100 x 2000 mm
