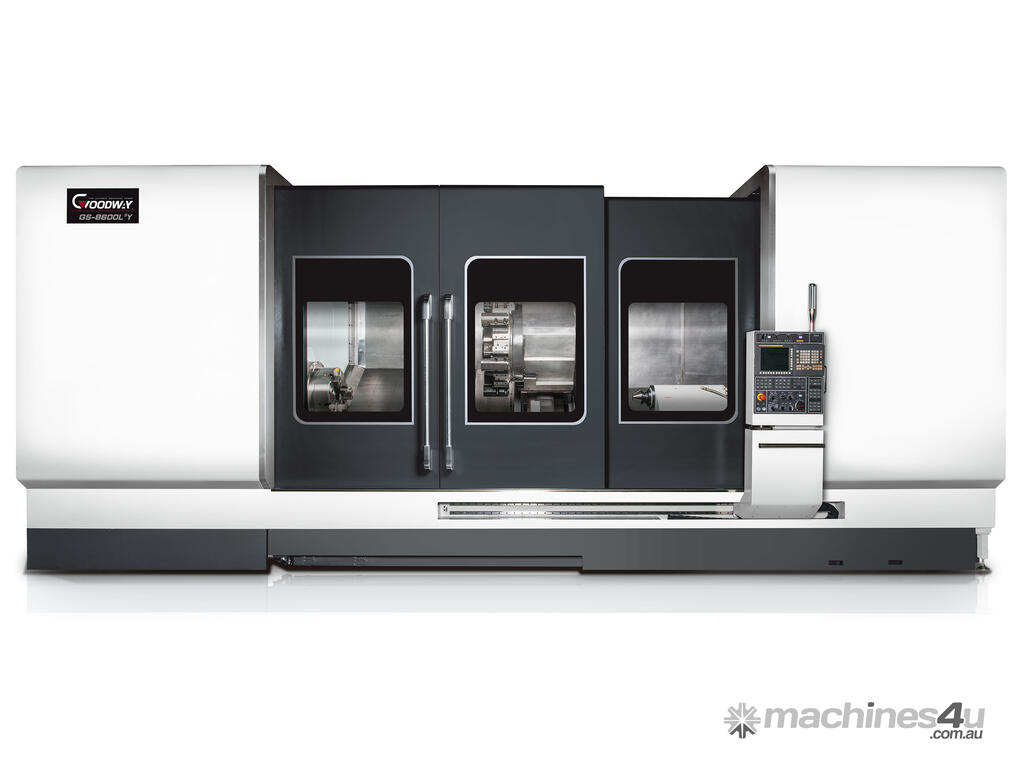

24" ~ 32" Chuck - GS-8000 Turning Centre

With leading technologies and high quality components, the GS-8000 series heavy duty
CNC turning centre combines a super rigidity box way bed with extra-large diameter servo
indexing turret and powerful gear spindle structure to provide you with efficient machining

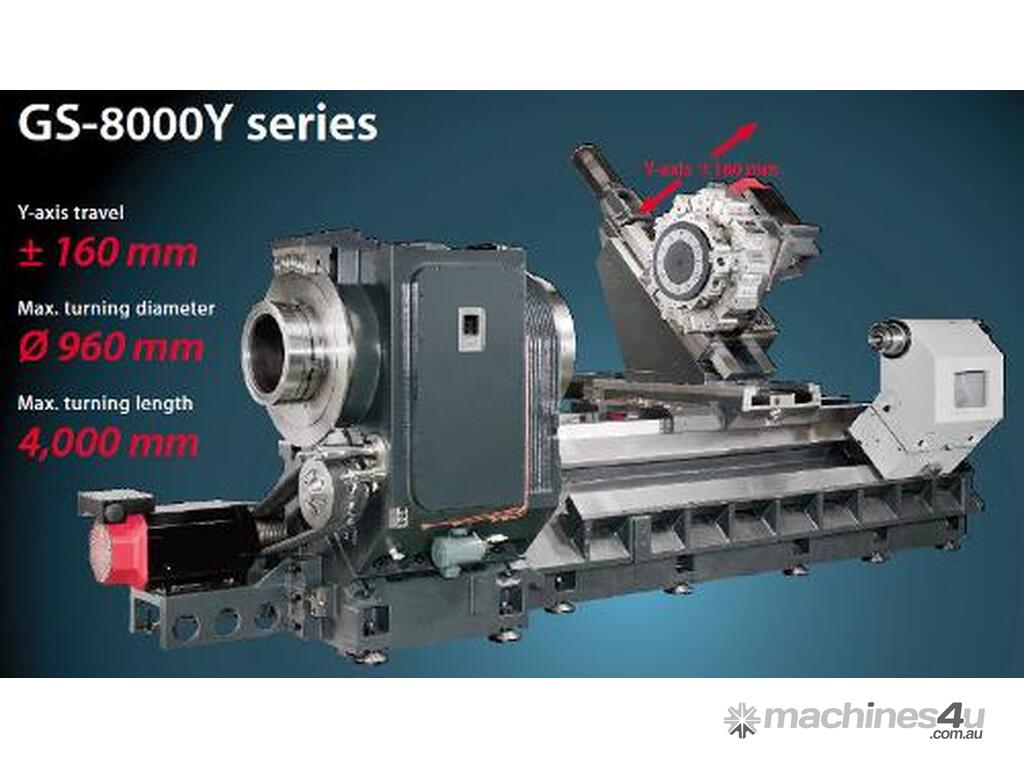

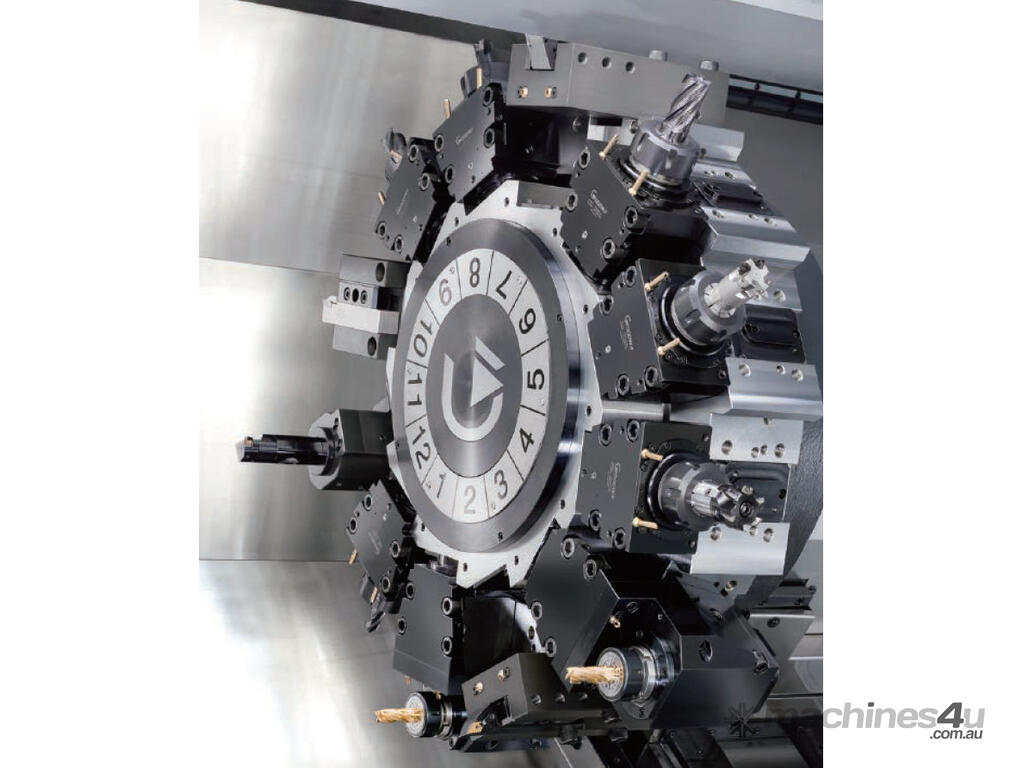

performance for large diameter and extra-long work pieces. Meanwhile, with the optional live
tooling turret and Y-axis, the GS-8000 series can easily accomplish multi-tasking operations for
large and complex work pieces to fulfil various machining needs for today and tomorrow.

Model: GS-8000 / 8300 / 8600

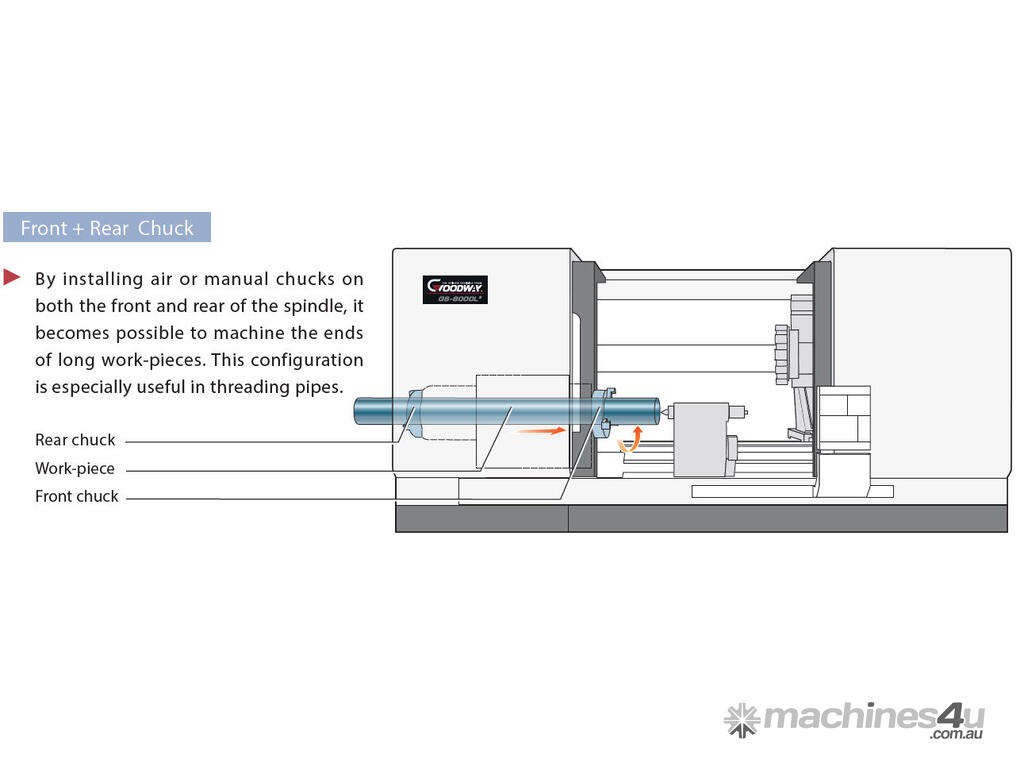

Chuck size: 24” / 32”
Max bar capacity (mm): 205 / 260 / 320
Max turning diameter (mm): 970
Swing over bed (mm): 1030
Swing over saddle (mm): 810
Max turning length (mm): 1200 ~ 6200

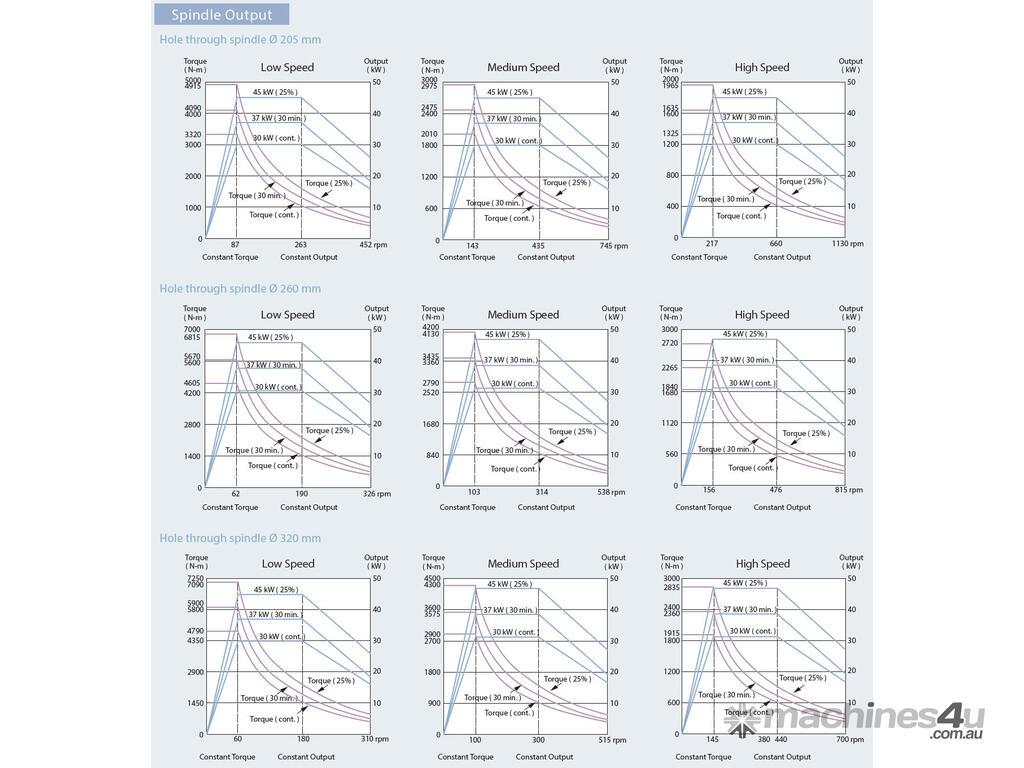

Spindle speed (rpm): 1100 / 800 / 700
Max workpiece weight (kg): 5000
Rapid traverse X / Z (m/min): 10.5 /12
Motor (kW): 45 / 30

C/w Fanuc or Siemens Conversational Control, 3 Speed Gearbox, Chip Conveyor, Renishaw Tool Setter, Programmable Tailstock Body & Quill.

Large range of models available, would suit Mazak, Okuma, Mori Seiki & Doosan buyer!

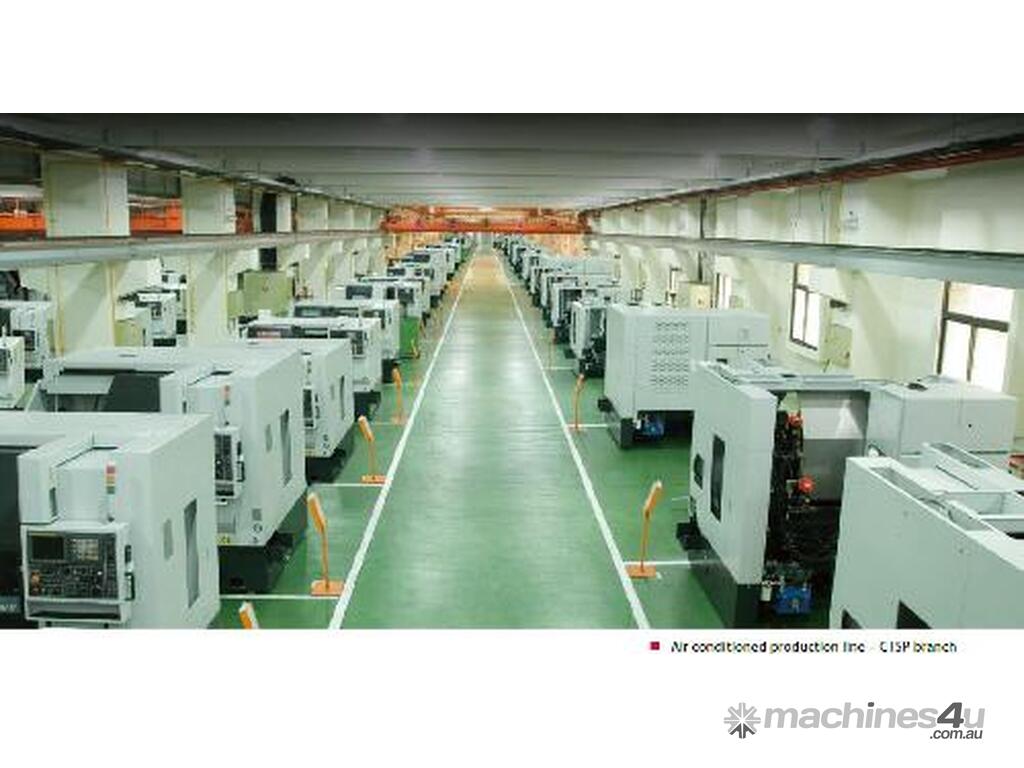

Goodway’s are now one of the largest CNC Lathe manufacturers in the world and their recently opened state of the art manufacturing facility enables them to produce their range of CNC turning Centres in one the most modern plants in Taiwan, they are also one of the few Taiwanese machine tool manufacturers with their own sophisticated machine shop to produce critical components.

Goodway’s massive investment in new development areas over recent years has seen their range grow into new areas such as: Multi Tasking Machines, Swiss Type Lathes, Large Slant Bed Lathes up to Ø980mm turning diameter, CNC Vertical Lathes including a Ø5000mm vertical lathe currently in development and the soon to be released CNC Flat Bed Lathes with swings up to Ø2000mm.

Since 1975 Goodway Machine Corp has specialised in the development and manufacture of high precision turning centres, currently Goodway produce in excess of 2,000 CNC Lathes each year and have grown to be one of the largest CNC lathe manufacturers in the world. Their machines are now well known in over 50 countries for their exceptional performance, quality and value and with over 75 model variants ranging from Ø32 ~ Ø205mm bar capacity, Ø6” ~ Ø24” chuck size, turning lengths up to 4000mm and 2 ~ 9 axis configurations, Goodway has the capability to meet virtually any turn / mill application. There really is a solution for every turning requirement in the Goodway range of Turning Centres!
