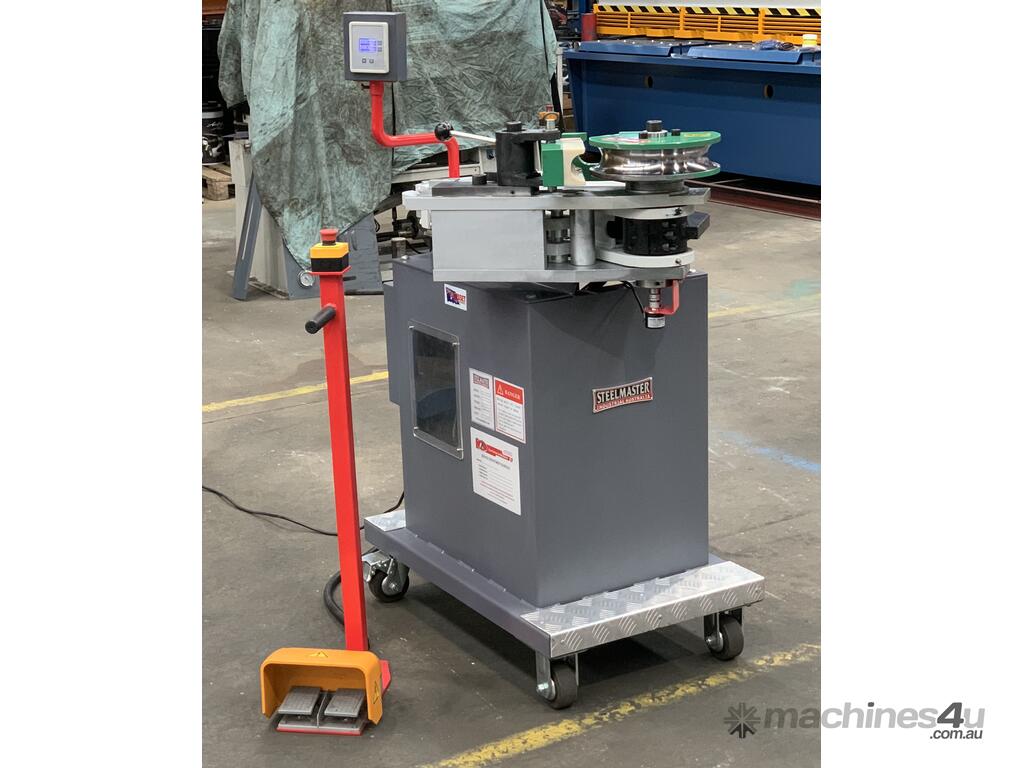

240VOLT - 64mm Capacity Hydraulic Tube & Pipe Draw Bender With Digital Controller - 1 Set Tooling

SM-HDB64D Tube & Pipe Bender. STEELMASTER Industrial. 50.8mm (2”) Pipe Capacity, 64mm Tube Capacity Digital Display, Drop on Fast Change Tooling, Foot Pedal, Tooling Additional to Price. 240Volt

Description:
The SM-HDB-64 tube bender from STEELMASTER Industrial marks a breakthrough in bending technology. This easy to use hydraulic tube bender has an incredible capacity of 50.8mm
Schedule 40 pipe and up to 63.5mm tubing with a wall thickness of 3.0mm mild steel. The SM-HDB-64 makes quick work of round tube, pipe, and square tubing.

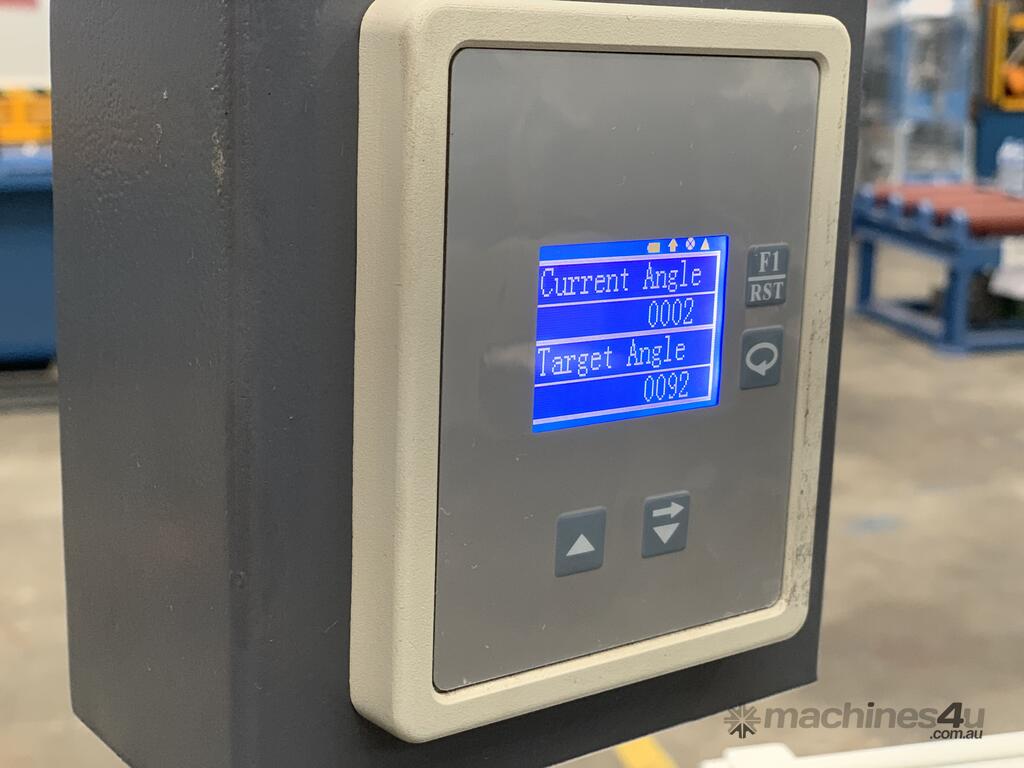

Easy to read digital degree indicator with auto stop programming is standard on the SM-HDB-64, gone are the days of guessing at the degree of bend.

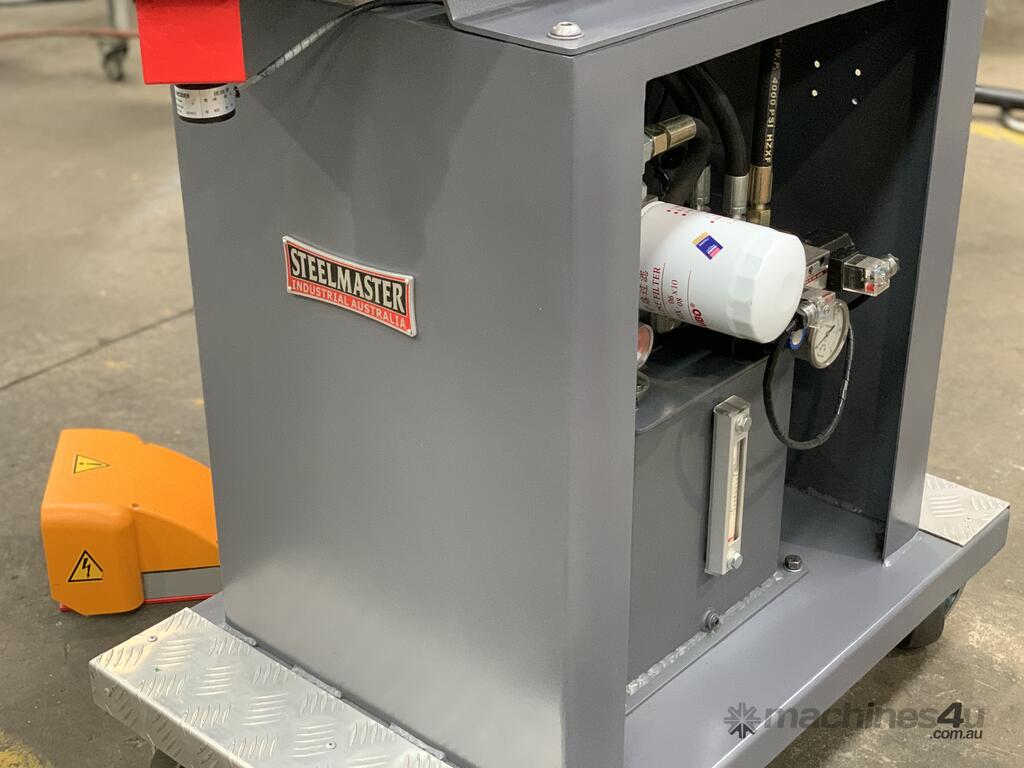

The SM-HDB-64 uses a foot pedal to control the movements of the bender, leaving the operators hands free to control the material.

Features
?Auto digital operated stop for bend repeatability included.
?Ratchet counter die positioned.
?14 seconds to 180 degrees
?Foot pedal operation
?Bends 180 degrees in one shot.

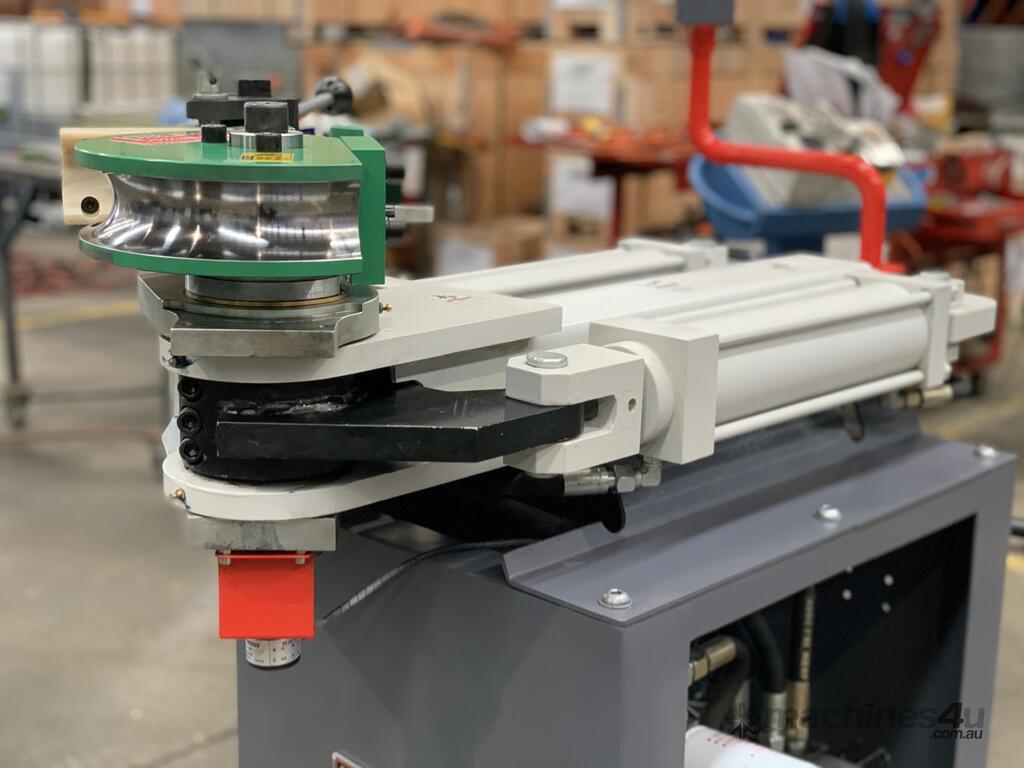

?Uses standard Baileigh drop on die sets for fast tooling changes.
?Replaceable bronze bushings at all pivot points with grease nipples.
?Digital Angle Display
?One set standard round tooling upto 50mm Included in price (Square & Over 50mm Round Additional Charges)

Technical Features:
?Mild Steel Round Tube – 60mm x 3mm
?50NB Pipe – 60.3mm x 2.9mm wall (max)
?Aluminium Round Tube – 64mm x 4mm
?Stainless Round Tube – 50.8mm x 3mm
?Chromalloy Round Tube – 50mm x 3mm
?Mild Steel Solid Rod – 32mm
?Mild Steel Square Tube – 50mm x 3mm
?Maximum Speed To 180 Degrees – 12 seconds
?Maximum Centre Line Radius – 229mm
?Minimum Centre Line Radius – 13mm
?Power – 240Volt – 1 Phase
?Weight – 286Kg
?Dimensions – 1118mm x 711mm x 1067mm (H)
?Crate Dimensions – 1120mm x 770mm x 1180mm (H) x 300Kg

## FULL RANGE TOOLING AVAILABLE - TUBE, PIPE & SQUARE ##
