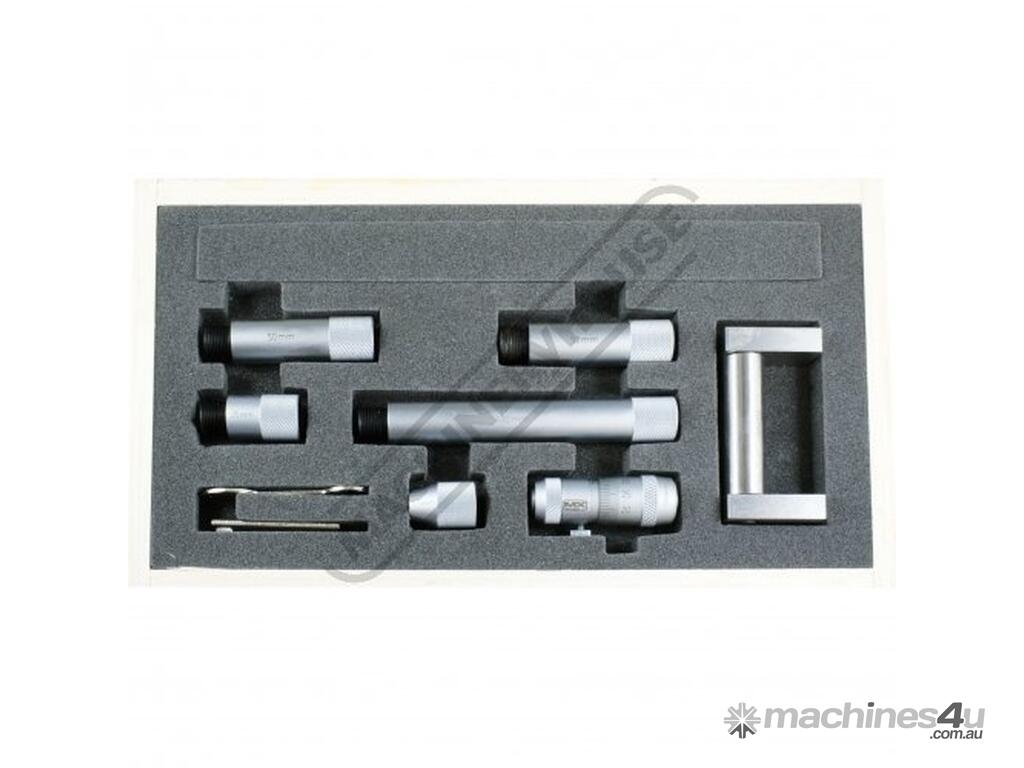

25-1491 Inside Micrometers - Small Tube Type 50-300mm Metric

MEASUMAX 25-1491 Inside Micrometers - Small Tube Type 50-300mm Metric
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q1491

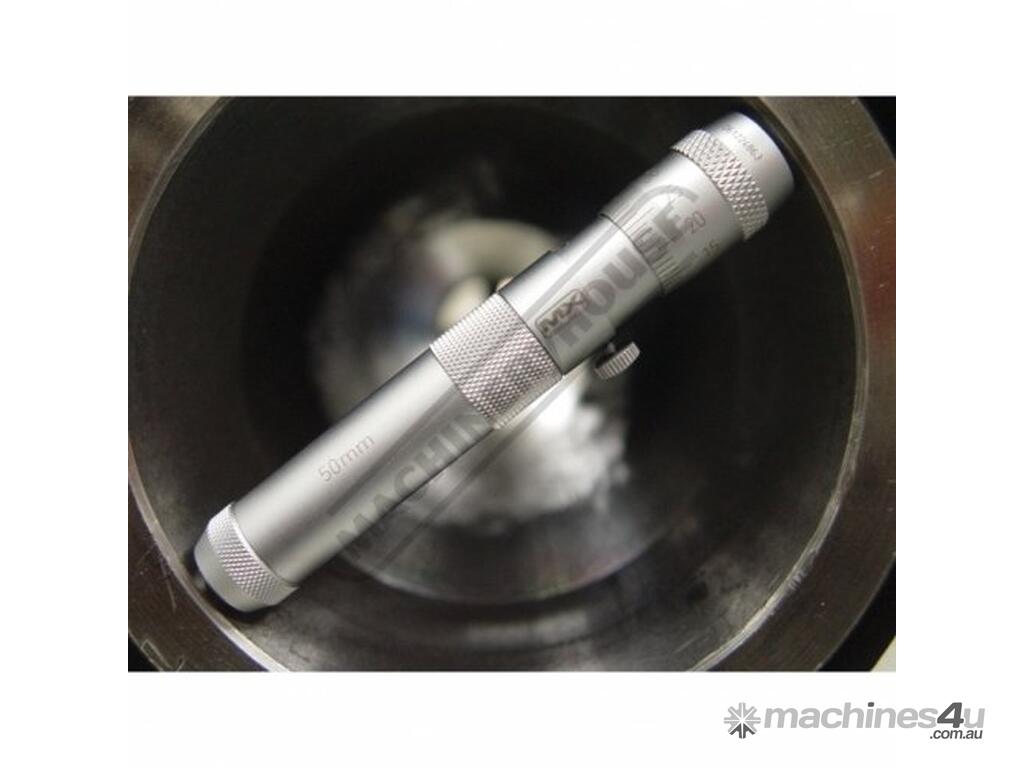

Measumax series 25 inside micrometers are a tube type and have a wide measuring range. Any one single tube inside micrometer can replace many bar type.

Features:

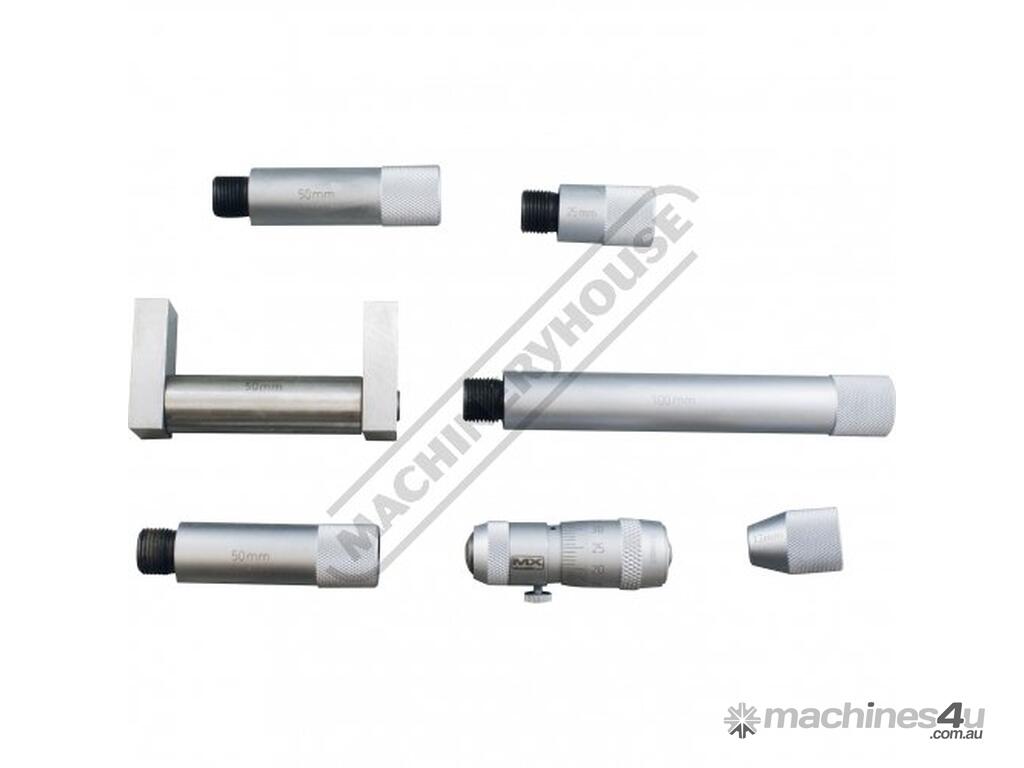

The combining of extension rods provide a wide measuring range

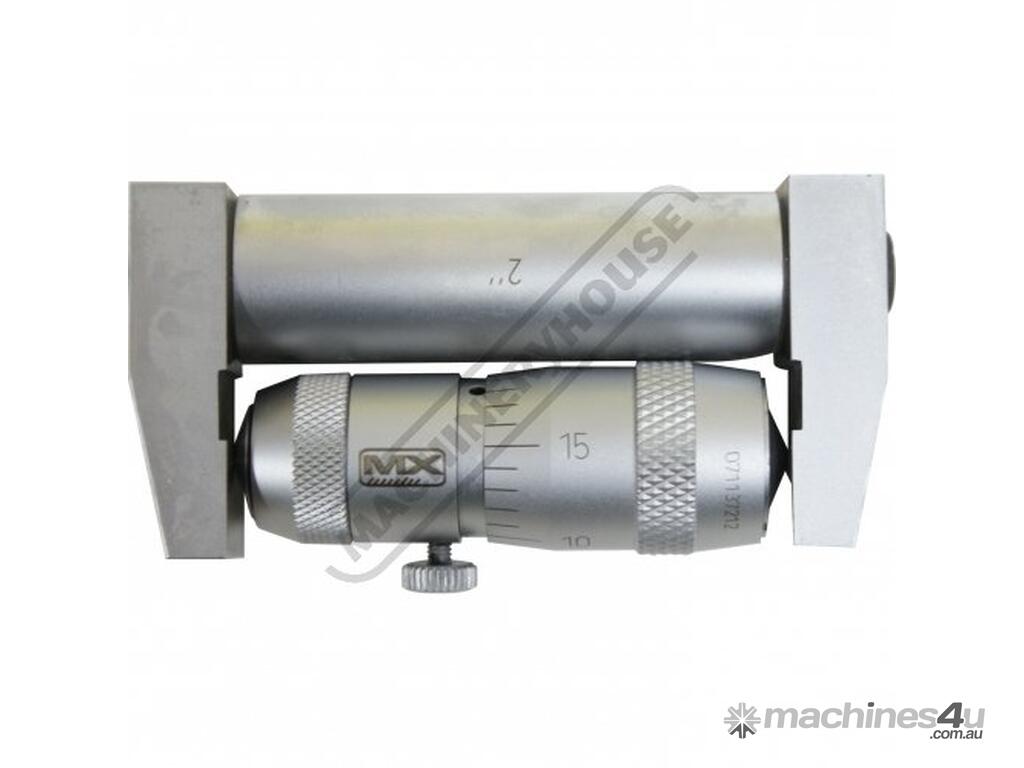

Supplied with a standard caliper gauge for zero setting
Carbide measuring faces. Positive locking clamp
Diameter of extension rods: Ø15.5mm
Accuracy: Metric ±(3+n+L/50)µm.(n=number of rods L= maximum measuring length)


Specifications:
ORDER CODE: Q1491
Range (mm / inch): 50 - 300

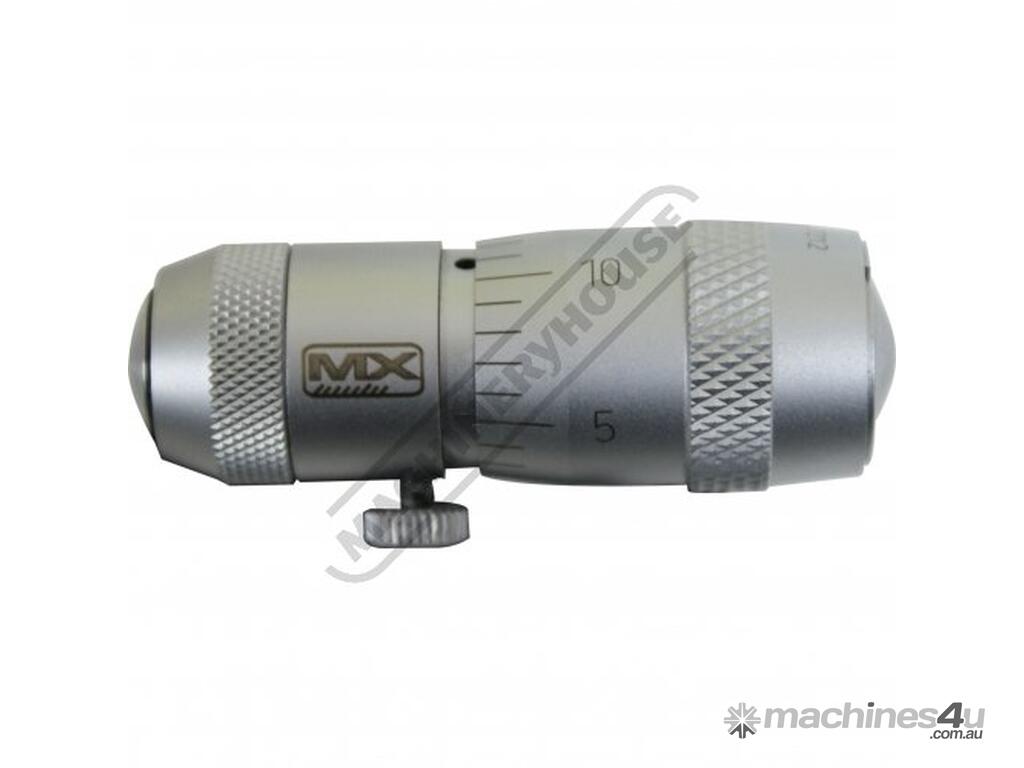

Micrometer Head (mm / inch): 50 - 63
Head Travel (mm): ~
Graduation (mm / inch): 0.01
Extension Rods: 13, 25, 50 (2pce), 100
Rod Diameter (mm): ~
Accuracy (µm): ~
