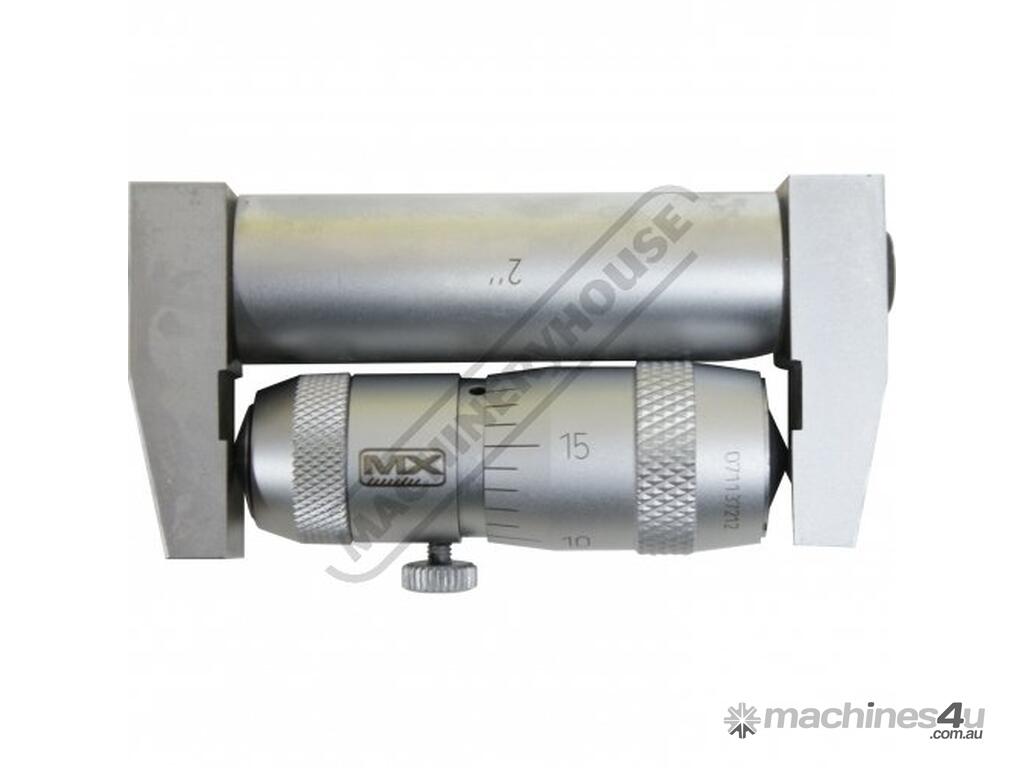

25-1495 Inside Micrometers - Small Tube Type 2-12" Imperial

MEASUMAX 25-1495 Inside Micrometers - Small Tube Type 2-12" Imperial
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q1495

Measumax series 25 inside micrometers are a tube type and have a wide measuring range. Any one single tube inside micrometer can replace many bar type.

Features:
The combining of extension rods provide a wide measuring range

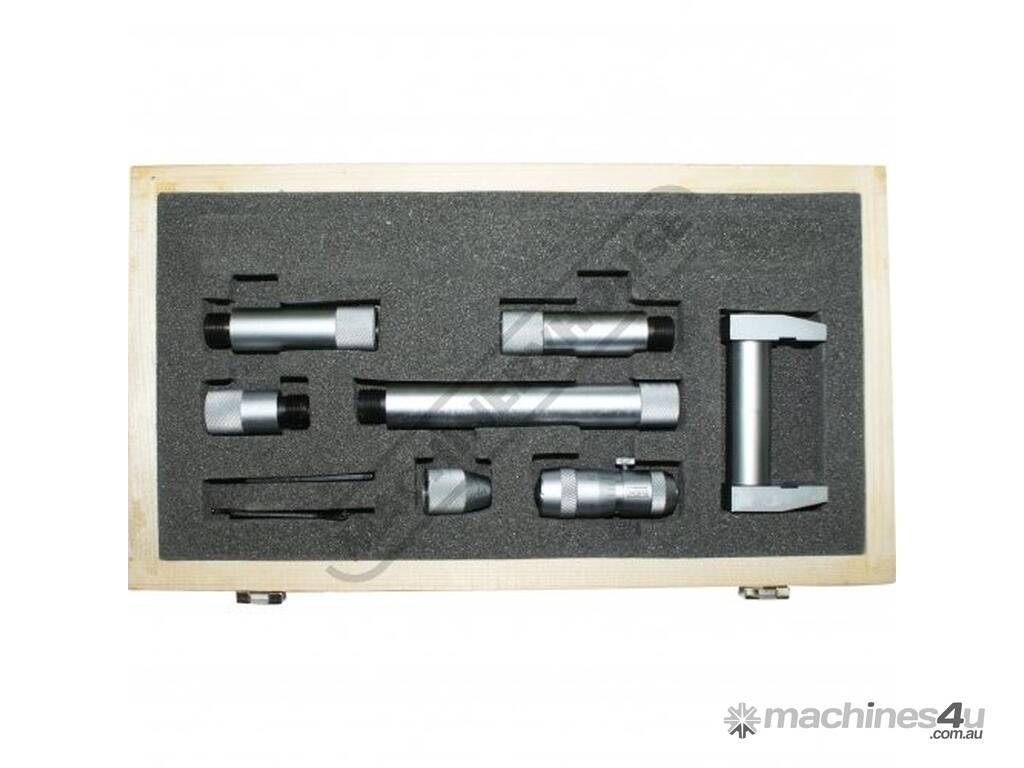

Supplied with a standard caliper gauge for zero setting
Carbide measuring faces. Positive locking clamp
Diameter of extension rods: Ø15.5mm
Imperial [0.00005(3+L/2)]" (n=number of rods L= maximum measuring length


Specifications:
ORDER CODE: Q1495
Range (mm / inch): 2 - 12"

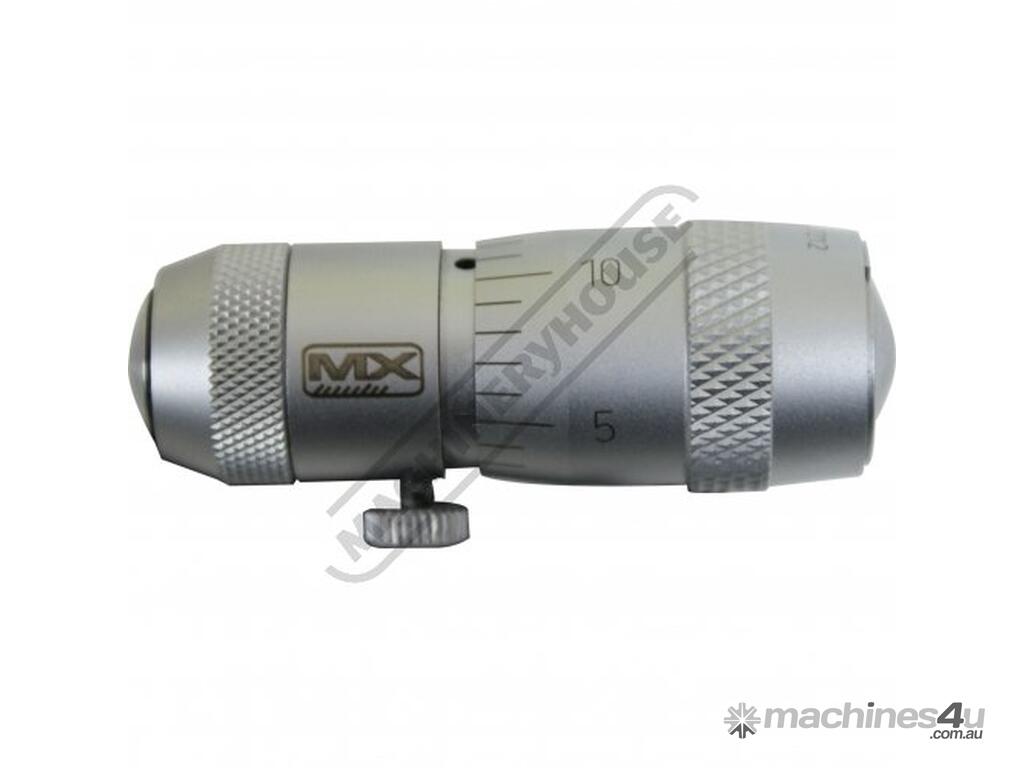

Micrometer Head (mm / inch): 2 - 2.5"
Head Travel (mm): ~
Graduation (mm / inch): 0.001"
Extension Rods: 0.5", 1", 2" (2pce), 4"
Rod Diameter (mm): ~
Accuracy (µm): ~
