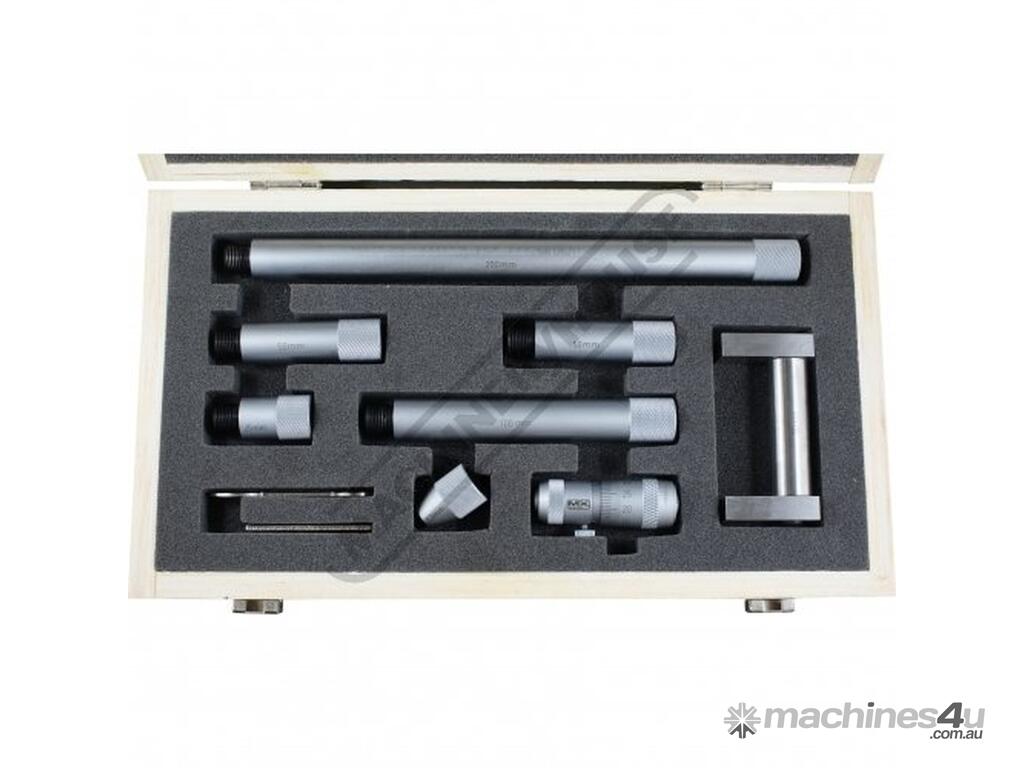

25-150 Inside Micrometers - Small Tube Type 50-500mm Metric

MEASUMAX 25-150 Inside Micrometers - Small Tube Type 50-500mm Metric
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q150

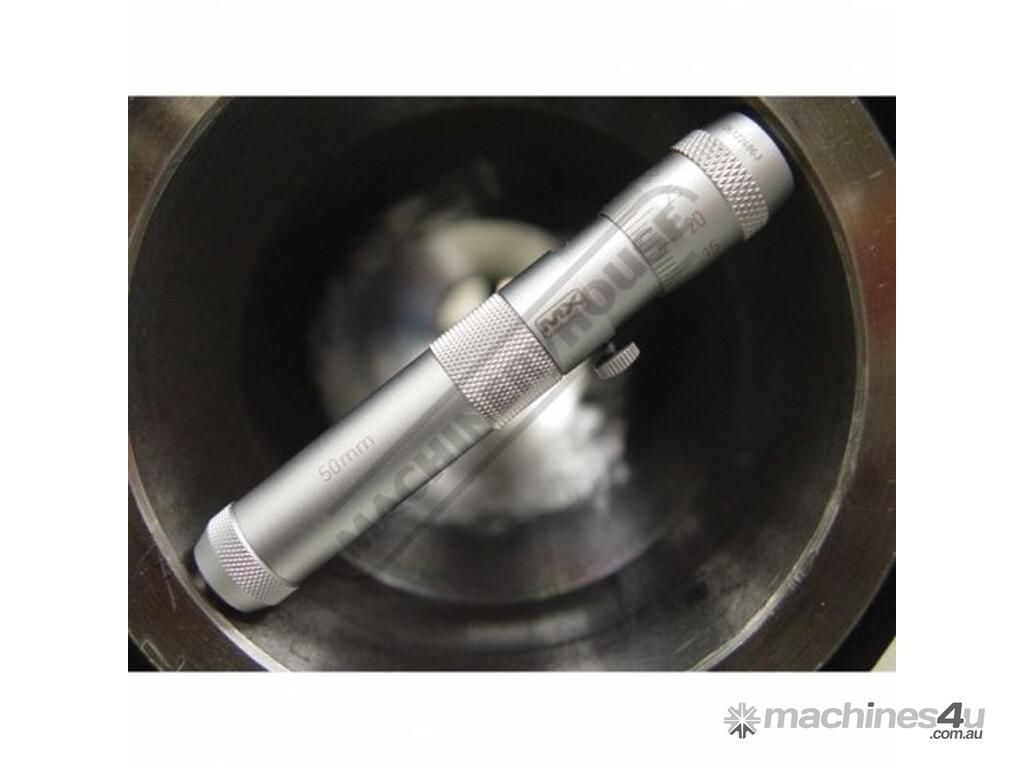

Measumax series 25 inside micrometers are a tube type and have a wide measuring range. Any one single tube inside micrometer can replace many bar type.

Features:

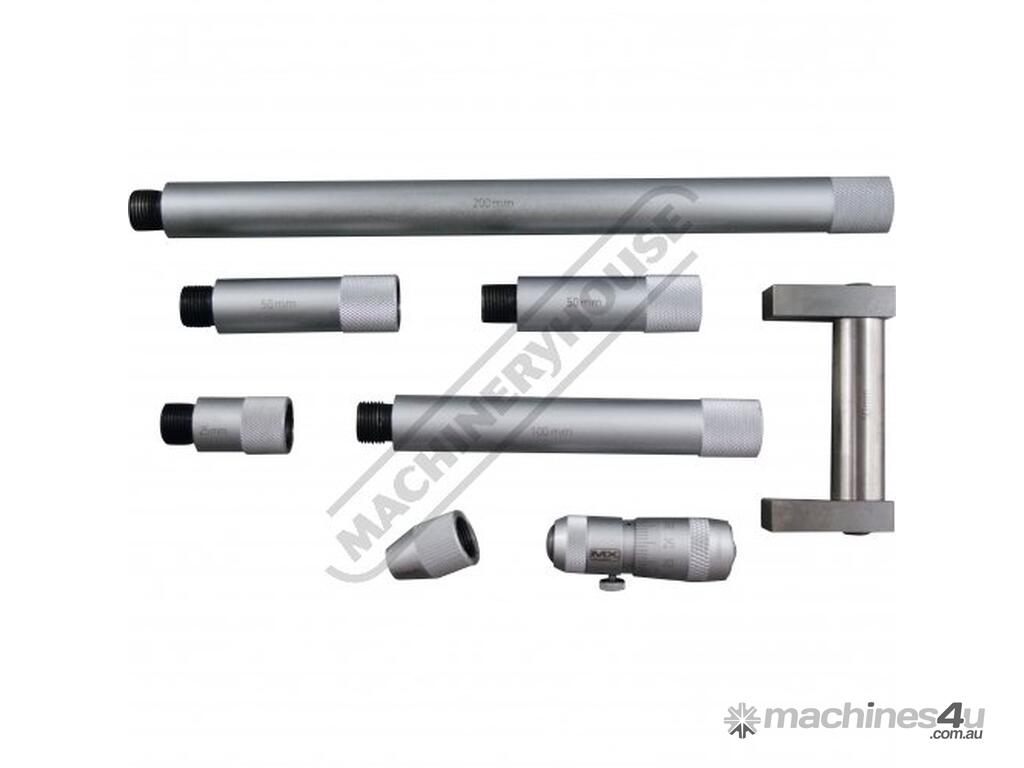

The combining of extension rods provide a wide measuring range

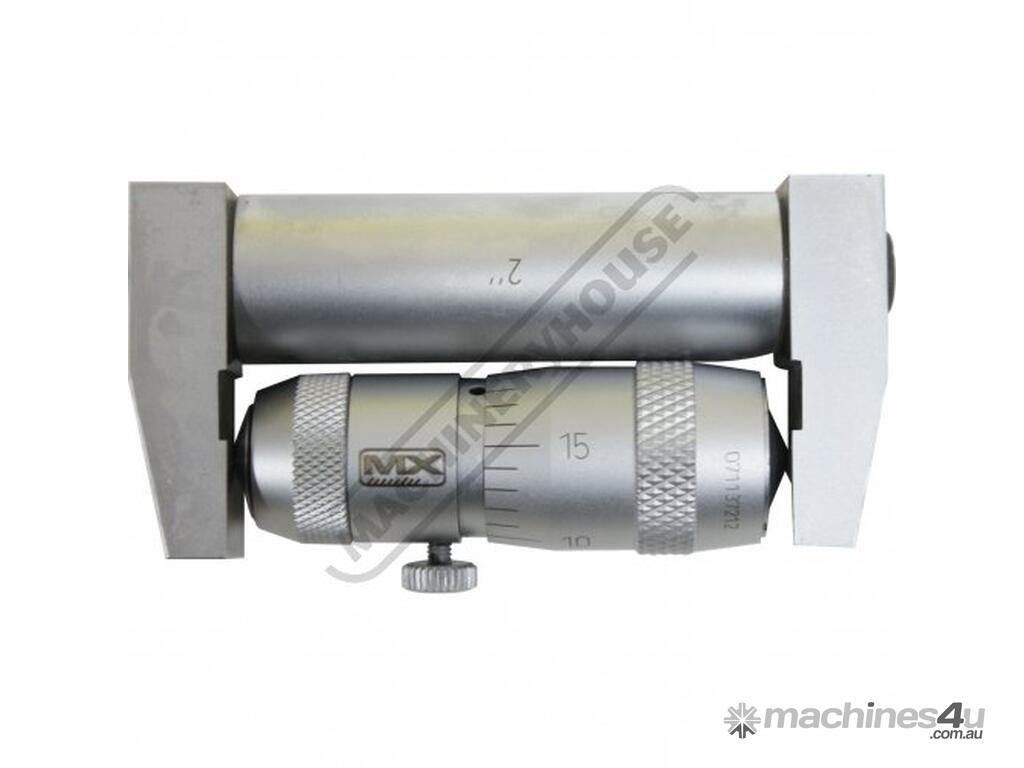

Supplied with a standard caliper gauge for zero setting
Carbide measuring faces. Positive locking clamp
Diameter of extension rods: Ø15.5mm
Accuracy: Metric ±(3+n+L/50)µm.(n=number of rods L= maximum measuring length)


Specifications:
ORDER CODE: Q150
Range (mm / inch): 50 - 500

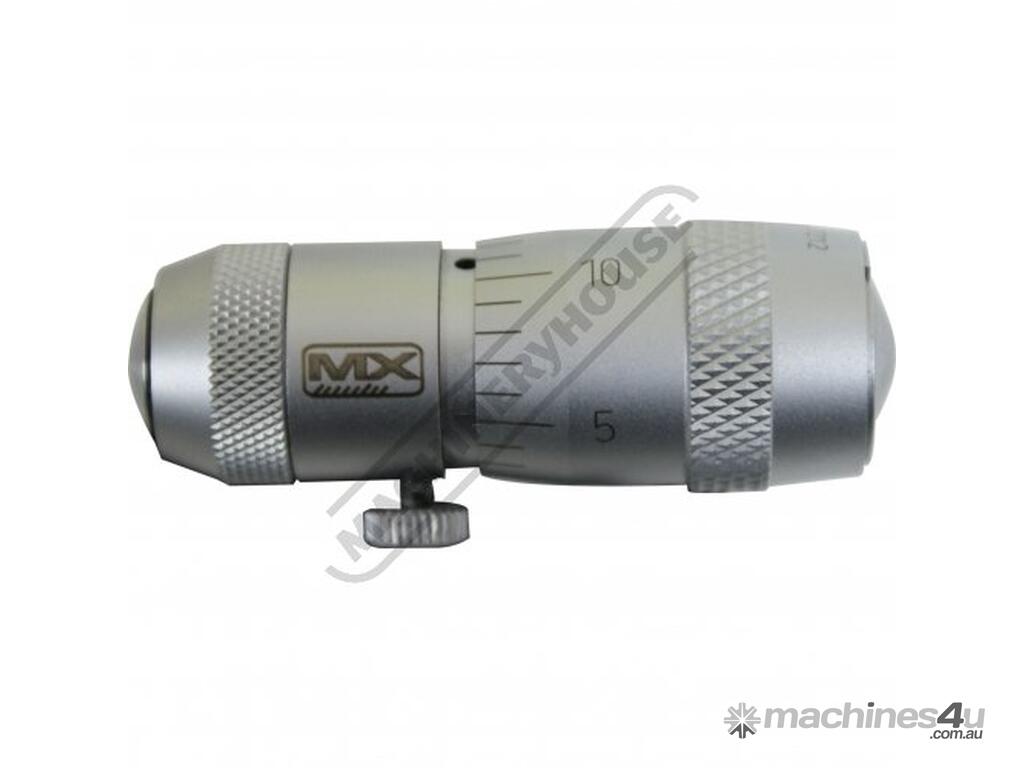

Micrometer Head (mm / inch): 50 - 63
Head Travel (mm): ~
Graduation (mm / inch): 0.01
Extension Rods: 13,25,50 (2pce),100, 200
Rod Diameter (mm): ~
Accuracy (µm): ~
