25-155 Large Tube Type - Inside Micrometer 100-1300mm

MEASUMAX 25-155 Large Tube Type - Inside Micrometer 100-1300mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q155

Measumax series 25 inside micrometers are tube type with high rigidity for large diameter measuring.

Features:
The anvil and the spindle are hardened and precision ground
Spindle thread is hardened and precision ground
Carbide measuring faces
Each interchangeable rod is marked with the range
Large diameter rod for rigidity
Resolution: 0.01mm.
Accuracy : Metric (7+n+L/50)µm (L=Max. measuring length n=number of rods)


Specifications:
ORDER CODE: Q155
Range (mm / inch): 100 - 1300

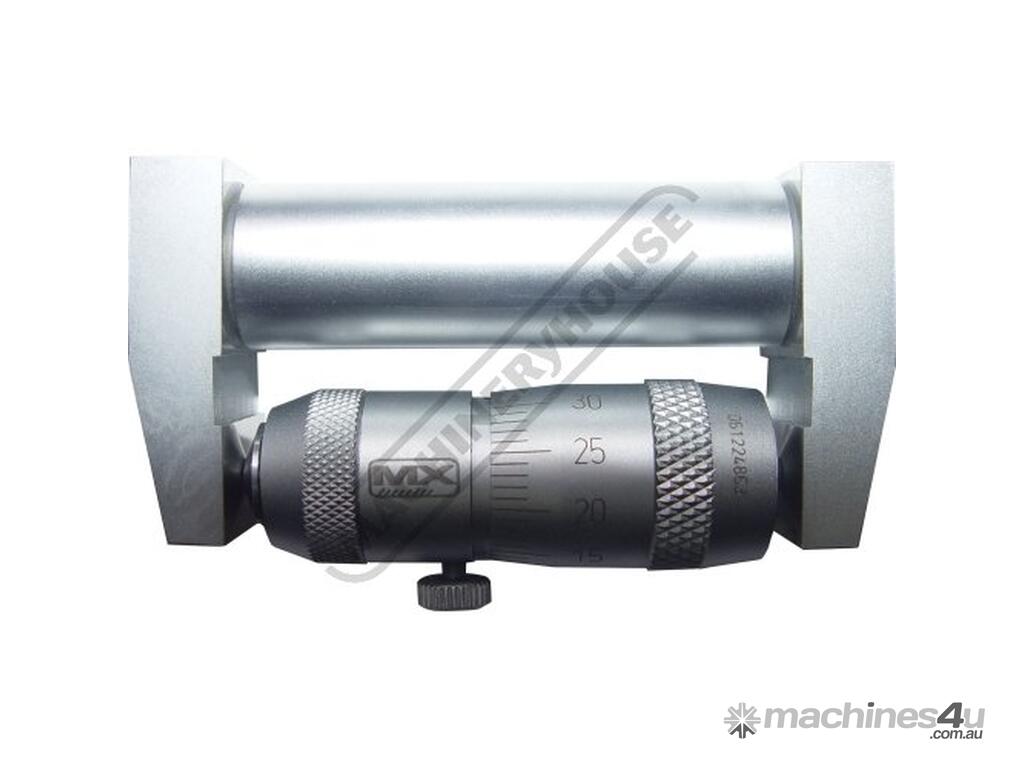

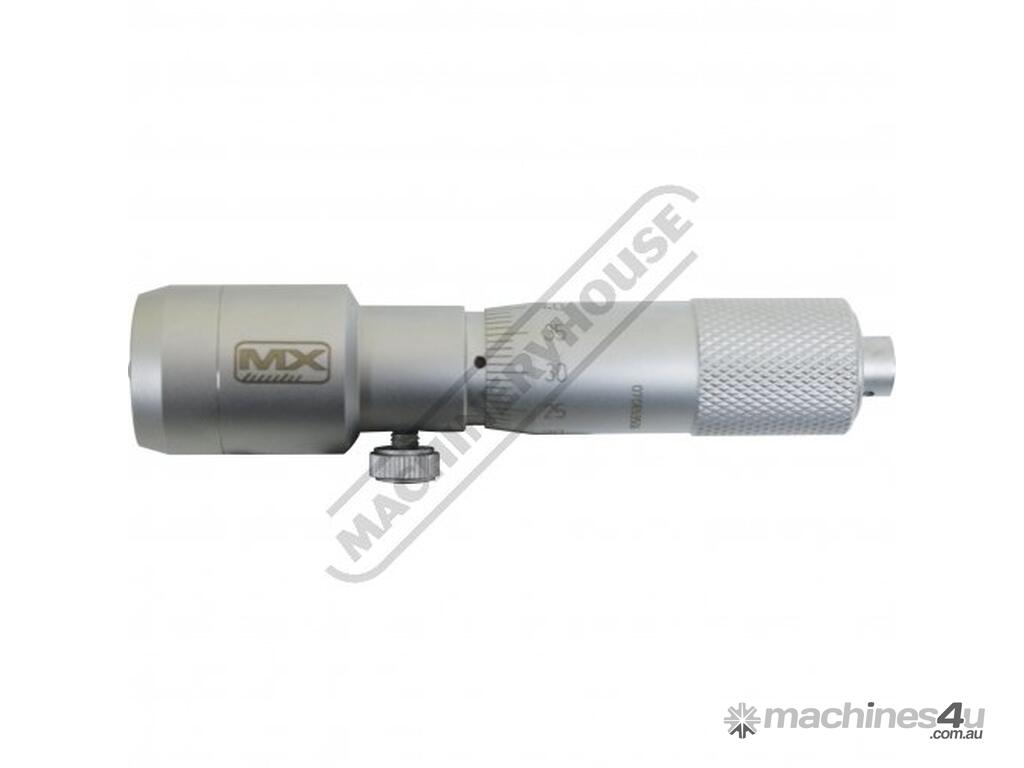

Micrometer Head (mm / inch): 100 - 125
Head Travel (mm): 25
Graduation (mm / inch): 0.01

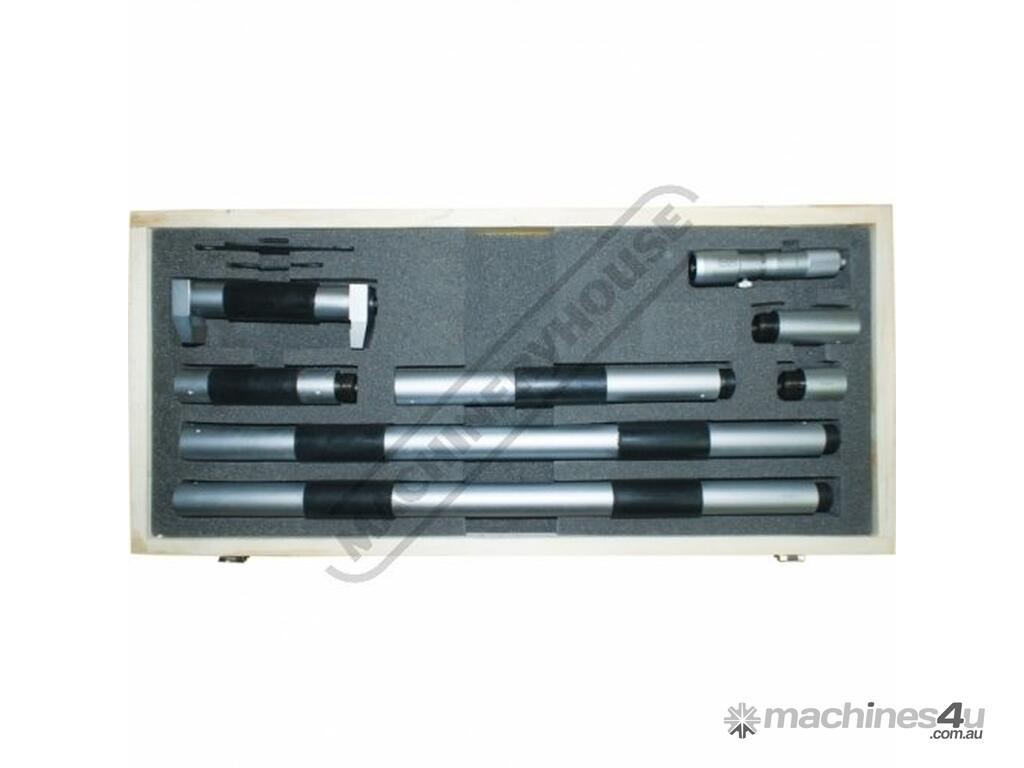

Extension Rods: 25, 50, 100, 200, 2x400mm
Rod Diameter (mm): 22
Accuracy (µm): (3+n+L/50)
