MEASUMAX -Point Internal Micrometers 20-50mm Metric
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q162

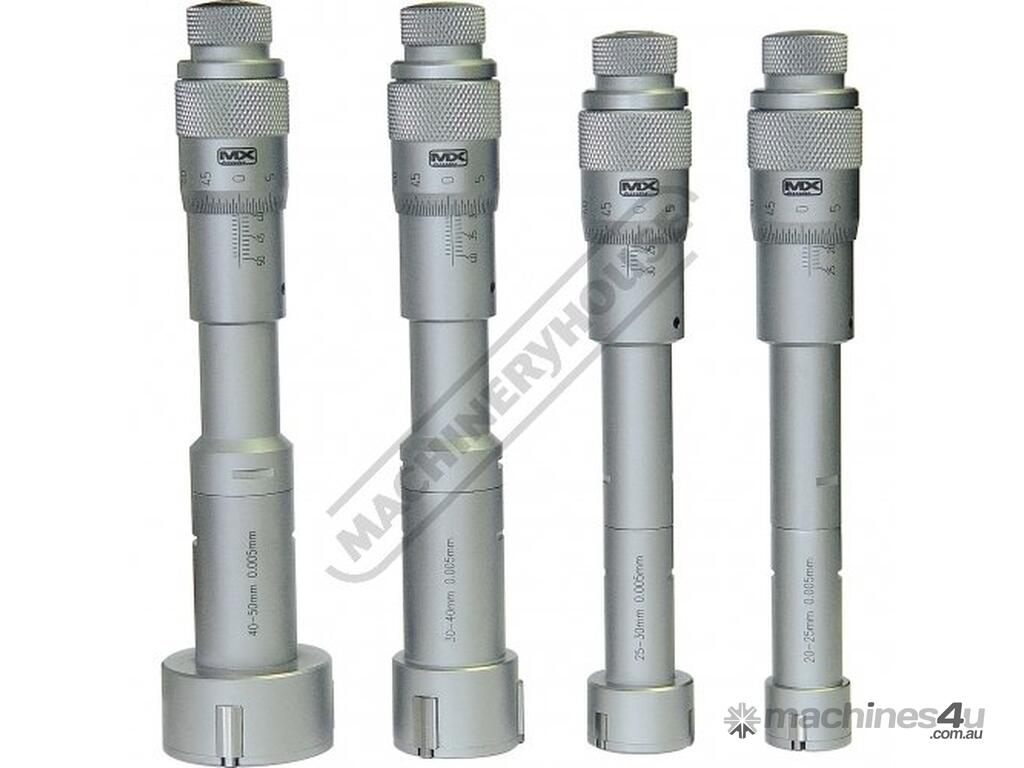

Measumax 3-Point Internal Micrometers are self-centering for accurate measurement of internal diameters
Features:
Carbide tipped contact points
Measurements can be taken closer to the bottom of a blind bore and can be taken in a deep hole with an extension
Supplied in deluxe foam lined aluminium case
Includes:

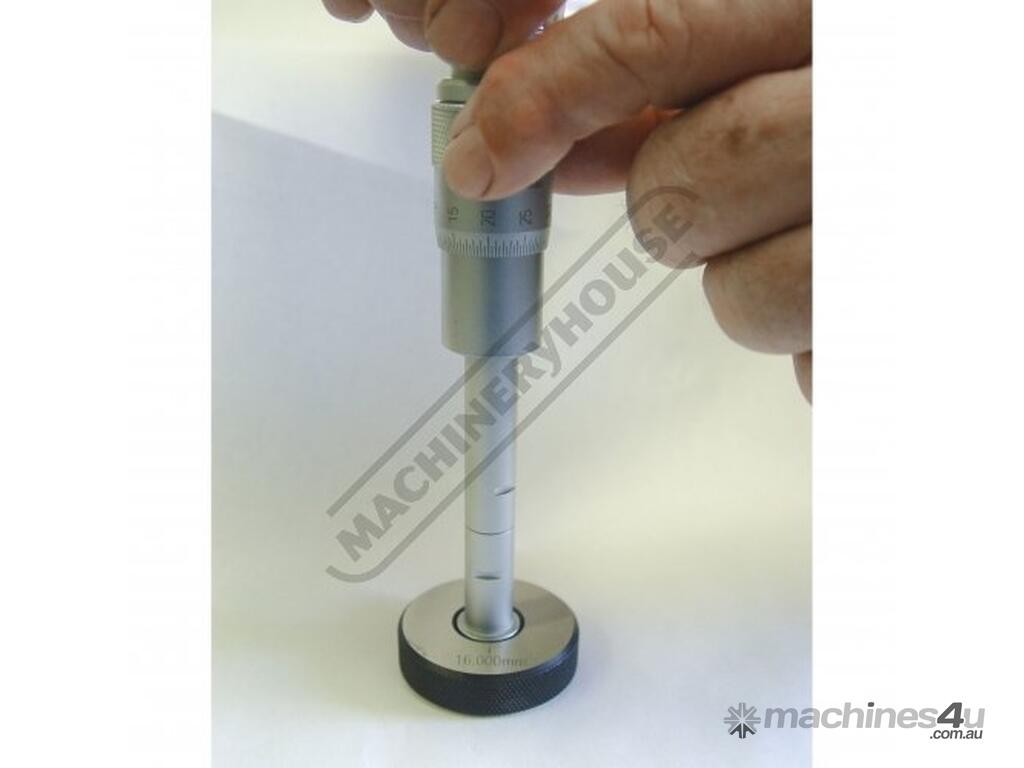

- Setting gauge rings to suit each size
- 150mm extension rod to increase depth capabilities
Specifications:
ORDER CODE: Q162
Range (mm / inch): 20 - 50
Graduation (mm / inch): 0.01
Accuracy (mm / inch): 0.004
Individual Range (mm): 20-25, 25-30, 30-40,
Individual Range (mm): 40-50
Setting Range (mm): Ø25, 40
Extension Rod Length (mm): 150
A (mm): 0.5
L1 (mm): 90
To Purchase Online Please Visit The Machineryhouse & Search For 'Q162'
