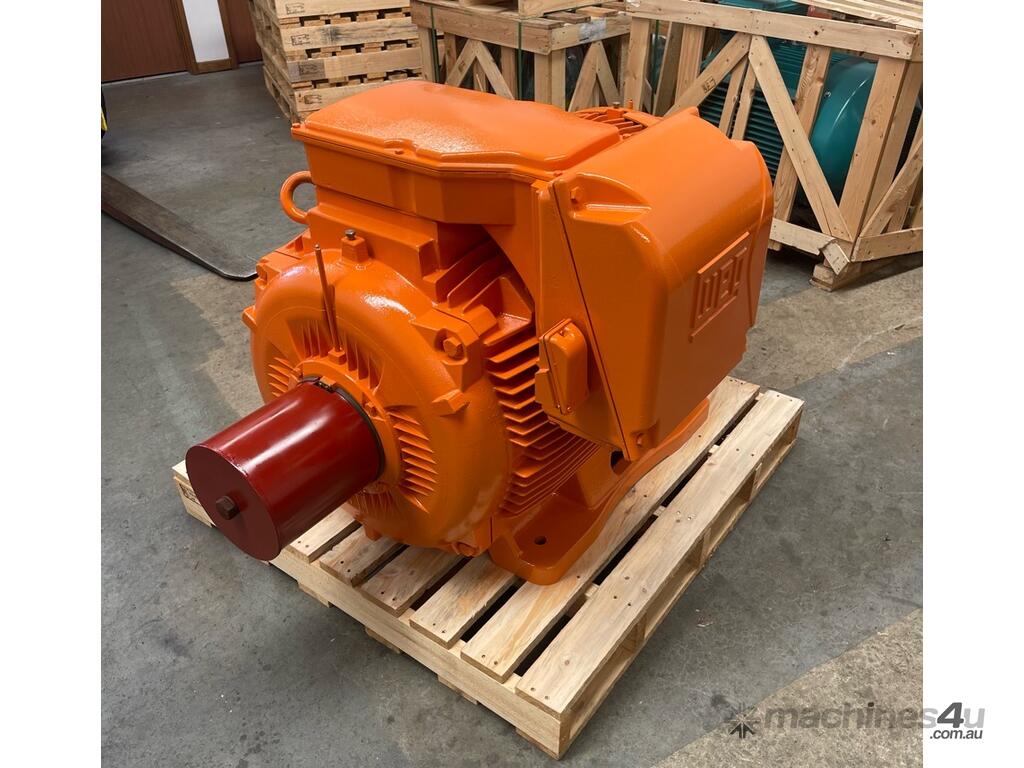

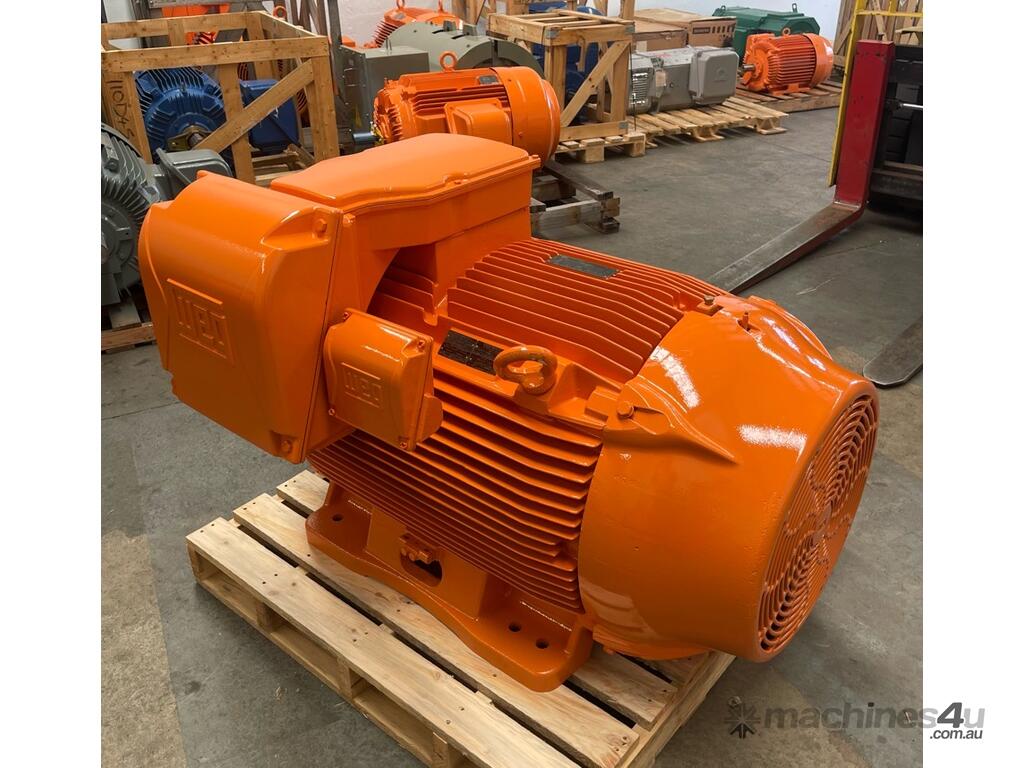

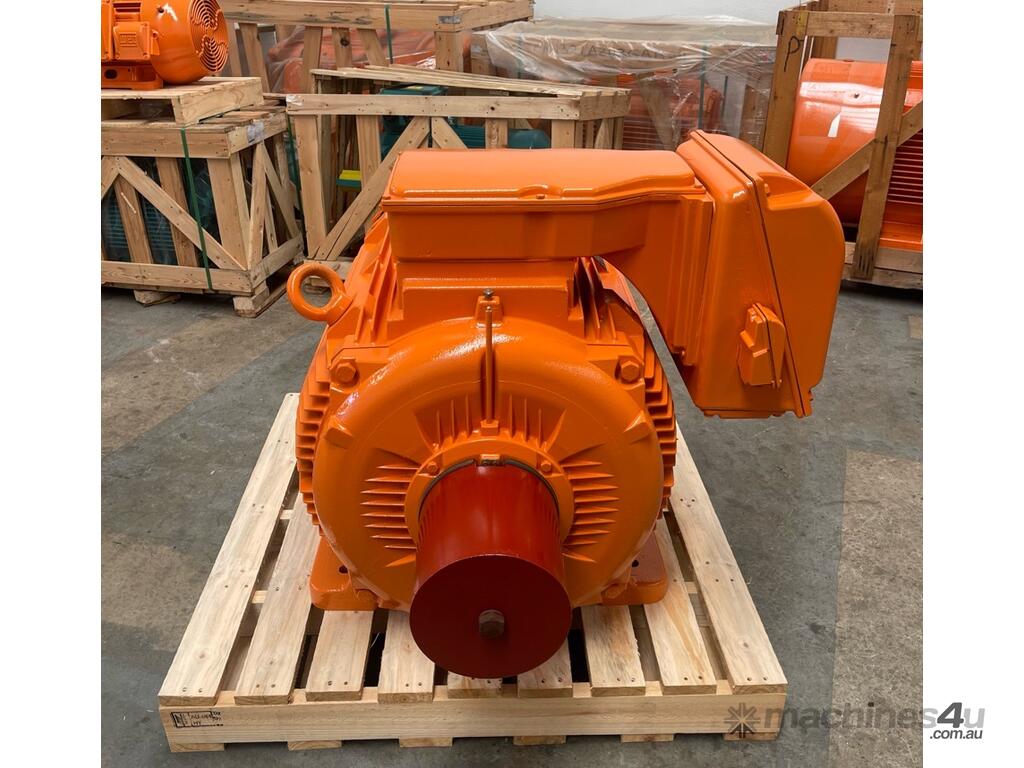

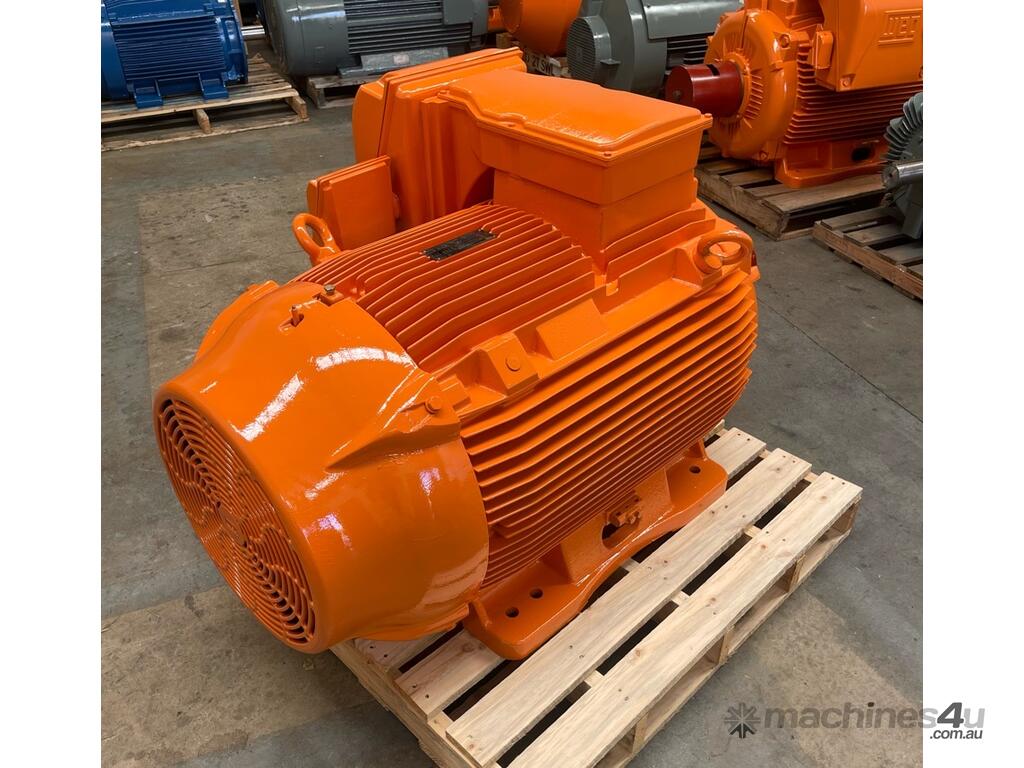

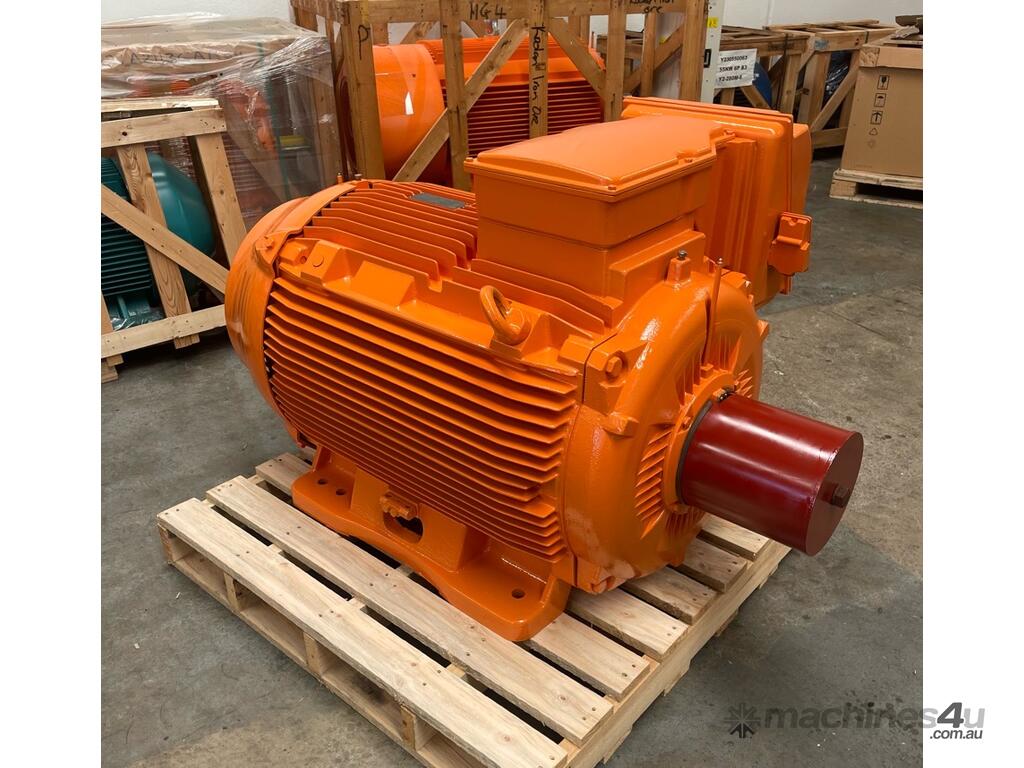

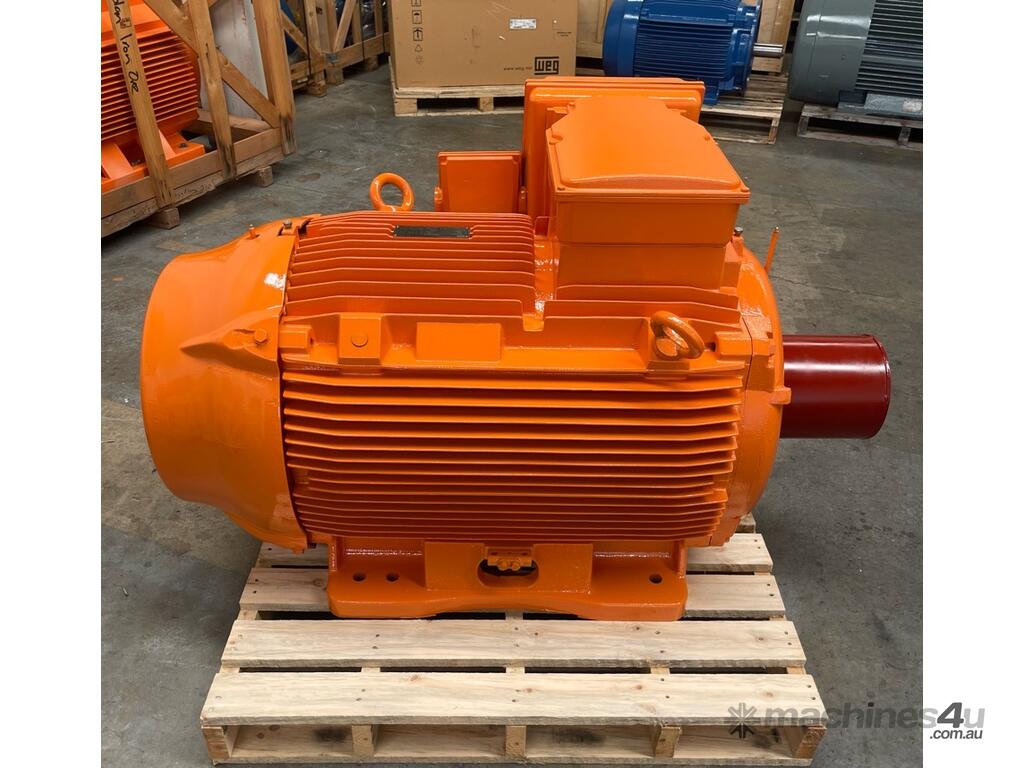

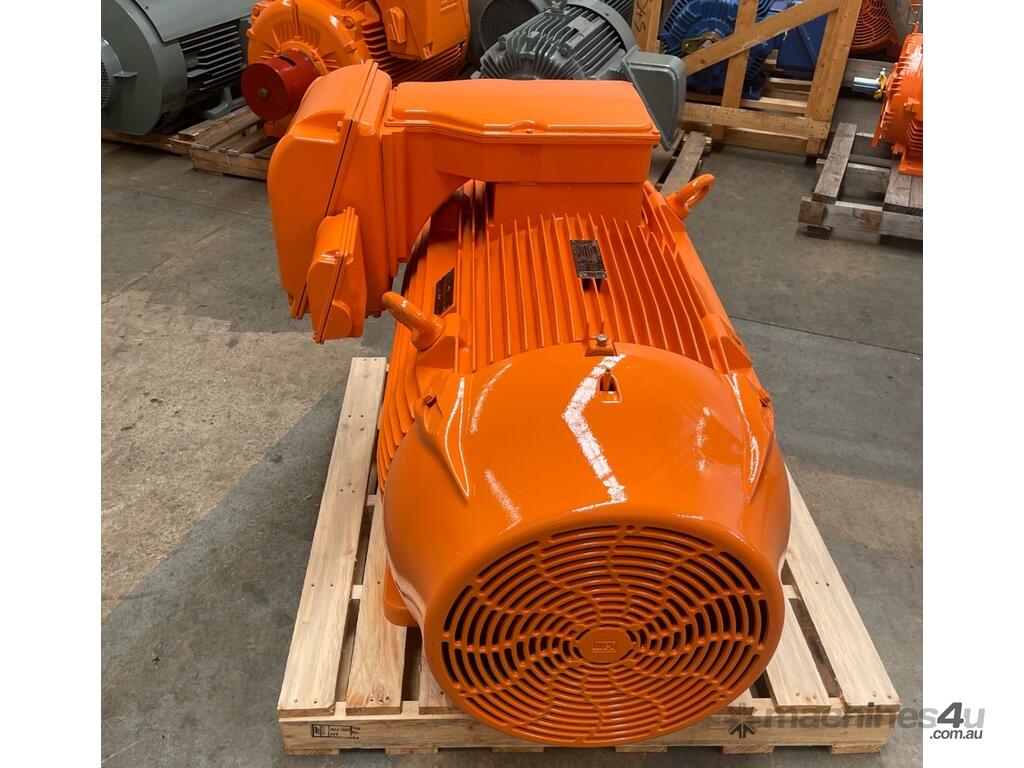

250 kw 330 hp 4-pole 1490 rpm 415 volt Foot Mount 355M/L frame IP66 Mining AC Electric Motor WEG Model KTE58 W22M VSD unused
Category: AC Squirrel Cage Electric Motor
3-phase induction motor

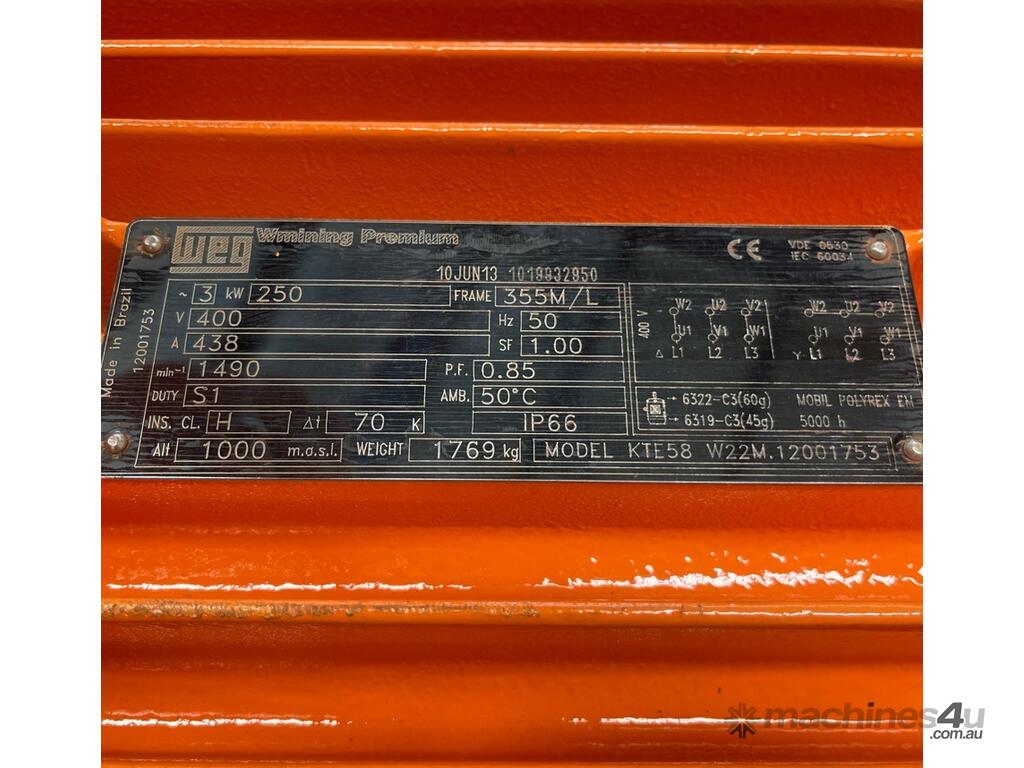

Make: WEG
Model: KTE58 W22M
Power: 250 KW (330 HP)
Speed: 4-pole (1490 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415 v
Full Load Amperage: 438 A
Mount: B3 Foot
Frame: 355M/L
Protection Rating: IP66 Mining
Insulation Class: H
Terminal Box Orientation: Currently standard RHS to D.E. (can be LHS, or top mount)
Weight: 1769 kg
Shaft DIA: 100 mm
Shaft length: 210 mm
Centre shaft height: 355 mm
Total Length: 1482 mm (incl. shaft)
Total Width: 976 mm (incl. RHS to D.E. box)
Total Height: 884 mm
Feet holes: Across 'A' - 610 mm, Front to Back 'B' (2 holes) - 560 mm and 630 mm
Front hole to shaft 'C' - 254 mm
Available QTY: 1
Condition: Unused. Warehouse storage
exStock Seaford VIC 3198 Australia
Available for immediate despatch - Freight services available on request
