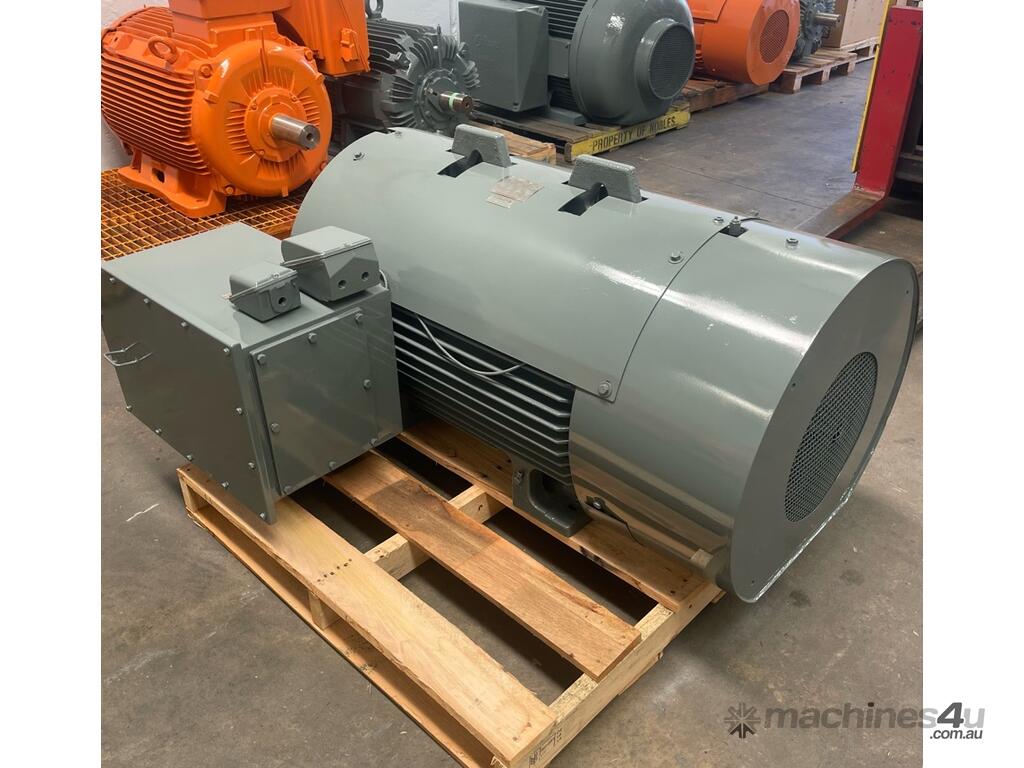

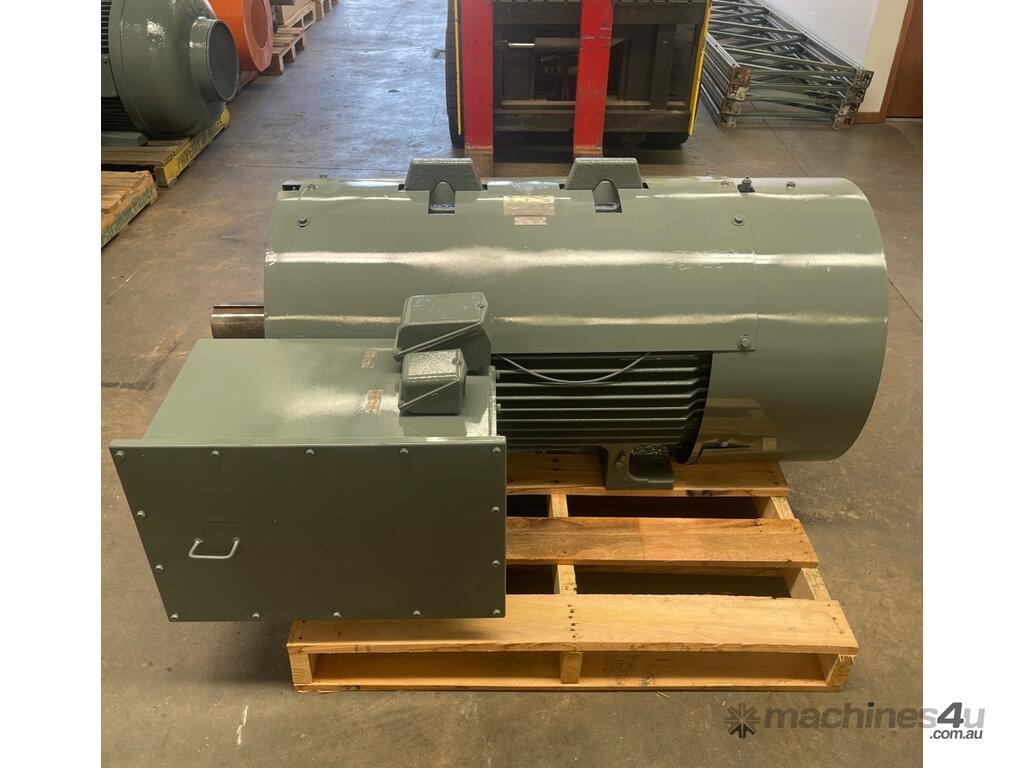

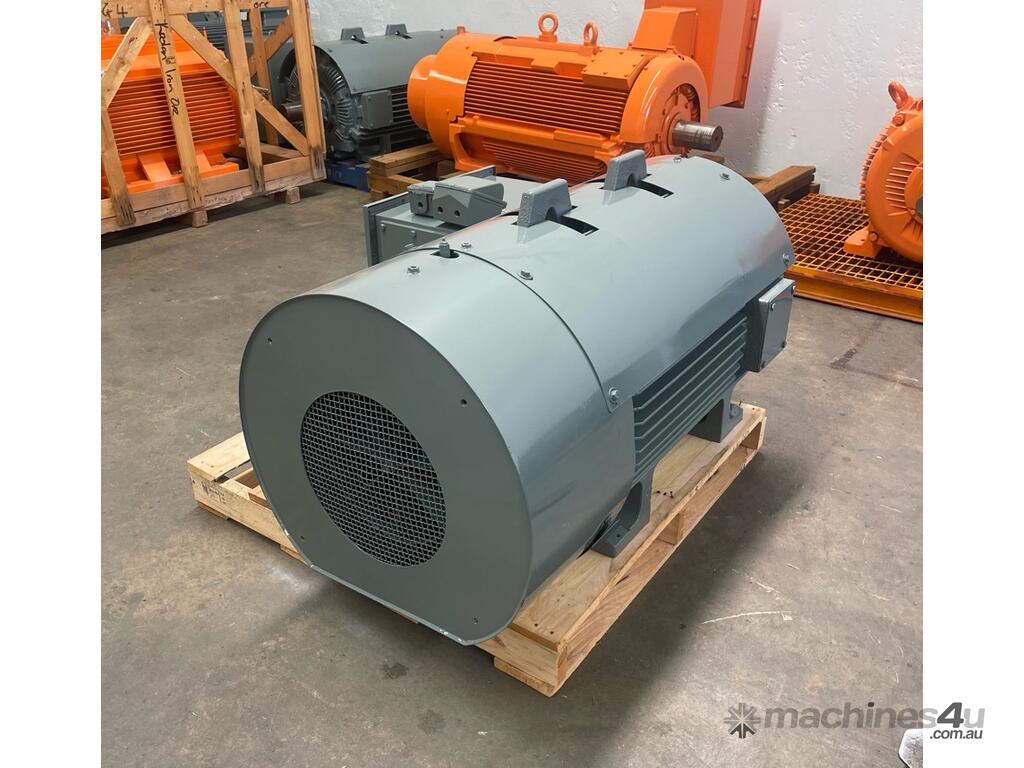

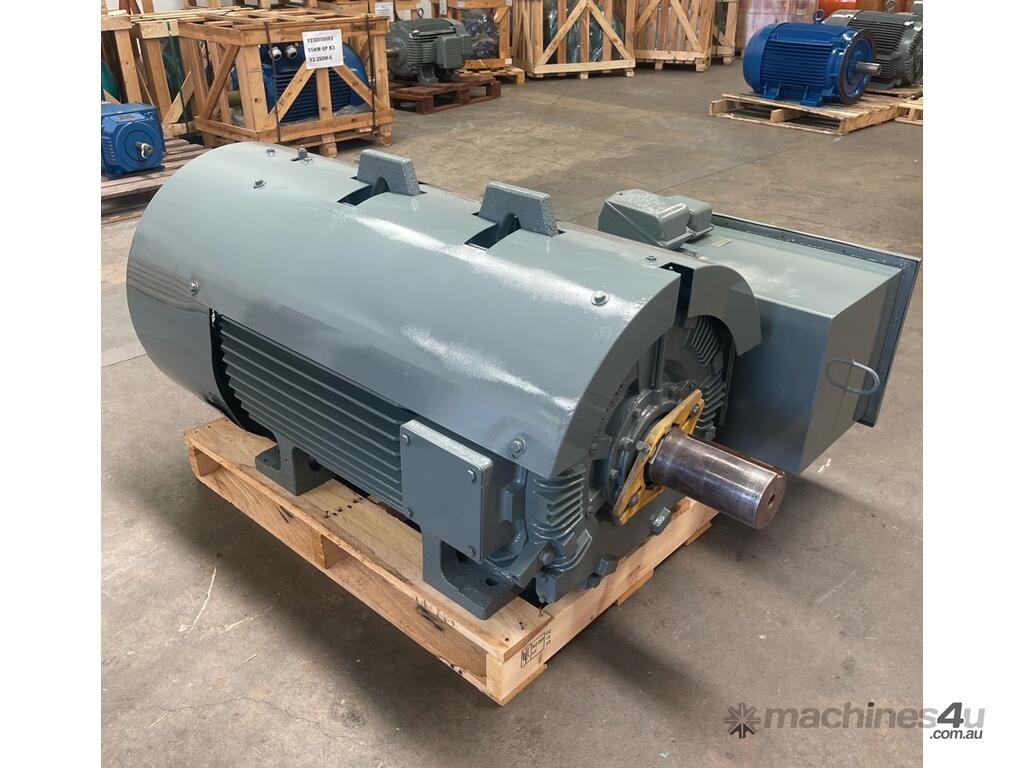

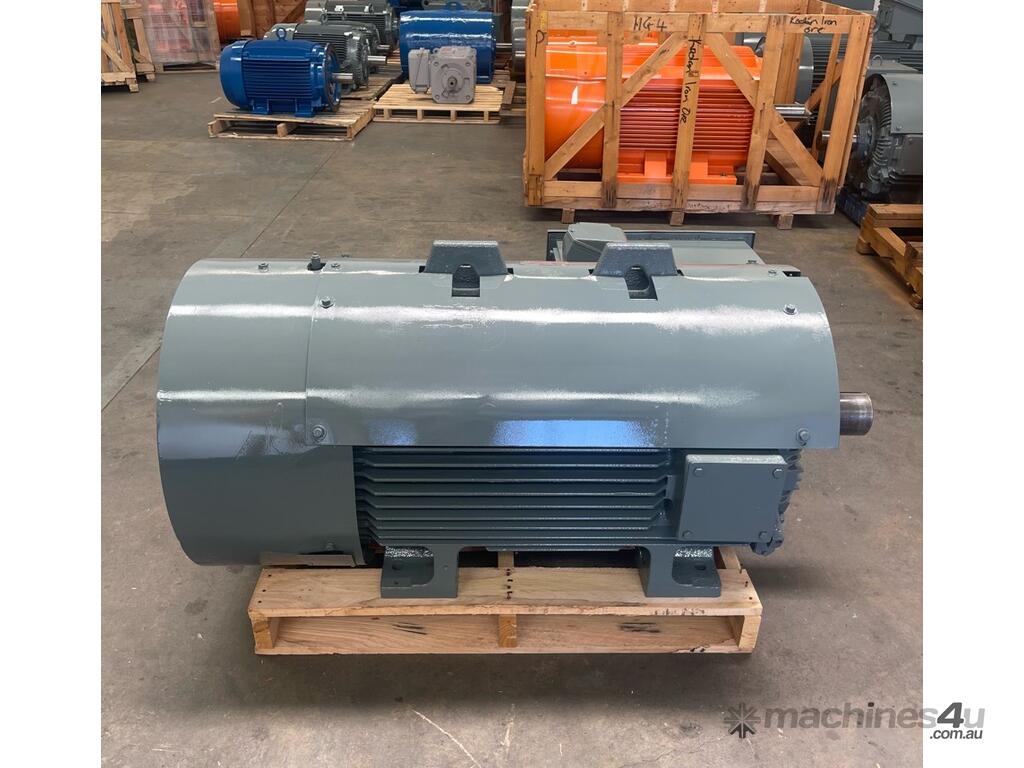

250 kw 335 hp 4-pole 1485 rpm 415v Foot Mount D315LL frame Mining spec AC Electric Motor Toshiba Model TKEH-FBKW4 used reconditioned
Category: Squirrel Cage AC Electric Motor
3-phase induction motor

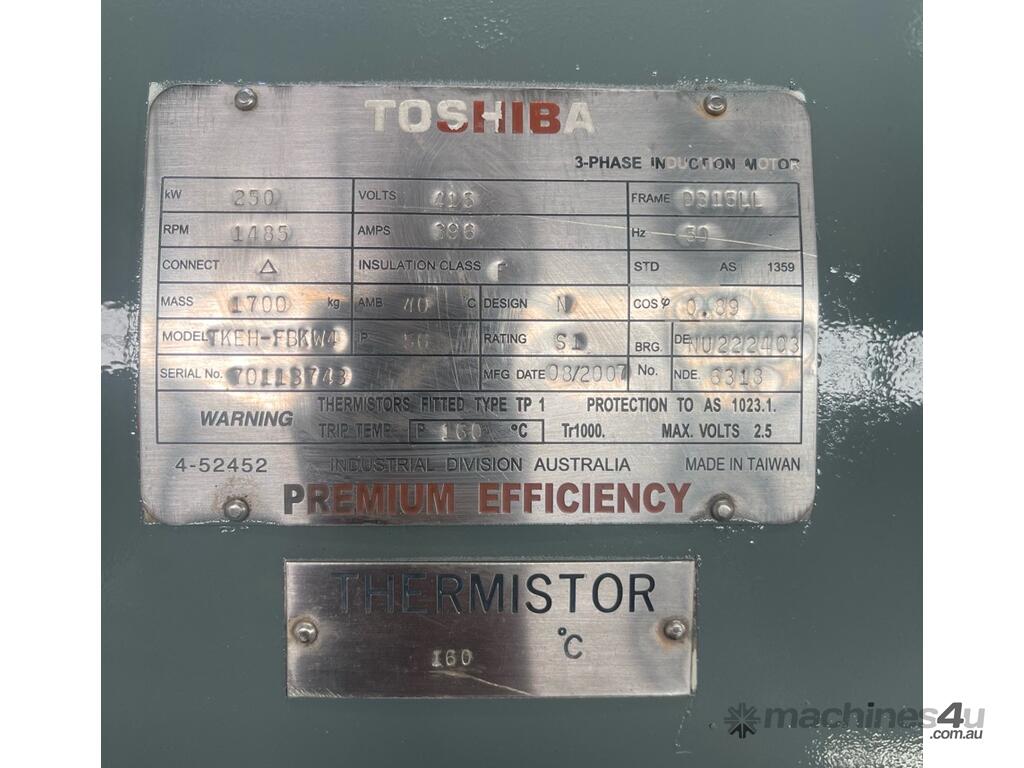

Make: Toshiba
Model: TKEH-FBKW4
Power: 250 kw (335 hp)
Speed: 4-pole (1485 rpm)
Rated frequency: 50 hz
Rated voltage: 415 v
Full Load Amperage: 396 A
Mount: B3 Foot
Frame: D315LL
Weight: 1700 kg
Protection Rating: Mining spec IP56
Duty: S1
Inclusions:

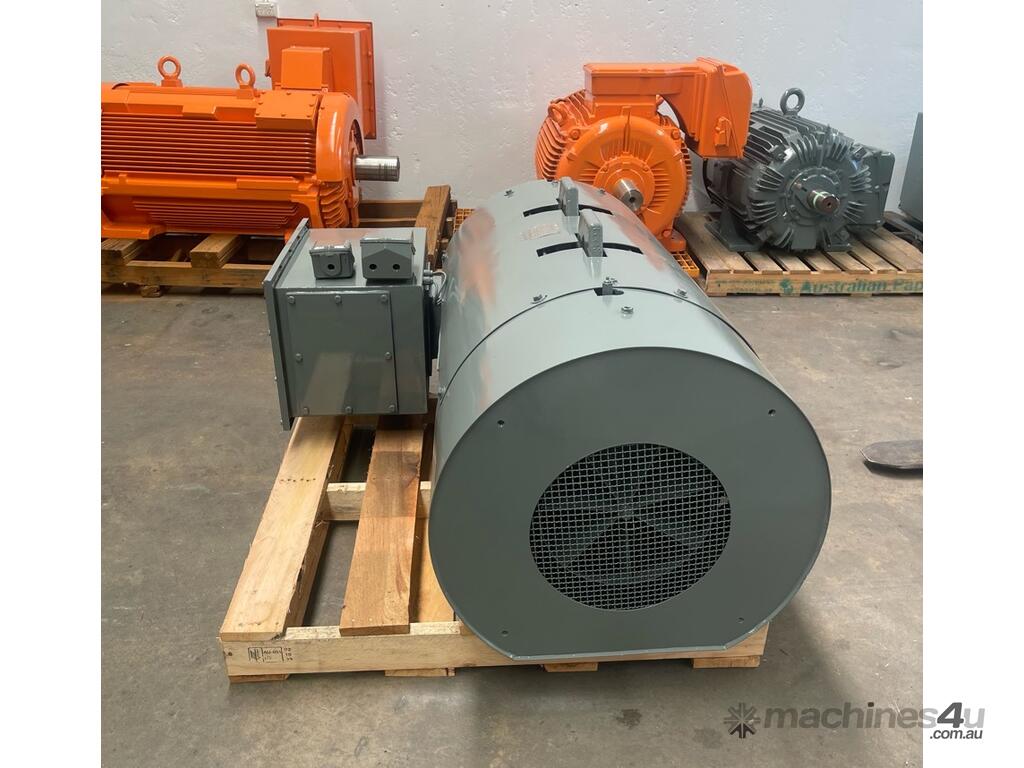

- Mining Cover

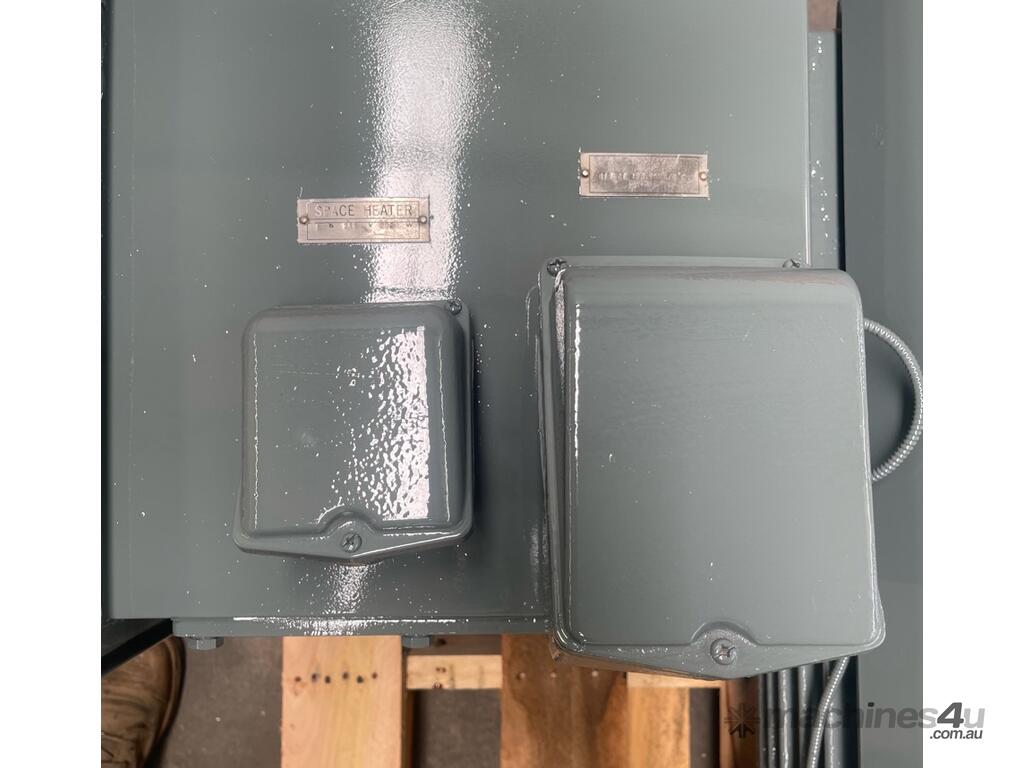

- Heaters & Thermistors
- Drive-end roller bearing (for belt-driven application)
Critical Dimensions:

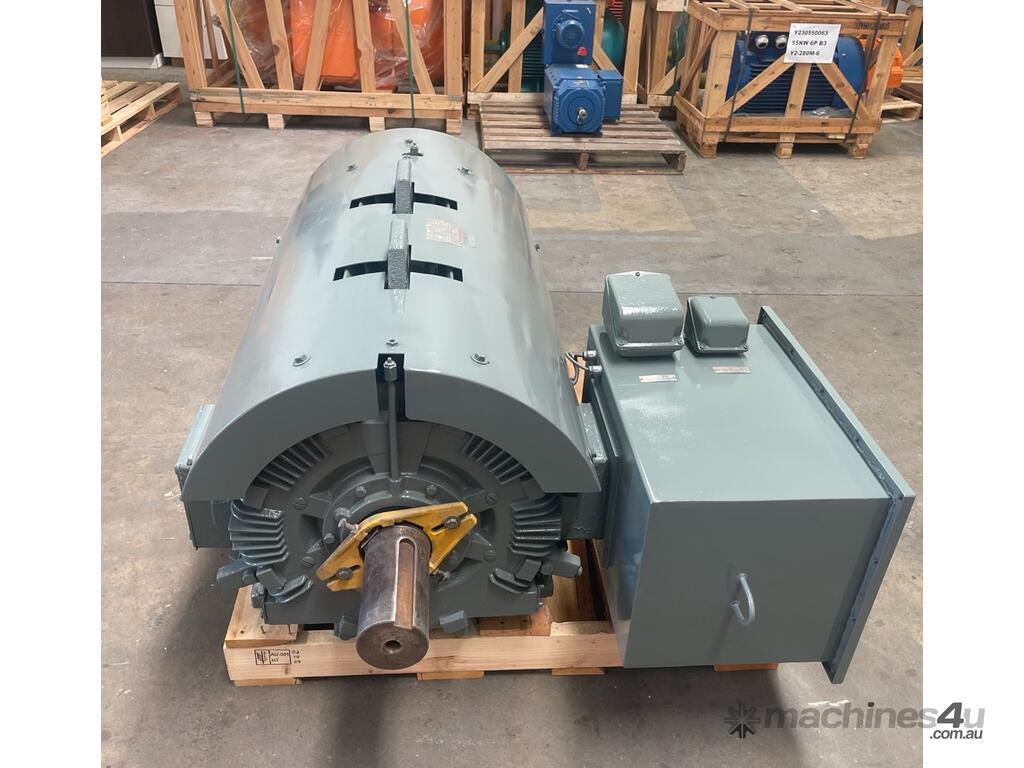

Shaft DIA: 110 mm (by 210 mm long)
Centre shaft height: 315 mm
Total length: 1580 mm (incl. shaft)
Total width: 1200 mm (incl. standard RHS to D.E. terminal box)
Total height: 700 mm
Feet Measurements: Across 'A' - approx 480 mm, Front to Back 'B' - 710 mm
Front hole to shaft 'C' - approx. 225 mm
Available QTY: 1
Condition: Fully Reconditioned Critical Spare. Electrically OK. Warehouse storage
exStock Seaford VIC 3198 Australia
Available for immediate despatch - freight services Australia wide available on request
