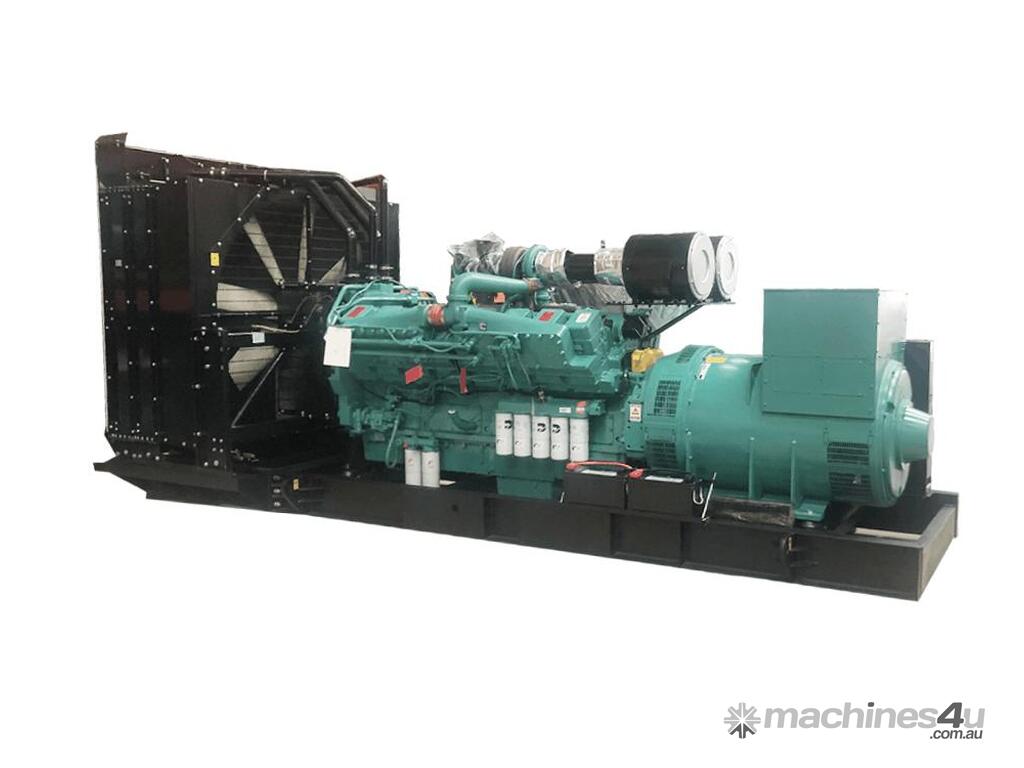

2500KVA Cummins/Stamford Silenced Diesel Generator 415V

This machine is pre-order only and requires up to 12 weeks minimum to build.
For multiple orders please allow several more weeks.
Shipping will be direct from our factory to your nearest international shipping port which needs to requested to us prior.
For commissioning, our head technician will fly to the operation site for educating operators.

Main Features

• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.
• Strong weatherproof silent canopy with various lifting locations
• See full spec sheet among photos.

Recommendations

• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your electrician for advice).

Safety Features

• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)


Why you should buy from Wellku Power

Wellku Power Pty Ltd have been manufacturing diesel generators worldwide for over 15 years. Our factory currently produces industrial diesel water-cooled machines from as small as 8KVA up to 3000KVA or more.

Wellku Power focus mostly on manufacturing their generators using premium brand components like Cummins engines, Stamford alternators and a variety of popular brand Controllers. We also sell less expensive machines using our Kusing brand components which give customers great value for money whilst maintaining a reliable source of prime & standby power.

All generator sets have gone through rigorous testing before being released to the marketplace, including 50% load, 75% load, 100% load, 110% load.

If you require a custom build to meet specific requirements, we are your supplier who can provide exactly what you want.

Wellku Power offer attractive wholesale pricing discounts for bulk orders & and discounted prices for repeat customers.


RATING DEFINITION

PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

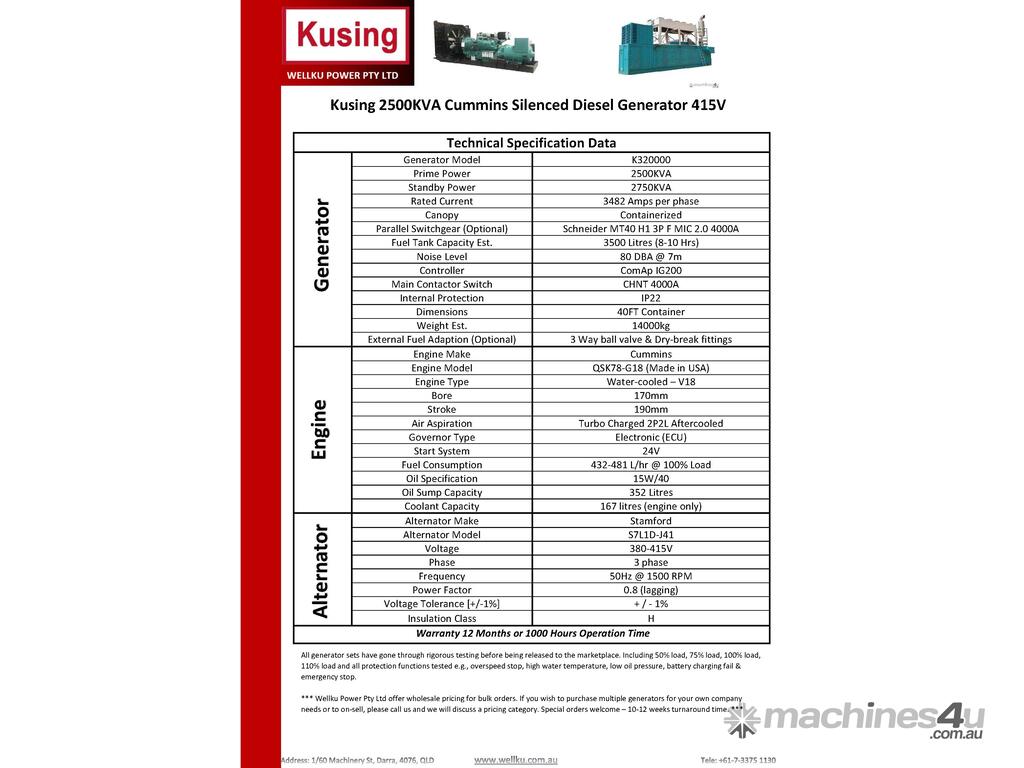

TECHANICAL DATA
Generator Model: CK320000

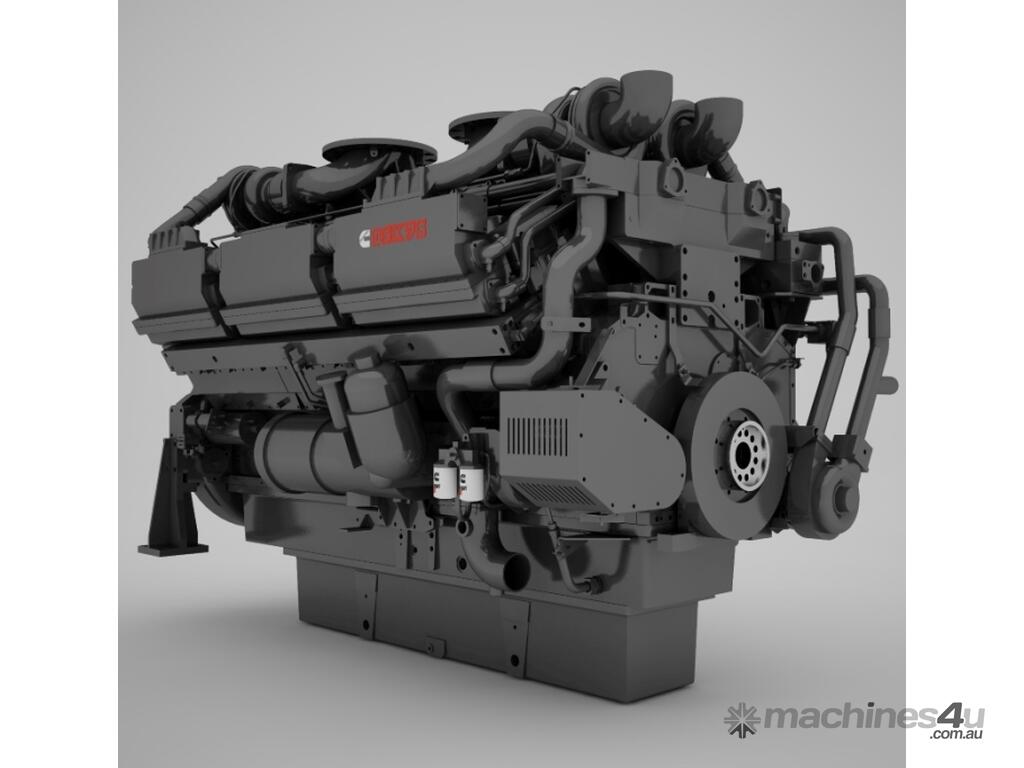

Engine Brand: Cummins
Engine Model: QSK78-G18 V18
No. of Cylinders: 18
RPM: 1500
Bore (mm): 170
Stroke(mm): 190
Speed Governor: ECM
Start system: 24V
Engine Oil Specification: 15W/40
Displacement(Ltrs): 77.6
Oil Sump Capacity: 352L
Coolant Capacity: 167L (engine only)
Air Aspiration: Turbocharged 2P2L Aftercooled
Fuel Consumption Est.: 432-481 L/hr 100% Load
Fuel Tank Capacity Est.: 3500L
External Fuel Adaption (Optional): 3 Way ball valve & Dry-break fittings

Alternator Model: Stamford S7L1D-J41
Voltage: 380-415V
Rate current: 3482 Amps per phase
RPM/Frequency: 1500rpm/50hz
Controller: ComAp
Main Circuit Breaker Switch: CHNT 4000A
Internal protection: IP22
Power Factor(%): 0.8(lagging)
Voltage Tolerance: (+/- %) 1
Insulation Class: H
Weight Est. 14000kg (Containerized)
Dimensions: 40FT HQ Container
Noise(DBA): 80DBA (Containerized)
Parallel Switchgear (Optional): Schneider MT40 H1 3P F MIC 2.0 4000A
