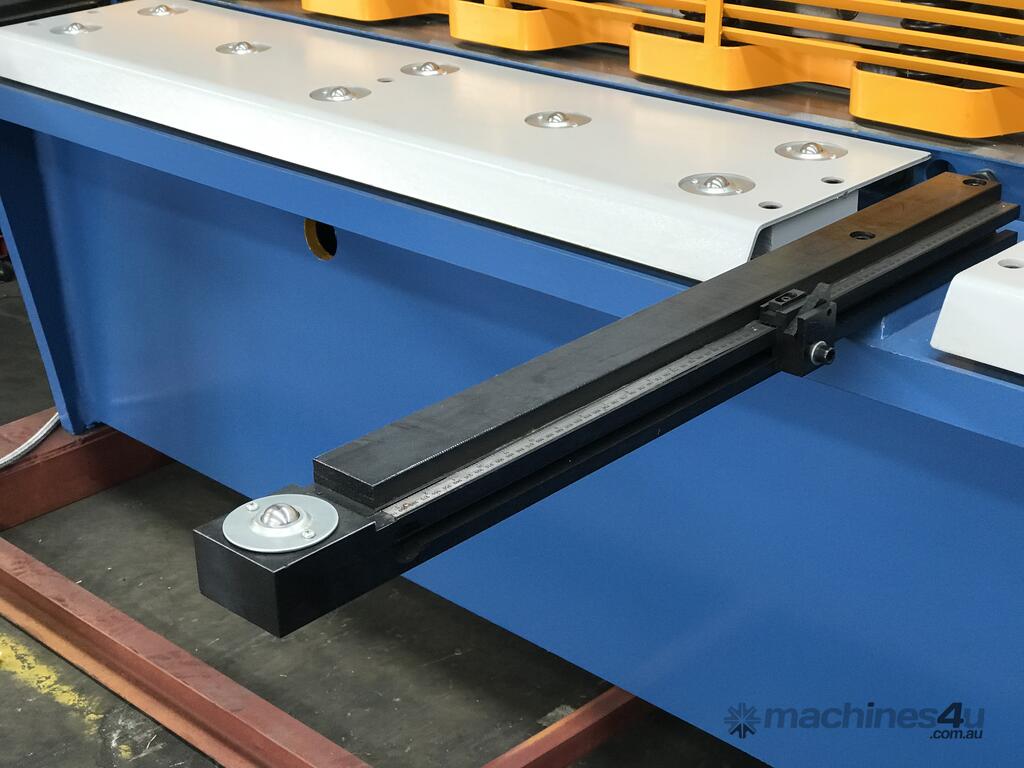

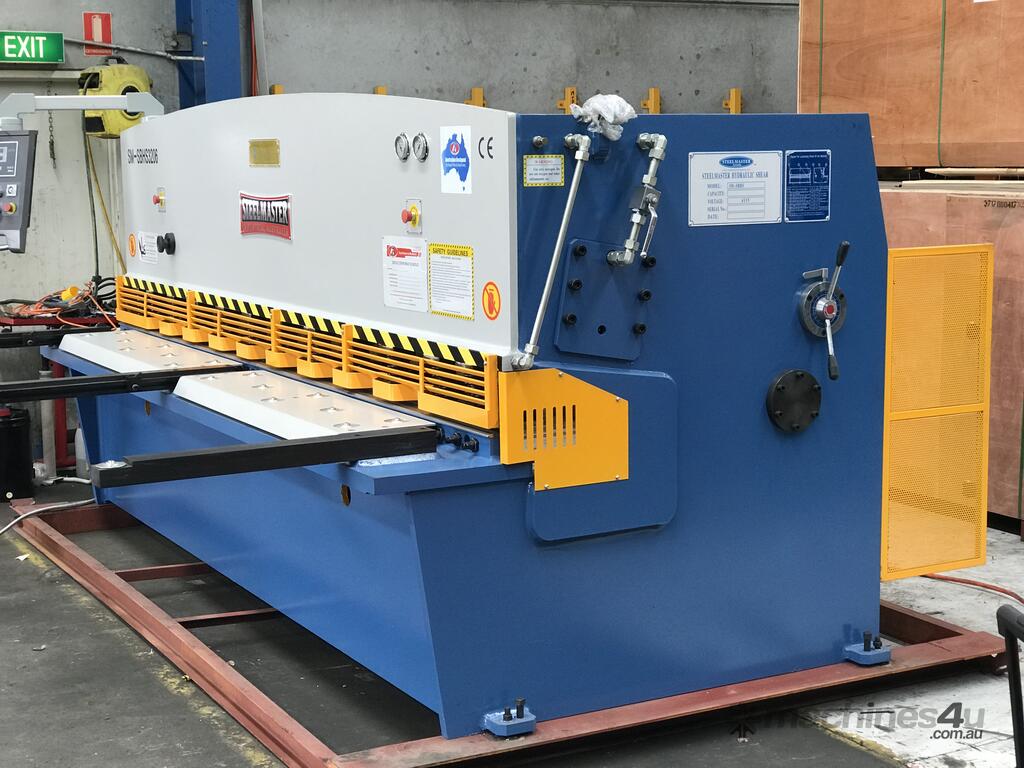

SM-SBHS2506. Hydraulic Guillotine. Steelmaster 2500mm x 6.5mm with Power Ballscrew Back Gauge.Quality Reversible Blades, 250mm Side Throat, Quick Action Gap Setting, Squaring Arm & Supports. V.
Description
Our feature packed hydraulic guillotine offering all the modern day add ons so you wont be left short.
combining precision ballscrew swing away backgauge, 250mm deep side throat, quick action blade gap setting - and a very attractive price.
we can also supply models up to 9000mm in length & cutting capacities up to 30mm plate thickness on request.
Features
- swing beam operation ensures clean cut of all applications

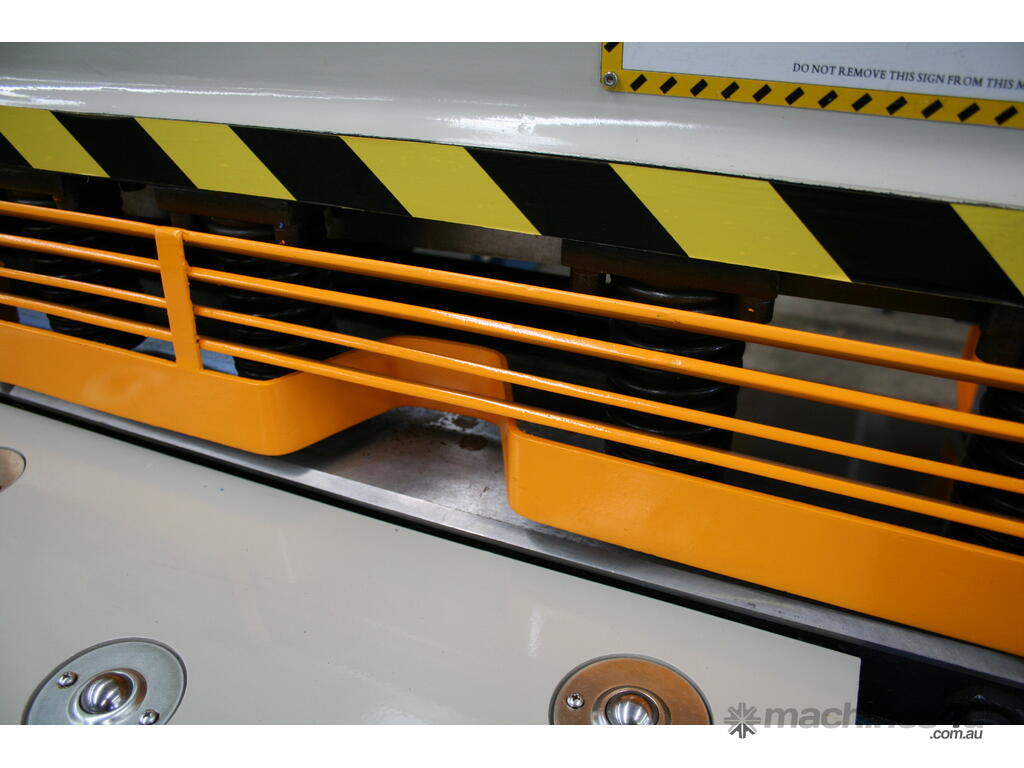

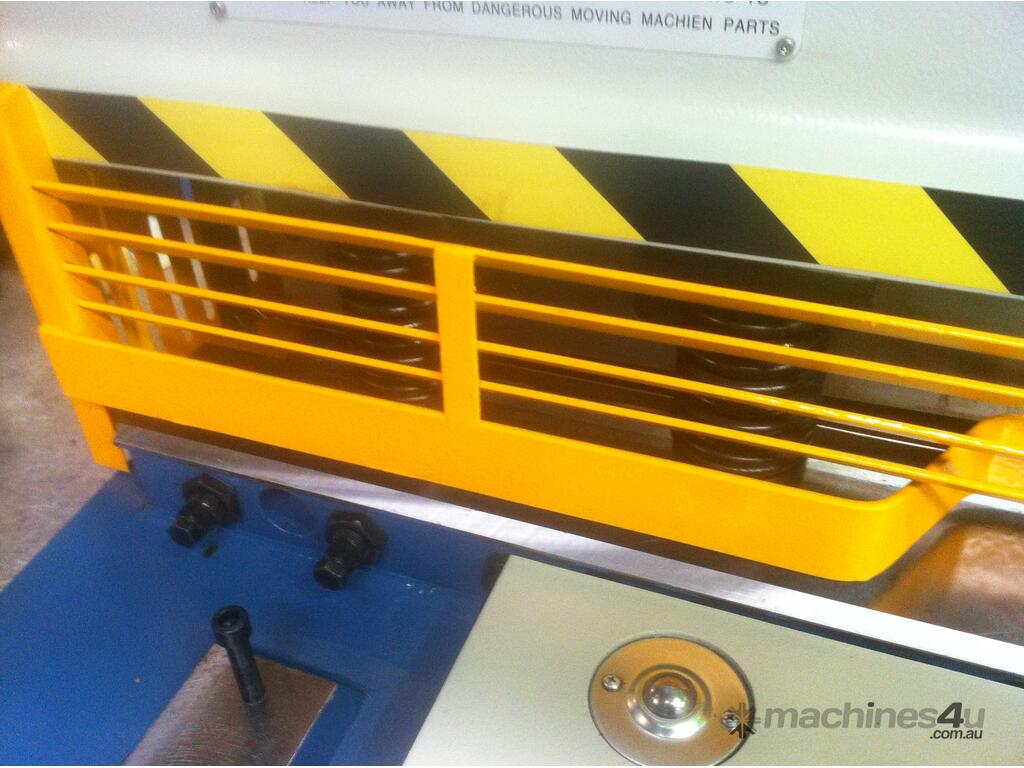

- hydraulic individual hold-downs ensure uniform distribution of down pressure across the entire cut length
- shadow-line lighting clearly indicates the cutting line requirement

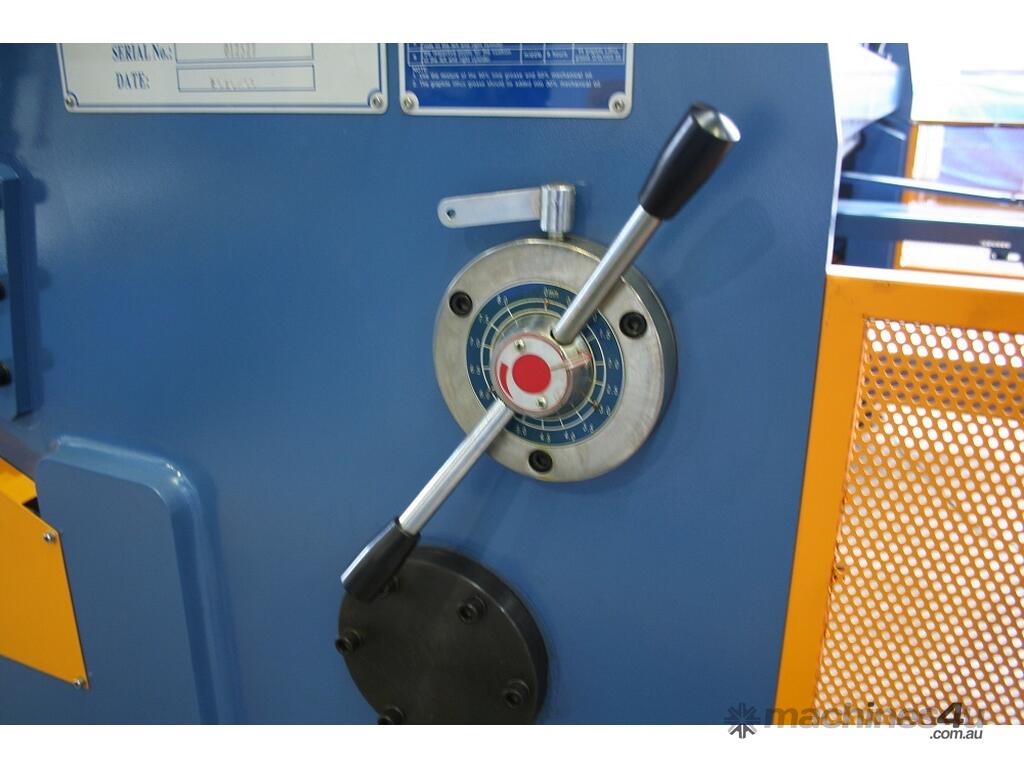

- standard quick-action blade gap setting ensures burr-free cutting on all materials

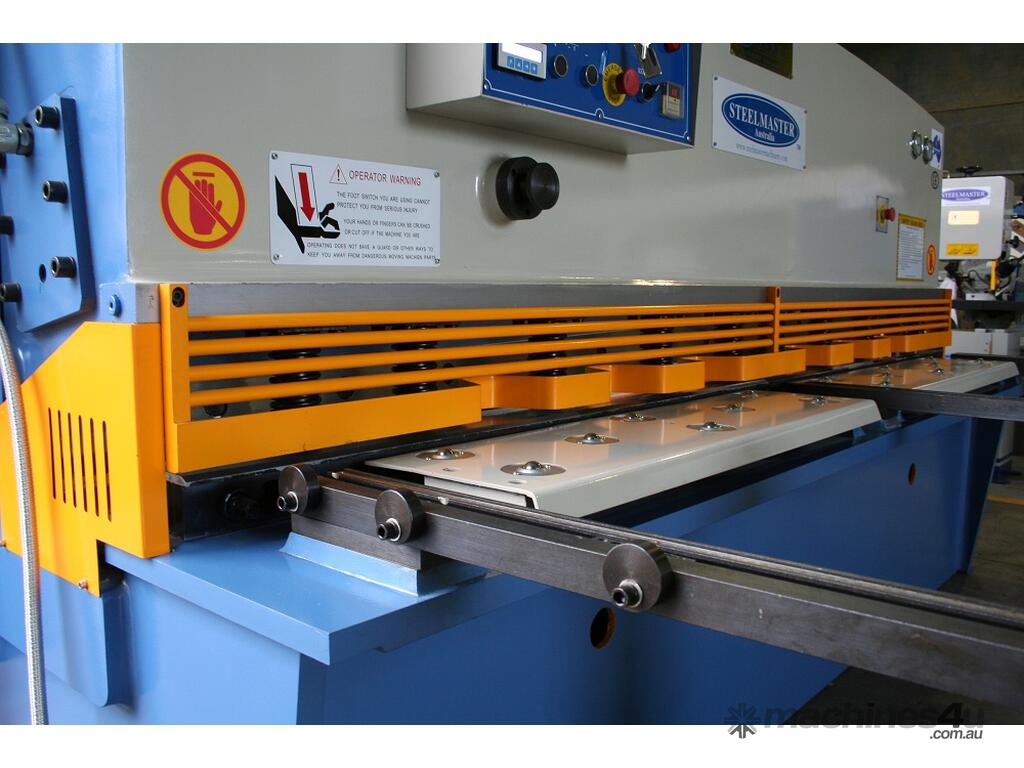

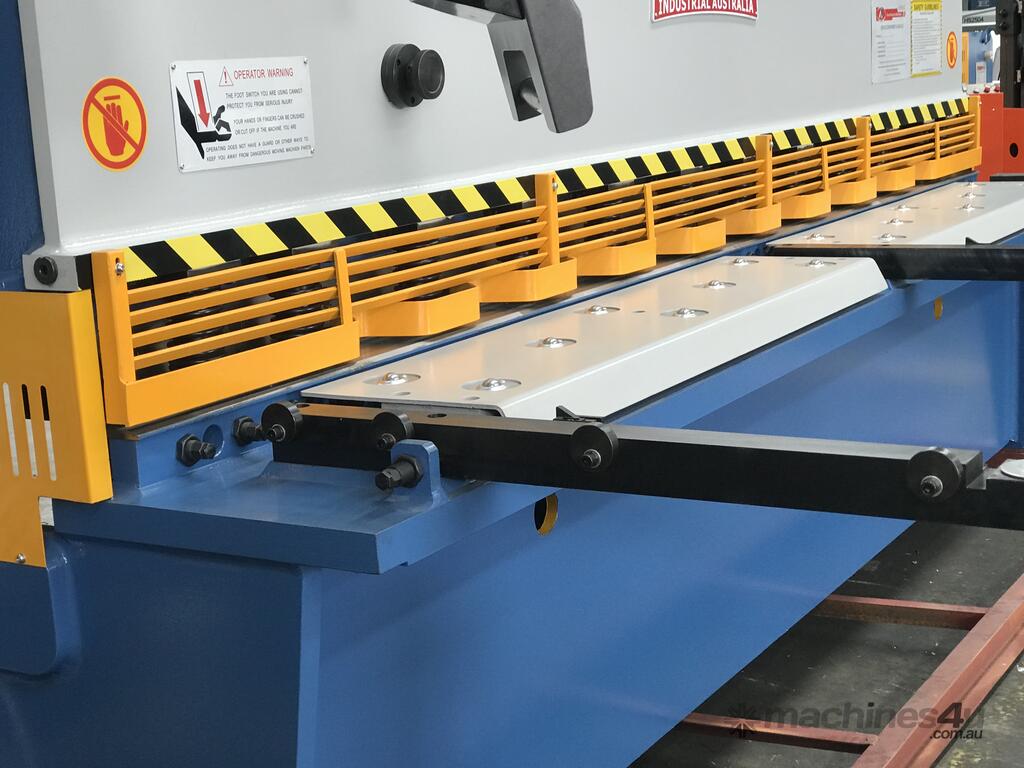

- wide plate support table with rollerbearings for simple and smooth material in-feed
- high quality hss top blade with 2 x cutting edges, while bottom blade has 4 x cutting edges
- side throat for long length slitting

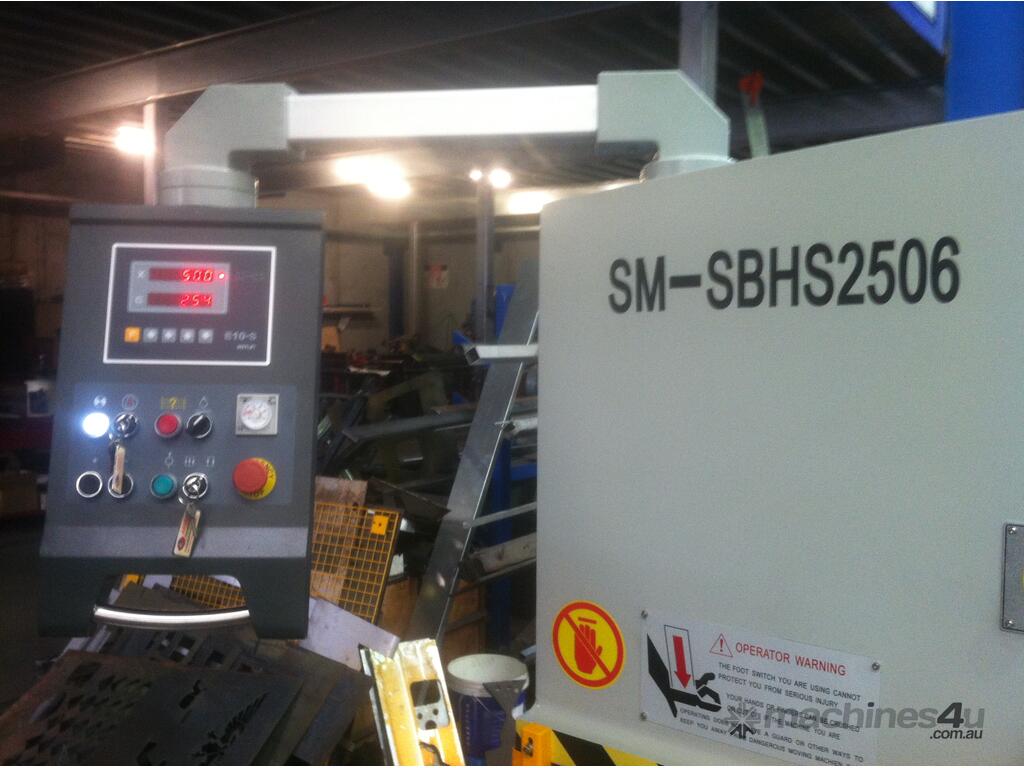

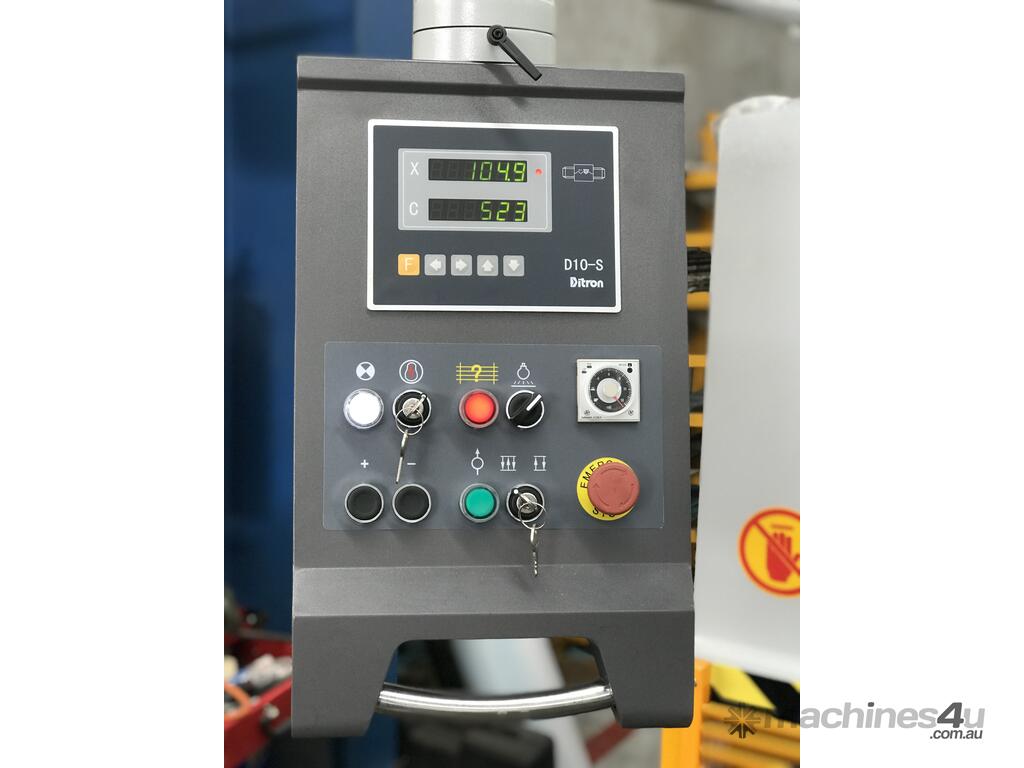

- control console with many operating features including digital display for power back gauge

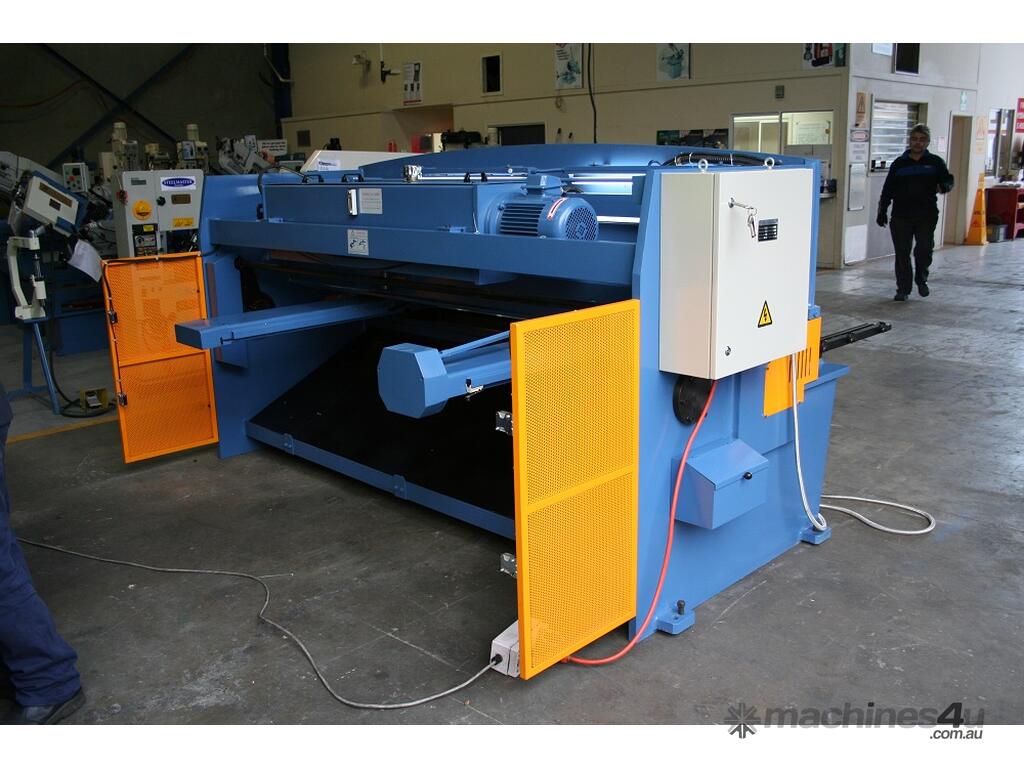

- swing out back gauge permits longer lengths of material to be cut
- nitrogen assisted return ensures efficient cutting speeds
- variable hydraulic pressure control valving fitted standard
- rear mounted safety lights
- ce compliant
Technical Data Snap-Shot
- 2500mm x 6.5mm cutting capacity

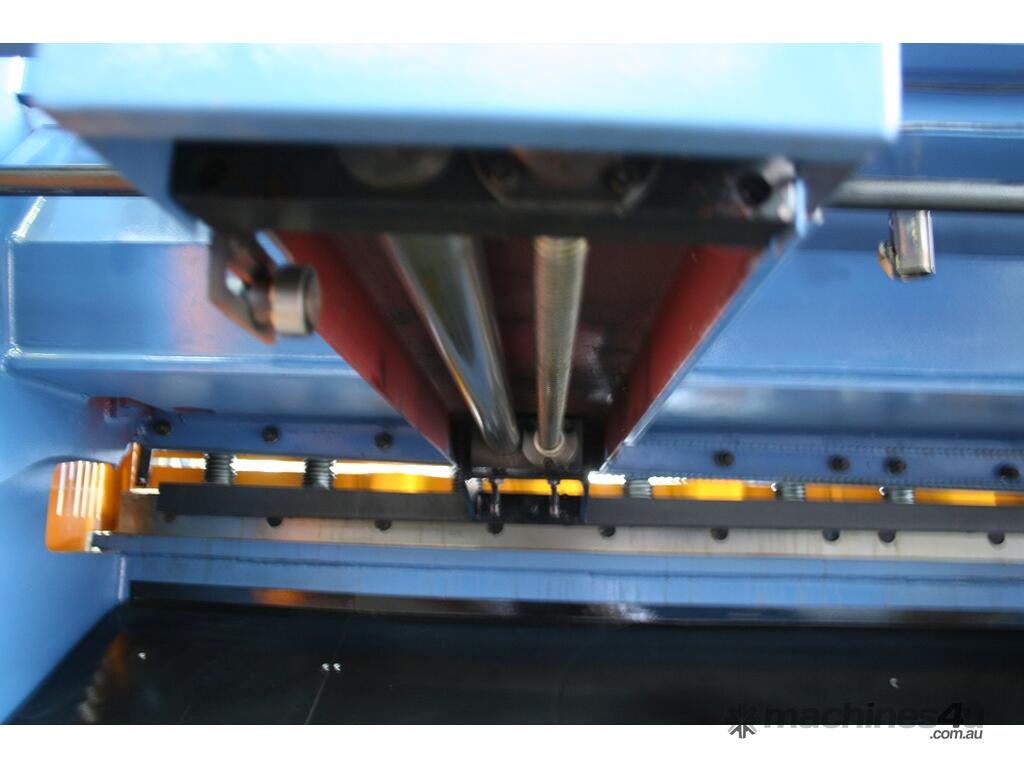

- 0 ~ 900 power operated ballscrew swing out backgauge

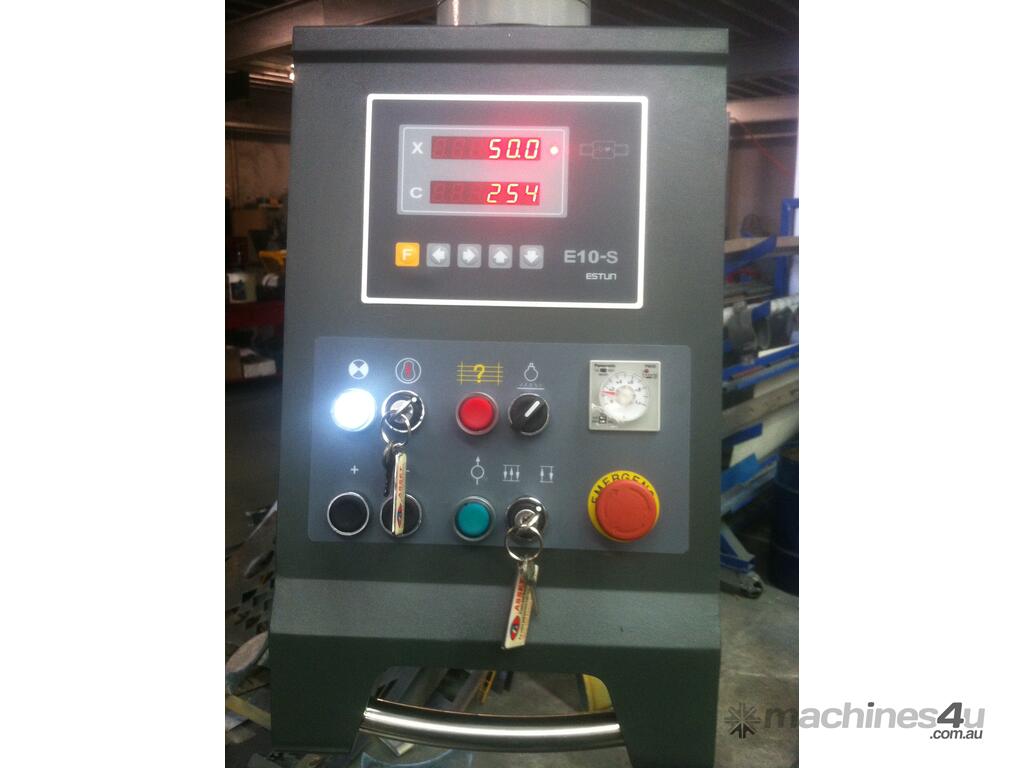

- digital backgauge read out with Etsun D10-S controller, stroke counter.

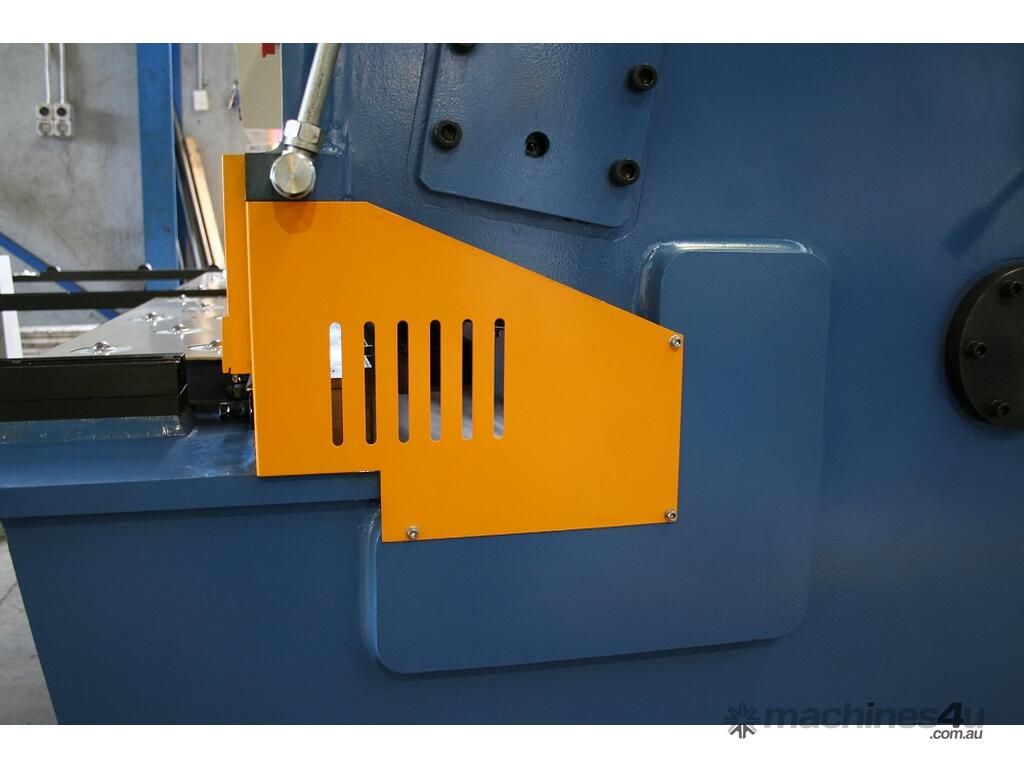

- 250mm deep side throat
- variable stroke control & stroke counter.
- shipping dimensions - 3130mm x 1610mm x 1600mm
- weight - 5700Kg
- power - V, 7.5Kw
