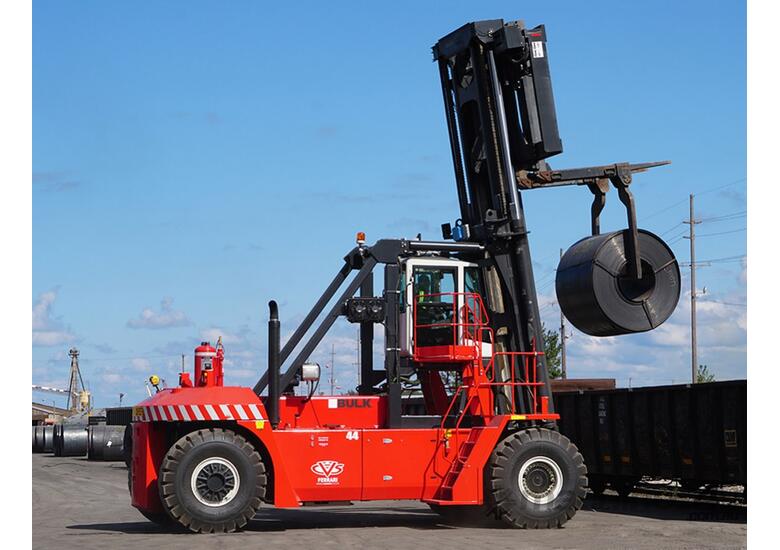

Model FH25 4×4
Attachment Type Forks (On optional Hydraulic Swivelling Carriage)
Load capacity on tires kg 25.000
Load centre distance (+/- out/in rach) mm 1.200
Load centre to centre of front axle mm 2.550
Standard lifting height on forks mm 4.600
Max available lift height on forks mm 7.000
Wheelbase mm 4.000
Service weight unladen kg 37.000
EU Stage 3a Engine make(Rated Power) (kW) Cummins QSB 6.7 (164)
EU Stage 4 Engine make(Rated Power) (kW) Cummins QSB 6.7 (164)
Transmission make&model ZF 3WG190
Service Brakes Wet Disc on front wheels + Dry Drum on rear wheels
Tires size 14.00-24
Overall width mm 3.000
Overall length (including forks) mm 8.630
Overall height (mast lowered) mm 4.600
Seat height mm 2.550
Mast tilt, forward / backward deg 5 / 10
Forks side-shift mm +480 / -480
Forks size (L x W x T) mm 2440x260x105
? optional
