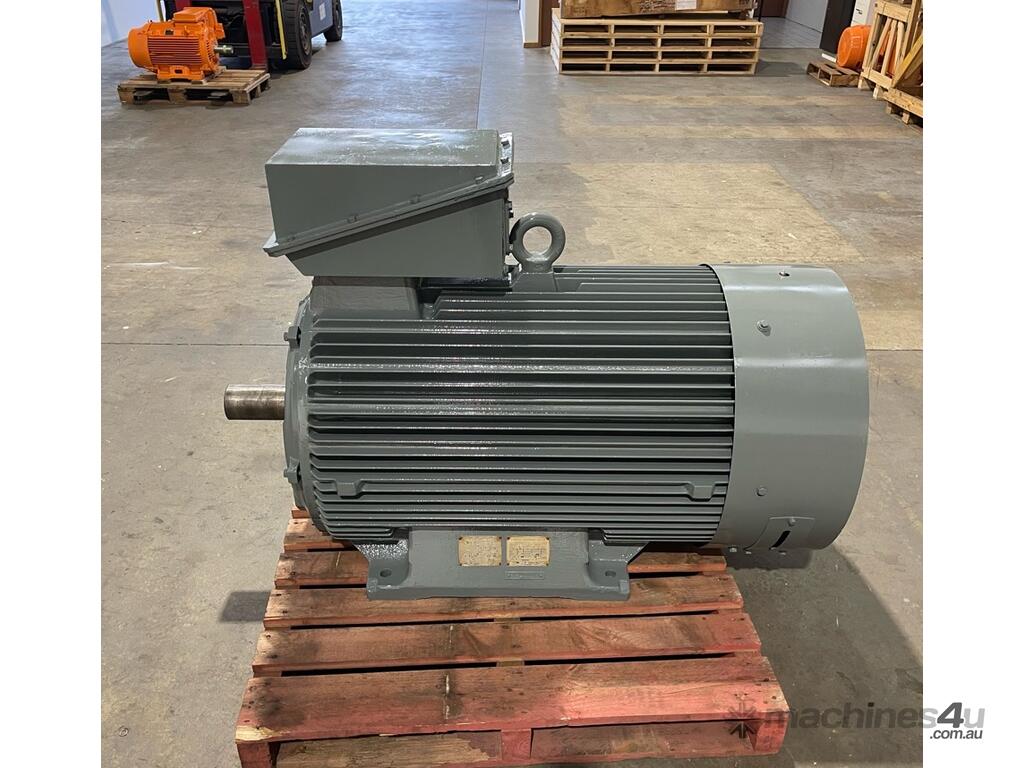

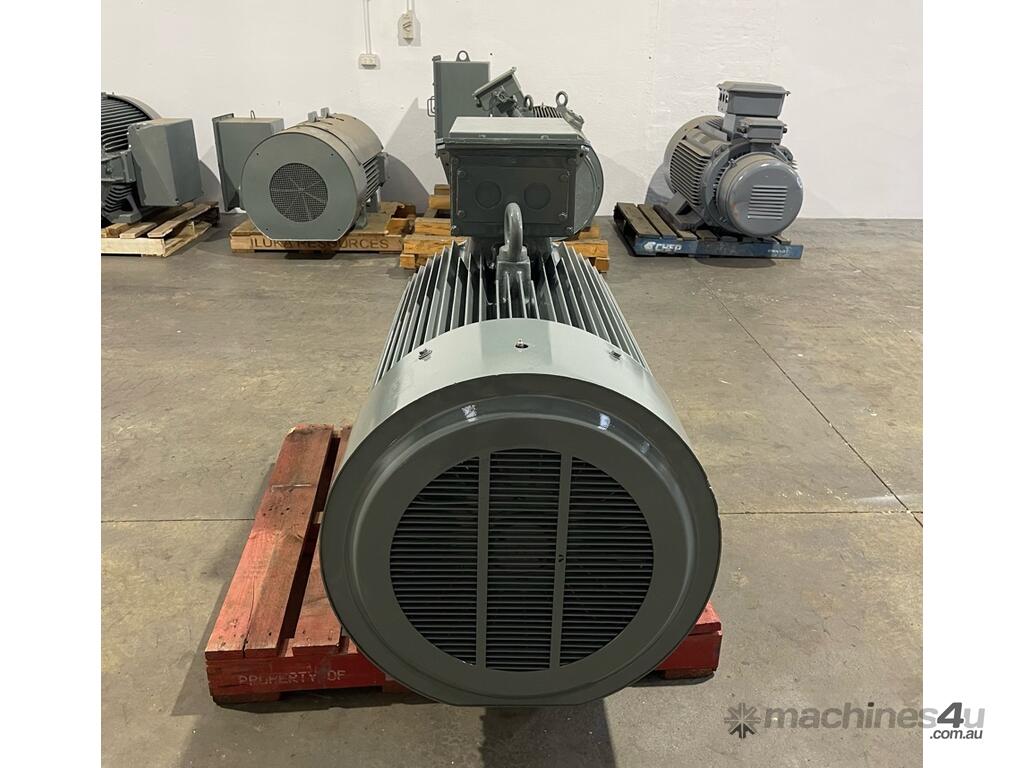

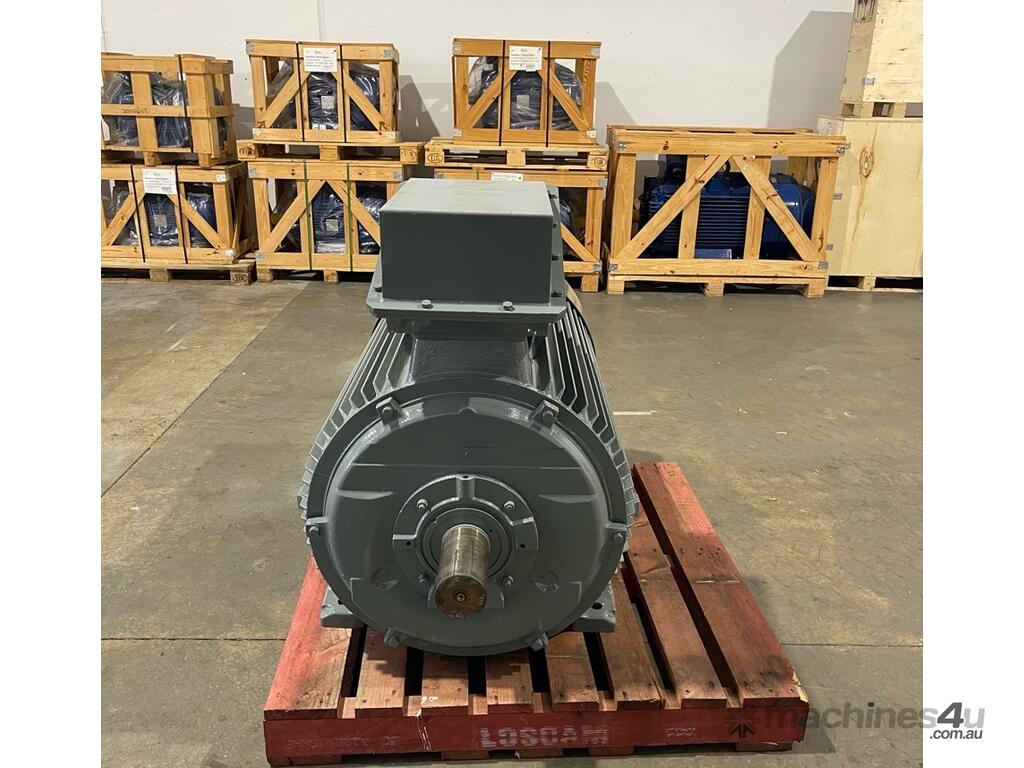

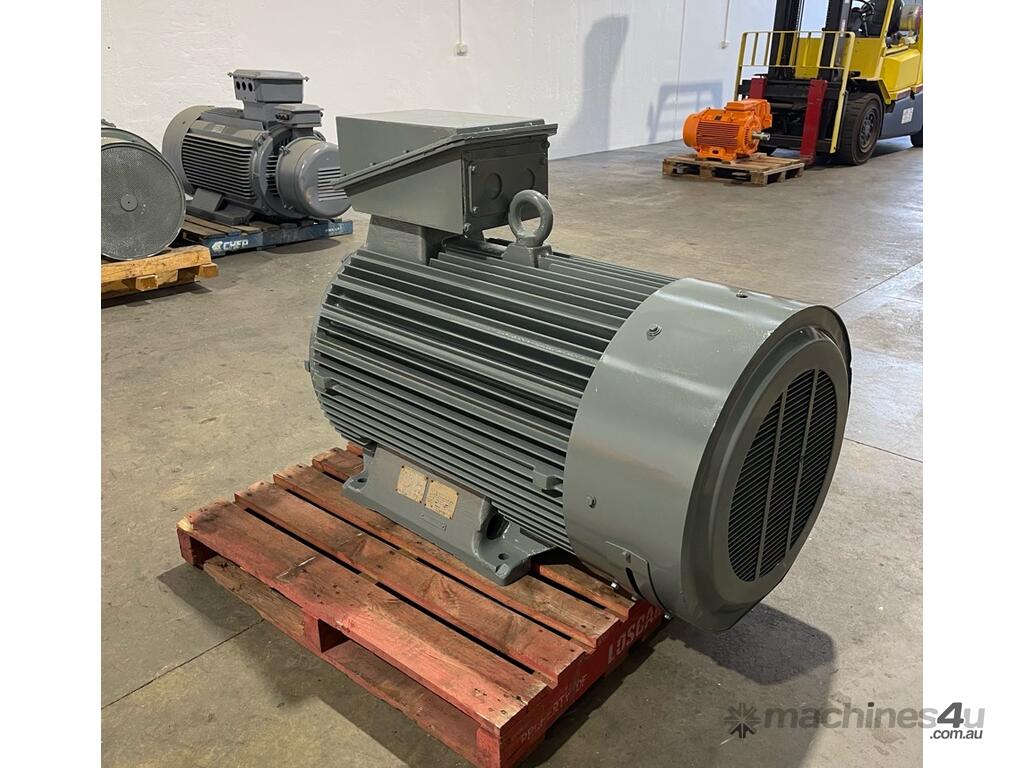

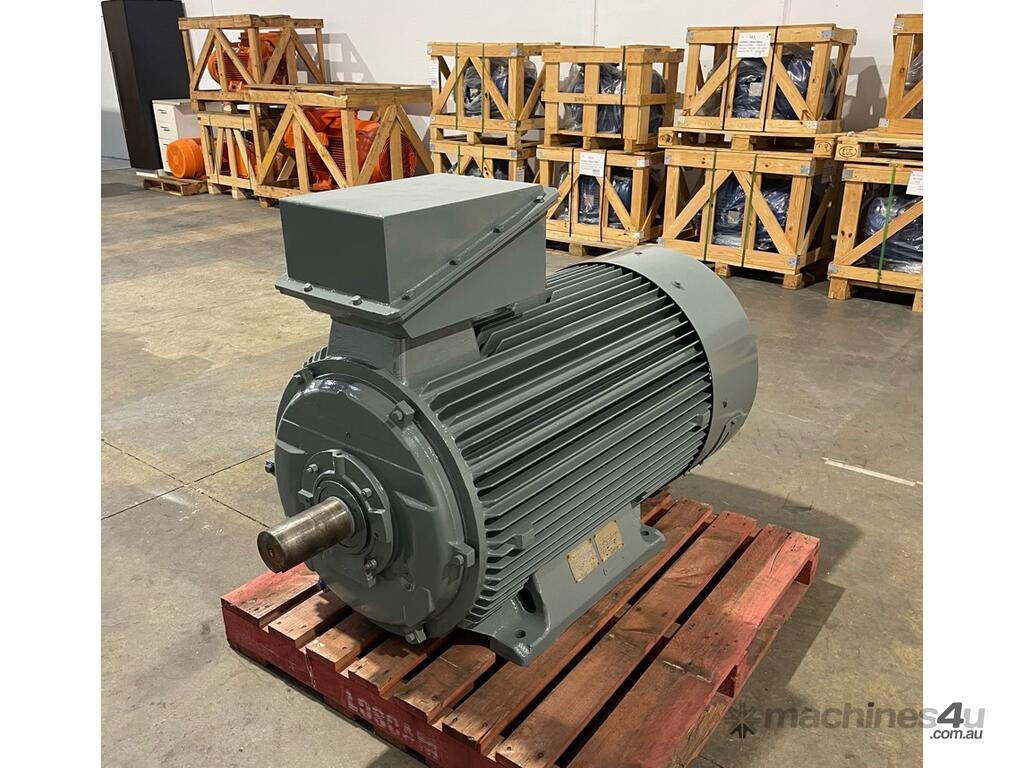

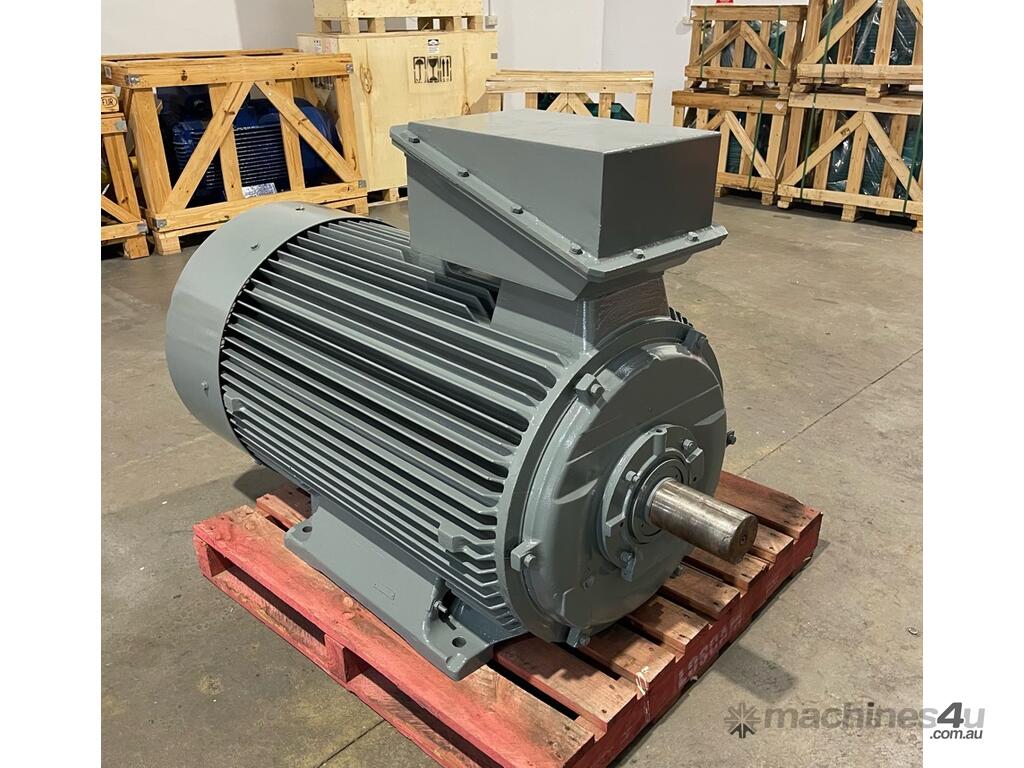

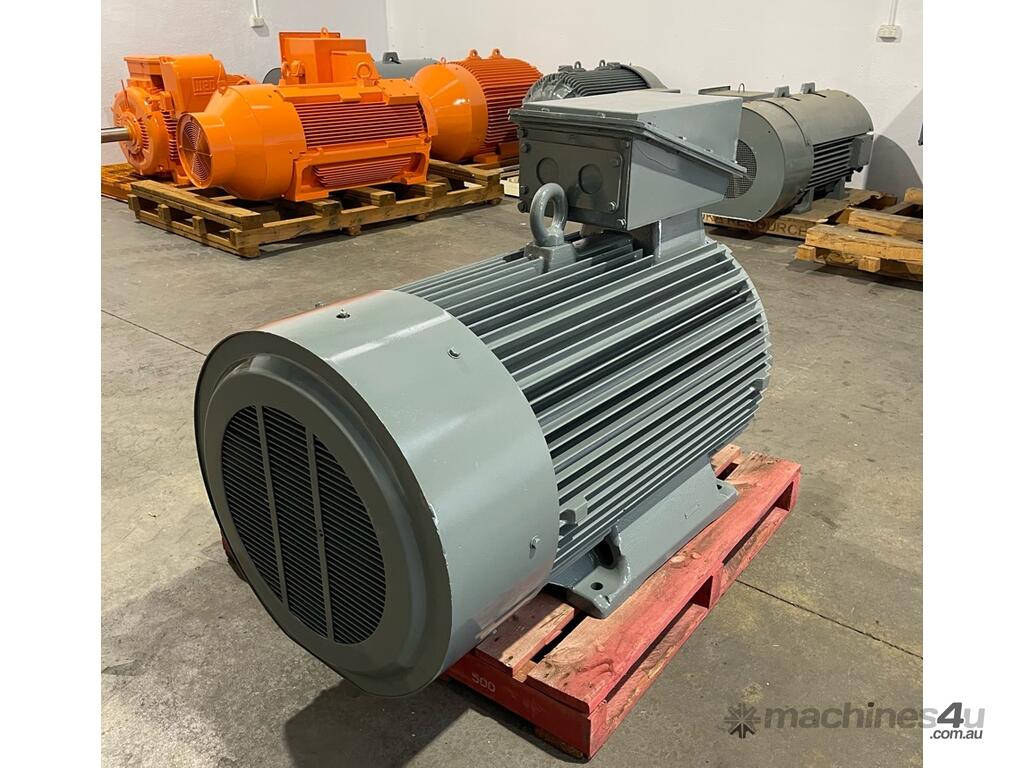

265 kw 355 hp 4-pole 1480 rpm 415v Foot Mount 355 frame Mining AC Electric Motor Yaskawa Reconditioned
Category: AC Squirrel Cage Electric Motors

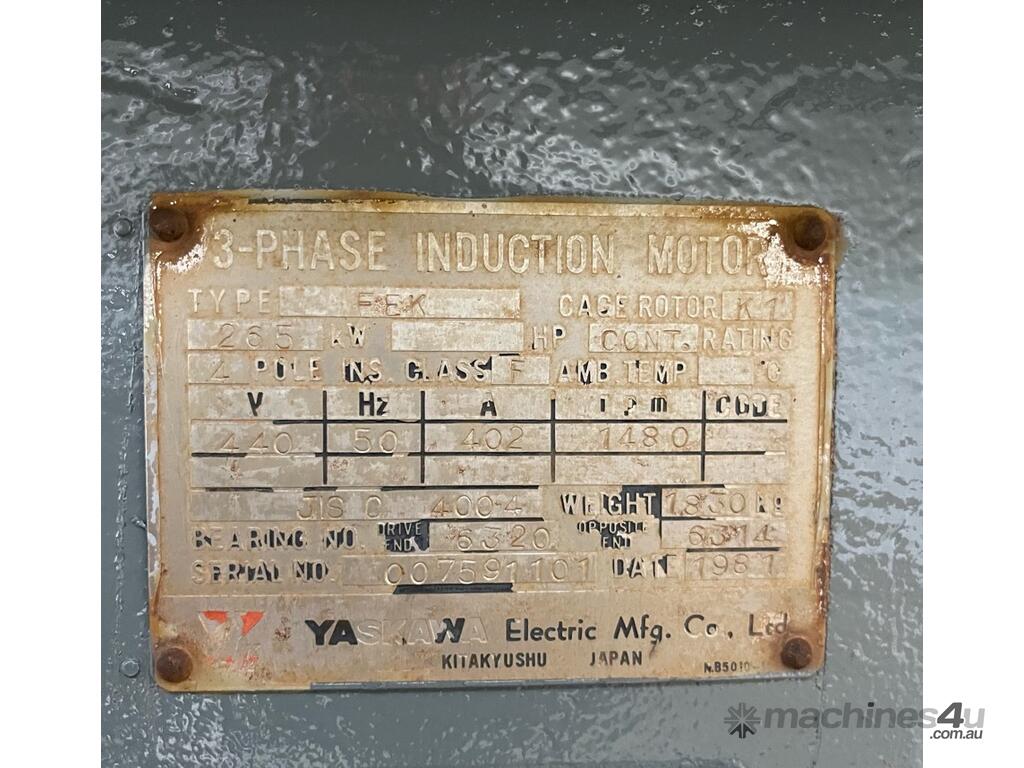

3-phase induction motor
Make: Yaskawa
Origin: Japan
Power: 265 kw (355 hp)
Speed: 4-pole (1480 rpm)
Rated frequency: 50 hz
Rated voltage: 440v
Full Load Amperage: 402A
Mount: Foot
Frame: 355
Insulation class: F
Notes: Includes New Drive-End roller bearing (for belt-driven application)
Critical Measurements;
Centre shaft height: 355 mm
Shaft DIA: 95 mm (by 170 mm long)
Total Length: 1500 mm (incl. shaft)
Total Width: 750 mm
Total height: 1040 mm (incl. top mount terminal box)
Feet Measurements: Across 'A' - 610 mm, Front to Back 'B" - 570 mm
Front hole to shaft 'C' - approx. 265 mm
Available QTY: 1
Condition: Decommissioned spare, and Fully Reconditioned July '23 (N/L test run, new bearings, paint, in motor workshop)
exStock Seaford VIC 3198 Australia
Freight services available on request, immediate despatch
