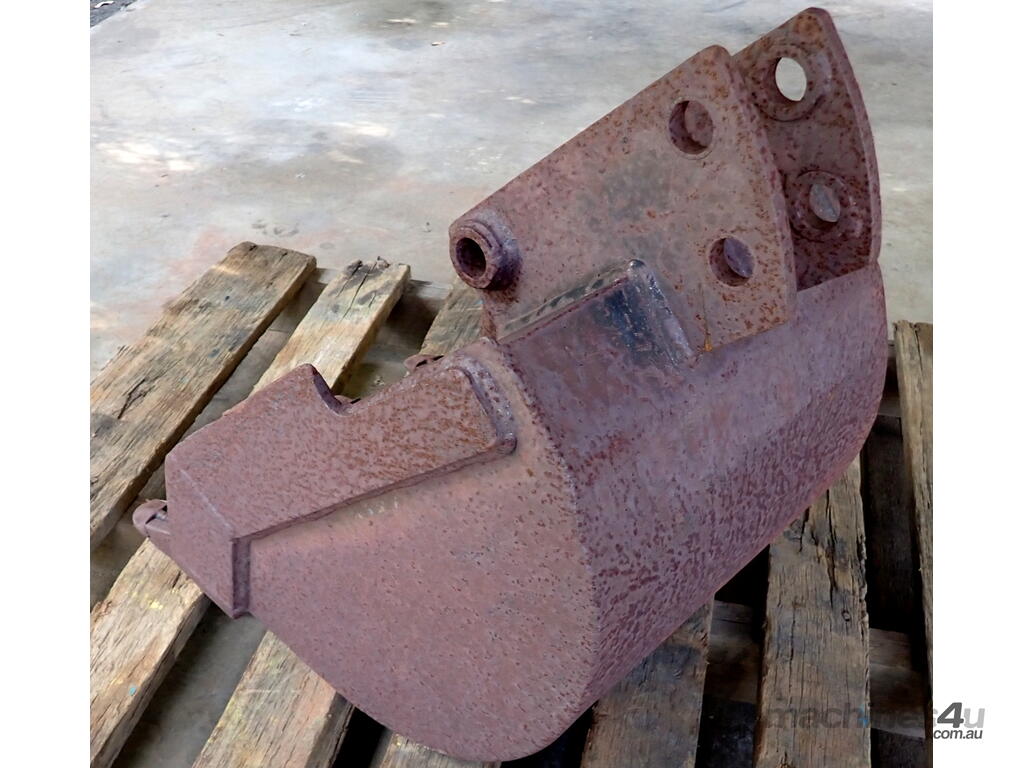

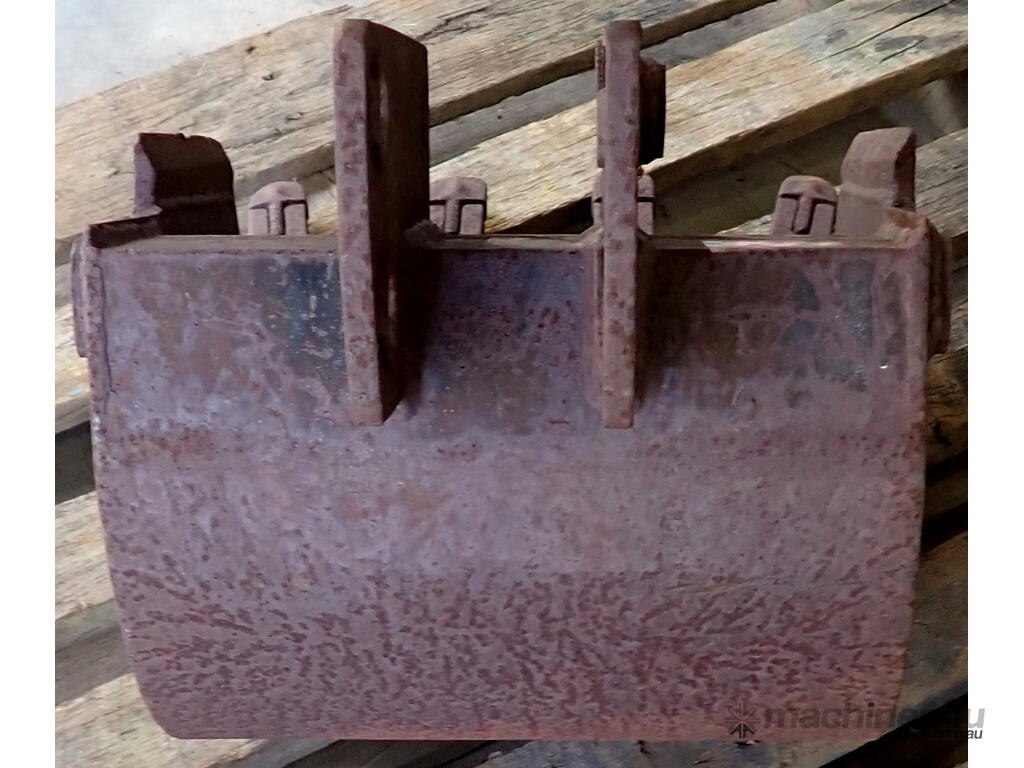

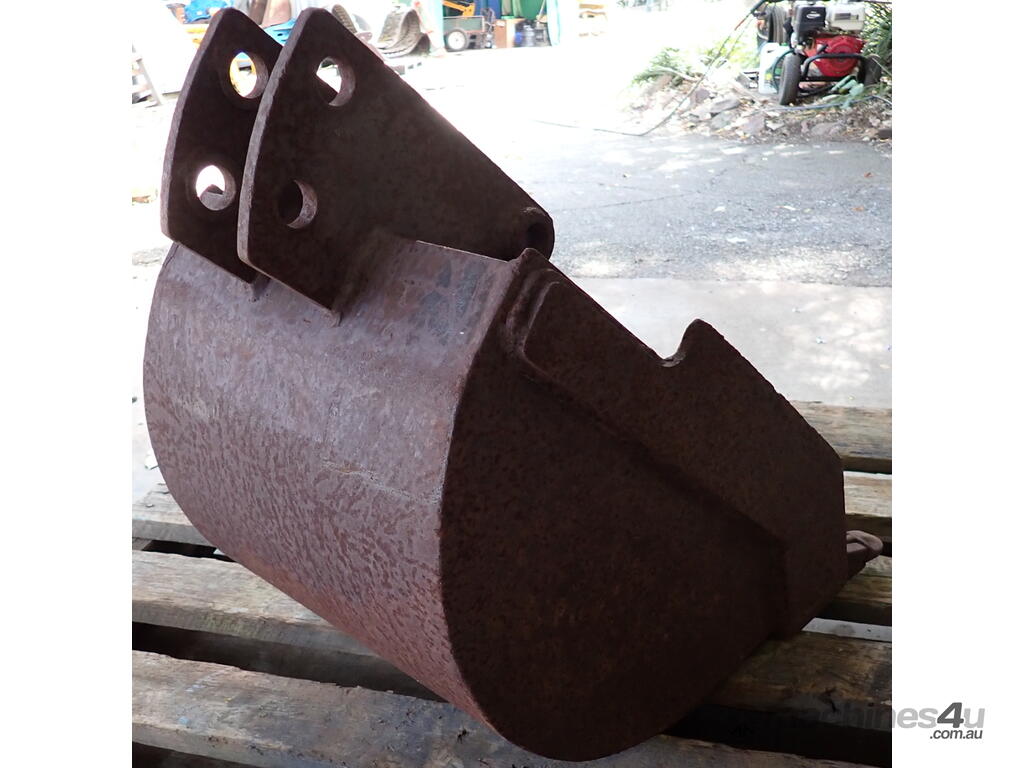

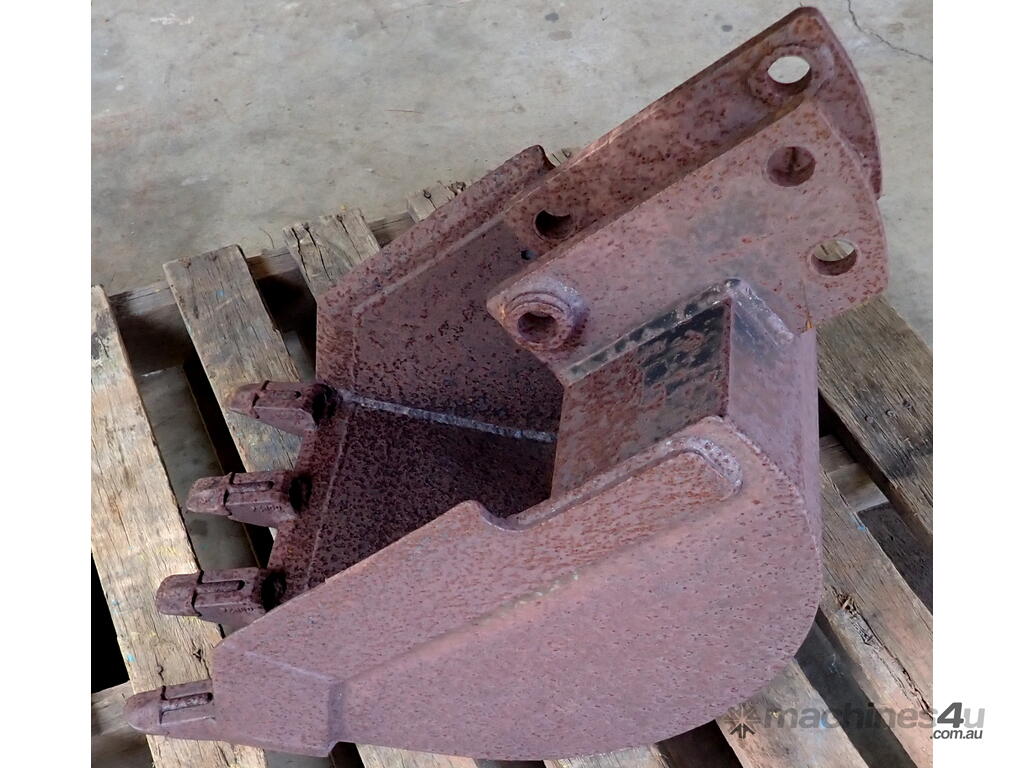

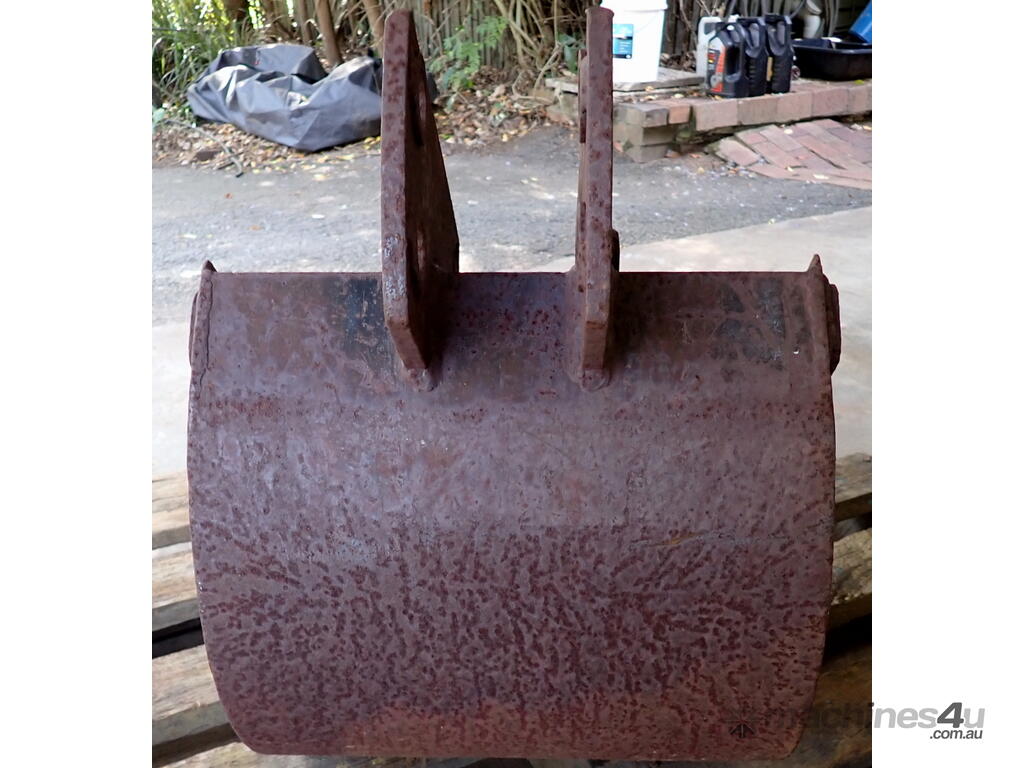

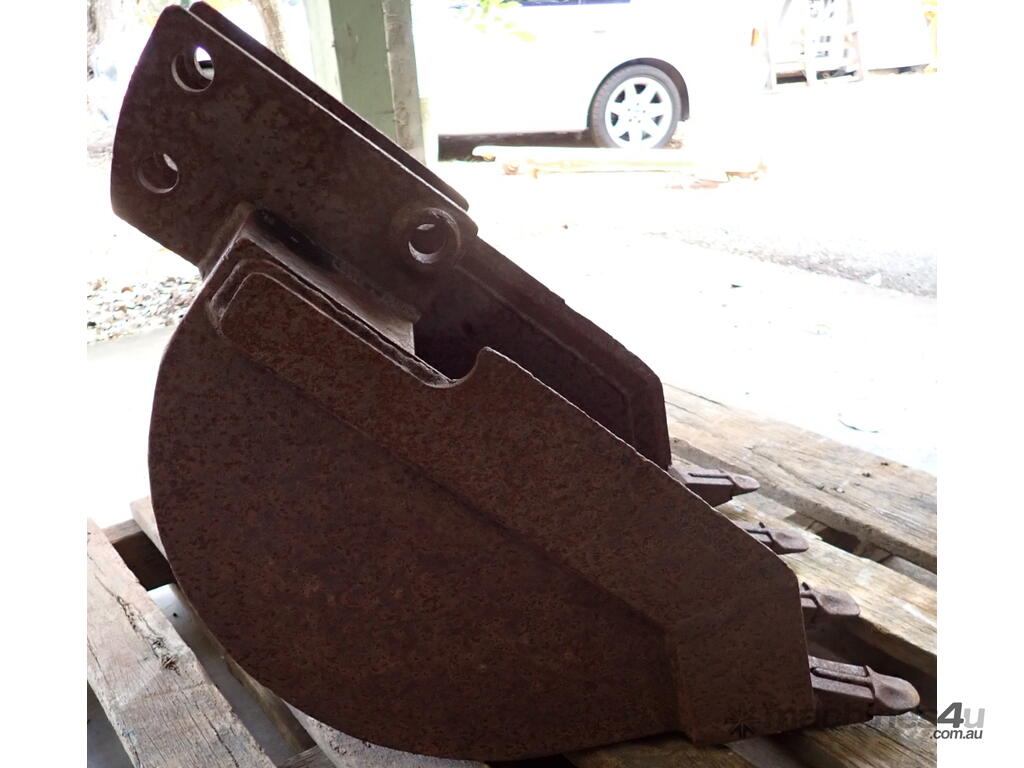

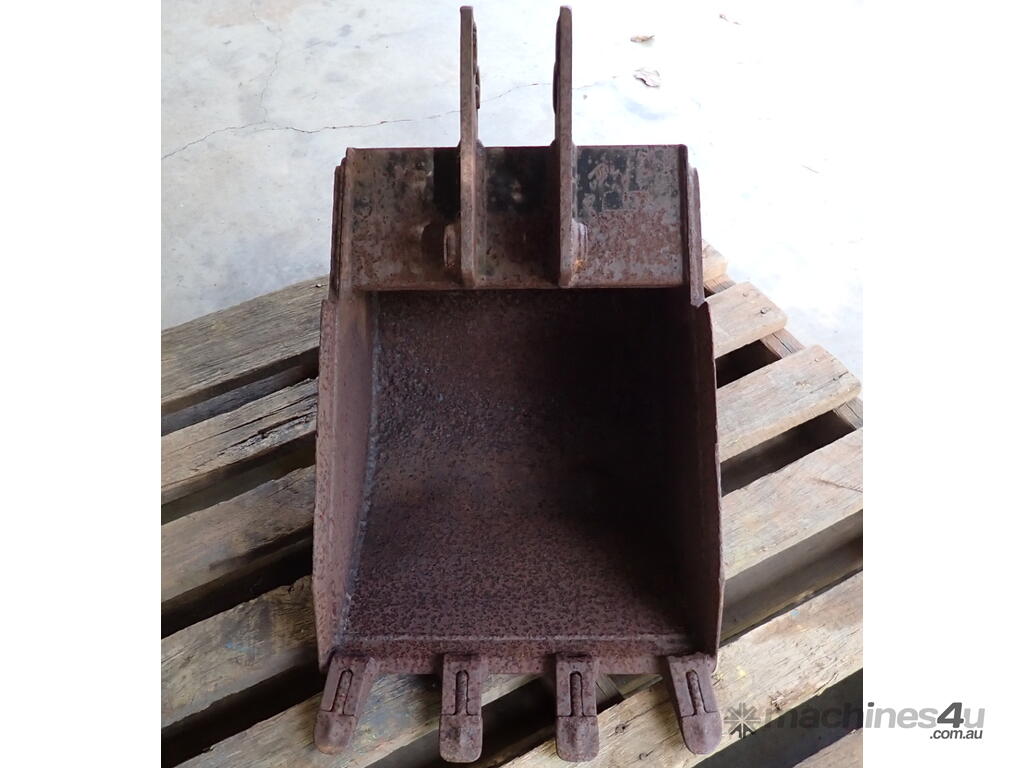

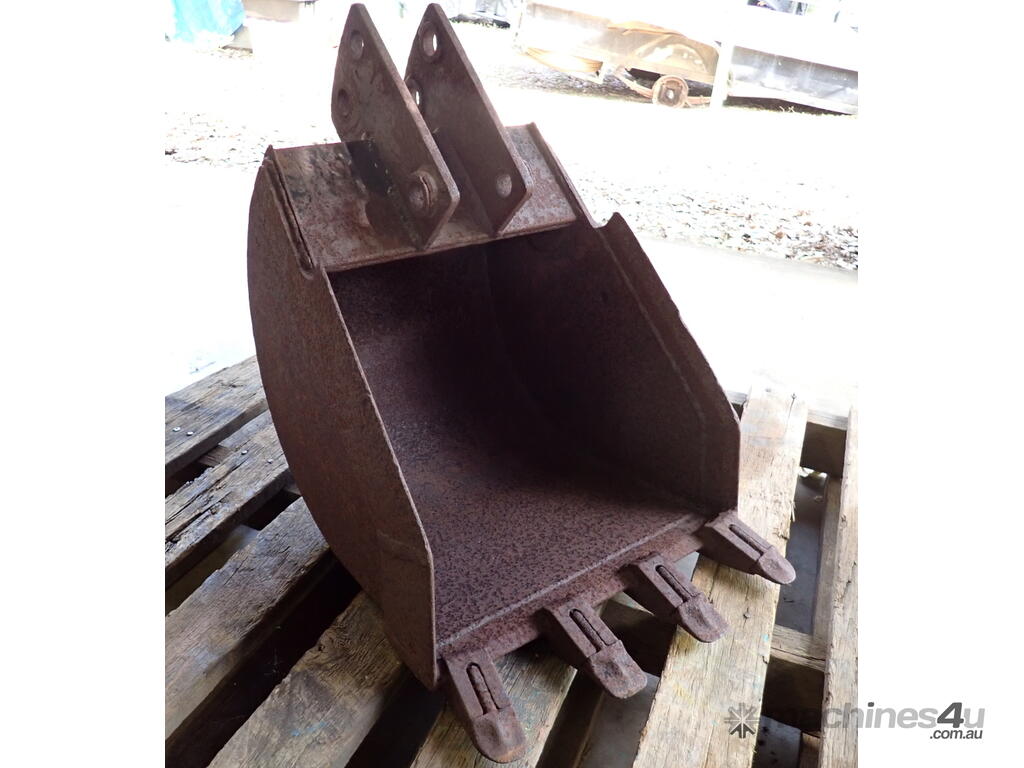

28.5mm pin, 450mm Excavator & Backhoe GP Digging & Trenching Bucket

Used 450mm Backhoe & Excavator GP Digging & Trenching Bucket.

Condition is used and there is some light surface rust, but is otherwise a good solid bucket in great shape with little wear, and has plenty of life left.

The cutting sides have extra reinforcing plates welded for durability.

Current Headstock configuration:
28.5mm Pin Diameter but the pin holes have bushes in them, if they were punched out it would leave 35mm holes ready for 35mm pins.
203mm Pin Center to Pin Center (CtoC).
86mm Between the Ear Plates (BTE).

The rear lower pin hole is 78mm (center to center) lower than the hole above, but is positioned so the CtoC distance is around the same to the front pin hole, so you could mount your Arm linkages to either of the rear holes if you want to change the angle of the bucket.

Shipping dimensions: 445mm Wide, 590mm Deep, 580mm High. Weight: 50kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
