280-630mm Semi-Auto Butt Fusion Welder - Ritmo Delta 630 Easy Life

Thanks to a special gearcase, the Italian-Made Ritmo Delta 500 Easy Life manages the welding process in a semi-automatic way from OD 200 to 500 mm.

The Delta 500 Easy Life allows you to weld fittings such as elbows, tees and stub ends. The 3rd clamp can be anchored to the 1st and 2nd (movable) and slide along with the pipe, while the fittings can be locked in with the 4th clamp. Short neck stub ends can also be welded with the help of a special tool (on request).

The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows the operator to quickly set the desired parameters.

The Easy Life system can store up to 4000 welding cycles and sum them up into a PDF file. This report can be transferred to a PC/laptop through a USB port. This machine has the capability to pre-set 50 customised welding phases. The Delta 630 Easy Life also has a trolley and hand grip, making it easy to maneuver.

Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!

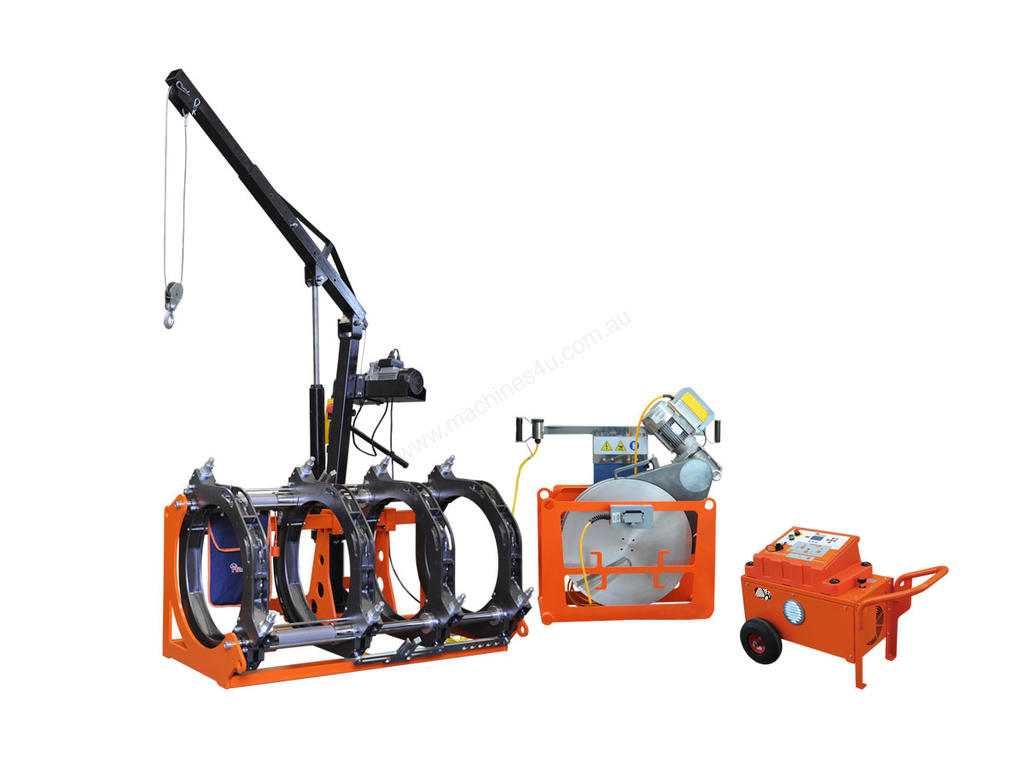

Machine Composition:

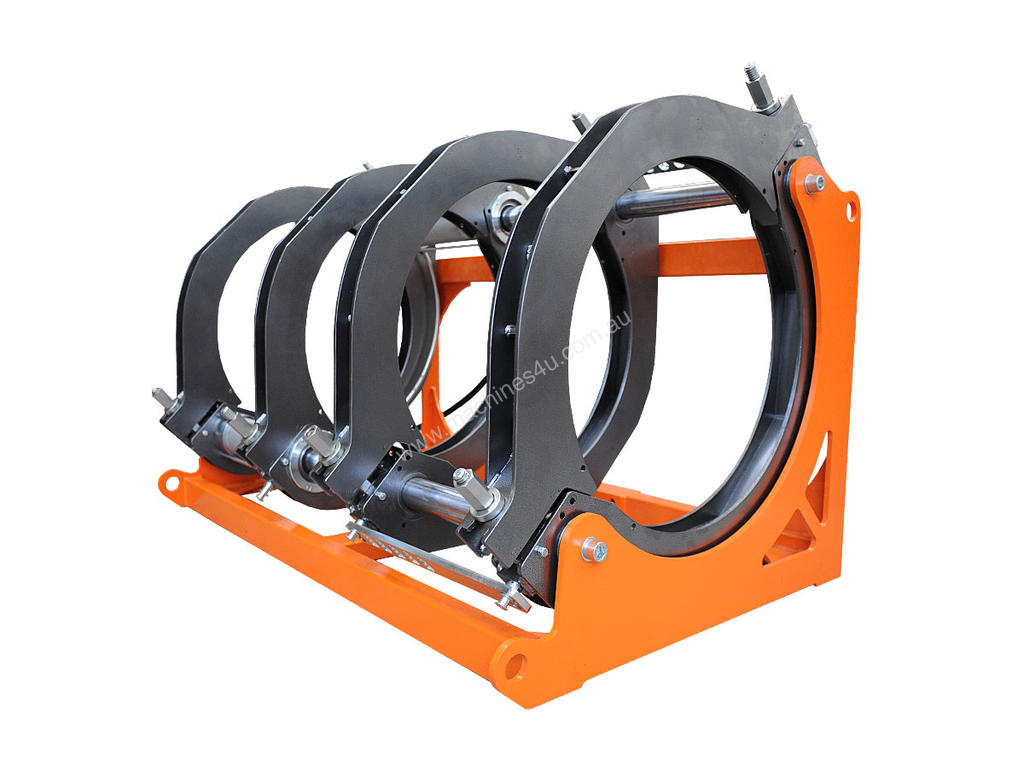

- A machine body with a steel bearing frame
- Clamps in steel
- Insert in steel with quick locking/unlocking system. No tools required
- Self detaching device: helps removing the heating plate during welding procedure
- An extractable heating plate with separate thermometer for reading the working temperature
- An extractable electric milling cutter with a safety microswitch and overload cutout
- Milling cutter’s plastic control box is protected by a metal frame
- Unlocking Milling Cutter, fast removing system to speed up the extraction from machine body

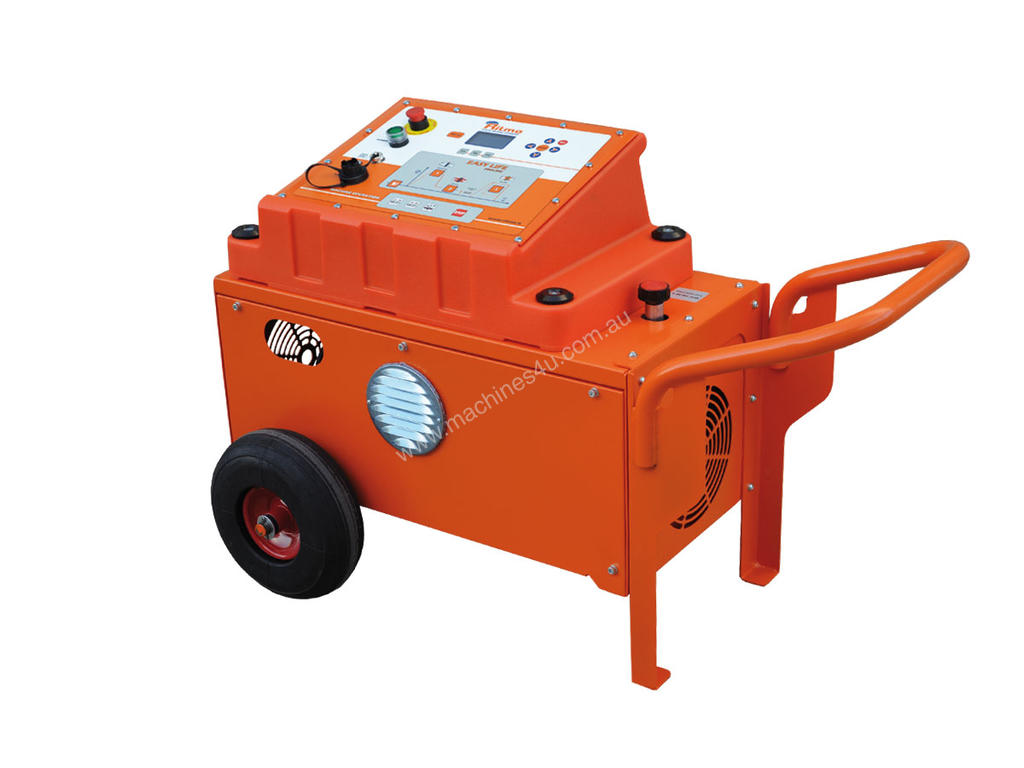

- An electrohydraulic gearcase EASY LIFE
- Digital electric connections box with the high precision (± 1°C) “Digital Dragon” temperature controller
- A milling cutter/heating plate support

Accessories Available on Request:

- Clamps’ inserts from Ø 280 to 560 mm
- Tool for flange necks
- Electrical crane
- Special transport wooden case (machine body with trolley)
- Wooden case for inserts
- Machine body trolley
- Rollers

Technical features:

Materials: HDPE/PP/PB/PVDF
Working range: Ø 280 ÷ 630 mm
Power supply: 230 Three phase 50/60 Hz: 400 V Three phase 50/60 Hz
Total absorbed power: 12350 W
Absorbed power gearcase: 1500 W
Memory: 4000 reports
Working temperature: 180° ÷ 280° C
Pressure working range: 0 ÷ 150 bar
Weight only body machine: 415 Kg
Weight gearcase: 50 Kg
Dimension body machine: 1550 x 1010 x 1000 mm
Dimension gearcase: 1000 x 580 x 680 mm
