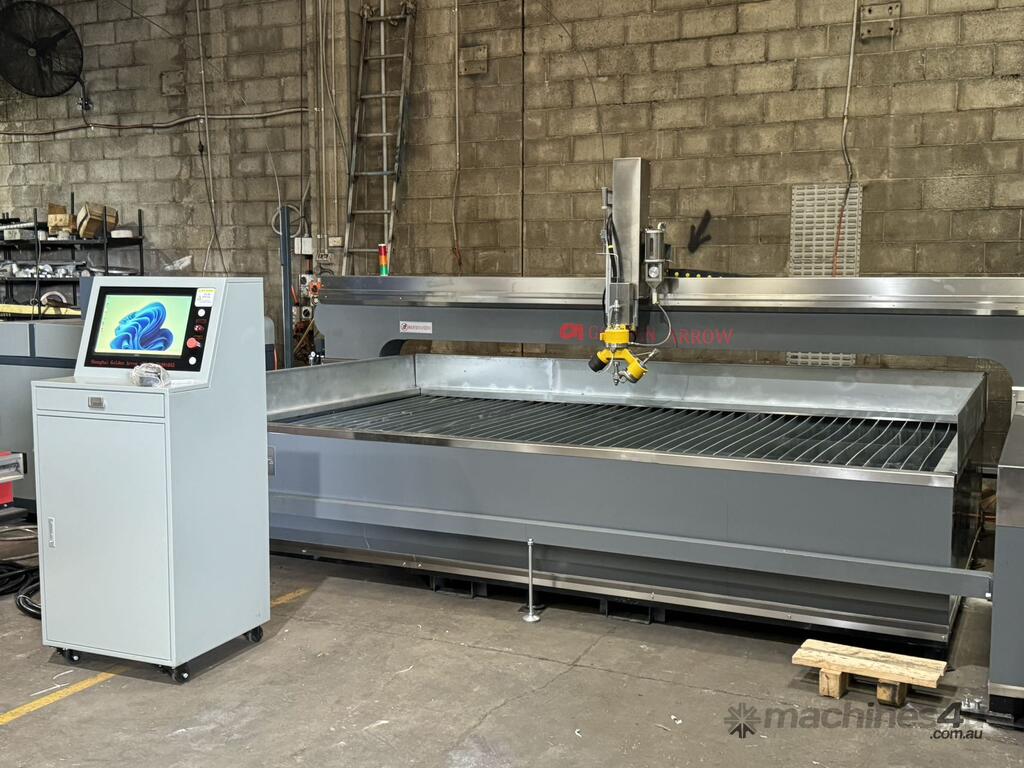

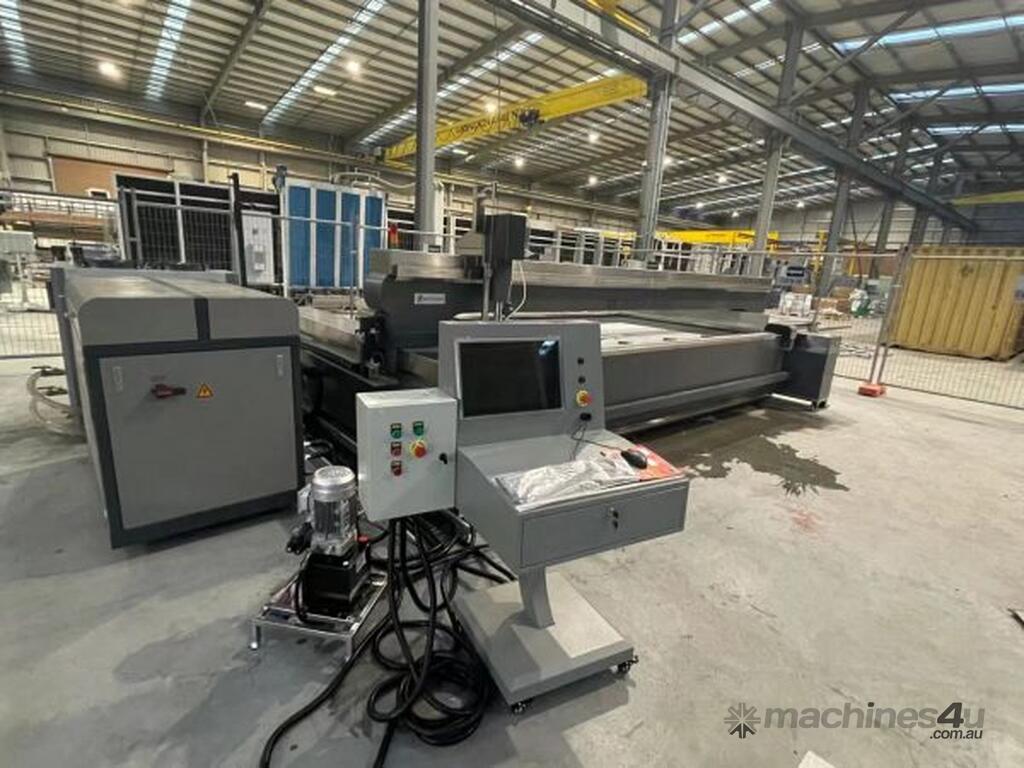

2x3 METER Gantry Waterjet System

A BIGGER CUTTING TABLE FOR LARGER PROJECTS - WOOD, MOSAIC, TILE, GLASS, COMPOSITE, STONE, METAL ,STEEL, FIBRE AND MORE. We recommend gantry type waterjet systems for the customers who need a bigger cutting table.

SYSTEMS ARE SIMPLE AND EASY TO USE.

Can be custom made to your needs.

Gantry type is very firm waterjet structure. The bridge hanging the cutting head sits on two base beams which are completely separated from the working table.

Machine structure:
Common sizes: 2000mm x 4000mm, 2000mm x 6000mm
2500mm x 4000mm, 3000mm x 6000mm
We also can customize the machine size upon customers' request
Compatible with 5 Axis cutting head


PRISTINE FINISHES ARE OUR PROMISE. Our industry-standard range can slice through almost any material from stone, wood, glass, fibre and other composites. All machines include a user-friendly and simple interface for programming and are supplied by our friendly team who are more than happy to help.

We are a waterjet cutting system manufacturer with 20 years experiences. So we provide reliable waterjet cutting systems with factory price. Moreover, we will provide spare parts service and maintenance from NSW.

A stand waterjet cutting system includes:

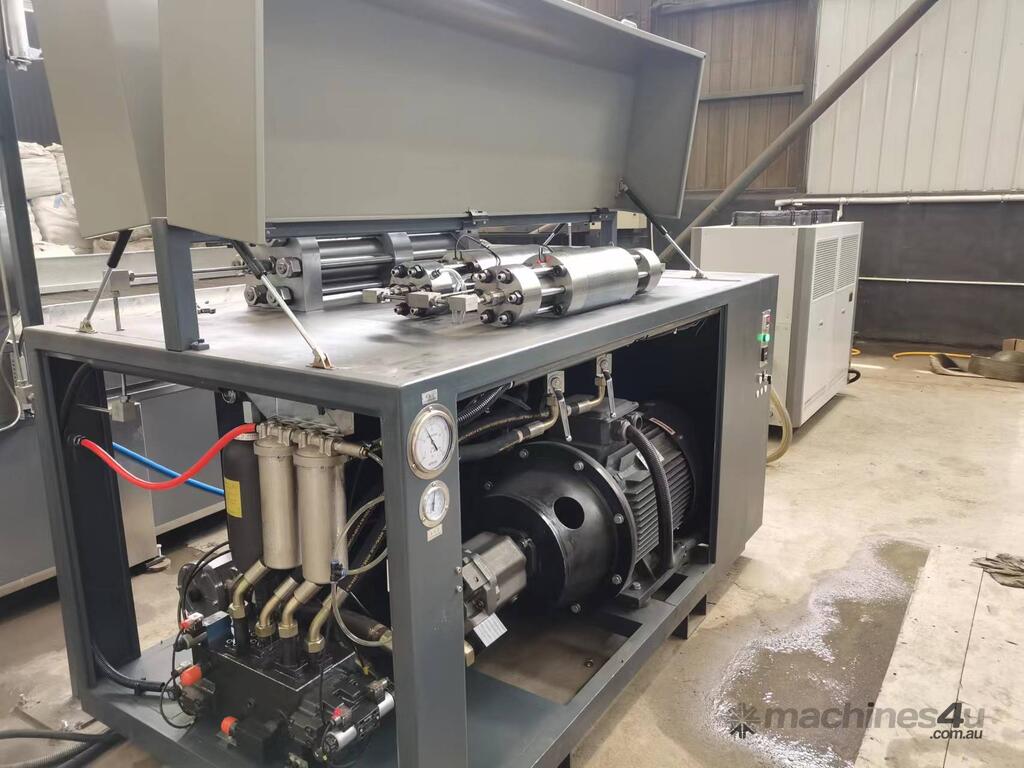

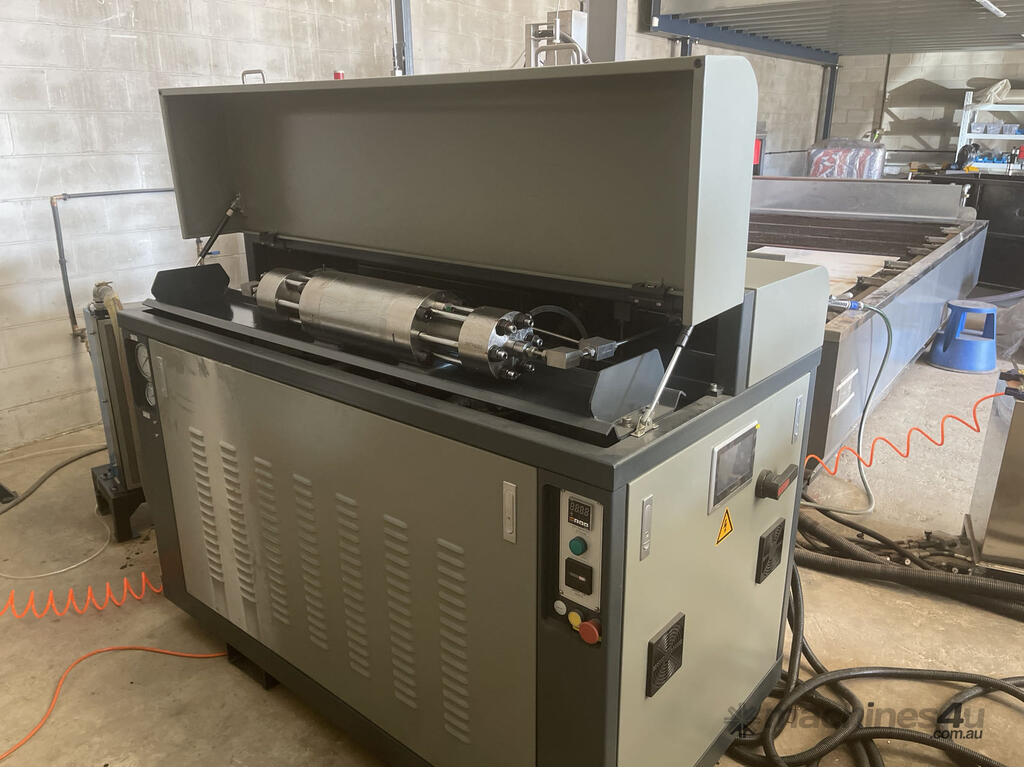

1. Intensifier Pump
Max. Pressure: 420 Mpa (60,000 psi)
Working Pressure: 320 Mpa
2 stages water filter
Oil filters equipped.
Attenuator capacity: 0.86L
Intensifier manufacturer: ER Technology (Seattle, USA)

2. Machine Frame
a. Cantilever Style:
One base beam with one flyer beam sit on it.
Flyer beam has to be shorter than 2 metres.
Easy to load materials.

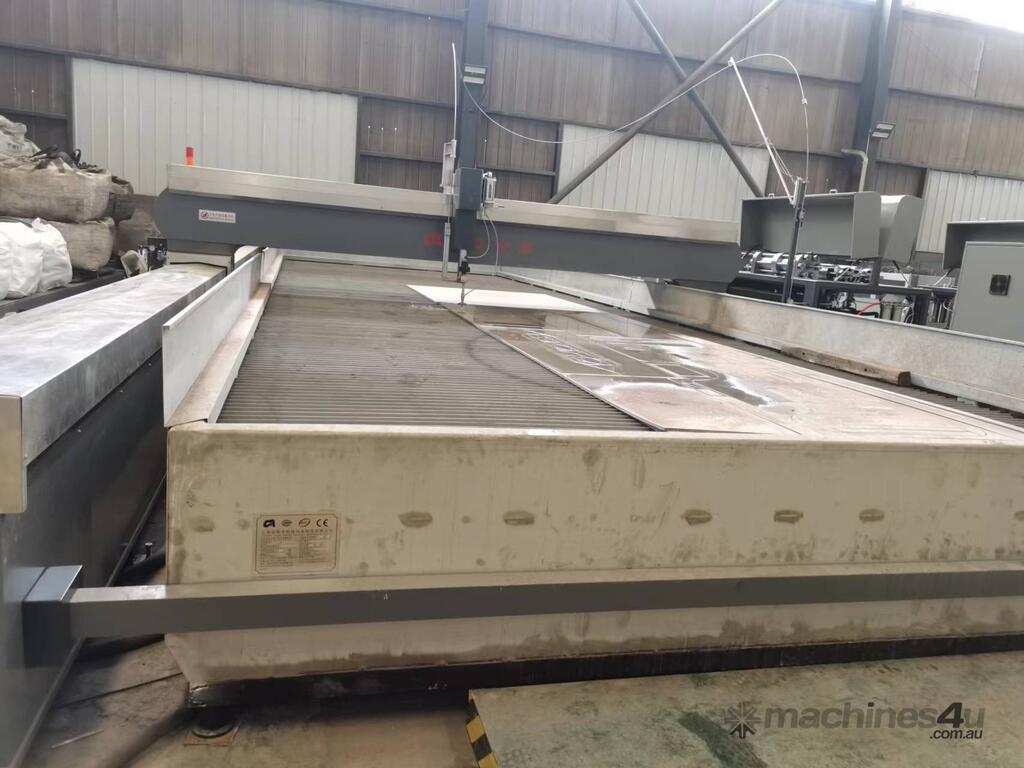

b. Gantry Style:
One bridge beam sit on two base beams.
Suitable for all table sizes.
c. Integrated Style:
Suitable for small factory.

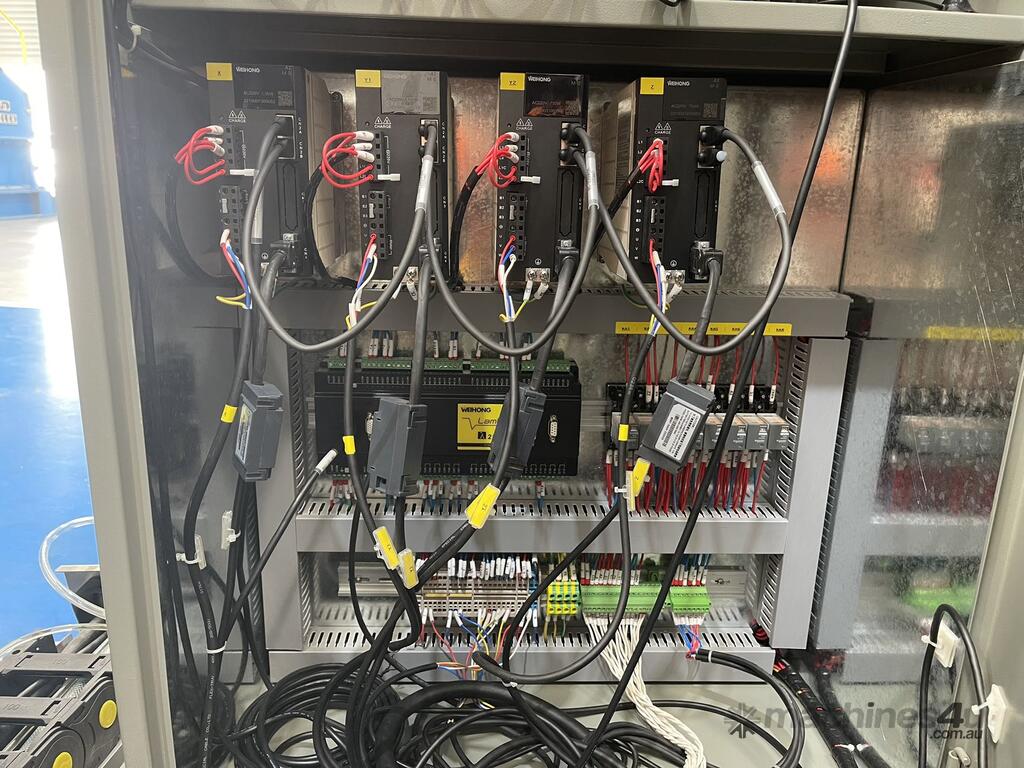

3. Controlling System
Choose from ESA(Italy) or NcStudio (China)
Panasonic servo system
Remote control available

4. Garnet System
Volume: 200 kg

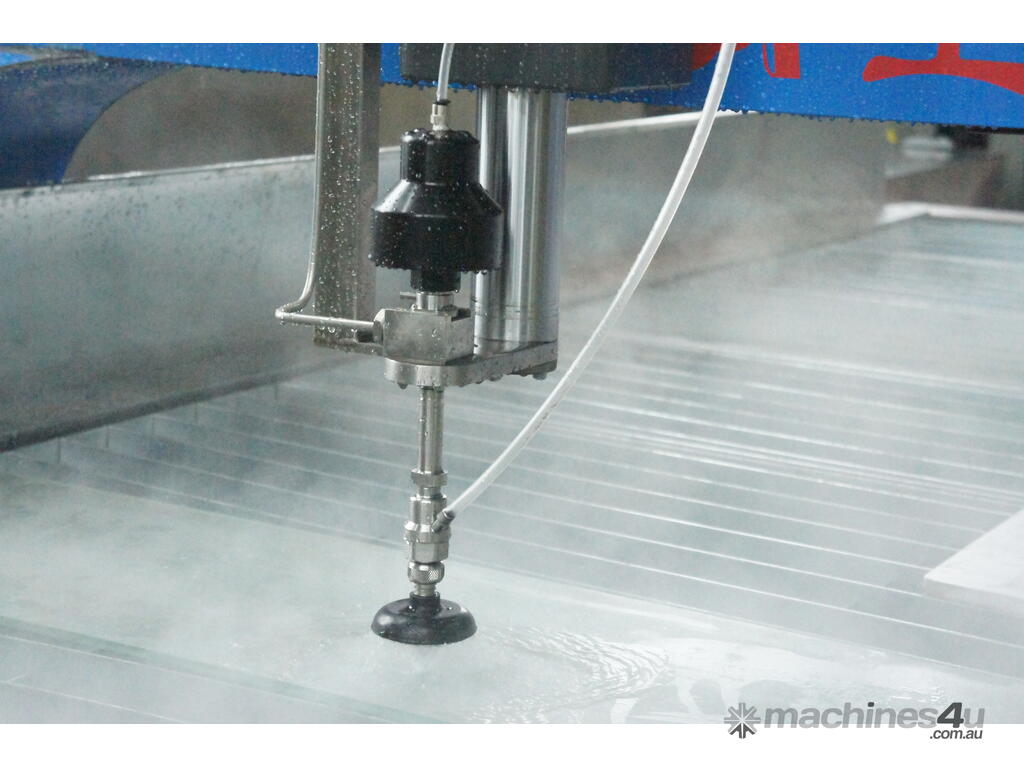

5. Cutting Head
Durable on/off valve repair kit.
Compatible for 7.14mm mixing tube

Optional:
1. Lifting platform
2. Cooling System
a. oil chiller
b. fan chiller
c. water tower
3. 5 axis AC cutting head
4. Sludge Removal System
