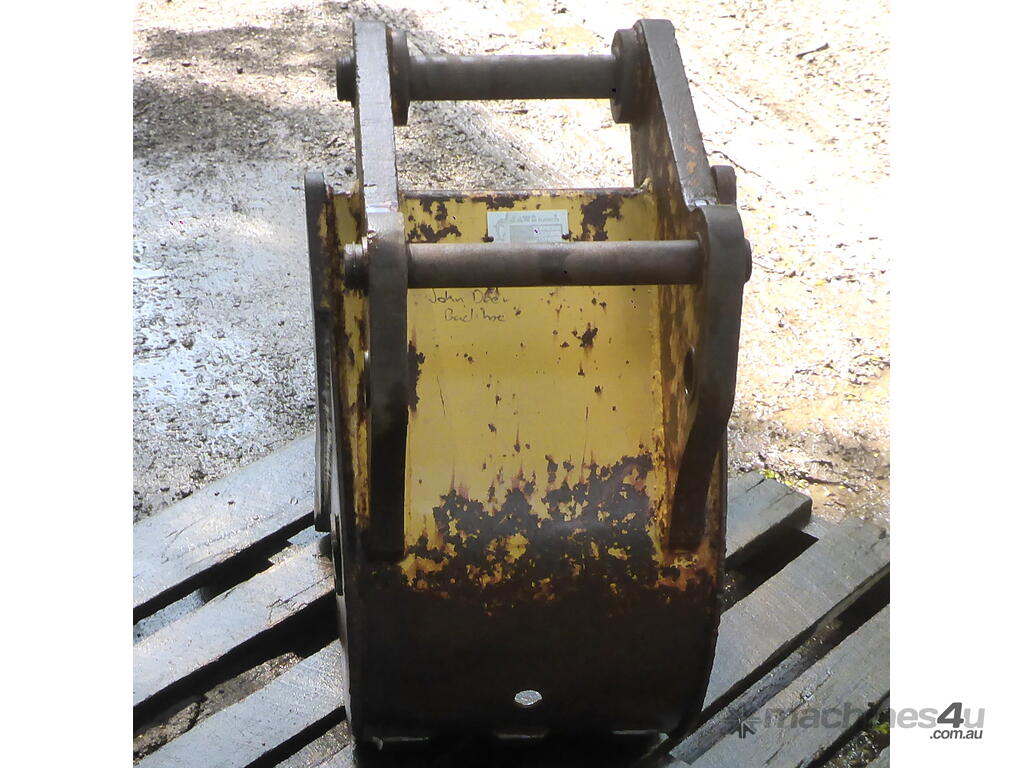

3-7 ton (45, 38mm pin) 450mm Jaws Excavator & Backhoe GP Digging & Trenching Bucket

Used 450mm Backhoe & Excavator GP Digging & Trenching Bucket suit 3-7 Ton machine. Condition is used but there is still plenty of life left.

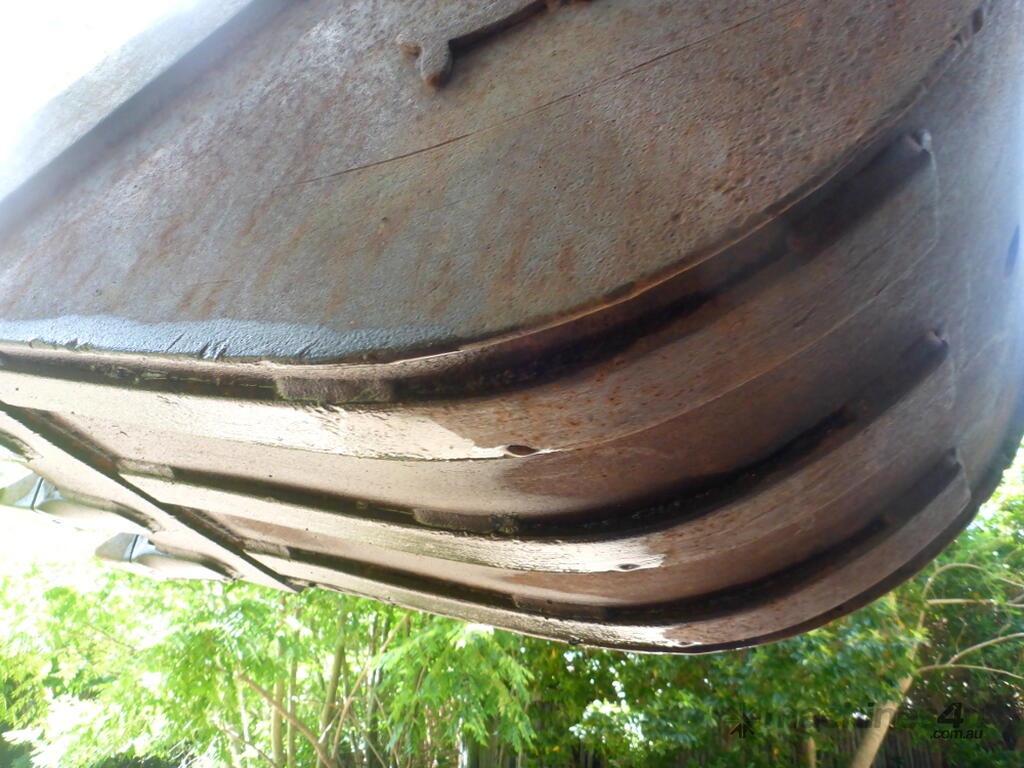

This is a good solid bucket. The Headstock Ears are 32mm thick! Has tapered sides so mud slides out easy and minimises ground resistance. There is also extra wear strips welded underneath for durability (see pic# 10).

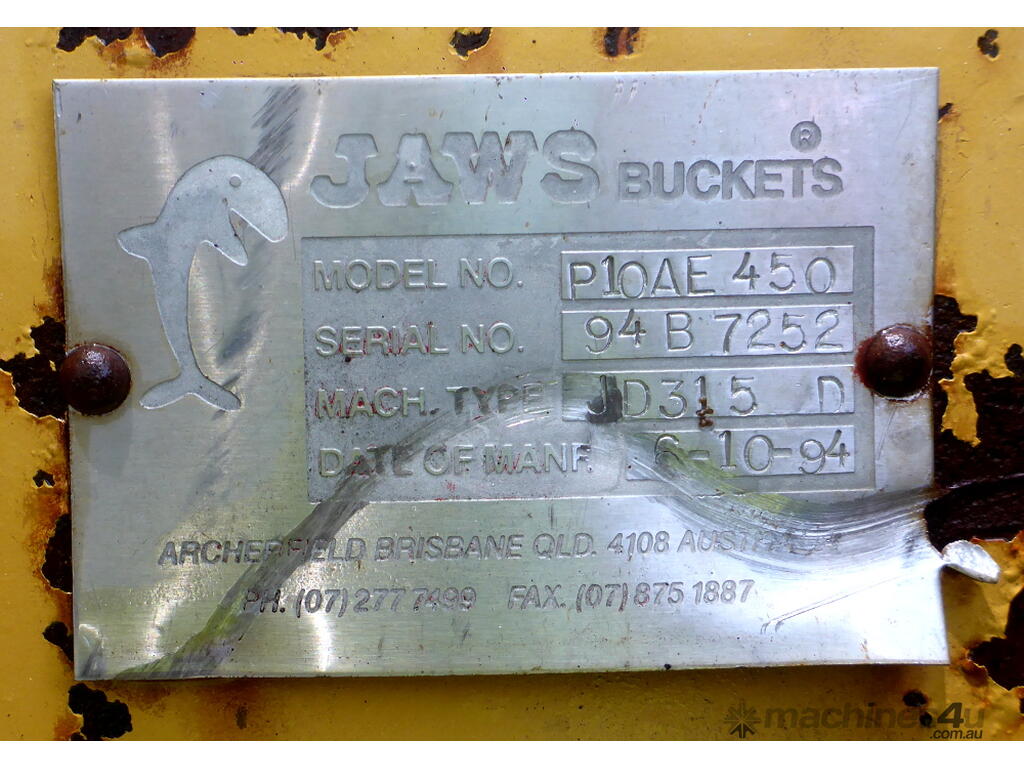

Quality Bucket Made in Australia by Jaws.

Current Headstock configuration:
Front Pin: 45mm, but it is sitting in a 57mm sleave so these could be bored out or removed if you want to fit a larger Pin.
Rear Upper Pin & Rear Lower Pin: 38mm, but both have a 50mm sleave fitted so could be removed if you want to fit a larger Pin.
Between the Ears: Front Pin: 215mm Between the inside Ear Bosses (which can be shaved back up to 258mm between the Ear Plates if you need more inside width for your hitch).
Between the Ears: Rear Pins: 258mm Between the Ear Plates.
Pin Center to Pin Center: Front Pin to Rear Upper Pin: 355mm.
Pin Center to Pin Center: Front Pin to Rear Lower Pin: 403mm.

Should fit: John Deere 315D and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Shipping dimensions: 445mm Wide, 870mm Deep, 770mm High. Weight: 144kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
