3 Axis CNC Centre for Stone and Glass

Denver by Wood Tech. Aus Owned and Operated. Local Service and Parts in 5 Locations. Download Brochure Now.

The Denver Quota Stone is a multifunctional CNC working centre with 3 digital interpolated axes. All axes motion is powered by brushless motors with accuracy ensured by prismatic steel guideways.

Highlights
- Suitable for routing, shaping, profiling, hollowing, tapering, embossing and more
- Optional with fourth axis
- Denver Quota for Glass available

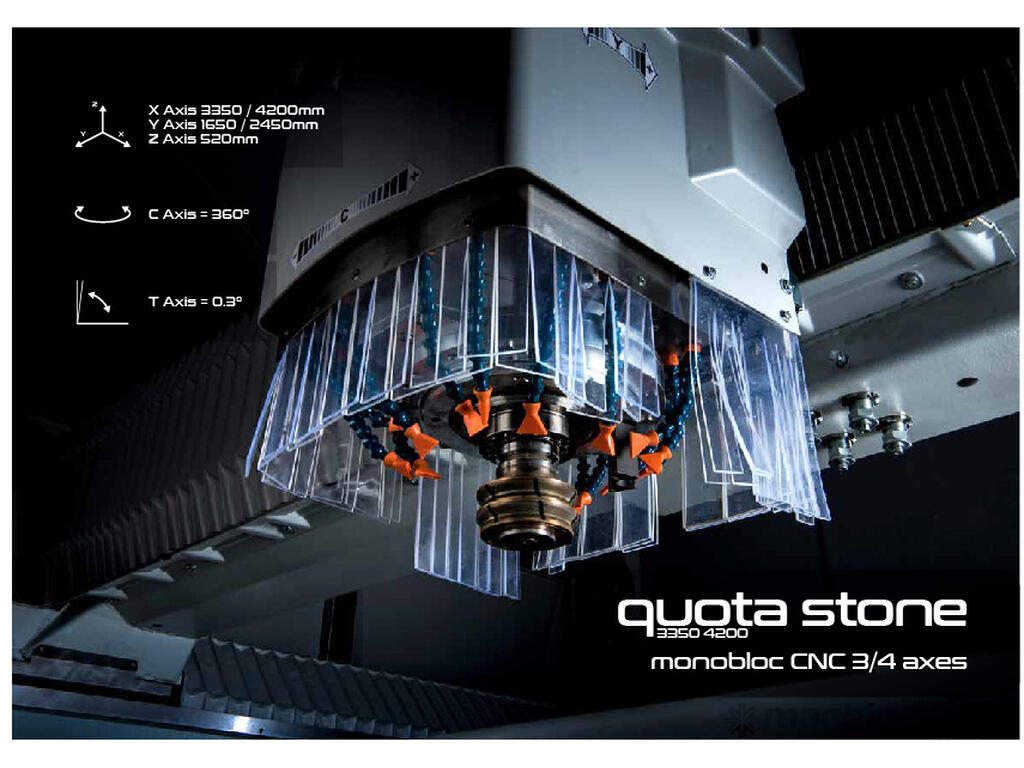

QUOTA Stone is a multifunctional CNC working center with 3 digital interpolated axes (4 axes opt).
It features a powerful kW 10,2 (S6) air-cooled electrospindle specifically designed for outstanding lifetime.
All axes motion is powered by brushless motors with accuracy ensured by prismatic steel guideways with 4 revolving balls pads protected by bellows. QUOTA Stone, thanks to its advanced ergonomics, features top class working area/machine footprint ratio allowing machining of mm. 3250 x 1550 sheets (with mm.100 tool diameter) in an extremely reduced space. The machine is driven by a CNC OSAI control unit with axes control digital technology and run by a worldwide renowned user-friendly 2D and 3D (Option) software interface.


Specs
Table Size: 4200 x 2450 mm
Speed (X/Y/Z): 50/25/15 m/min
Spindle: 15 HP
Automatic Tool Change Positions: 28
