3 Roll MG Italian Plate Rolling Machines

CNC MACHINERY SALES AUSTRALIA PRESENTS - New MG Italian 3 Roll Hydraulic Plate Rolling Machines ISO 9001 Certified

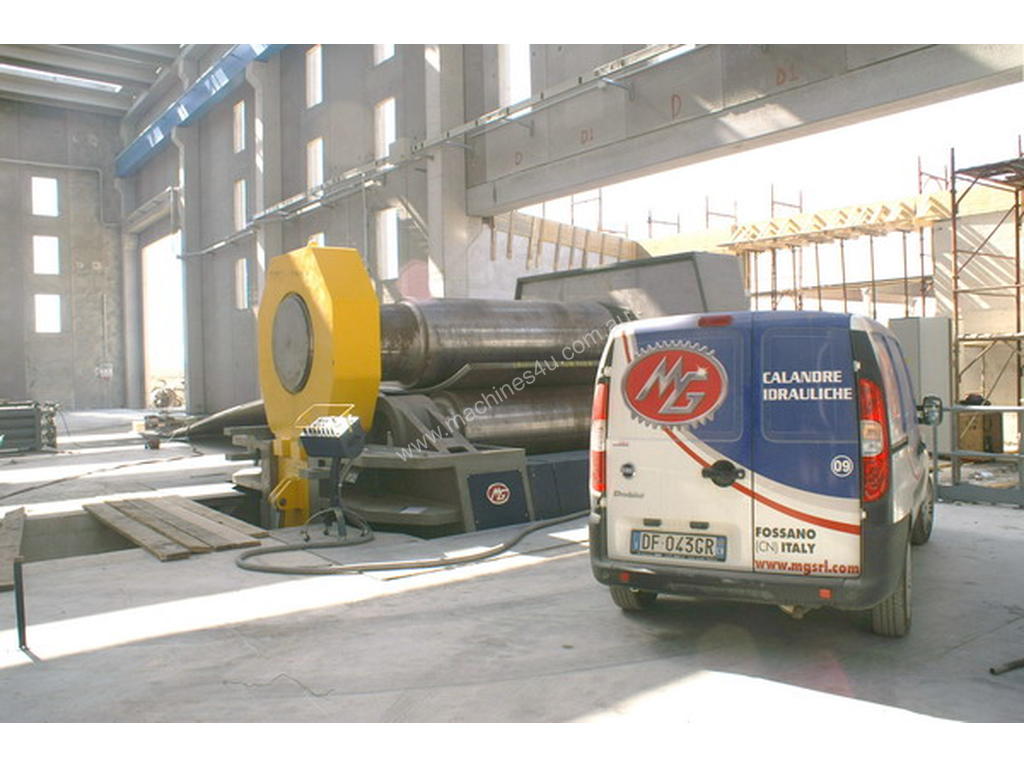

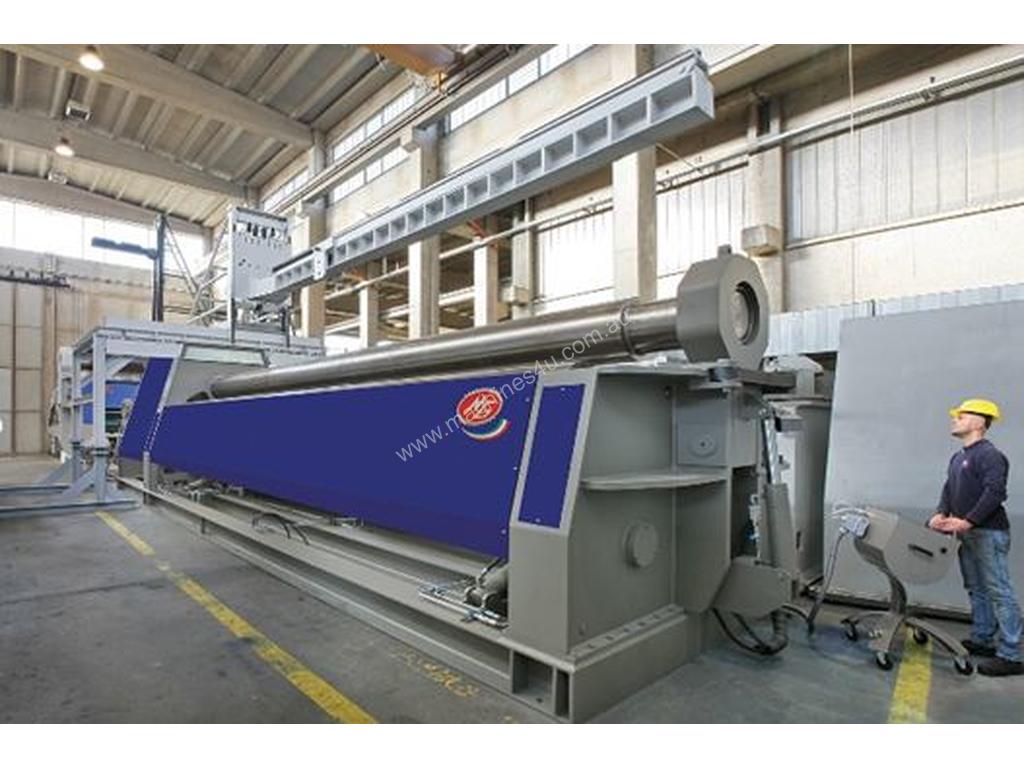

The 3 roll hydraulic plate rolling machines from MG of Italy offer superior levels of technology and performance providing fabricators with an accurate, efficient and reliable machine.

Being an all-welded steel frame, the body of the machine is extremely sturdy which enables the rolls to accommodate bending forces safely. This also eliminates the need for special foundation requirements for most installations.

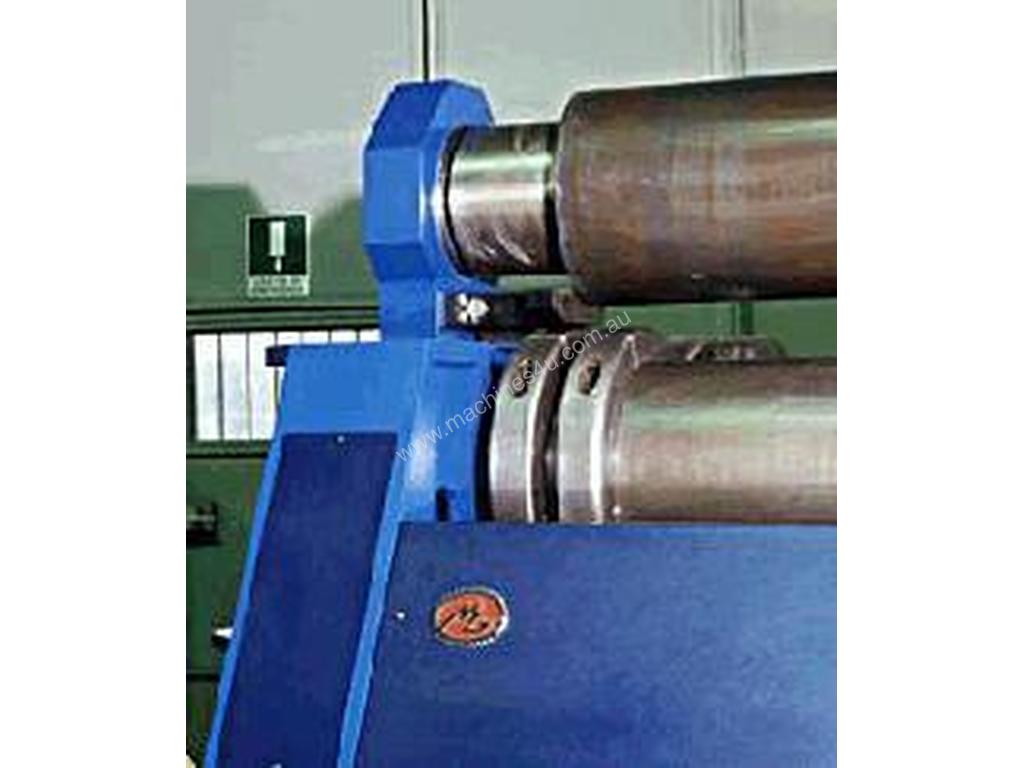

The forged steel rolls are of the highest quality, further more the rolls are heated and quenched to provide surface hardness of 55 to 60 HRC and then they are polished, thus extending the life of the rolls and improving the finish quality of the work piece. The taper or barrel profile of the rolls can be customized to suit specific applications.

Maximum torque is made available to the rolls via direct coupling to the hydraulic motor and planetary gearbox. With no secondary transmission efficiencies are improved and maintenance eliminated.

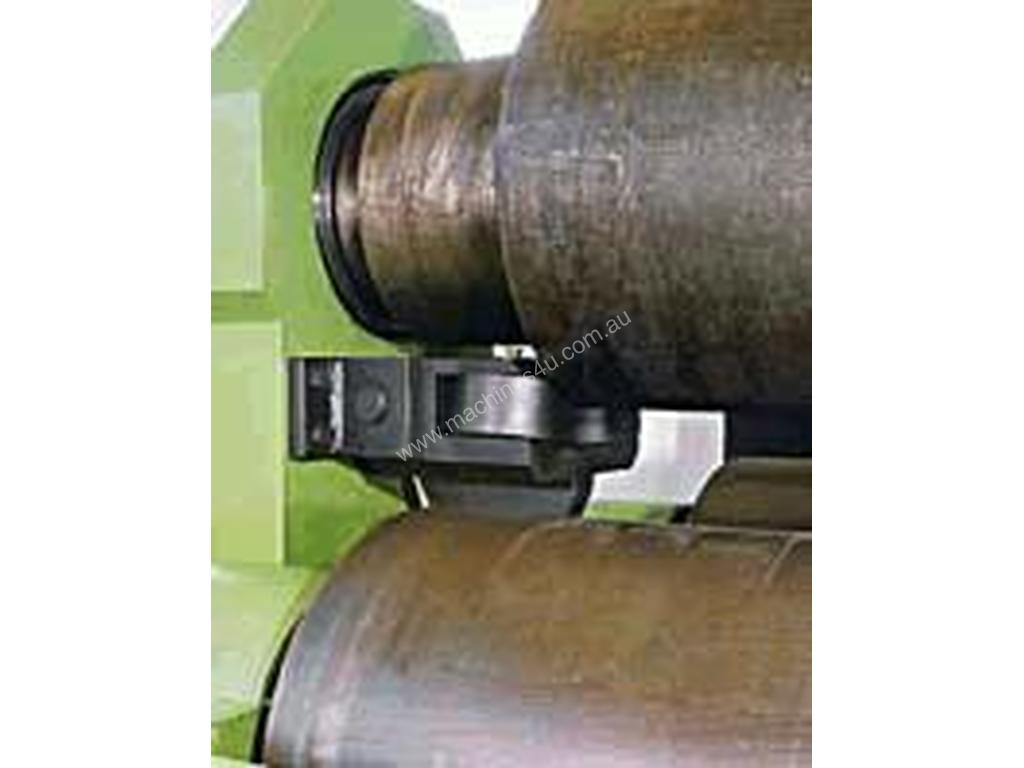

The rolls are mounted on quality massive double crowned floating barrel bearings, these bearings are pre-greased and sealed and so require no service.

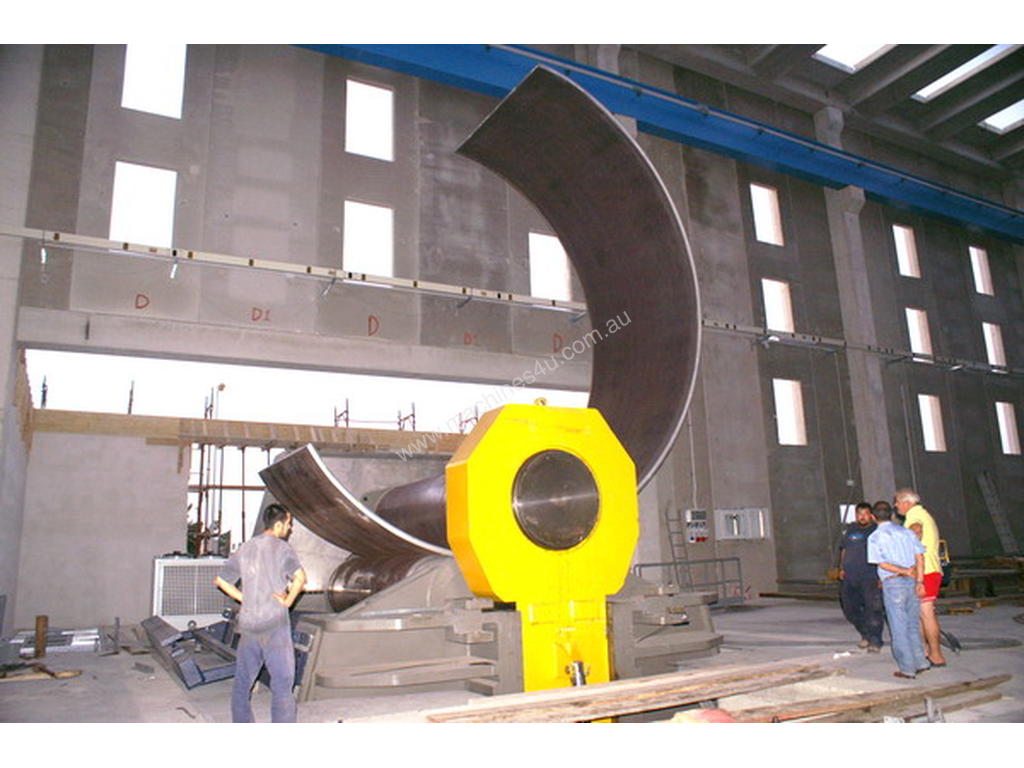

The exclusive planetary swing guide of the lateral rolls allows approximately 50% more area of the plate to be under bend pressure during rolling. This means the MG machines can roll plate to within 1.1 x the top roll diameter, a 30% advantage over our competitors machines.

The components within the hydraulic and electrical system are of internationally recognized manufacture to ensure reliability and supply of parts for service through out the machines working life.

MG was established in 1959 in Fossano Italy with a major focus on industrial automation leading to the development Plate Rolls in 1981. MG now stands as one of the largest European manufacturers of Plate Rolling machines and their continual development program ensures that customers who choose MG machines have the latest technology and best possible quality.

The MG high-build quality, level of specification and competitive price ensure that the MG Plate Roll Machines are suitable for all sectors of the sheetmetal and fabrication industry.

STANDARD EQUIPMENT
Three roll, double initial pinch design
Robust all steel construction
Three rolls driven via hydraulic motors and gear-box with direct coupling
All rolls mounted on double crowned floating sealed barrel bearings
Hardened rolls to 50 to 55 HRC with polished finish
Roll balance and parallelism via massive torsion bars

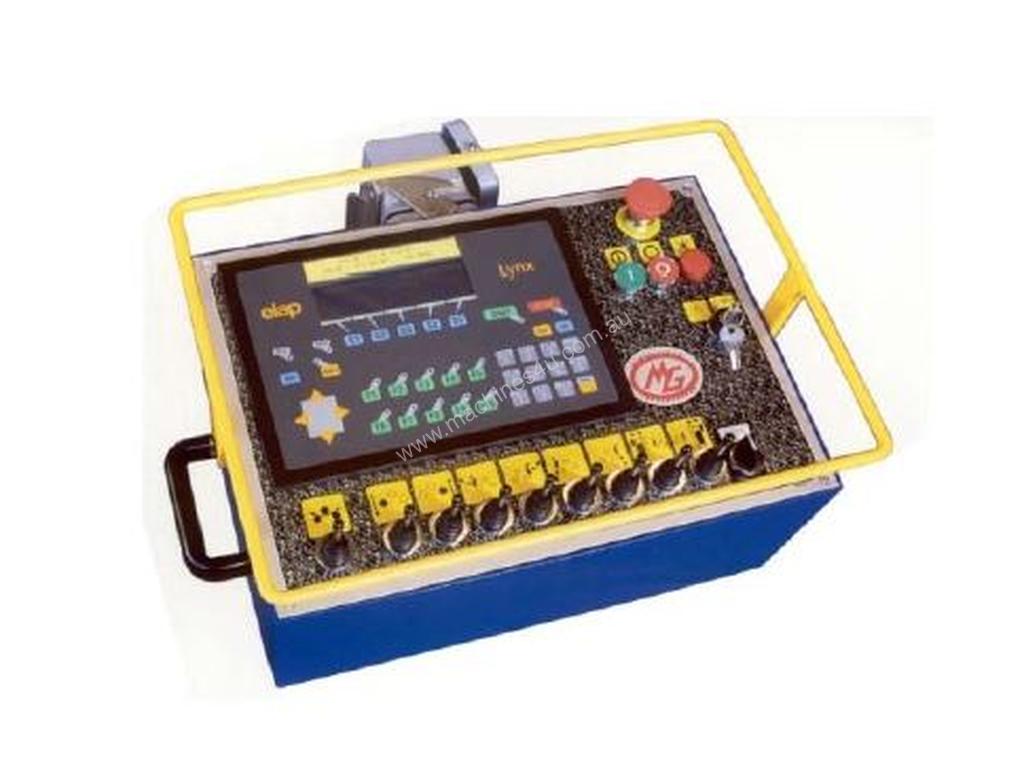

Operations via lever distributors on a swinging control panel
Infinite speed control over all movements
Lateral roll movements via planetary guides
Lateral roll position given by two electronic digital read outs
Hydraulic drop end (low profile)
Lateral rolls with indicator line for plate alignment
Cone rolling device
Safety wire around machine base with trip switch
Safety valves for lateral roll release

OPTIONAL EQUIPMENT
Sectional steel rolling device
Additional digital read outs for roll positioning

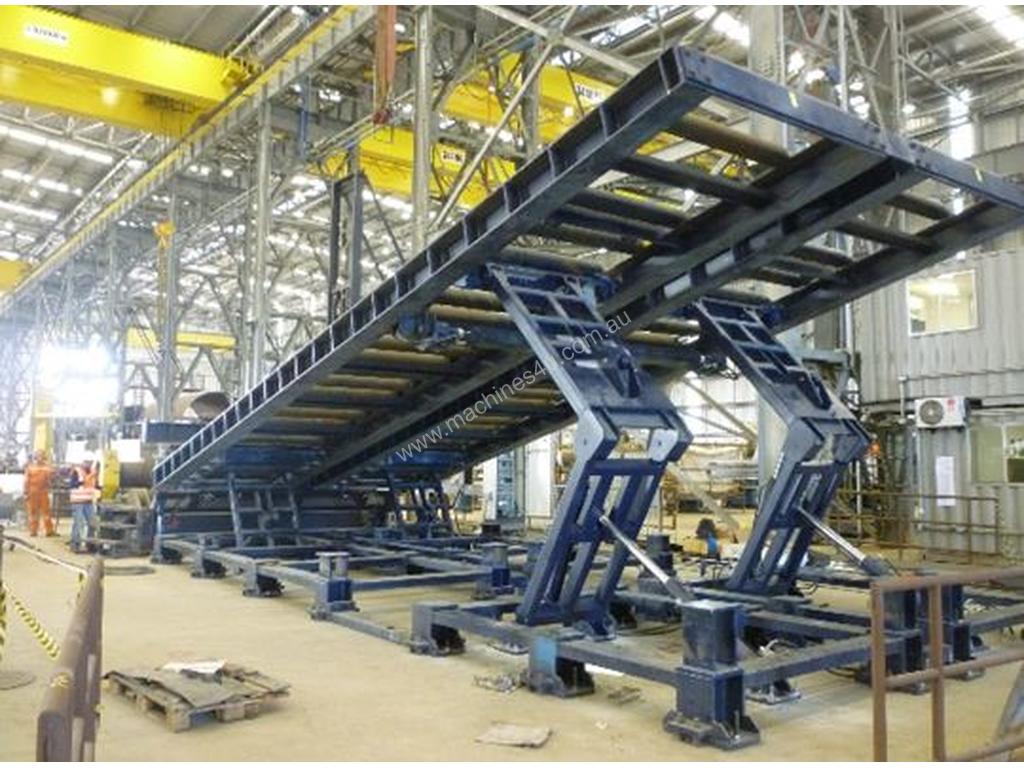

Central vertical plate support with hydraulic drive
Single lateral plate support with hydraulic drive
Radius measuring device
CNC Windows Pro Graphical CNC control of all axes

Delivery, commissioning, training and ongoing support Australia wide.

Please call for additional information.
